Samsung HW-N650 Instrucciones de instalación

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

HW-N650

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 4

03 Connecting the Soundbar 5

Connecting Electrical Power ------------------------- 5

Connecting the Soundbar to the Subwoofer ------------------------- 6

– Automatic connection between the Subwoofer and the Soundbar ------------------------- 6

– Manually connecting the Subwoofer if automatic connection fails ------------------------- 7

Connecting the SWA-8500S to a Soundbar (Sold Separately) ------------------------- 8

04 Connecting to your TV 10

Method 1. Connecting with a Cable ------------------------- 10

– Connecting using an Optical Cable ------------------------- 10

– Connecting a TV using an HDMI Cable ------------------------- 11

Method 2. Connecting Wirelessly ------------------------- 12

– Connecting a TV via Bluetooth ------------------------- 12

05 Connecting an External Device 14

Connecting using an Optical or Analogue Audio (AUX) Cable ------------------------- 14

Connecting using an HDMI Cable ------------------------- 15

06 Connecting a USB Storage Device 16

ENG - v

07 Connecting a Mobile Device 18

Connecting via Bluetooth ------------------------- 18

Using the Samsung Audio Remote App ------------------------- 21

– Installing the Samsung Audio Remote App ------------------------- 21

– Launching the Samsung Audio Remote App ------------------------- 21

08 Using the Remote Control 22

How to Use the Remote Control ------------------------- 22

Adjusting the Soundbar volume with a TV remote control ------------------------- 25

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 26

Output specications for the different sound effect modes ------------------------- 26

09 Installing the Wall Mount 27

Installation Precautions ------------------------- 27

Wallmount Components ------------------------- 27

10 Software Update 29

Updating Procedure ------------------------- 30

If UPDATE is not displayed ------------------------- 30

11 Troubleshooting 31

12 Licence 32

13 Open Source Licence Notice 32

14 Important Notes About Service 32

15 SpecicationsandGuide 33

Specications ------------------------- 33

ENG - 2

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Subwoofer Remote Control / Batteries

1 2 3

Power Cord

(Subwoofer)

AC/DC Adapter

(Main Unit)

Power Cord

(AC/DC Adapter)

Optical Cable

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label : Bottom of the Soundbar Main Unit)

•The power components are labelled (1, 2, 3). For more information about power connections,

see page 5.

•For Soundbar wall mounting components, see page 27.

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

Front Panel / Right Side Panel of the Soundbar

Position the product so that the

SAMSUNG logo is located on the top.

󱂓

Right Side of the Soundbar

󱂔 󱂕 󱂖

󱂓Display

Displays the product’s status and current mode.

󱂔

+/- (Volume) Button

Adjusts the volume.

•When adjusted, the volume level appears on the Soundbar’s front display.

󱂕

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

ARC (HDMI OUT) input D.IN TV ARC (Auto conversion)

AUX input AUX

HDMI input HDMI

BLUETOOTH mode BT

USB mode USB

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

󱂖(Power) Button

Turns the power on and off.

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio

Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

ENG - 4

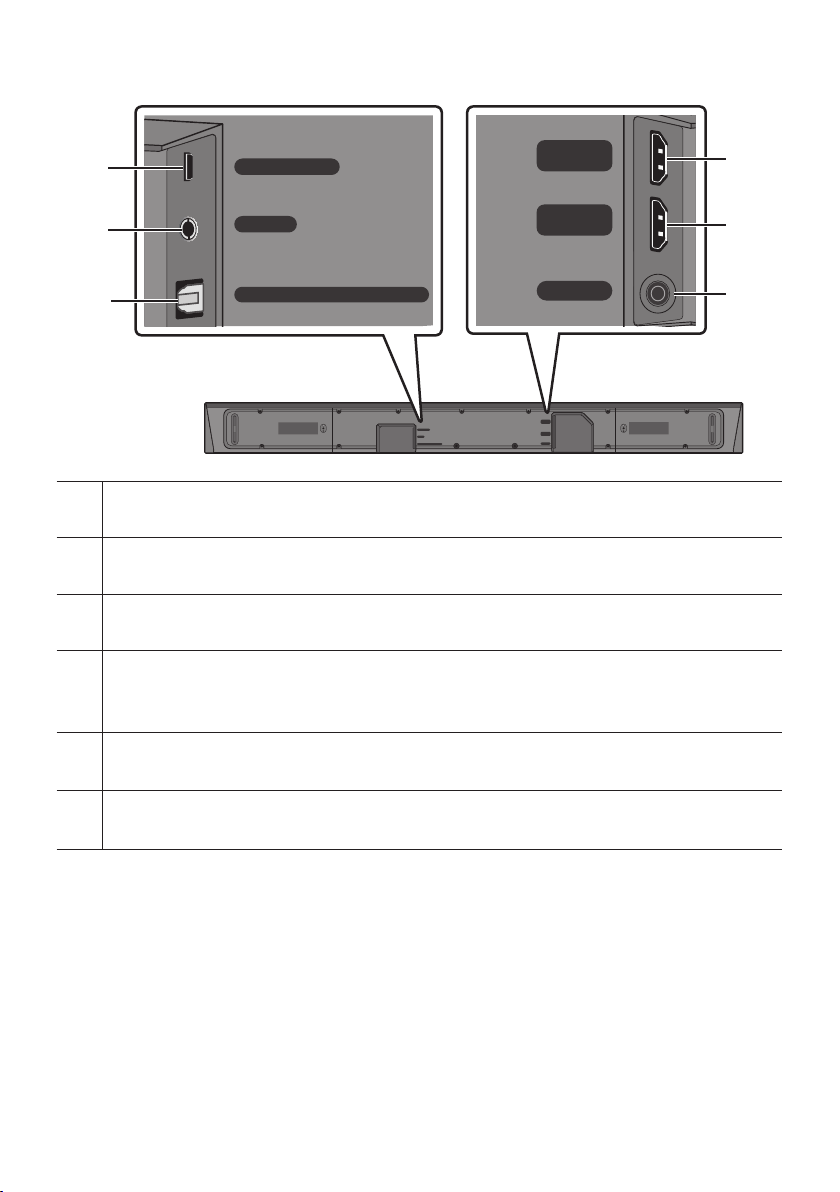

Bottom Panel of the Soundbar

HDMI IN

HDMI OUT

(TV-ARC)

USB (5V 0.5A)

AUX IN

DIGITAL AUDIO IN (OPTICAL)

DC 24V

HDMI OUT

(TV-ARC)

HDMI IN

DC 24V

USB (5V 0.5A)

AUX IN

DIGITAL AUDIO IN (OPTICAL)

󱂓

󱂔

󱂕

󱂖

󱂗

󱂘

󱂓USB (5V 0.5A)

Connect a USB device here to play music les on the USB device through the Soundbar.

󱂔AUX IN

Connect to the Analogue output of an external device.

󱂕DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂖

HDMI IN

Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

󱂗HDMI OUT (TV-ARC)

Connect to the HDMI (ARC) jack on a TV.

󱂘DC 24V (Power Supply In)

Connect the AC/DC power adapter.

•When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 5

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components (1, 2

, 3

) to connect the Subwoofer and Soundbar to an electrical outlet in

the following order:

1 Connect the power cord to the Subwoofer.

2 Connect the power output cable to the power adapter, and then to the Soundbar.

Connect the power cord to a wall socket.

See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label : Bottom of the Soundbar Main Unit)

POWER

Rear of Subwoofer

1Power Cord

Connecting

Electrical Power

HDMI OUT

(TV-ARC)

DC 24V

HDMI IN

DC 24V

Bottom of the

Soundbar Main Unit

2 AC/DC Adapter

3Power Cord

Connecting

Electrical Power

•Make sure to rest the AC/DC Adapter at on a table or the oor. If you place the AC/DC Adapter so

that it is hanging with the AC cord input facing upwards, water or other foreign substances could

enter the Adapter and cause the Adapter to malfunction.

ENG - 6

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the

subwoofer is automatically connected to the Soundbar.

•When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution

Blue

On Successfully connected

(normal operation) -

Blinking Recovering the connection

Check if the power cable attached to the

main Soundbar unit is connected properly

or wait about 5 minutes. If blinking persists,

try manually connecting the subwoofer.

See page 7.

Red On

Standby (with the Soundbar

main unit turned off)

Check if the power cable attached to the

main Soundbar unit is connected properly.

Connection failed Connect again. See the instructions for

manual connection on page 7.

Red and

blue Blinking Malfunction See the contact information for the

Samsung Service Centre in this manual.

Otros manuales para HW-N650

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung HW-B67C Instrucciones de instalación

Samsung

Samsung HW-Q700A Instrucciones de instalación

Samsung

Samsung S-2400 Manual de usuario

Samsung

Samsung HW-S50A Instrucciones de instalación

Samsung

Samsung HW-K950/ZA Manual de usuario

Samsung

Samsung HW-A450 Instrucciones de instalación

Samsung

Samsung HW-Q900A Manual de usuario

Samsung

Samsung Harman Kardon HWQ7CR/ZA Instrucciones de instalación

Samsung

Samsung HW-C400 Instrucciones de instalación

Samsung

Samsung HW-R550 Instrucciones de instalación

Samsung

Samsung HW-H355 Manual de usuario

Samsung

Samsung Crystal Surround Air Track HW-F750 Manual de usuario

Samsung

Samsung HW-Q900A Manual de usuario

Samsung

Samsung HW-N950 Instrucciones de instalación

Samsung

Samsung HW-T650 Instrucciones de instalación

Samsung

Samsung HW-F350 Manual de usuario

Samsung

Samsung HW-M4500 Instrucciones de instalación

Samsung

Samsung HW-A470 Instrucciones de instalación

Samsung

Samsung HW-MS750 Manual de usuario

Samsung

Samsung HW-A550 Instrucciones de instalación

Samsung

Samsung HW-Q900C Manual de usuario

Samsung

Samsung HW-N300 Manual de usuario

Samsung

Samsung HW-F751 Manual de usuario

Samsung

Samsung MX-T50 Instrucciones de instalación

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
