Samsung SID-46C Manual de usuario

P/No. : Z6806-0671-01B

VAN 06. 07

www.samsungtechwin.com

www.samsungcctv.com

•SAMSUNG TECHWIN CO., LTD.

145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si,

Gyeonggi-do 462-703, Korea

TEL : +82-31-740-8137~8139 FAX : +82-31-740-8145

•SAMSUNG OPTO-ELECTRONICS UK, LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business

Park Chertsey, Surrey KT16 OPS

TEL : +44-1932-45-5308 FAX : +44-1932-45-5325

•TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD.

7 Pingchang Rd, Nankai Dist. Tianjin 300190, P.R China

TEL : +86-22-2761-4724(33821) FAX : +86-22-2761-6514

SALES NETWORK

Thank you for purchasing a SAMSUNG CCD CAMERA.

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

ENGLISH

High Resolution Day & Night Dome Camera SID-45C/46C User’s Manual

Compact

&Clear

This installation should be made by a qualified service person and

should conform to all local codes.

The lightning flash with an arrowhead symbol, within an equilateral triangle is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

INFORMATION-This equipment has been tested and found to comply with limits

for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

WARNING -Changes or modifications not expressly approved by the manufacturer

could void the user’s authority to operate the equipment.

WARNING : To prevent electric shock and risk of fire hazards:

Do NOT use power sources other than that specified.

Do NOT expose this appliance to rain or moisture.

Before operating the camera, confirm the camera model and proper input power

voltage. In order that you can understand this manual thoroughly, we'll introduce

our model description.

SID-45C/46C Series

• NTSC models • PAL models

SID-45CN SID-45CP

SID-46CN SID-46CP

Model Description

• SID-4XCX

• LENS TYPE

45C: f=3.7mm, F2.0, 92˚

46C: f=8.0mm, F2.0, 40˚

• SIGNAL SYSTEM

N NTSC Model

P PAL Model

Signal system

Lens Type

Features

Horizontal Resolution 530 TV Lines

Clear image quility has been achieved by

employing a CCD with 410,000 pixels(NTSC),

470,000 pixels(PAL) and optimized WINNER3

DSP CHIP which provides a horizontal resolution

of 530 TV lines.

Electronic DAY & NIGHT

This camera has a function that electronically

selects the mode that is appropriate for daytime

or night-time conditions. The COLOR mode

operates in daytime conditions to provide

optimum colors, and BW mode operates in

night-time conditions to enhance the definition

of the image.

PRIVACY Function

The PRIVACY function conceals the areas

you do not wish to appear on the screen.

Pan and Tilt

Pan and tilt are available after installing

camera.

High Sensitivity

The built-in high sensitivity COLOR CCD

enables a clear image even in 0.002Lux

(Sens-up) or lower illumination.

SSNR (Samsung Super Noise

Reduction)

By using built-in SSNR function manufactured

by SAMSUNG TECHWIN, the amount of low

illuminance noise has been significantly

reduced, and the signal-to-noise ratio (S/N)

as well as horizontal resolution have been

improved, resulting in a clear and sharp

image display even in the dark.

Controlled by OSD Menu

The camera can be controlled by selecting

text displayed on the monitor screen.

Additional Functions

SENS-UP, MOTION DETECTION, MIRROR,

SHARPNESS and SYNC(INT/LL) functions

are also available.

Warnings & Cautions

This information is provided to ensure your safety and to prevent any losses, financial or

otherwise. Please read it carefully and use the product accordingly.

Warning/Attention/Special Mark Messages

Indicates “Never Allowed.”

Indicates “No Disassembling.”

Indicates Must Observe.

Ignoring this information may result in material loss and/or serious

personal injuries including death.

Samsung Techwin cares for the environment at all product manufacturing

stages to preserve the environment, and is taking a number of steps to

provide customers with more environment-friendly products.The Eco mark

represents Samsung Techwin s will to create environment-friendly products,

and indicates that the product satisfies the EU RoHS Directive.

Front

Back

Installing Camera

Connecting To Monitor

Connecting To Power

Panning & Tilting Control

Precautions

Composition

Name and Function of Each Part

Setting

• SHUTTER (condition and speed control)

• WHITE BALANCE control

• BACKLIGHT (Backlight Compensation)

• AGC (Auto Gain Control)

• SSNR (Samsung Super Noise reduction)

• SPECIAL

Camera Operation

Installation 32

Troubleshooting

Specification

Dimension

Contents

COLORDOMECAMERACOLORDOMECAMERA User’s ManualUser’s Manual

Do not install the camera in

extreme temperature conditions.

Only use the camera under conditions

where temperatures are between -10˚C

and +50˚C. Be especially careful to provide

ventilation when operating under high

temperatures.

Do not install or use the camera in an

environment where the humidity is high.

Itcancausetheimage quality tobe poor.

Do not install the camera under

unstable lighting conditions.

Do not disassemble the camera.

Severe lighting change or flicker can

cause the camera to work improperly.

Never use the camera close to a

gas or oil leak.

It can cause malfunctions to occur.

Thereareno user-serviceablepartsinside it.

Do not touch the front lens of

the camera.

It is one of the most important parts of

the camera. Be careful not to be stained

by fingerprint.

Never keep the camera face to

strong light directly.

It can damage the CCD.

Do not expose the camera to

rain or spill beverage on it.

If it gets wet, wipe it dry immediately.

Liquids can contain minerals that corrode

the electronic components.

Do not drop the camera or

subject them to physical shocks.

It can cause malfunctions to occur.

• If the camera is exposed to spotlight or object reflecting strong light, smear or

blooming may occur.

• Please check that the power satisfies the normal specification before connecting

the camera.

Notes

Precautions

COLORDOMECAMERACOLORDOMECAMERA User’s ManualUser’s Manual

1110

FRONT

Composition

Name and Function of Each Part

1. HIGH RESOLUTION DAY & NIGHT

DOME CAMERA SID-45C/46C

2. Instruction Manual

4. Bracket

3. M3 Tapping Screws 4EA Pan Base

You can rotate the lens from 340˚

PCB Front Cover

Tilt Base

You can adjust up and down the camera(30°~90°).

Funtion Setting Button

SETUP button : Used for the menu display.

Conform the status of the selected function.

LEFT& RIGHT button: Used when changing item values,by movingthe cursor

to the left or right on the menu screen.

UP& DOWN button: Used for selecting items by moving the cursor Up or

down on the menu screen.

COLORDOMECAMERACOLORDOMECAMERA User’s ManualUser’s Manual

1312

BACK

Name and Function of Each Part

Groove for fixing camera

Power input jack

BNC Jack

Cable guide hole

When the camera is installing on the ceiling, put the POWER & BNC JACK into

the cable guide hole.

Installation

Installing Camera

1.Fix the Bracket to suitable position where the camera will be installed.

2.After inserting the Bracket pin to camera hole, rotate the camera right.

3.After adjusting the camera, cover the Dome-Cover.

BRACKET

Screw

BRACKET PIN

Anarrow for

installingdirection

BRACKET PIN

Hole

Screw

Hole

•If you want to separate the Dome-Cover, Position

the Hook between printed characters ‘SSID-45C

/46C’ (model name) following the illustration.

HOOK

Please locate an arrow for installing direction that you wish to observe Area and then

fix four screws.

Notes

COLORDOMECAMERA User’s Manual

Installation

Please connect the video output terminal located on the back of the camera to the

monitor.

Connecting to a Monitor

•Theconnection method variesdependingon the typeofmonitor and accessories.

Please refer to the user's manual for each instrument.

•Please turn off the power when connecting.

•Please select Hi-Z on the 75Ω/Hi-Z switch for the intermediate video TV set

and select 75Ωfor the Intermediate device as shown in the picture below.

Connecting to Power

Connect the adaptor to the power input connector as shown in the figure below.

The recommended adaptor specification for SID-45CN/CP, SID-46CN/CP is DC 12V,

500mA.

DOMECamera

Intermediate Monitor

BNC

DC Power Type (DC 12V, 500mA)

DOMECamera

Adaptor

PowerInput Connector

When the resistance value of copper wire is at [20°C(68°F)]

•As shown in the table above, voltage decreases as the wire gets longer.

Therefore use of an excessively long adaptor output line for connection to the

camera may affect the performance of the camera.

*Standard voltage for camera operation : DC 12V±10%

*There may be some deviation in voltage drop depending on the type of wire and the manufacturer.

Copper wire size (AWG)

#24(0.22mm2)#22(0.33mm2)#20(0.52mm2)#18(0.83mm2)

Resistance (Ω/ m) 0.078 0.050 0.030 0.018

Voltage Drop (V/m) 0.028 0.018 0.011 0.006

• Adaptor isn’t offer to accessory.

• Please check the polarity of the DC power source before connecting to power.

Notes

COLORDOMECAMERACOLORDOMECAMERA User’s ManualUser’s Manual

1716

Panning & Tilting Control

You can adjust the Panning and Tilting angle freely. (Panning angle: 0˚ to 340˚,

Tilting angle: 30˚~90˚)

1. Adjustment Panning angle:

Afterattaching the dome cameratoceiling, adjust thepanningangle for better

monitoring area by rotating the Pan Base.

The panning angle can be adjusted to 0˚ from 340˚ freely.

2. Adjustment Tilting angle:

After attaching the dome camera to ceiling, adjust the tilting angle for better

monitoring area by rotating the Tilt Base.

The tilting angle can be adjusted to 30˚ from 90˚ freely. (based the ceiling

surface)

•In case of adjusting the tilting, do not take the lens for preventing physical shocks.

Please take the Tilt Base.

•This dome camera is designed to installing on the cailing. In case of need to use

camera on the wall, because of the angel of attaching, the image can be turned

upside down. In this case, please installing the camera after manufacturing the

Bracket.

Notes

Installation

Tilt Base

Youcan adjust up and

downthe camera.

(30˚~90˚)

Pan Adjustment

Youcan rotate the lens

from0˚ to 340˚.

PANBASE

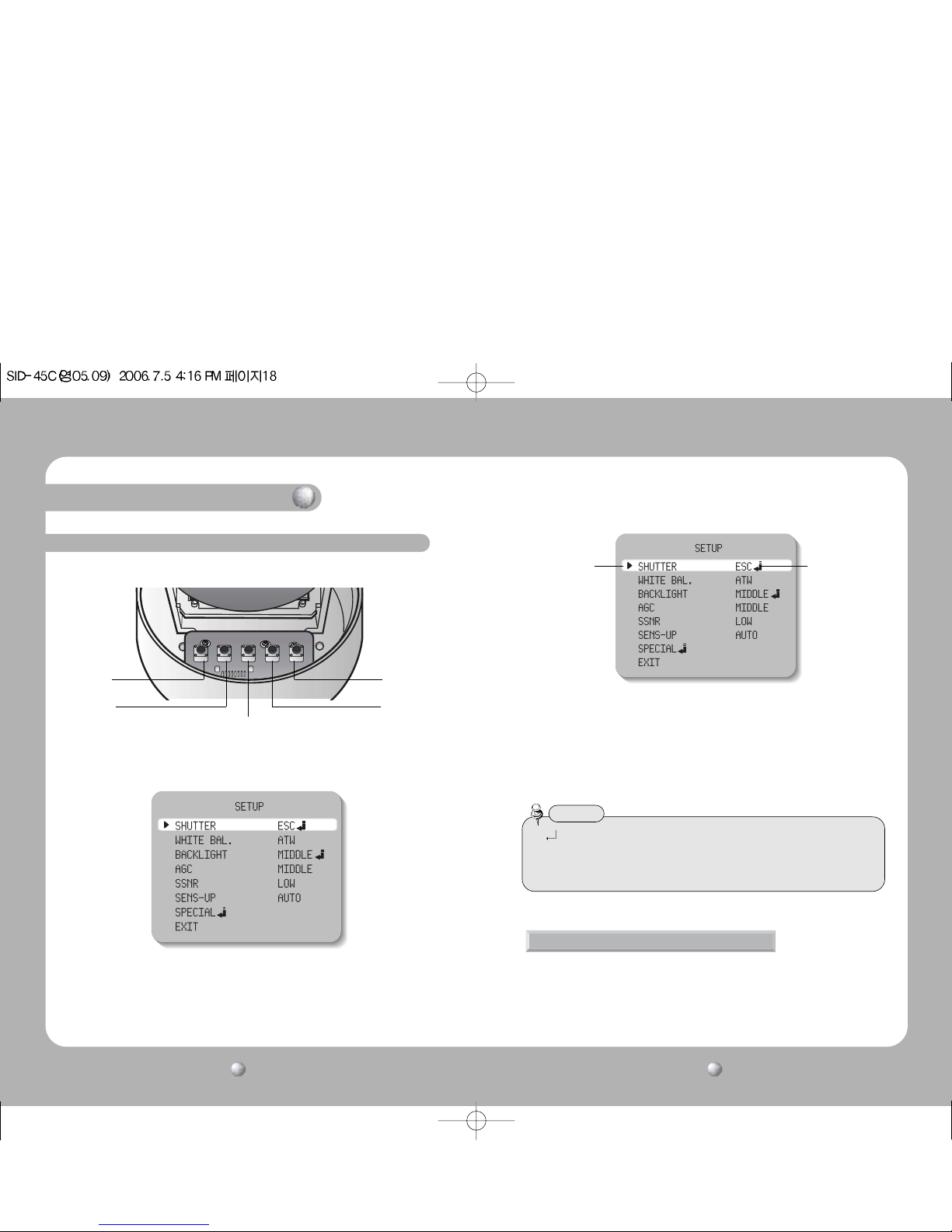

Camera Operation

SETUP menu

SHUTTER • ESC • MANUAL • FLK

(condition and speed control)

WHITE BALANCE control • ATW • AWC • MANUAL

BACKLIGHT • OFF • LOW • MIDDLE

(Backlight compensation) • HIGH

AGC (Auto Gain control) • OFF • LOW • MIDDLE

• HIGH

SSNR • OFF • LOW • MIDDLE

(Samsung super noise reduction) • HIGH

SENS-UP (Low illuminance) • OFF • AUTO

SPECIAL • CAMERA ID • COLOR

• SYNC • MOTION DETECTION

• PRIVACY • MIRROR

• SHARPNESS • RESET

• RETURN

EXIT

COLORDOMECAMERACOLORDOMECAMERA User’s ManualUser’s Manual

1918

Settings

Camera Operation

SET button

LEFT button

RIGHT button

UP button

DOWN button

1. Please press the SETUP button

•Settings can now be made. The SETUP menu is displayed on the monitor.

2.Please select any function you wish to activate by using the UP and DOWN

buttons.

•The arrow can be moved up or down by using the UP and DOWN buttons.

Please position the arrow to point to the function you wish to operate.

Settings can be made using the 5 buttons located on the inside of the camera. Select any function

you wish to operate

by using the UP and

DOWN buttons.

Modes can be

changed using the

LEFT and RIGHT

buttons.

3. Please press the LEFT or RIGHT button if you wish to change mode.

•When the LEFT or RIGHT button is pressed, available values and modes

are displayed in order. Please keep pressing the button until you get to the

mode you wish to operate.

4. Please select 'EXIT' and then press the SETUP button to finish the setting.

•If appears at the mode you wish to operate, it means that there is a sub-menu

which can be selected by pressing the SETUP button.

•If - - - appears at the mode item, it means that there is no mode available to be

selected.

Notes

Auto or manual control can be selected.

1.When the SETUP menu is on the screen, please position the arrow to point

to 'SHUTTER' by using the DOWN button.

2. Please select the shutter mode by pressing the LEFT or RIGHT button.

SHUTTER (condition and speed control)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Samsung

Samsung

Samsung SMARTCAM SNH-1011N Manual de usuario

Samsung

Samsung SMARTCAM SNH-V6110BN Manual de usuario

Samsung

Samsung SCP-3371 Manual de usuario

Samsung

Samsung SCC-B5342 Manual de usuario

Samsung

Samsung iPolis SNP-3302 Manual de usuario

Samsung

Samsung SCZ-3430N Manual de usuario

Samsung

Samsung SCP-2370RH Manual de usuario

Samsung

Samsung SCC-B5331 Manual de usuario

Samsung

Samsung SNP-6321 Manual de usuario

Samsung

Samsung SCC-C6435(P) Manual de usuario

Samsung

Samsung iPolis SND-3082 Manual de usuario

Samsung

Samsung SKK-CH601/US Manual de usuario

Samsung

Samsung SNV-5010 Manual de usuario

Samsung

Samsung SCC-C6453P Manual de usuario

Samsung

Samsung SND-3080CF Manual de usuario

Samsung

Samsung SCC-B5203(S)P Manual de usuario

Samsung

Samsung SCC-641 - 22x Zoom Smart Dome Camera Manual de usuario

Samsung

Samsung iPolis SNP-5200H Manual de usuario

Samsung

Samsung SCB-2000 Manual de usuario

Samsung

Samsung SND-L6013 Manual de usuario

Samsung

Samsung SCP-3120VH Manual de usuario

Samsung

Samsung SID-560 Manual de usuario

Samsung

Samsung SCD-2022 Manual de usuario

Samsung

Samsung SVD4600 Series Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
