Samsung SCP-3370TH Manual de usuario

SCP-3370 / SCP-3370TH HIGH RESOLUTION 37X WDR PTZ DOME CAMERA

TECHNICAL SPECIFICATIONS SECURITY SYSTEM

DIVISION –28 ELECTRONIC SAFETY AND SECURITY

LEVEL 1__28 20 00 ELECTRONIC SURVEILLANCE

LEVEL 2__28 23 00 VIDEO SURVEILLANCE

LEVEL 3__28 23 29 VIDEO SURVEILLANCE REMOTE DEVICES AND SENSORS

PART 2 –PRODUCTS

2.01 GENERAL

A. All equipment and materials used shall be standard components that are regularly

manufactured and used in the manufacturer’s system.

B. All systems and components shall have been thoroughly tested and proven in actual use.

C. All systems and components shall be provided with the availability of a toll-free (U.S. and

Canada), 24-hour technical assistance program (TAP) from the manufacturer. The TAP shall

allow for immediate technical assistance for either the dealer/installer or the end user at no

charge for as long as the product is installed.

2.02 SCP-3370 / SCP-3370TH HIGH RESOLUTION 37X WDR PTZ DOME CAMERA

A. The camera shall have a 1/4” imager and provide 600TV lines resolution in color and 700TV

lines in black/white, with a minimum illumination to 0.7 Lux in color and 0.07 in black/white.

B. The camera shall provide 37x zoom (3.5~129.5mm); digital 16x.

C. The camera shall provide ICR for true day/night performance, WDR, motion detection, digital

noise reduction (using SSNRIII), intelligent video, and VPS.

D. The camera shall provide communication through RS-485 or coaxial control protocol.

E. The camera shall operate on 24V AC.

F. Models of this camera shall have an IP66 weatherproof housing

G. Models of this camera shall provide advanced auto-tracking.

H. The camera shall provide a customizable on-screen display (OSD) which shall be available in

English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean in NTSC and English,

French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian,

Swedish, Danish, Turkish, Portuguese in PAL.

2.03 ELECTRICAL SPECIFICATIONS

A. Input Voltage 24V AC +10%

B. Power Consumption, max.

1. Basic Model 15W

2. TH Models 15W; 60W with fan and heater on

2.04 VIDEO SPECIFICATIONS

A. Imaging Device 1/4” Ex-view HAD CCD

B. Total Pixels (horizontal x vertical)

1. NTSC models 811 x 508

2. PAL models 795 x 596

C. Effective Pixels (horizontal x vertical)

1. NTSC models 768 x 494

2. PAL models 752 x 582

D. Scanning System 2:1 Interlace

E. Synchronization Internal, Line lock

Page 2 SCP-3370 High Resolution 37X WDR PTZ Dome Camera

SCP-3370(TH) A&E 2011

F. Frequency (horizontal, vertical)

1. NTSC models 15.734KHz, 59.94Hz

2. PAL models 15.625KHz, 50Hz

G. Horizontal Resolution

1. Color 600 TV Lines

2. B/W 700 TV lines

H. Min. Illumination

1. Color 0.7Lux @F1.6 (50 IRE), 0.001 Lux (Sens-up, 512x),

2. B/W 0.07Lux @F1.6 (50 IRE), 0.0001Lux (Sens-up, 512x)

I. S / N (Y signal) 52dB (AGC off, Weight on)

J. I. Video Output CVBS: 1.0 Vp-p, 75Ωcomposite

2.05 LENS

A. Focal Length (Zoom Ratio) 3.5 ~ 129.5mm (Optical 37x)

B. Max. Aperture Ratio 1:1.6(Wide) ~ 3.9(Tele)

C. Min. Object Distance 1.8m (5.91ft)

D. Angular Field of View (27x) 55.5°(Wide) ~ 1.59°(Tele) (H)

42.5°(Wide) ~ 1.19°(Tele) (V)

E. Focus Auto, Manual, One shot

F. Zoom Movement Speed (27x) 2.8sec

2.06 PAN/TILT

A. Pan Speed/Range Preset: 600°/sec

Manual: 0.024°/sec ~ 120°/sec

B. Pan Range 360° Endless

C. Tilt Speed Preset: 600°/sec

Manual: 0.024°/sec ~ 120°/sec

D. Tilt Range -5° ~185°

E. Presets

1. Number 255

2. Accuracy +0.1°

F. Auto Tracking Model SCP-3370TH

2.07 OPERATIONAL SPECIFICATIONS

A. On-Screen Display

1. NTSC models English, Japanese, Spanish, French, Portuguese,

Taiwanese and Korean

2. PAL models English, French, German, Spanish, Italian, Chinese,

Russian, Polish, Czech, Turkish and Portuguese

B. Camera Title Off, On (displays 12 characters)

C. Day & Night Auto (IRC), External, Color, B/W

D. Backlight Compensation BLC, HLC, WDR, Off

E. Wide Dynamic Range

1. NTSC Models 128x (52dB)

2. PAL models 160x (52dB)

F. Contrast Enhancement SSDR (Off, On)

G. Digital Noise Reduction SSNRIII (Off, On)

H. Digital Image Stabilization Off, On

I. Motion Detection Built-in

J. Privacy Masking Off, On (8 programmable zones)

K. Sens-up (Frame Integration) 2x ~ 512x

L. Gain Control Off, Low, Medium, High, Manual

M. White Balance ATW, Indoor, Outdoor, Manual,

AWC (1,700K~11,000K)

Page 3 SCP-3370 High Resolution 37X WDR PTZ Dome Camera

SCP-3370(TH) A&E 2011

N. Electronic Shutter Speed

1. NTSC models 1/60 ~ 1/120,000sec

2. PAL models 1/50 ~ 1/120,000sec

O. Digital Zoom Off, On (1x ~ 16x)

P. Digital Flip Off, On

Q. VPS Off, On

R. Intelligent Video Off, Detection, Tracking, Fixed/Moved

S. PIP Off, On

T. Schedule Day, Time

U. Alarm 8 in, 3 out

V. Communication RS-485, Coaxial control

W. Protocol

1. Coax Pelco-C (Coaxitron)

2. RS-485 Samsung-T, Samsung-E, Pelco-D, Pelco-P,

Panasonic, Honeywell, Vicon, Bosch, GE

2.08. ENVIRONMENTAL SPECIFICATIONS

A. Operating Temperature

1. Basic Models -10°C ~ +50°C (+14°F ~ +122°F)

2. TH Models -50°C ~ +50°C (-58°F ~ +122°F)

B. Operating Humidity

1. Basic Models 20~80% RH

2. TH Models up to 100% RH

C. Ingress Protection

1. TH Models IP66

2.09 MECHANICAL SPECIFICATIONS

A. Dimension

1. Basic Models ø155 x 243.4mm (ø 6.1 x 9.58”)

2. TH Models ø248 x 316.5mm (ø 9.76 x 12.46”)

B. Weight

1. Basic Models 2 Kg (4.41 lb)

2. TH Models 4.5 Kg (9.92 lb)

C. Materials Aluminum, Plastic

D. Colors Ivory

E. Dome Clear

2. 10 MODELS

A. NTSC

1. SCP-3370N basic version

2. SCP-3370THN basic with vandal resistant housing and auto tracking

B. PAL

1. SCP-3370P basic version

2.SCP-3370THP basic with vandal resistant housing and auto tracking

2.11 ACCESSORIES

A. SBP-300WM1 PTZ Wall Mount

B. SBP-300WM PTZ Wall Mount Gooseneck style

C. SBP-300CM Ceiling Mount

D. SBP-300LM Speed Dome ParaPet Mount Adaptor

E. SBP-300HM1 Threaded Cap adapter for indoor models

F. SBP-300PM Pole Mount for SBP-300WM

G. SBP-300KM Corner Mount for SBP-300WM

H. SHP-3700F Indoor PTZ Housing

I. SPC-6000 System Control Keyboard

J. SPC-1010 PTZ Control Keyboard

Page 4 SCP-3370 High Resolution 37X WDR PTZ Dome Camera

SCP-3370(TH) A&E 2011

2.12 CERTIFICATIONS

A. FCC (Class A), UL/cUL Listed SCP-3370N, SCP-3370THN

B. CE, UL/cUL Listed SCP-3370P, SCP-3370THP

2.13 WARRANTY

A. 3 years parts and service

Otros manuales para SCP-3370TH

Este manual sirve para los siguientes modelos

Otros manuales de Cámara de seguridad de Samsung

Samsung

Samsung HCD-E6070R Manual de usuario

Samsung

Samsung Samsung-T Protocol Manual de usuario

Samsung

Samsung SCV-2082R Manual de usuario

Samsung

Samsung SHC-721N Manual de usuario

Samsung

Samsung SNC-1300 Manual de usuario

Samsung

Samsung SCV-5085 Manual de usuario

Samsung

Samsung SDC-7310DC Manual de usuario

Samsung

Samsung SMARTCAM SNH-1011N Manual de usuario

Samsung

Samsung SCO-2080RH Manual de usuario

Samsung

Samsung SCO-2080 Manual de usuario

Samsung

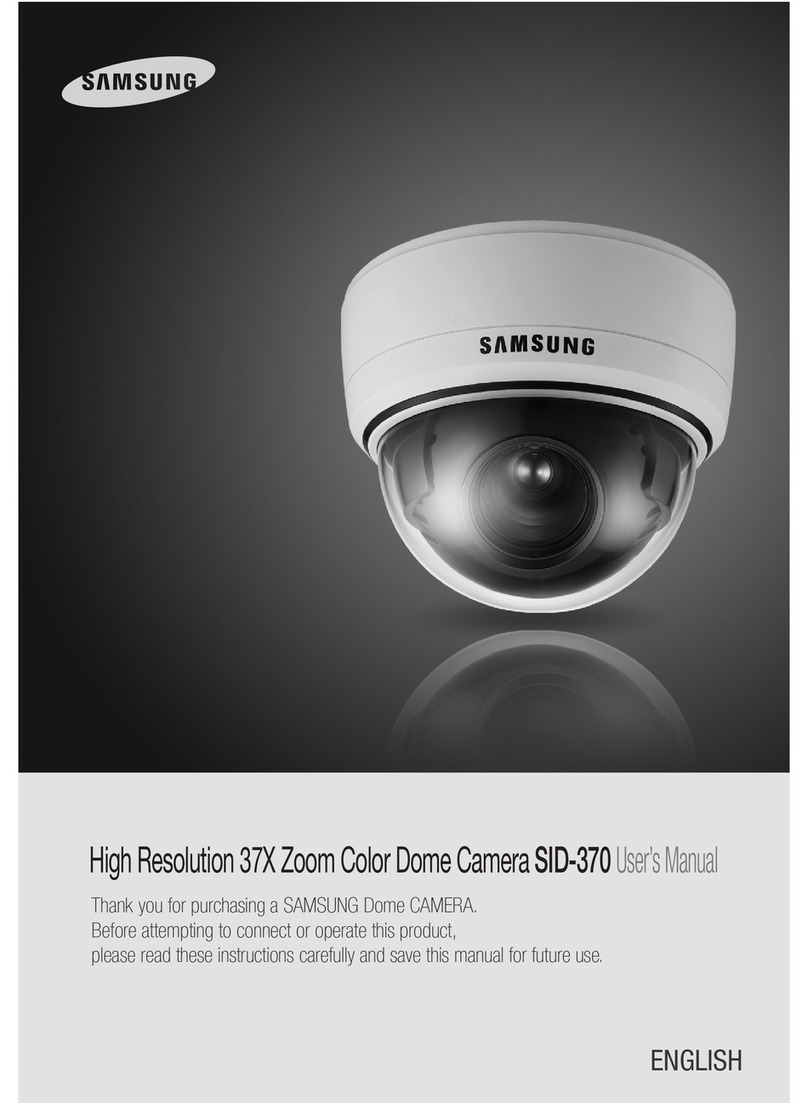

Samsung SID-370 Manual de usuario
