Samsung RFG297AAWP Manual de usuario

Refrigerator

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

RFG297AA

English

Features of your new Refrigerator

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efﬁcient

features.

• Twin Cooling System

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efﬁciently. Additionally, this separate air ﬂow system prevents

food odor of one compartment from seeping into other compartments.

• Cool Select PantryTM

The Cool Select pantryTM is a full-width drawer with adjustable temperature control.

•Bigger & Wider Space

The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.

The wide freezer drawer also provides enough space for 2~3 turkeys.

• Secure Auto Close

The Secure Auto Close feature will automatically close a door that is slightly open.

• Compact Ice Maker

The Ice maker can dispense cubed or crushed ice.

• Digital Display and Temperature Control

• Water Filtration System

• Door Alarm

A helpful beeper alerts you if a door is ajar.

• Tilting Pocket

The Tilting pocket can be used to store up to a 16” pizza.

• Auto Pull Out Drawer

The upper drawer in the freezer comes out automatically as you just open the freezer door.

• Super Extended Drawer

The upper drawer can be pulled out to the Tilting Pocket.

• Easy Handle

Freezer door can be opened with less effort.

• Energy Star

This Energy star labeled product may save you money on your energy costs.

2_ Features

For easy future reference, write the model and serial

number down. You will ﬁnd your model number and

serial number on the left side of the refrigerator.

Model #

Serial #

Safety Information

SAFETY INFORMATION

Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to ensure that you

know how to safely and efﬁciently operate the features and functions that your new appliance offers.

Because the following instruction covers various models, the characteristics of your Refrigerator may differ slightly

from the Refrigerator described in this manual. If you have any question, contact us at 1-800-SAMSUNG or ﬁnd

help and information online at www.samsung.com.

What the icons and signs in this user manual mean :

WARNING Hazards or unsafe practices that may result in severepersonalinjuryordeath.

CAUTION

Hazards or unsafe practices that may result in minorpersonalinjuryorproperty

damage.

CAUTION

To reduce the risk of ﬁre, explosion, electric shock, or personal injury when using your

refrigerator, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Thesewarningsignsareheretopreventinjurytoyouandothers.

Pleasefollowthemexplicitly

Keepthismanualinasafeplaceforfuturereference.

SEVERE WARNING SIGNS

Do not plug several appliances into the same power receptacle.

• Large appliances draw a lot of power. Powering more than one appliance or machine from a single power

source could cause overheating and cause a ﬁre.

Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.

• A damaged power plug may overheat and cause a re.

Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.

• Water could get into the interior machine parts and cause electric shock.

Do not use aerosols near the Refrigerator.

• Aerosols used near the Refrigerator may cause an explosion or re.

Safety Information _3

Do not put undue stress on the power cord or place heavy articles on it.

•    Placing heavy articles on the power cord may create the risk of explosion or ﬁre.

Do not insert the power plug with wet hands.

• It may cause electric shock.

Do not put a container ﬁlled with water on the Refrigerator.

• If it spills, it may cause ﬁre or electric shock.

Do not install the Refrigerator in a damp place or place where it may come in contact

with water.

• Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or ﬁre.

Do not store volatile or ﬂammable substances in the Refrigerator.

• Storing benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.

Do not disassemble or repair the Refrigerator by yourself.

• You may run the risk of ﬁre, appliance malfunctions and/or personal injury. Call your nearest service center

for help from a qualiﬁed service technician.

Unplug the Refrigerator before changing the interior light.

• Changing the light while the Refrigerator is plugged in may cause electric shock.

If you wish to dispose of the Refrigerator, remove the doors and seals before throwing

it away.

• The doors(and their seals) can entrap a child if they climb into the Refrigerator.

Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.

The Refrigerator must be safely grounded

• Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any

part of the appliance. Power leakages can cause severe electric shock.

Never use gas pipes, telephone lines or other potential lightning attractors as an

electrical ground.

• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an

extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground plug

and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension

cord should be AC 115V~120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the

receptacle box is also fully grounded.

Safety Information

4_ Safety Information

CAUTION SIGNS

Use good judgment when ﬁlling the Refrigerator with food and drinks.

• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury

and/or damage to surrounding objects.

Do not put bottles or glass containers in the Freezer drawer.

• When the contents freeze and then expand, the glass may break and cause personal injury or leave

dangerous glass shards in the Freezer.

If the electrical wall socket is loose, do not insert the power plug.

• There is a risk of electric shock or ﬁre. Have the plug looked at by a licensed electrician.

Never unplug your Refrigerator by pulling on the power cord.

• Always grip the power cord ﬁrmly and pull straight out from the outlet. Yanking or pulling on the power

cord may cause a short-circuit, ﬁre and/or electric shock.

• A damaged power cord must be replaced by the manufacturer, a certiﬁed service agent or qualiﬁed service

personnel.

Do not store articles on the top of the appliance.

• When you open or close the door, the articles may fall and cause personal injury and /or damage to

surrounding objects.

Do not store pharmaceutical products, scientiﬁc materials and temperature-sensitive

products in the refrigerator.

• Products that require exact temperature controls should not be stored in the Refrigerator.

Do not allow children to climb, stand or hang on shelves and handles of the

Refrigerator. They could damage the Refrigerator and seriously injure themselves.

Do not sit on the freezer door. The door may break.Do not allow children to climb into

the freezer basket.

If you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator

immediately and contact your Samsung Electronics Service Center.

After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer

compartment. Particularly when hands are damp or wet, skin may adhere to these

extremely cold surfaces.

• Skin may stick to the surface and you may get frostbite.

Do not put your hands under the appliance.

• Any sharp edges may cause personal injury.

Safety Information _5

CAUTION

Neverputngersorotherobjectsintothewaterdispenserholeoricechute.

• It may cause personal injury and/or material damage.

IftheRefrigeratorwillnotbeusedforalongperiodoftime(forexample,over

severalmonths),unplugthepowerfromthewall.

• Over time, deterioration in the power cord insulation may cause re.

Donotuseawetordampclothwhencleaningtheplug.

Removeanydustorforeignmatterfromthepowerplugpins.

• A dirty power plug can increase the risk of re.

IftheRefrigeratorisdisconnectedfromthepowersupply,youshouldwaitfor

atleastveminutesbeforepluggingitbackin.

Donotplacetherefrigeratordirectlyinsunlight.

Theappliancemustbepositionedforeasyaccesstopowersource.

Ifthepowercordisdamaged,itmustbereplacedbythemanufacturer,a

certiedserviceagentorqualiedservicepersonnel.

Ifyouhavealongvacationplanned,emptytheRefrigeratorandturnitoff.

• Wipe excess moisture from the inside and leave the doors open to keep odor and mold from

developing.

ServicewarrantyandModication

• Any changes or modications performed by a 3rd party on this nished appliance is not covered

under Samsung warranty service, nor can Samsung be responsible for safety issues that result

from 3rd party modiﬁcations.

ChildrencangettrappedinsideRefrigerators.

BeforeyouthrowawayyouroldRefrigeratororFreezer,makesurethatyou;

• Take off the doors.

• Leave all shelves in places so that children may not easily climb inside and shut the door while they

are inside.

Thisapplianceisnotintendedforusebysmallchildrenorinrmpersonswithout

capable,adultsupervision.Smallchildrenshouldbesupervisedwhenusingthe

appliance.

Donotblockairholes

• If the air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled.

If this cooling period lasts too long, the water ﬁlter may break and cause water leakage.

Safety Information

6_ Safety Information

CAUTION

Contents

SETTINGUPYOUR

FRENCHDOORREFRIGERATOR

OPERATINGYOURSAMSUNG

FRENCHDOORREFRIGERATOR

TROUBLESHOOTING

WARRANTY

08 Getting ready to install the refrigerator

09 Removing the refrigerator doors

11 Disassemble the Freezer Drawer

12 Reattaching the refrigerator doors

14 Assemble the Freezer Drawer

15 Adjusting the doors

16 Making minor adjustments between doors

17 Adjusting the freezer drawer level

18 Checking the water dispenser line

19 Installing the water line

21 Using the control panel

22 Using the Digital display

24 Using the cold water dispenser

26 Parts and Features

27 Storing food in the refrigerator

27 Storing food in the freezer drawer

28 Using the Cool Select Pantry™

29 Removing the refrigerator accessories

30 Using the doors

30 Using the tilting pocket

31 Removing the freezer accessories

32 Cleaning the refrigerator

33 Changing the interior lights

34 Changing the water ﬁlter

35 Water Filter Chart

36 Water Filter Certiﬁcation

37 Food Storage Tips

39 Troubleshooting

40 Warranty

Contents _7

Setting up your French Door Refrigerator

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art

features and efﬁciencies that this new appliance offers.

8_ Setting Up

3 inch

3/4

2 inch

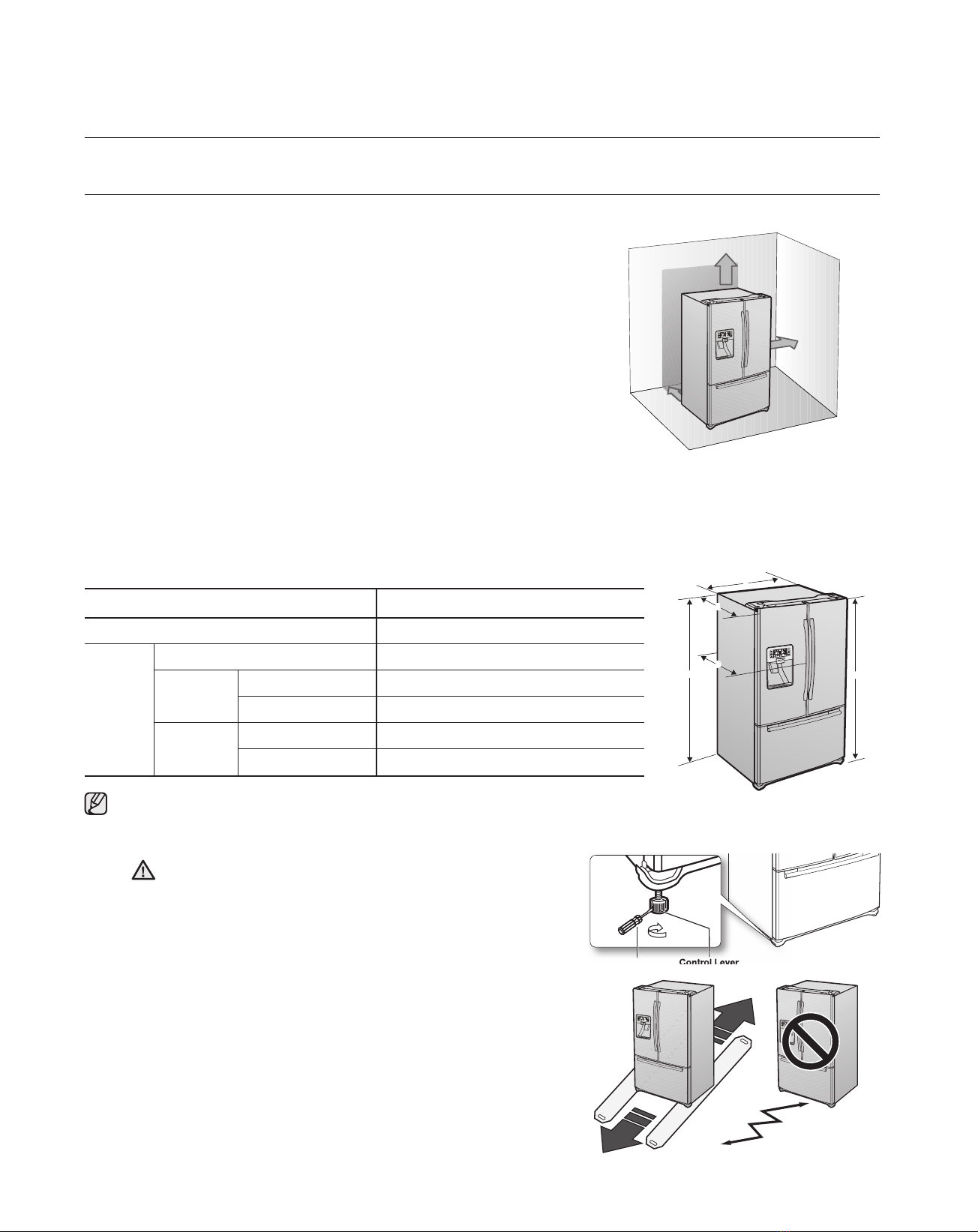

First thing! Make sure that you can easily move your Refrigerator to its ﬁnal location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of Samsung French Door Refrigerator.

If your refrigerator has an ice maker, allow extra space at the back for the

water line connections. When you install the refrigerator next to a ﬁxed wall, minimum

clearance is 3 ¾” (95mm) between the refrigerator and wall to allow the door to swing open.

SelectingthebestlocationfortheRefrigerator

• A location with easy access to the water supply.

• A location without direct exposure to sunlight.

• A location with level (or nearly level) ﬂ ooring.

• A location with enough space for the Refrigerator doors to open

easily.

• Allow suf cient space for air circulation of the internal cooling system.

If the Refrigerator does not have enough space, the internal cooling

system may not work properly.

FLOORING

For proper installation, this refrigerator must be placed on a level

surface of hard material that is the same height as the rest of the

ﬂooring. This surface should be strong enough to support a fully

loaded refrigerator, or approximately

660lbs(299kg). To protect the ﬁnish of the ﬂooring, cut a large

section of the cardboard carton and place under the refrigerator

where you are working. When moving, be sure to pull the unit

straight out and push back in straight.

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption

and keep your energy bills lower.

• Do not install the Refrigerator where the temperature will go below 50ºF (10ºC).

CAUTION

When moving your refrigerator

To prevent ﬂoor damage be sure the front leveling

legs are in the up position(above the ﬂoor).

Refer to ‘Leveling the refrigerator’ in the manual

(at page 15)

ControlLever

Screwdriver(-)

Depth

MODEL

Capacity(Cu.Ft)

Dimension

(inches)

Width (A)

Case Height with Hinge (B)

without Hinge (C)

with Door (D)

without Door (E)

RFG297AA

28.5

35 ¾

68 ⅝

35 ¾

29 ⅛

Setting Up _9

01 SETTING UP

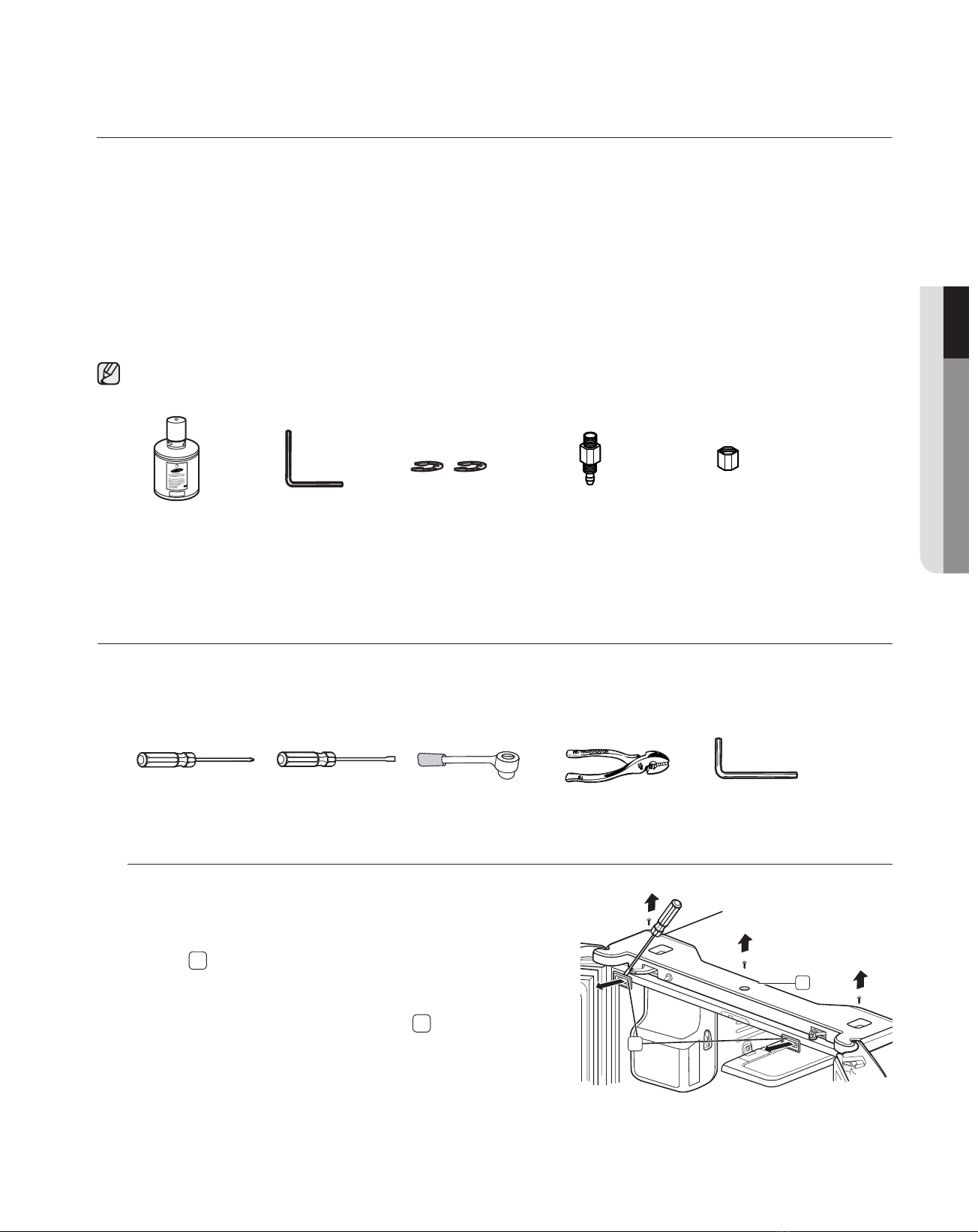

Disassemble the Refrigerator doors

1. With the door opened, remove the Hinge Cover

cap ( 1

)with a Flat head screwdriver, and close

the door.

Remove the 3 screws holding down the Hinge

Cover and remove the Hinge Cover ( 2

REMOVING THE REFRIGERATOR DOORS

If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.

Tools you will need

Philips screwdriver Flat-blade screwdriver Wrench Pliers Allen wrench(3/16”)

SETTING UP THE REFRIGERATOR

Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and

functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.

1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the

Refrigerator. Refer to installation instructions in this manual.

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly

chilled and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can

store food and drinks in the Refrigerator after the temperature is sufﬁciently cool.

Check the accessory list below.

Water ﬁlter

(DA29-00003G)

Hex wrench

(DA80-00002C)

Compression ﬁtting

(DA62-00305A)

Compression nut

(DA74-00070B)

Fastener

(DA60-00143B)

Setting up your French Door Refrigerator

10_ Setting Up

4. Lift the door straight up to remove.

5. With a Philips head screwdriver, remove the screw ( 10

)

attached to the lower left and right door hinges.

With a wrench(3/16”), remove the two hex head bolts ( 11

)

attached to the lower left and right door hinges.

Remove the lower left and right door hinges ( 12

3. Remove the 3 hex head bolts ( 7

) attached to the upper

left and right door hinges with a wrench(13/32”).

With a Philips head screwdriver, remove the ground

screw ( 8

) attached to the upper left and right door

hinges.

Remove the upper left and right door hinges ( 9

2. Disconnect two connectors ( 3 )

at each side of the top cap and the

one connector ( 4

) on left side door.

Remove the tube ( 5

) with pressing the

dark gray color part ( 6

) of the water

line coupler.

CAUTION

If a red clip is on the coupler, it must

be removed before removing the tube.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Samsung

Samsung

Samsung RFG295AA Manual de usuario

Samsung

Samsung RFG297 Series Manual de usuario

Samsung

Samsung DA99-00926B Manual de usuario

Samsung

Samsung RF217ABWP Manual de usuario

Samsung

Samsung RH69B Series Manual de usuario

Samsung

Samsung RF22K9581SR/AA Manual de usuario

Samsung

Samsung SRS583NW Manual de usuario

Samsung

Samsung RFG296HDRS Manual de usuario

Samsung

Samsung Refrigerator Manual de usuario

Samsung

Samsung RB38T650EB1/EK Manual de usuario

Samsung

Samsung RS25H5111SR Manual de usuario

Samsung

Samsung RF29BB8900 Manual de usuario

Samsung

Samsung RS26DDA Series Manual de usuario

Samsung

Samsung RB195ACBP Manual de usuario

Samsung

Samsung DA68-03194N Manual de usuario

Samsung

Samsung RB38A7B63S9/EF Manual de usuario

Samsung

Samsung RF268ABBP Manual de usuario

Samsung

Samsung RB37N4160B1 Manual de usuario

Samsung

Samsung DA68-01258A Manual de usuario

Samsung

Samsung RM257ACRS/XAA-0000 and Guía de seguridad

Samsung

Samsung RS23A500A Series Manual de usuario

Samsung

Samsung RL60 Series Manual de usuario

Samsung

Samsung RSJ1FERS Manual de usuario

Samsung

Samsung KA62DA70 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario

Teledyne

Teledyne 6712FR and Instrucciones de funcionamiento
