Samsung SWA-4000 Manual de usuario

SETUP

21 3

In Stop mode,

press MENU

button.

Press Cursor

button to move to

‘Setup’ and then

press ENTER button.

Press Cursor

button to move to

‘LOGO’ and then

press ENTER button.

To select one of the 3 wallpaper settings you've made

Press MENU

button to exit the

setup screen.

Press to select

the desired ‘USER’,

and then press

ENTER.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

DVDJPEG

Select this to set the

Samsung Logo image as

your wallpaper.

Select this to set the desired

image as your wallpaper.

•

“COPY LOGO DATA” will be

displayed on the TV screen.

•

The selected wallpaper will be

displayed.

•

You can select up to 3 wallpaper

settings.

During playback, press

PLAY/PAUSE button

when an image you

like appears.

Press LOGO

button.

The power will

turn off and then

back on.

PAUSE

COPY LOGO DATA

Setting the Wallpaper

While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.

Setting the Wallpaper

SETUP

In Stop mode,

press MENU

button.

Press Cursor

button to move to

‘Audio’ and then

press ENTER button.

In the Speaker

Setup, press the

ENTER button again.

Press Cursor , ,

, buttons to move

to the desired

speaker and then

press ENTER button.

•

For C, LS, and RS, each time the button

is pressed, the mode switches

alternately as follows: SMALL ➝ NONE.

•

For L and R, the mode is set to SMALL.

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are connected.

•

• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 61).

Note

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your

speaker configuration and whether certain speakers are used or not.

Setting the Speaker Mode

Press the MENU

button while the

disc tray is open.

Press Cursor

button to move to

‘Setup’ and then

press ENTER button.

Press Cursor

button to move to

‘DVD TYPE’ and then

press ENTER button.

Press Cursor ,

button to move to

‘DVD VIDEO’ and then

press ENTER button.

•

DVD Play mode is set to DVD Audio as factory default setting.

Note

•

Set steps 1 ~ 4 again if you want to

switch to DVD AUDIO Play mode.

When Selecting DVD Play Mode:

•

DVD VIDEO : set to play the DVD video

contents contained on a

DVD audio disc.

•

DVD AUDIO : set to play the default

DVD audio.

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.

To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

DVD Audio Disc Playback Mode

•

Please use the Registration code to register this player

with the DivX (R) video on demand format. To learn more,

go to www.divx.com/vod.

DivX (R) registration

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if

the distance between you and each speaker is the same. Since the sounds

arrive at the listening position at different times depending on the

placement of speakers, you can adjust this difference by adding a delay

effect to the sound of the Center Speaker and Surround Speakers.

In Stop mode,

press MENU

button.

Press Cursor button

to move to ‘Audio’ and

then press ENTER

button.

•

With (Dolby Pro Logic II), the delay time may be different for each mode.

•

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

•

The Center channel is only adjustable on 5.1 channel discs.

Note

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of

the audio signals from the center and rear speakers.

Setting the Delay Time

Df: The distance from FRONT SPEAKER

Dc: The distance from CENTER SPEAKER

Ds: The distance from SURROUND SPEAKER

Ideal CENTER

SPEAKER placement

It is desirable to place all speakers within this circle.

Ideal

SURROUND

SPEAKER

placement

SETUP

•

You can set the delay time for C

between 00 and 05mSEC and for

LS and RS between 00 and

15mSEC.

43 5

Press Cursor button

to move to ‘DELAY

TIME’ and then press

ENTER button.

Press Cursor , ,

, buttons to move

to the desired speaker

and then press

ENTER button.

Press Cursor ,

to set the Delay

time.

0 ms

3 ms

6 ms

9 ms

12 ms

15 ms

•Setting REAR (SURROUND) SPEAKERS

If the distance of Df is equal to the distance of Ds

in the figure, set the mode as 0ms. Otherwise,

change the setting according to the table.

•Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the

distance of Df in the figure, set the mode as 0ms.

Otherwise, change the setting according to the table.

Distance between Df and Dc Delay Time

Delay Time

0 ms

1 ms

2 ms

3 ms

4 ms

5 ms

Distance between Df and Ds

0 inch

13.6 inches

27.2 inches

40.8 inches

4.5 feet

5.6 feet

0 inch

40.8 inches

6.7 feet

10.0 feet

13.4 feet

16.7 feet

L: Front Speaker (L) C: Center Speaker SW: Subwoofer

R: Front Speaker (R) LS: Rear Speaker (L) RS: Rear Speaker (R)

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

In Stop or no

disc mode,

press MENU

button.

Press Cursor

button to move to

‘Audio’ and then

press ENTER button.

Press Cursor button

to move to ‘TEST

TONE’ and then press

ENTER button.

•

The test tone will be sent to L ➝ C ➝

R ➝ SR ➝ SL ➝ SW in order.

If the ENTER button is pressed again

at this time, the test tone will stop.

To end the test tone,

press TEST TONE button again.

Press TEST TONE button.

•

Test tone will be produced as follows:

When playing a DVD or CD, this will work

only in Stop mode.

•

Use this function to check that each speaker is

correctly connected and that there is no problem.

Alternate method: press the TEST TONE button on the remote.

Multi-Channel Pro Logic Mode

Start

Use the Test Tone feature to check the speaker connections.

Setting the Test Tone

5655

In Stop or no disc mode,

press MENU button.

Press Cursor button to

move to ‘Audio’ and then

press ENTER button.

•

When the Cursor button is pressed, the effect is greater,

and when the Cursor button is pressed, the effect is

smaller.

Press Cursor button to

move to ‘DRC’ and then

press ENTER button.

Press Cursor , to

adjust the ‘DRC’.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

Setting the DRC (Dynamic Range Compression)

SETUP

•

The adjustments will appear on the main unit's display, not on your TV screen.

Adjusting Front/Rear Speaker Balance

•

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

Adjusting Center/Rear/Subwoofer Speaker Level

•

The volume level can be adjusted in steps from +6dB to –6dB.

•

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Method 2

When manually adjusting with the SOUND EDIT button

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND

EDIT button and

then press Cursor

, .

Adjusting Center Speaker Level

4 5

Adjusting Rear Speaker Level

Adjusting Subwoofer Speaker Level

Press SOUND

EDIT button and

then press Cursor

, .

Press SOUND

EDIT button and

then press Cursor

, .

Press SOUND

EDIT button and

then press Cursor

, .

Press SOUND

EDIT button and

then press Cursor

, .

Note

SETUP

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

In Stop mode,

press MENU

button.

Press Cursor

button to move to

‘Audio’ and then press

ENTER button.

Press Cursor button

to move to ‘SOUND

EDIT’ and then press

ENTER button.

Method 1

When adjusting the audio quality using the setup screen

Press Cursor ,

buttons to select and

adjust the desired item.

Press the , buttons

to adjust the settings.

You can adjust the balance and level for each speaker.

Setting the Audio

•

"DSP" appears on the display panel.

•

Each time the button is pressed, the selection changes as follows:

POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK.

STUDIO : Provides a sense of presence as if in a studio.

CLUB : Simulates the sound of a dance club with a throbbing bass beat.

HALL : Provides a clear vocal as if listening in a concert hall.

MOVIE: Provides the feeling of a movie theater.

CHURCH: Gives the feel of being in a grand church.

PASS: Select this for normal listening.

Press DSP/EQ button.

SETUP

•

DSP/EQ function is only available in STEREO mode.

Press the PL II mode button to show STEREO on the display.

•

This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX

and Dolby Digital discs.

•

When playing a DVD disc encoded with two or more channels,

multi-channel mode will be selected automatically and DSP/EQ

function does not work.

Note

DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments.

EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

Sound Field (DSP)/EQ Function

Video may look slower than the audio if it is connected to a digital TV.

If this occurs, adjust the audio delay time to to match the video.

AV SYNC Setup

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

•

'Audio' menu appears.

•

Setup menu appears.

•

AV-SYNC screen appears.

Press Cursor , buttons

to move to ‘Audio’ and then

press ENTER button.

Press Cursor , buttons

to move to ‘AV-SYNC’ and

then press ENTER button.

Press the MENU button.

•

You can set the audio delay time between 0 ms

and 300 ms. Set it to the optimal status.

Press Cursor , buttons

to select the AV-SYNC Delay

Time and then press the

ENTER button.

SETUP

This function works only in Dolby Pro Logic MUSIC mode.

Dolby Pro Logic II Effect

Press PL II MODE button.

PRO LOGIC II

•

MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.

•

CINEMA: Adds realism to the movie soundtrack.

•

PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left

and right speakers.

•

MATRIX: You will hear 5.1 channel surround sound.

STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.

•

Each time the button is pressed, the mode changes as follows.

•

When selecting Pro Logic II mode, connect your external device to the

AUDIO INPUT jacks (L and R) on the player. If you connect to only one of

the inputs (L or R), you cannot listen to surround sound.

Note

You can select the desired Dolby Pro Logic II audio mode.

Dolby Pro Logic II Mode

•

You can select between 0 and 7.

•

This sets the width of the center image.

The higher the setting, the less sound comes from

the center speaker.

•

You can select between 0 and 6.

•

Incrementally adjusts the sound field (DSP)from

the front or rear.

•

When playing a DVD disc encoded with two or more channels, multi-channel mode will be

selected automatically and (Dolby Pro Logic II) button does not work.

•

You can select either 0 or 1.

•

This mode extends the front stereo image to

include the surround speakers for an exciting

"wraparound" effect with side wall imaging.

Press PL II MODE

button to select ‘MUSIC’

mode.

Press PL II EFFECT button

to select Panorama, then press

Cursor , buttons to select

the desired effect setting.

Press PL II EFFECT button

to select C-Width, then press

Cursor , buttons to select

the desired effect setting.

Press PL II EFFECT button

to select Dimension, then press

the Cursor , buttons to

select the desired setting.

Note

To tune in to a preset station, press on the

remote control to select a channel.

•

Refer to Step 2 on page 63 to

automatically or manually tune in

to a station.

•

Each time the button is pressed,

the band switches between

"FM

➝

AM".

•

“PRGM” flashes in the display.

Example: Presetting FM 89.1 in the memory

Press TUNING/CH

to select "89.10".

Press the TUNER

button and select the

FM band.

•

Press the TUNER MEMORY button before

‘PRGM’ disappears from the display.

•

‘PRGM’ disappears from the display and

the station is stored in memory.

•

You can select between 1 and

15.

Press the TUNER

MEMORY button.

Press the TUNER

MEMORY button

again.

To preset another

station, repeat

steps 2 to 5.

Press

to select preset

number.

RADIO

OPERATION

You can store up to:

15 FM stations

15 AM stations

• FM Frequency Modulation

• AM Medium Wave

Presetting Stations

•

The selection toggles back and

forth between "FM

➝

AM" each

time the TUNER button is

pressed.

Tune in to the

desired station.

Press TUNER

button.

Automatic Tuning 2

Manual Tuning

Select a broadcast

station.

Press the STOP ( )

button to select

PRESET and then press

button to select the preset station.

Automatic Tuning 1

Press the Function

button to select the

desired band (FM,

AM).

Press the STOP

( )

button

to select "MANUAL" and

then press and hold button to

automatically search the band.

Automatic Tuning 2

Press STOP

( )

to select

MANUAL and then briefly

press to tune in to a lower or

higher frequency.

Manual Tuning

•

Each time the button is pressed, the sound switches between "STEREO" and "MONO".

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

When is pressed, a

preset broadcast station is

selected.

Press and hold TUNING/CH

to automatically search for

active broadcasting stations.

Briefly press TUNING/CH

to increase or decrease the

frequency incrementally.

Automatic Tuning 1

Remote Control Unit

Main Unit

You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or

manual tuning operation.

Listening to Radio

•

Up to 15 stations (30 total ; 15FM, 15AM) can be saved in memory.

If you save more than 15 stations, the oldest station previously saved is removed and a

new station is stored in its place.

Note

•

Each time the button is press, the brightness changes as follows:

DARK ➞BRIGHT.

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

Adjusting Display Brightness

You can adjust the brightness of the display on the main unit so it won't interfere

with your movie viewing.

Press DIMMER button.

MISCELLANEOUS

• "SLEEP" will be displayed. Each time the button is pressed the preset

time changes as follows: 10 ➝20 ➝30 ➝60 ➝90 ➝120 ➝150 ➝OFF.

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

Press SLEEP button.

Sleep Timer Function

You can set the time that the Home Theater will shut itself off.

Convenient Functions

•

‘MUTE ON’ appears in the display.

•

To restore the sound, press the button again to

select ‘MUTE OFF’.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

Using Headphones

Use headphones (not supplied) for private listening pleasure.

Connect the headphones to the PHONES jack for private listening.

•

The remaining time before the Home Theater will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set earlier.

To confirm the sleep timer setting, press SLEEP button.

To cancel the sleep timer, press SLEEP button until

OFF appears on the display.

•

To prevent hearing damage, do not increase the

volume excessively when using headphones.

Caution

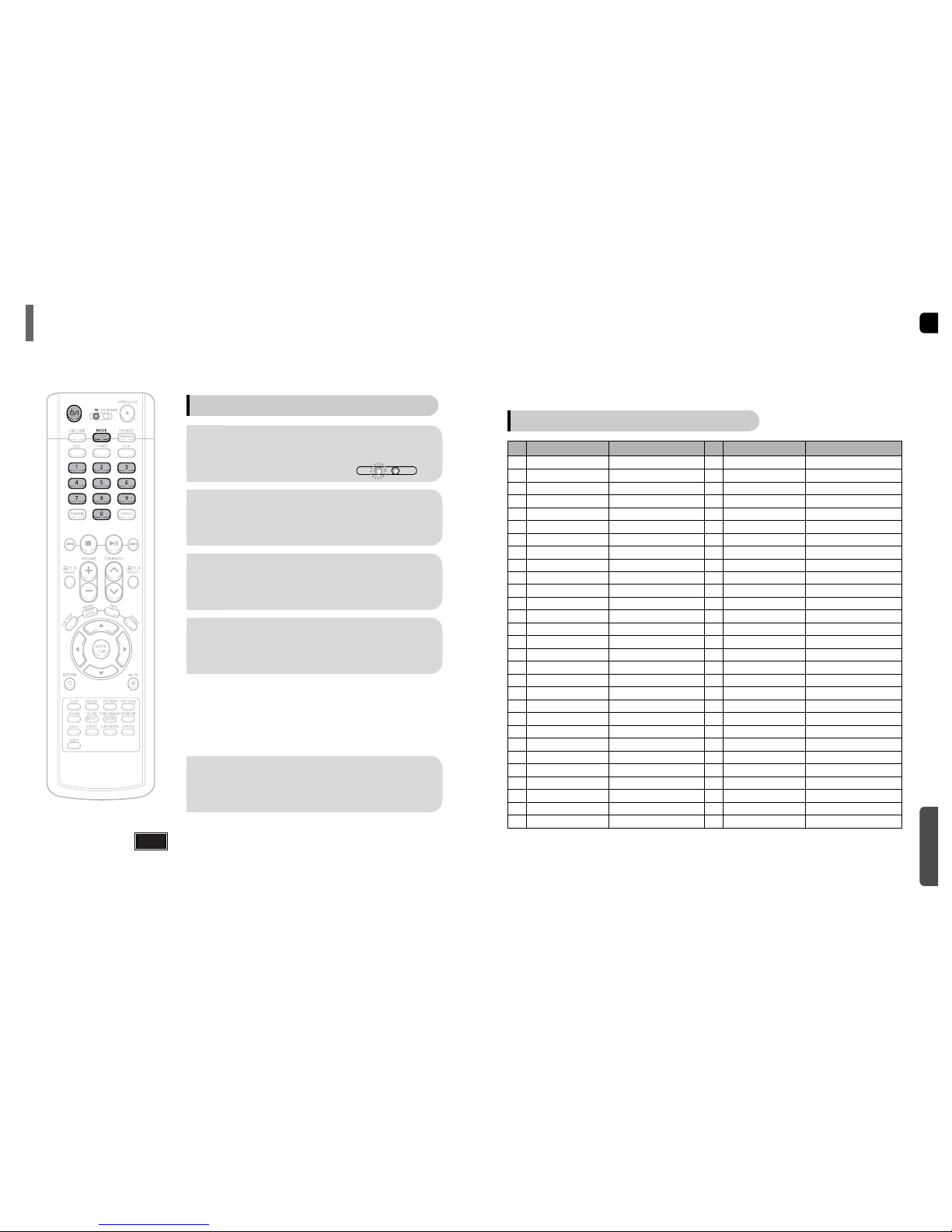

Operating a TV with the Remote Control

•

The remote control may not work on some brands of TVs. Also some operations may not be

possible depending on your brand of TV.

•

If you do not set the remote control with the code for your brand of TV, the remote control will

work on a Samsung TV by default.

When operating a TV with the remote control

Press the MODE button to make the TV

indicator on the remote control flash.

Press POWER button to turn on the TV.

Point the remote control toward the TV.

While holding down POWER, enter the code

corresponding to your brand of TV.

•

If the code matches the TV's code, the TV will be turned off.

•

If there is more than one code listed for your TV in the table,

enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 00,

01, 02, 03, 04, and 05.

•

You can use the TV POWER, VOLUME, CHANNEL, and Numeric

buttons (0~9).

Point the remote control toward the TV and

press POWER. If the TV turns off or on,

the setting is complete.

DVD RECEIVER

Note

SAMSUNG

ANAM

DAEWOO

HITACHI

JVC

SHARP

SONY

TOSHIBA

SANYO

MITSUBISHI

MATSUSHITA

TELEFUNKEN

RCA

PANASONIC

SABA

PHILIPS

GRUNDIG

ZENITH

MIVAL

NOBLEX

EMERSON

MAGNAVOX

LOEWE

THOMSON

NORDMENDE

LOEWE OPTA

BLAUPUNKT

SIEMENS

TV Brand Code List

No.

Brand

Code

00(Initial Value), 01, 02, 03, 04, 05, 73

06~11, 59

12~18, 20, 21

05, 20, 21, 22, 53

23, 40, 41, 49

24, 55

27, 33, 34, 35, 54

27, 36

27, 37, 42, 43, 44, 46

27, 30, 31, 32

05, 27, 28

09, 26

41, 49, 51, 57

29, 61

07, 09, 26, 48, 49, 50

40, 41, 47, 48, 49

05, 45, 47, 64, 65, 66, 67, 68, 69

39, 42, 46, 70, 71, 72

05, 60

40, 41, 49, 62, 63

40, 41, 49

36, 47, 05

BRANDT

FERGUSON

PIONEER

TELEAVA

FINLUX

FISHER

AKAI

YOKO

PHONOLA

RADIOLA

SCHNEIDER

NEWSAN

CONTINENTAL EDISON

SALORA

SELECO

NOKIA

REX

MIVAR

IMPERIAL

CGE

BANG & OLUFSEN

BRIONVEGA

FORMENTI

METZ

WEGA

RADIOMARELLI

SINGER

SINUDYNE

No.

Brand

Code

41, 48, 74

05, 42, 47

05, 45, 47

05, 45

MISCELLANEOUS

Otros manuales para SWA-4000

Tabla de contenidos

Otros manuales de Receptor de Samsung

Samsung

Samsung SIR-S60W Manual de usuario

Samsung

Samsung DSB-S305G Manual de usuario

Samsung

Samsung DTB-H550F Manual de usuario

Samsung

Samsung DTB-B260V Manual de usuario

Samsung

Samsung HCN5529WX/XAA Manual de usuario

Samsung

Samsung HT-AS610 Manual de usuario

Samsung

Samsung HT-DB750 Manual de usuario

Samsung

Samsung Sound+ SWA-9000S Manual de usuario

Samsung

Samsung DSR 9400T Manual de usuario

Samsung

Samsung DSB-9401F Manual de usuario

Samsung

Samsung DTB-B460F Manual de usuario

Samsung

Samsung DSR 9500A Manual de usuario

Samsung

Samsung 2.0060510083255e16 Manual de usuario

Samsung

Samsung SP61L2HX/BWT Manual de usuario

Samsung

Samsung DTB-B570E Manual de usuario

Samsung

Samsung HW-D7000 Manual de usuario

Samsung

Samsung DSB-4700F Manual de usuario

Samsung

Samsung HT-AS700 Manual de usuario

Samsung

Samsung SWA-5000 Manual de usuario

Samsung

Samsung HT-DS610 Manual de usuario

Samsung

Samsung GX-SM550SM Manual de usuario

Samsung

Samsung DSB-S300G Manual de usuario

Samsung

Samsung HW-C900 Manual de usuario

Samsung

Samsung SADPCI-202 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
