Samsung WMN-M10E Manual de instrucciones

No gap wall mount

www.samsung.com

Cautions when installing

설치시 주의사항

Avertissements concernant l'installation

Précautions d'installation

Precauciones de instalación

Cuidados durante a instalação

Cuidados ao instalar

Hati-hati saat melakukan pemasangan

ข้อควรระวังเมื่อติดตั้ง



တပ္ဆင္သည့္အခါ သတိျပဳမႈမ်ား

安裝注意事項

安装注意事項







WMN-M10E

- English 2 -

- English 3 -

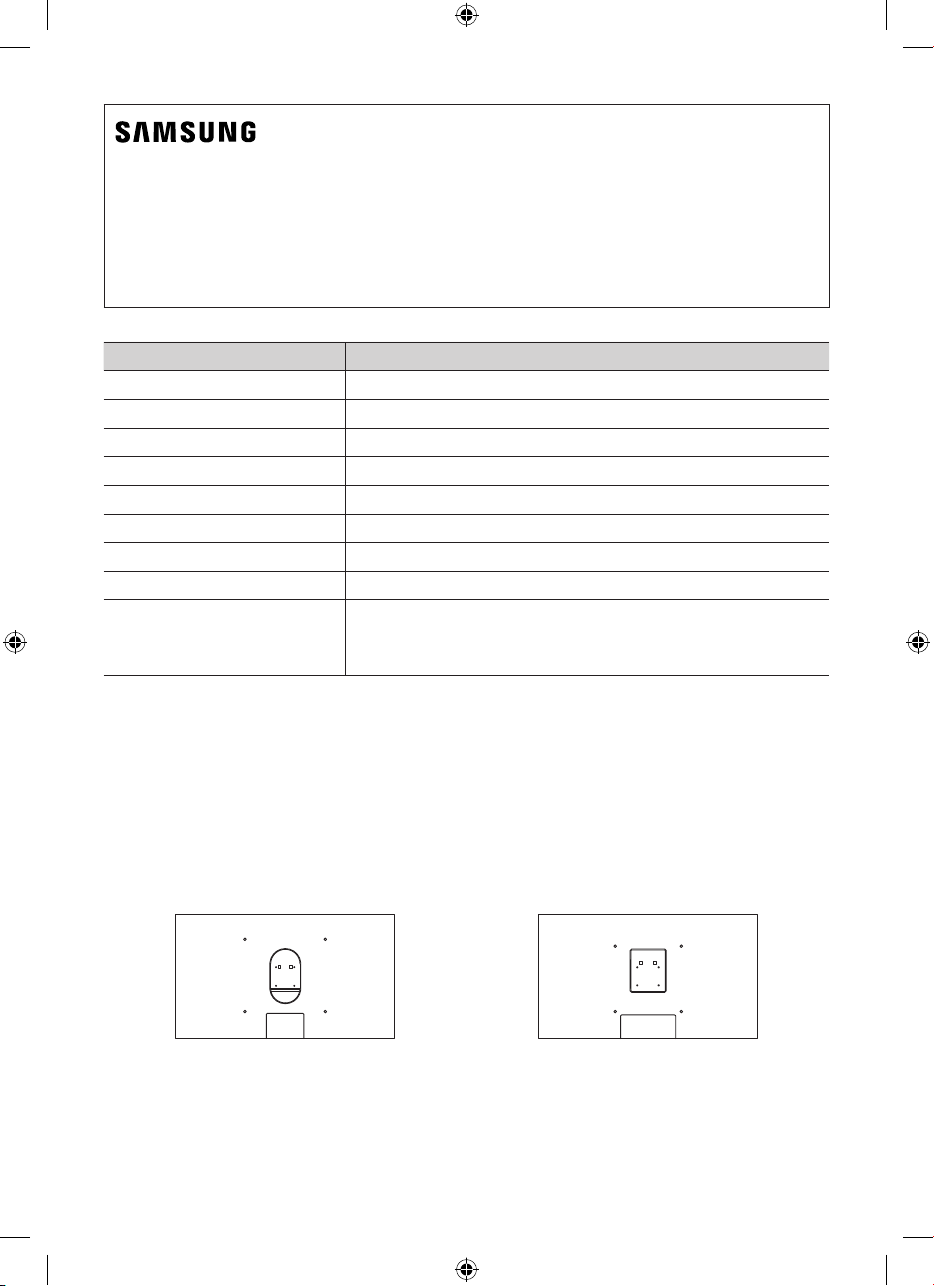

Cautions when installing

Model name WMN-M10E

Width (mm) 520

Height (mm) 280.3

Thickness (mm) 15.9

TV tilt (°) Max. 10°

Package size (W x D x H) (mm) 594 x 337 x 75

Package weight (kg) 3.5±0.5

Max. allowable TV weight (kg) 30

Standard stud distance 16” supported / 24” not supported

Compatible TVs

Clearance from the wall (mm)

SAMSUNG TV Q7 Series, 49/55/65" (0 mm or more)

SAMSUNG TV Q8 Series, 49/55/65" (0 mm or more)

SAMSUNG TV Q9 Series, 49/55/65" (6 mm or more)

•Be sure to use the components and parts provided forinstalling the wall mount.

•The manual instructions and provided parts are based on the typical walls (made of wood orconcrete). (In case of

the WMN-M10E(A) model, the drywall mounting parts are additionally provided.)

•In case of the othercases, use separate mounting parts or perform wall reinforcement in advance. If required, install

the wall mount with an aid of expert.

•Be cautious not to damage the TV screen while installing the wall mount.

•Check your TV's model series. Then use the appropriate preparation methods forthe support frames using the

appropriate screws.

•If you do not follow the installation instructions suitable foryourTV model, the wall mount and TV connection may

be unstable.

- English 2 -

- English 3 -

English

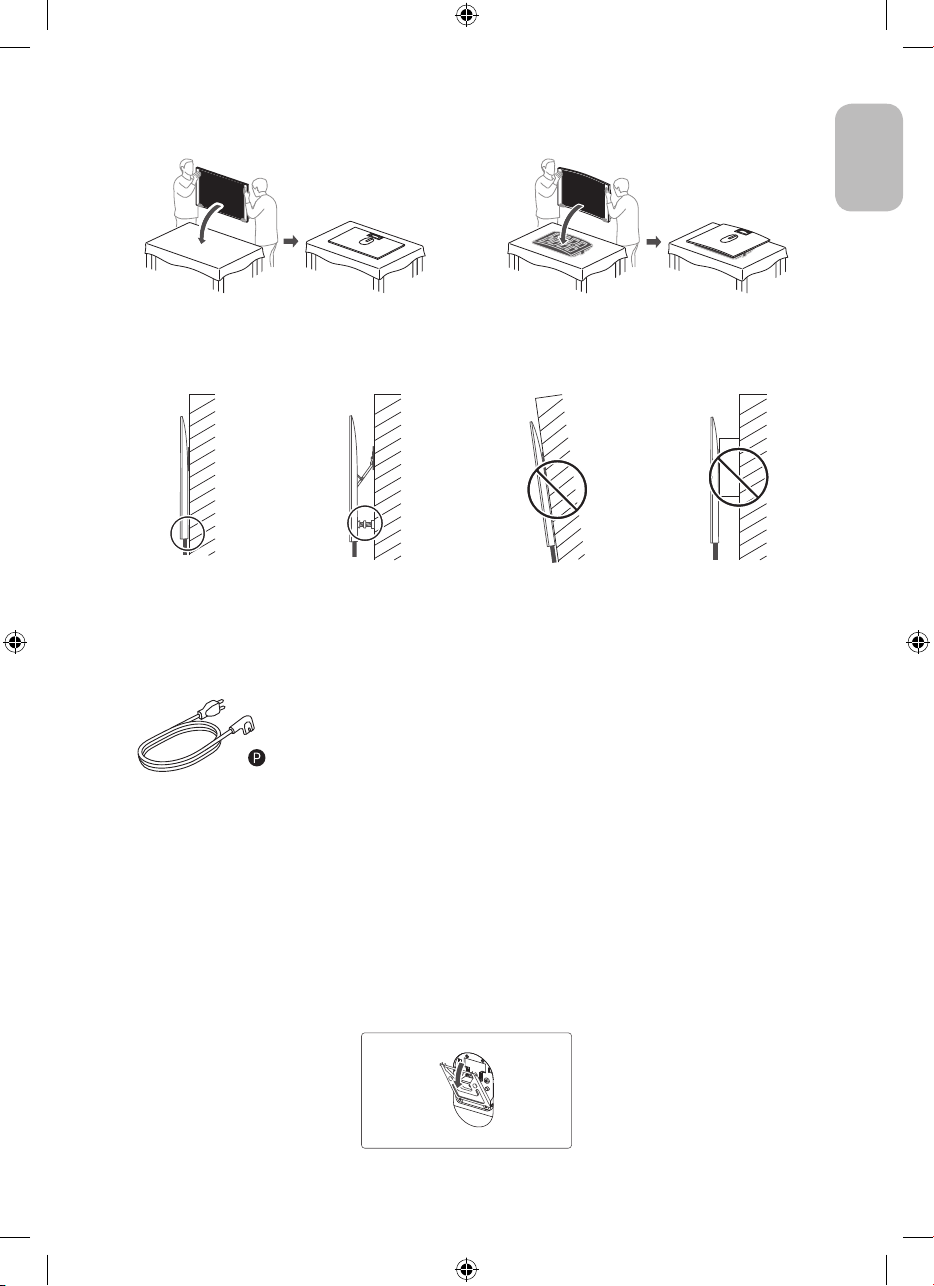

•When installing or uninstalling the wall mount support frame, make sure 2 people work on it, and the TV is off.

•

Flat TV Curved TV

•Install the wall mount only on the wall that is largerthan the TV and is not tilted. Afterinstallation, the cover or

attachment at the bottom of the TV must touch the wall. Otherwise, the wall mount must not be installed.

Wall that is larger than TV

(Installable)

Tilted wall

(Not installable)

Wall that is not larger than the

wall mount

(Not installable)

•Before mounting the TV to a wall, connect the power cable and One Connect cable to the TV .

•Use the included 3 m power cable if the wall-mounted TV and power socket are more than1.5 m apart.

•When installing / uninstalling the wall mount, be careful not to damage the optical cable. Especially, be careful not

to step on the optical cable.

•Use a screwdriver to assemble the TV to the support frame. Using an electric screwdriver may cause screw threads

to wear out.

•The minimum distance between the TV and wall may be 2-3 mm or more depending on the wall surface or

installation conditions. (Q7, Q8 Series: at least 0 mm, Q9 Series: at least 6 mm)

•The distance between the wall and the left or right side of the TV may differ depending on the wall and installation

conditions.

•When installing the wall mount, if the TV is too close to a wall, scratches may occuron the back of the TV or on a wall.

•A lot of force is required to open the bracket before installing the wall mount. Be careful not to hurt yourself when



the TV.)

- English 4 -

- English 5 -

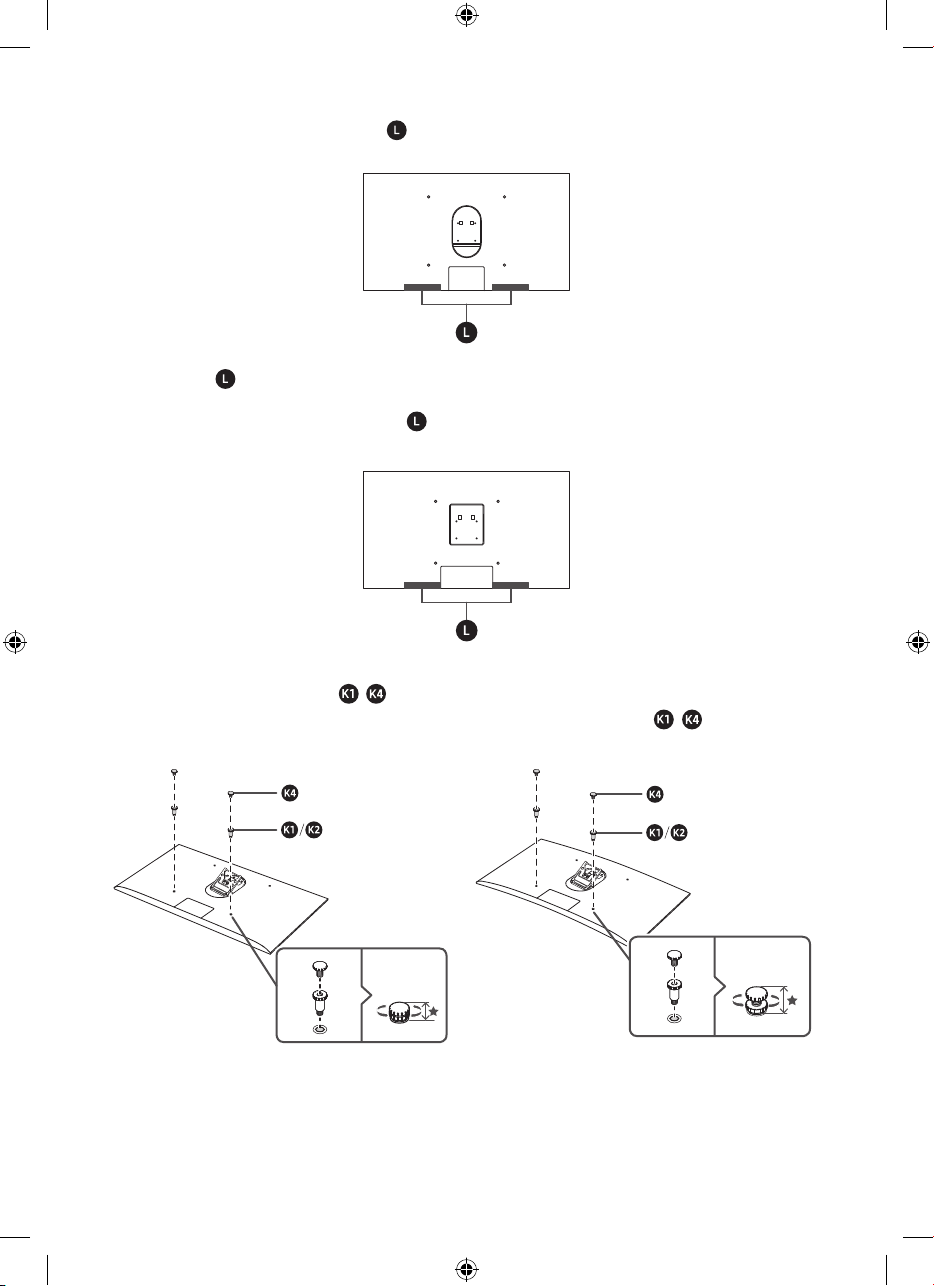

•In cases with tight installation conditions, friction between the TV/accessories and the wall may damage the wall or

the back of the TV. Use a scratch protector as in the picture in such cases. However, distance from the wall may

increase.

•You must use parts as in the picture to attach Q9 series TVs. This restricts movement between the TV and wall

due to distance from the wall and prevents the TV from leaning forward.

If the TV leans forward, use 2 overlapping parts. This may additionally improve the inclination.

However, distance from the wall may increase.

•A curved TV may move left and right afterbeing installed to the wall mount. You can suppress the TV from moving

left and right by using accessories ~together. (Adjust the horizontal length of the part to be the same.)

You can also suppress a Flat TV from moving left and right by using accessories ~ . However, distance

from the wall may increase.

Flat TV Curved TV

- English 4 -

- English 5 -

English

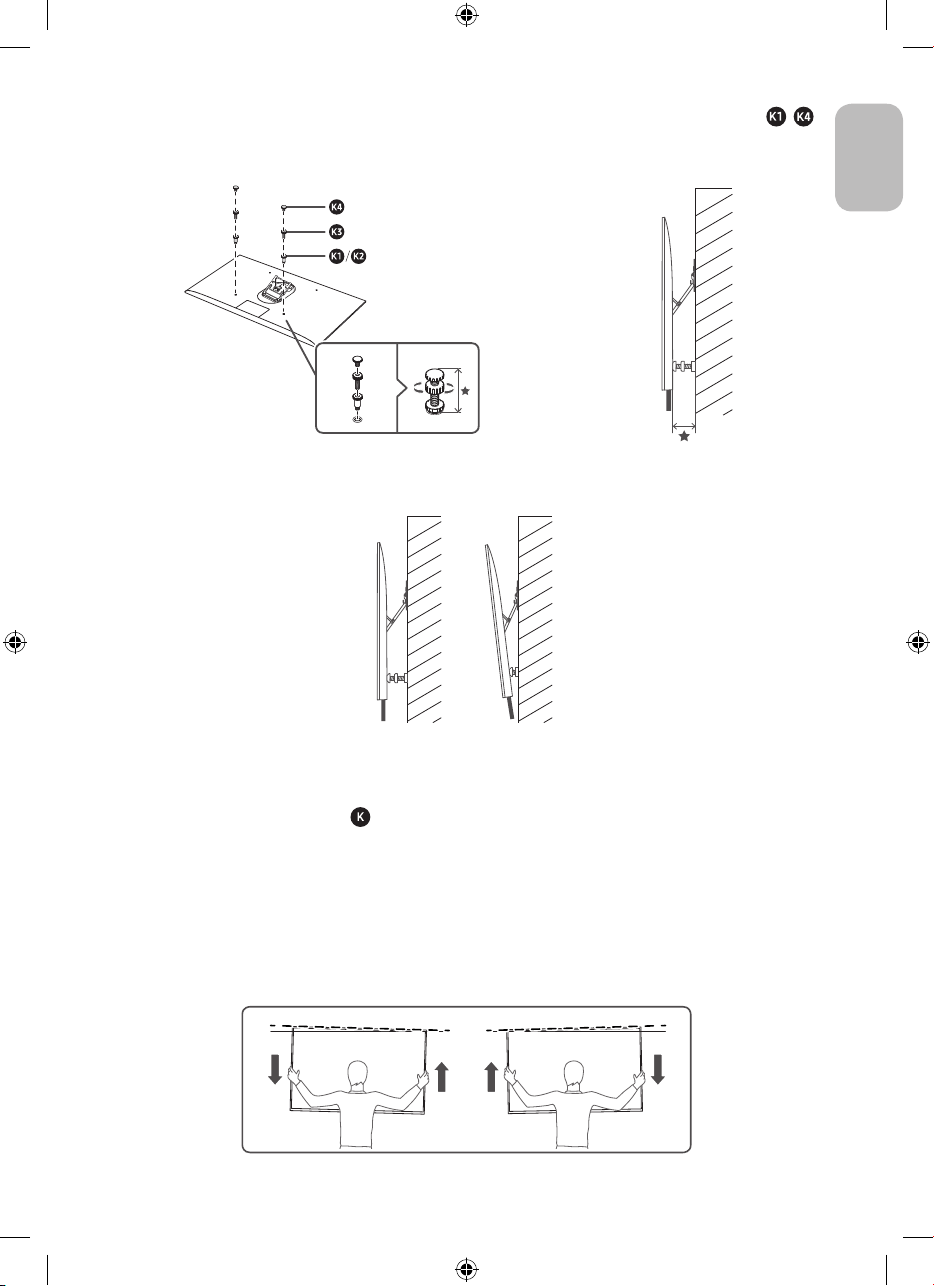

•If there is a protruding part on the wall where you want to install the wall mount, you may use accessories ~to

secure enough distance between the TV and a wall. (Adjust the horizontal length of the part to be the same.)

However, the distance to the wall will become larger.

•If you secure distances using those accessories, you may not be able to use the tilt option. If you want to use the tilt

option, the secured distance is limited.

•The maximum tilt angle differs depending on the TV model. The tilt angle may not be maintained on the wall with

vibration.

•Afterwall mount installation, movement may occur on some TV models depending on the rear shape of the TV. In

this case, use the separation holder ( ).

Triangularsupport allows more stable wall mount installation. However, distance from the wall may

increase.

•If you cannot adjust the horizontal level by using the horizontal adjustment function, check if the installation was

done properly.





•The horizontal level that can be adjusted is just1 to 2 degrees. To adjust the horizontal level at more angles than this

range, reinstall the wall mount.

- English 6 -

- English 7 -

•



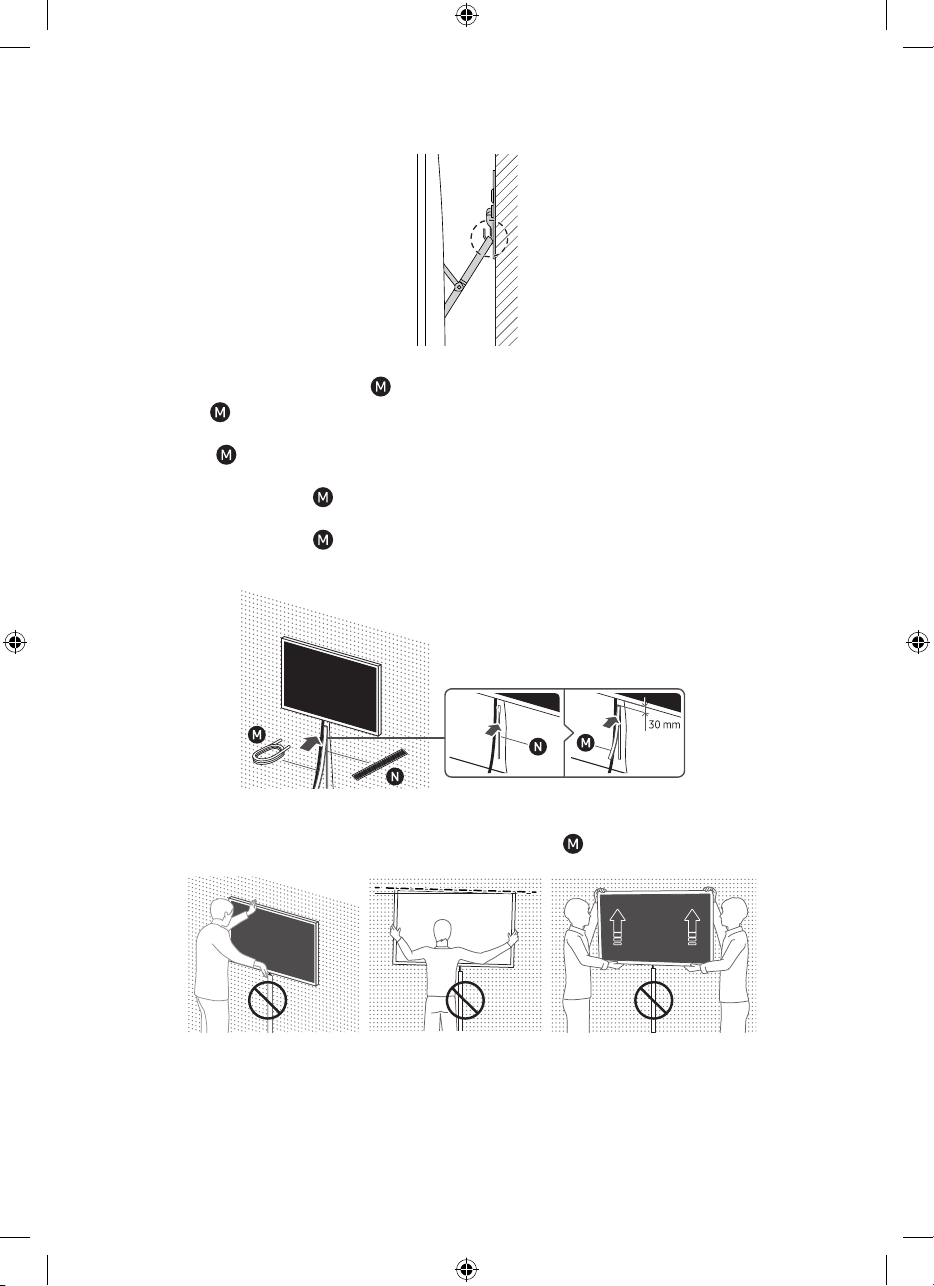

•You do not need to use the cable guide ( ). Use it depending on the installation condition.

•Cable guide ( ) double-sided tape may not stick or may not stick well depending on yourwall surface (ex.: uneven)

or material. It may also lose stickiness overtime under some installation conditions.

•Cable guides ( ) may harden if stored in a cold place. In such cases, keep them at room temperature (around 20

degrees) for1-2 hours.

•When removing cable guides ( ), the wall may be damaged in some surroundings. (Ex.: wall surface chipped, paint

chipped, etc.)

•When attaching cable guides ( ) to the wall, we recommend installing at least 30 mm from the TV connector to

prevent damage to the cable guide due to the distance between the TV connector and wall.

•Be careful that the cable is not damaged when removing, moving, inclining, or horizontally adjusting the TVwhile

 ).

•To prevent cable damage when dismounting the TV from the wall, disconnect the power cable and the optical cable

before removing the wall mount.

•

remove the TV from the wall mount.

- English 6 -

- English 7 -

English

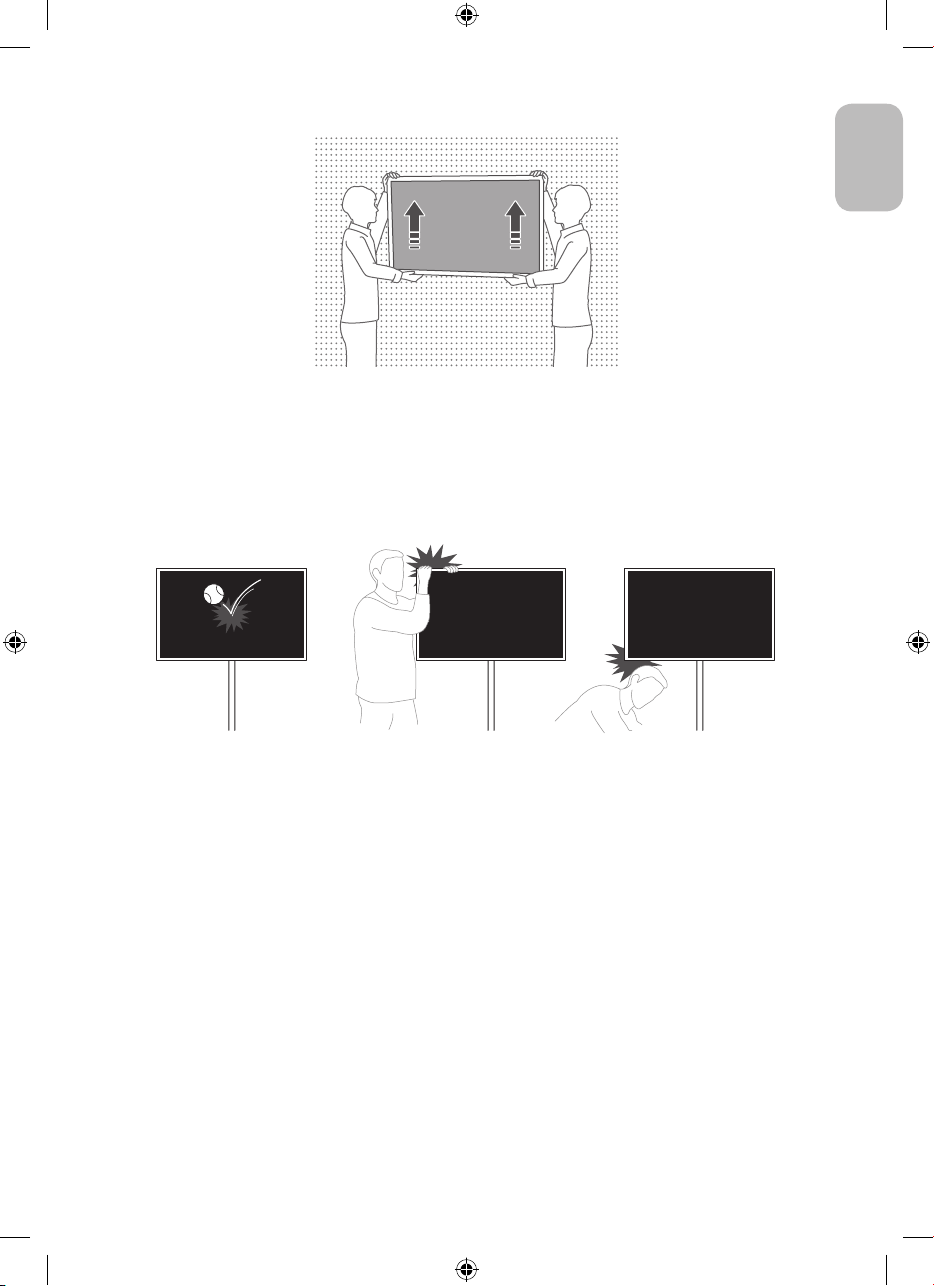

•When removing the TV from the wall, make sure 2 people lift it up together. Do not apply direct force on the display.

•When you grab the TV to install, remove, adjust the horizontal level, or tilt the wall mount, do not apply direct force

on the display.

•When you handle the TV to install, remove, adjust the horizontal level, or tilt the wall mount, be careful not to

damage any cables.

•Be sure that the TV and wall mount stand are not hit with excessive force after installing the wall mount. The wall

mount or TV may be damaged or the TV connection with the wall mount device may become unstable. In this case,

reinstall the wall mount or consult an expert for assistance.

•Check the product model as well as the enclosed user manual foreach product and check that the wall allows

mounting.

–Be sure the wall is stable. If the wall is weak, reinforce it before installation.

–If the wall is not cement, check with a specialist to determine whetherthe TV may be installed on it.

–Consult an expert installer if you do not have any background knowledge about the wall you want to install the

product on.

•To maintain product performance and prevent malfunctions, do not install in the following locations.

–Places where there is a risk of vibration or shock: The product may fall and be damaged.

–Next to a sprinkler sensor: The sensor may detect the heat from the TV and sprinklers may start.

–Near high-pressure cables: The TV may get interfered by high-pressure cable and the screen may not display

correctly.

–Near heaters: The TV may become overheated and malfunction.

–Do not install anywhere other than a vertical wall.

–Install it out of the reach of children.

–Do not penetrate the wall to install inside.

- English 8 -

- English 9 -

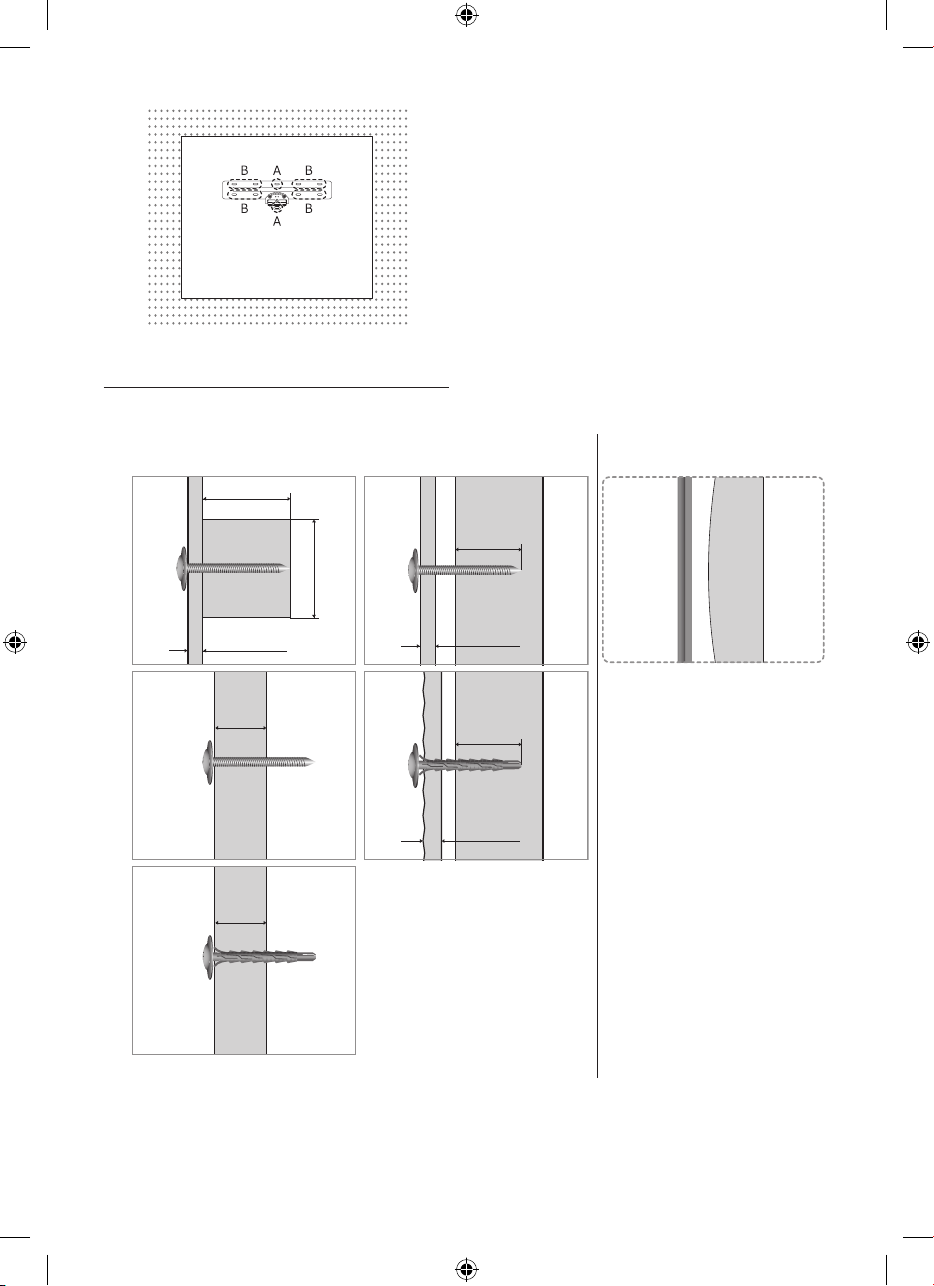

–Be sure to check the type and condition of the wall you will

install on.

–Materials to be used may differ depending on wall type.



–You do not need to use all the supplied screws. However,

you must use at least 4 screws.

–You must use screws in the two locations marked as A.

–Choose at least 2 of the parts marked B to assemble

depending on surroundings.

Standard Installation Requirements by Wall Type

[Check the wall type before installing.

•

See the diagrams below.

•First, check the status of the wall



When there is

reinforcing wood

such as MDF or PW

(plywood)

Min. 50 mm

Min. 10 mm

MDF, PW (plywood)

Min. 50

MDF, PW (plywood)

Min. 30 mm

Min. 10 mm

MDF, PW (plywood)

TV Wall

Surface

MDF, PW (plywood)

(excluding gypsum

board thickness)

Min. 25

Concrete

Artwall

Min. 30 mm

Min. 10 mm

MDF, PW (plywood)

If the wall surface is not completely



installation.

Hybrid concrete

walls

(excluding

gypsum board

thickness)

Min. 25

•Note

MDF = Medium Density Fiberboard

PW = Plywood

- English 8 -

- English 9 -

English

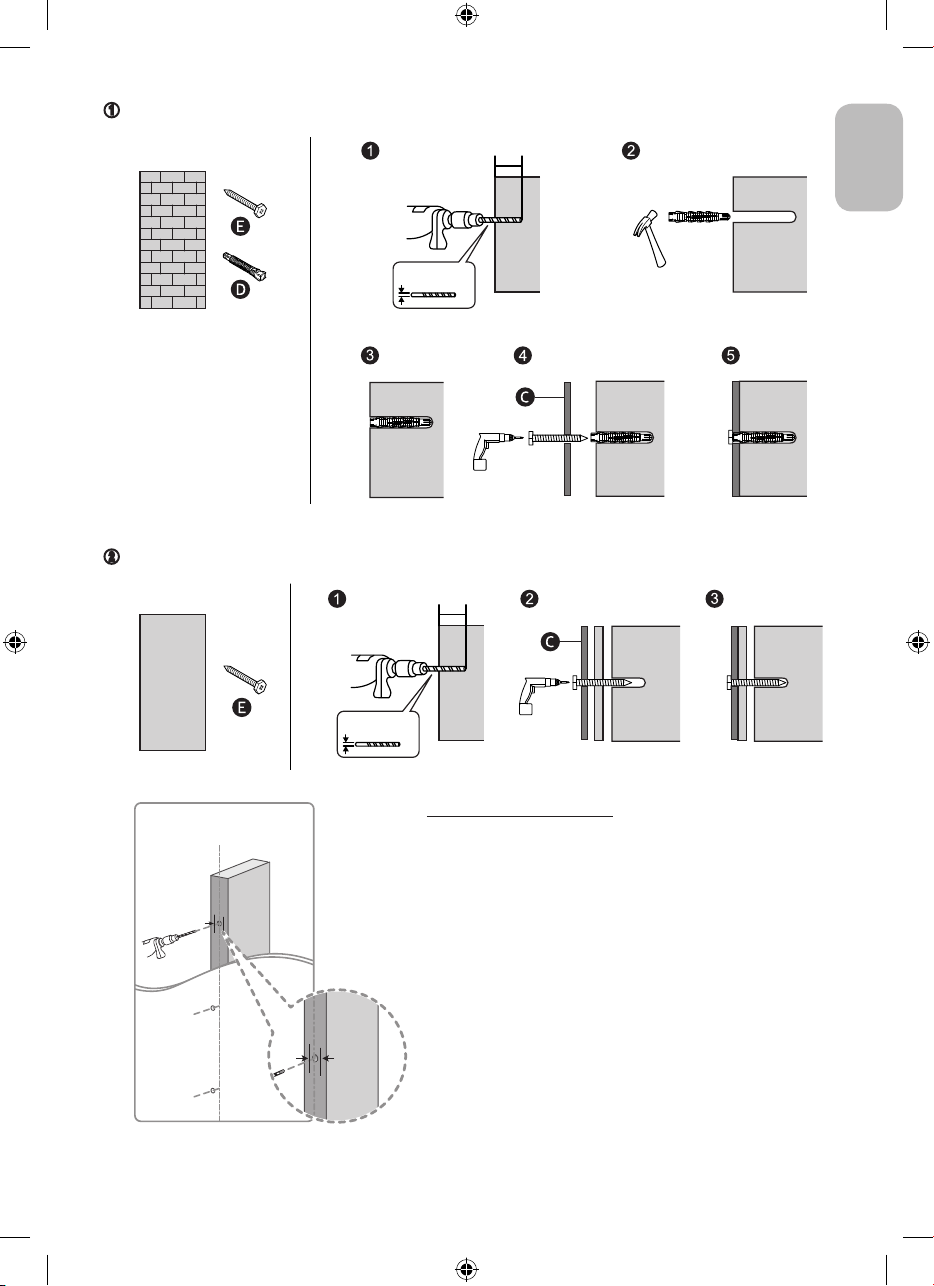

1 Walls made of thick enough concrete

Wall

9 mm (3/8”)

65 mm (2.5”)

2 Walls made of gypsum board with wood studs or MDF

3 mm (1/8”)

65 mm (2.5”)

15 mm

Installation Requirements

•Be sure to check the location of wooden studs in the wall

before installing screws.

•Minimum wood stud size: 51 x102 mm (2 x 4 in) Make holes (3

mm

•Holes for screws must be made at the centerof studs.

•Wood may split when attaching the TV if holes are not made.

•A standard stud distance of16” is supported. (24” is not

supported)

[Samsung is not responsible for problems that arise when the

installation guide is not followed.

- English 10 -

- English PB -

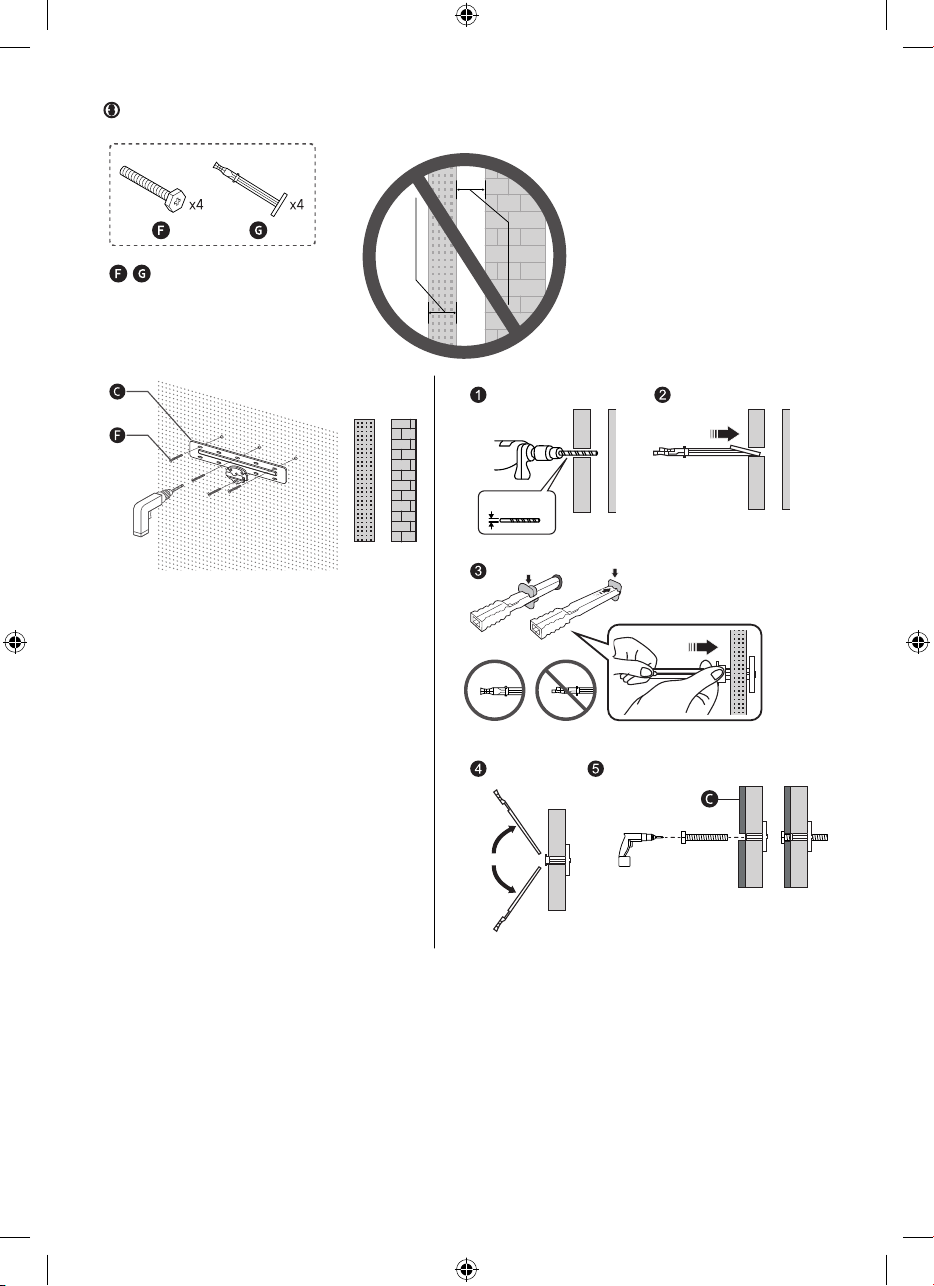

3 Gypsum Board / Dry Wall, Sheet Rock, Gypsum-Board

0-11 mm (0.4”)

0-48 mm (1.8”)

/ is an optional part.

WMN-M10E(B) is not provided.

Wall

13 mm (0.5”)
