Samsung SRP - 770 Manual de usuario

JE68-00131B

http://www.samsungminiprinters.com

SRP - 770

Thermal Label Printer

ator’s Manual

Safety Precautions

In using the present appliance, please keep the following safety

regulations in order to prevent any hazard or material damage.

Violating following instructions can cause serious injury or death.

Do not plug several products in one

multi-outlet.

This can provoke over-heating and a fire.

If the plug is wet or dirty, dry or wipe it

before usage.

If the plug does not fit perfectly with the

outlet, do not plug in.

Be sure to use only standardized

multi-outlets.

You must use only the supplied adapter.

It is dangerous to use other adapters.

Do not pull the cable to unplug.

This can damage the cable, which is the

origin of a fire or a breakdown of the printer.

Keep the plastic bag out of children’s reach.

If not, a child may put the bag on his head.

Do not plug in or unplug with your hands

wet.

You can be electrocuted.

Do not bend the cable by force or leave it

under any heavy object.

A damaged cable can cause a fire.

If you observe a strange smoke, odor or

noise from the printer, unplug it before

taking following measures.

Switch off the printer and unplug the set from

the mains.

After the disappearance of the smoke, call

your dealer to repair it.

WARNING

PROHIBITE

PROHIBITE PROHIBITE

ONLY SUPPLIED ADAPTER

PROHIBITE

TO UNPLUG

PRINTER

Violating following instructions can cause slight wound or damage the appliance.

Keep the desiccant out of children’s

reach.

If not, they may eat it.

Install the printer on the stable surface.

If the printer falls down, it can be broken

and you can hurt yourself.

Use only approved accessories and do

not try to disassemble, repair or remodel

it for yourself.

Call your dealer when you need these

services.

Do not use the printer when it is out of

order. This can cause a fire or an

electrocution.

Switch off and unplug the printer before

calling your dealer.

Do not let water or other foreign objects

in the printer.

If this happened, switch off and unplug the

printer before calling your dealer.

WARNING

PROHIBITE PROHIBITE

PRINTER

PRINER

DISASSEMBLING

PROHIBITED

PRINTER

PROHIBITE

PRINTER

DEALER

TO UNPLUG

1. Unpacking

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

Printer (SRP-770) Operator’s Manual

Label (Paper) Power Cord Power Supply

2. Samsung Label Printer

Feed Button

Cover Peel-of

Status Indicator

Cover Open/Close

Power Switch

Printer Head

Paper Holder

Paper Guide

Peel-off Sensor

Paper(gap) Sensor Paper Adjuster

Power Connector

Interface Connectors

(RS-232C, IEEE1284, USB)

Dip Switch

3. Connecting the Power Supply

CAUTIONS:

When connecting or disconnecting the power supply from the printer, make sure that

the power supply is not plugged into an electrical outlet. And the power supply’s

rated voltage and your outlet’s voltage do not match, contact your dealer for

assistance. Then do not plug in the power cord. Otherwise, you may damage the

power supply or the printer.

1. Make sure that the printer’s power switch is turned off, and the power supply’s

power cord is unplugged from the electrical outlet.

2. Check the label on the power supply to make sure that the voltage required by the

power supply matches that of your electrical outlet.

3. Plug in the power supply’s cable as shown below. Notice that the flat side of the

plug faces down.

4. Connecting the Interface Cable

* Note

Defaultly, you can use Serial and Parallel Interface.

If you want to use USB Interface, please turn on the Dip S/W2-4

Universal Serial Bus

(USB) Serial Interface

RS-232 default

setting is 19200 baud,

no parity, 8 data bits

and 1 stop bit

Parallel Interface

Installing or Replacing the Paper Roll

①Open Cover ②Open Guides

③Install Roll

⑤Close Cover

④Close Guides to the Width of the paper

6. Setting The Dip Switches

6-1. Setting the Dip Switches

The Dip Switches are located on the bottom of the printer. The Dip Switches are used to

set the Printer to perform various functions. Follow these steps when changing Dip

Switches setting :

1. Turn the printer power switch off.

2. Remove the screw on the bottom of the printer and open the bracket.

3. Flip the Dip Switches using tweezers or another narrow-ended tool. Switches are

off when up and on when down in the Figure below.

4. The new setting takes effect when you turn on the printer.

Note : Always change Dip Switch settings only when the printer is turned off.

6-2. Functions of Dip Switches

6-2-1. Dip S/W 1 6-2-2. Dip S/W 2

NO Functions Details

21 Speed

Off Off 2.5 ips

Off On 3.0 ips

On Off 4.0 ips

1,2 Speed

Selection

On On 5.0 ips

43 Density

Off Off 0(Low)

Off On 7

On Off 13

3,4 Density

Selection

On On 20(High)

5,6,

Developer

Mode Default --- off

Off Move to Cutting Position

8 Position

Selection On Move to top of next page

No Functions Details

21 Baud Rate

Off Off 9,600 bps

Off On 19,200 bps

On Off 57,600 bps

1,2 Baud

Rate

On On 115,200 bps

Off Xon/Xoff

3 Flow

Control On RTS/CTS

Off Serial & Parallel

4 Interface

Selection On Serial & USB

5~8 Developer

Mode Default --- off

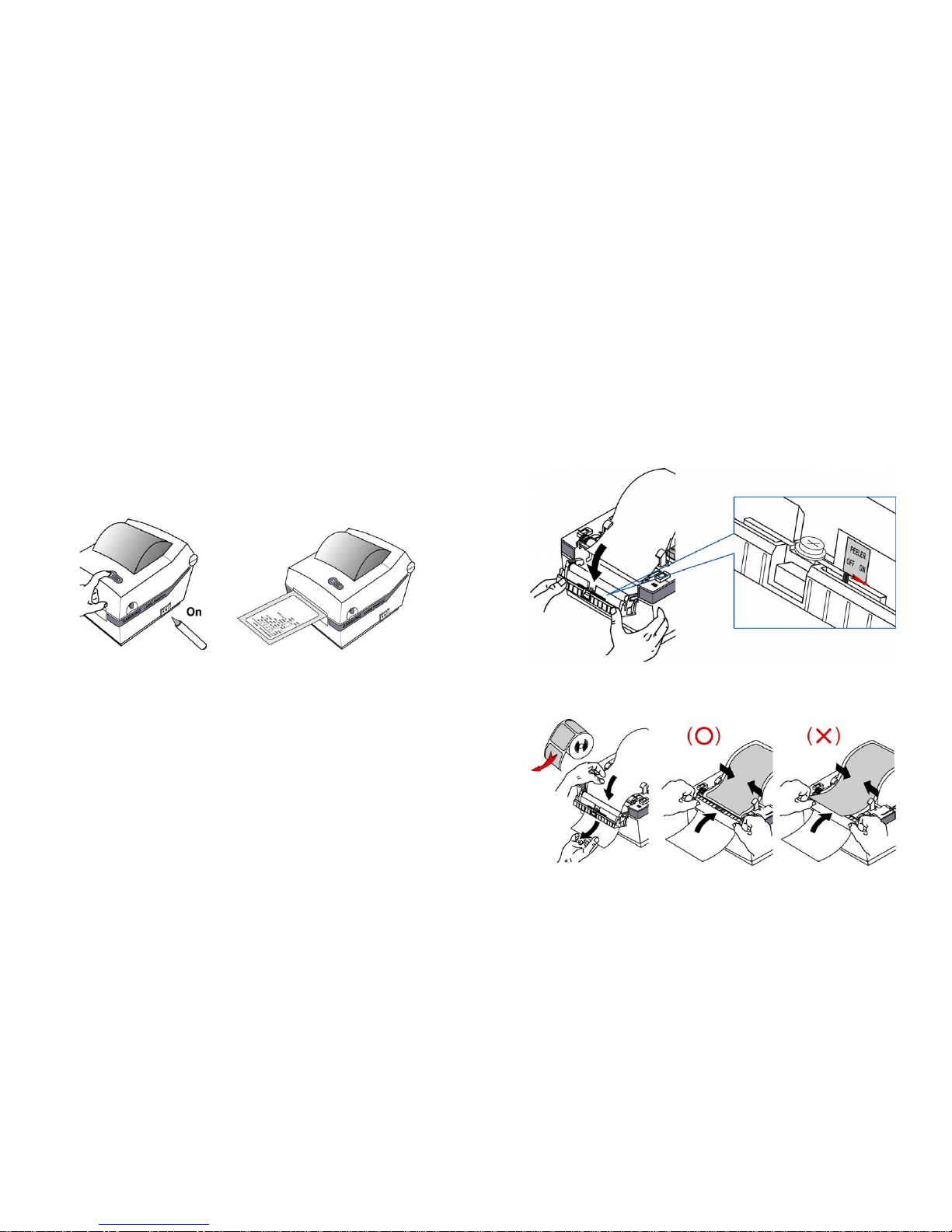

. The Self Test

(and Autosense Gapsensor Adjustment)

The self-test checks whether the printer has any problems. And perform this procedure

when loading a new roll.(You cannot perform this procedure if using the printer’s label

peel-off option) If the printer does not function properly, contact your dealer. The self-test

checks the following;

1. Make sure that paper roll has been installed properly.

2. Turn on the power while holding(2sec) down the FEED button. The self-test begins.

3. The self-test prints the current printer status, which provides the control ROM version

and the DIP switch setting.

䧎Cleaning Head

Paper dust on the heating elements may lower the printer quality. In this case, clean the

print head as follows :

Cautions 1. Turn Off the printer power before cleaning.

2. Note that the thermal head becomes very hot during normal operation,

creating the danger of burn injury. Be sure to wait for about 10 minutes

after turning printer power off before beginning the cleaning.

1. Open the printer cover.

2. Clean the thermal element (the area which is marked a thin black line) of the

thermal head with a cotton swab moistened with a alcohol solvent (ethanol,

methanol, or IPA).

3. After confirming that the alcohol solvent has been dried up completely,

close the cover-open.

Note 1. Never touch the thermal element with your hand,

thenthe thermalelementcanbe damaged.

2.Don’tscratchtheprinterhead.

8. The Peel-off

Printers can Peel-off a single label.

You must remove the label before the printer prints the next label.

①Open the peel-off cover and turn on peeler switch.

②Remove the one a paper and ③Adjust the paper guides and close the cover.

insert the paper through slot.

remove

9. Using Fan Fold Paper

Insert paper through both the rear slot and guides.

Adjust holders and guides to the width of the paper.

Open the Dust Cover

and Insert paper

Dust Cover

ust holders papers and paper Fixed

ust Guides

Paper Fixed

【Specification 】

Printing method Thermal line printing

Dot density 203 dpi (8 dot/mm)

Printing width 25.4 ~ 101.6 mm

Paper width 38.1 ~ 104 mm

Printing speed 127 mm/sec

Receive Buffer Size 4K Byte

※Note : Printing speed may be slower, depending on the data transmission speed

and the combination of control commands.

Inputvoltage 100~240V AC

Frequency 50/60 Hz

Supply voltage

Output voltage DC 24V

Temperature 5 ~ 45 ℃(Operating)

-25 ~ 70 ℃(Storage)

Environmental

conditions Humidity

30 ~ 80 % RH (Operating)

10 ~ 90 % RH (Storage)

; Except for paper

LIFE Mechanism Head 10,000,000 lines

5×107 pulse (50km)

MCBF Mechanism 20,000,000 lines
