Samsung CLP 500 Manual de usuario

COLOR LASER PRINTER

Setup Guide

Antes de operar el producto, por favor lea el instructivo,

a fin de evitar fallas y conserve para futuras referencias.

CLP-500

CLP-500N

SAMSUNG LASER PRINTER

Setup Guide

CLP-500

ETUP

UIDE

ONTENTS

Step 1.

Unpacking ............................................. 3

Step 2.

Understanding Your Printer ................... 5

Step 3

. Installing the Drum Cartridge,

Image Transfer, and Toner Cartridges .. 7

Step 4

Loading Paper ..................................... 18

Step 5.

Connecting a Printer Cable .................. 21

Using a Parallel Cable .................................21

Using a USB Cable .....................................22

For Networking Printing ..............................23

Step 6.

Turning the Printer On ........................ 24

Step 7.

Printing a Demo Page .......................... 25

Step 8.

Changing the Display Language .......... 26

Step 9.

Installing the Printer Software ............ 27

Installing Printer Software in Windows ..........27

Reinstalling Printer software ........................29

Removing Printer software ..........................29

Changing the Display Language ...................29

Step 10.

Viewing the User’s Guide ................... 30

In Windows ..............................................30

In Macintosh .............................................30

In Linux ...................................................31

ETUP

UIDE

English

Step 1.

Unpacking

Remove the printer and all of the accessories from the

packing carton. Make sure that the printer has been packed

with the following items:

OTES

• If any items are missing or damaged, notify your dealer

immediately.

• Components may differ from one country to another.

• The CD-ROM contains the printer driver, the User’s Guide, and

the Adobe Acrobat Reader program.

• The power cord may be different depending on your country.

Toner Cartridges Power Cord

Image Transfer Unit Drum Cartridge

CD-ROM Setup Guide

ETUP

UIDE

Carefully remove all of the packing tapes from the printer.

Pull the paper tray out of the printer and remove the

packing tapes from the tray.

Select a location for the printer:

•Leave enough room to open the printer trays, covers, and

allow for proper ventilation.

•Provide the proper environment:

– A firm, level surface

– Away from direct airflow of air conditioners, heaters, or

ventilators

– Free of temperature, sunlight, or humidity extremes or

fluctuations

– Clean, dry, and free of dust

ETUP

UIDE

English

Step 2.

Understanding Your Printer

These are the main components of your machine:

Control Panel

(see the User’s

Guide of the

printer in the

CD-ROM.)

Paper Output Tray

Top Cover

(Open to install the drum, and

image transfer unit.)

Front Cover

(Open to remove

the waste toner

and clean the

LSU.)

Left Cover

(Open to install the

toner cartridges press the top

cover release button.)

Output Support

Tray 1

(250-sheet paper feeder)

Top Cover

Release Button

Optional Tray 2

(500-sheet paper feeder)

Handle

(Use it to lift the

machine.)

ETUP

UIDE

Optional Tray 2 Jam Cover

(Open to remove jams in the optional tray 2.)

Muti-purpose Tray

(Open to load special print materials.)

Right Cover

(Open to remove paper jams.)

Power Switch

USB Port

Power Receptacle

Control Board

Cover

(Open to install optional

accessories.)

Wireless Network

Antenna

Network Port

Parallel Port

***

* This wireless network port is not available when you purchased the machine. You can install it using an

option.

** The network port is provided at default for CLP-500N. CLP-500 users should install it using an optional

network interface card. For details, see the User’s Guide of the printer in the CD-ROM.

*** The parallel port may not be available depending on your country.

ETUP

UIDE

English

Step 3.

Installing the Drum Cartridge, Image

Transfer, and Toner Cartridges

Using the handle, open the left cover completely.

AUTION

If the left cover is not completely open, the top cover

release button does not press.

Press the top cover release button to unlatch the top cover

and open it all the way.

Top cover release

button

ETUP

UIDE

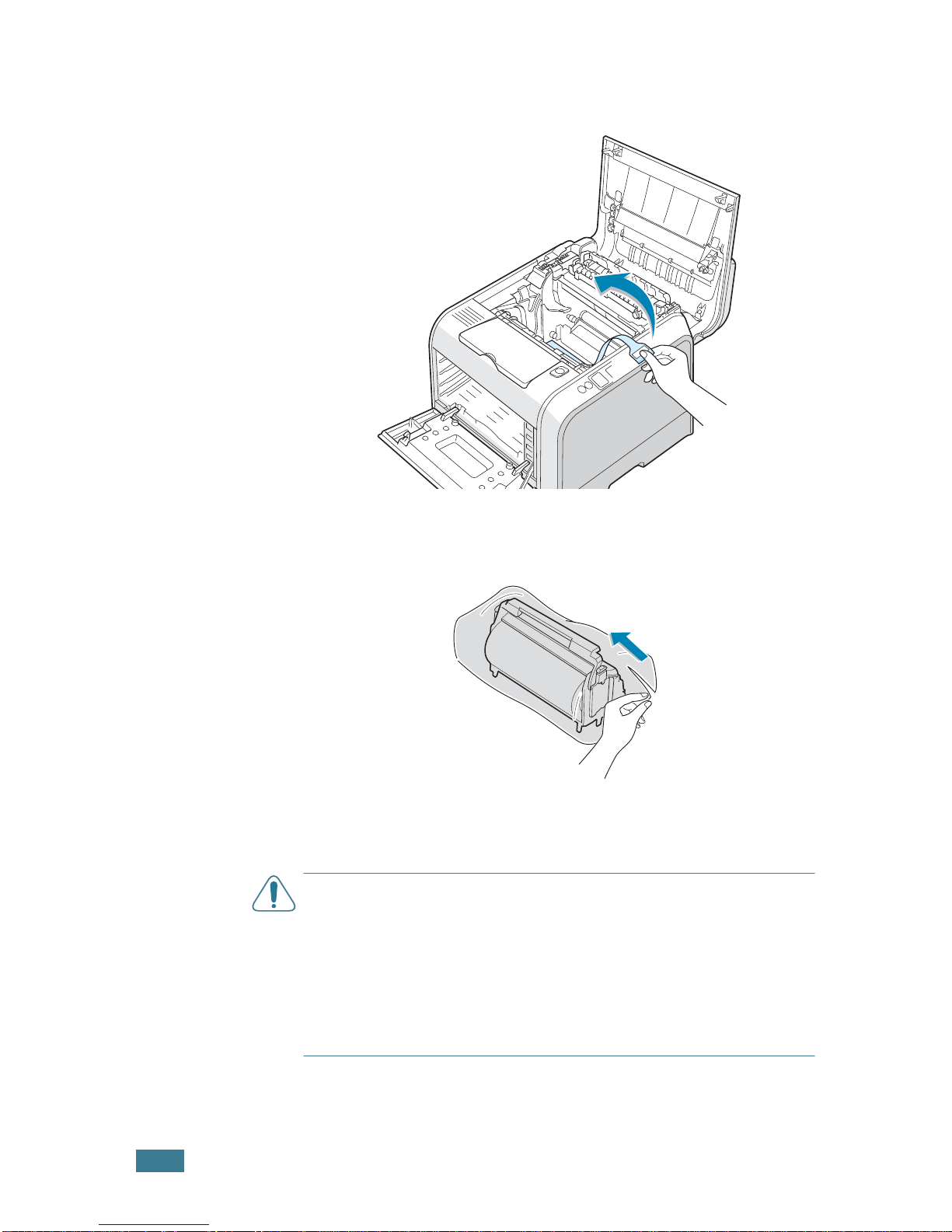

Remove the LSU label.

Take the drum cartridge out of the package using the

handle.

Remove the paper covering the drum cartridge by removing

the tape under the handle of the drum cartridge.

AUTIONS

• Don’t use sharp objects, such as a knife or scissors, to open the

drum cartridge package. You could damage the surface of the

drum.

• To prevent damage, do not expose the drum cartridge to light for

more than a few minutes. Cover it with black paper, if necessary.

• Do not touch the surface of the green roller on the drum

cartridge or print quality problems can occur.

ETUP

UIDE

English

Locate the drum cartridge slots inside the printer, one on

each side.

Hold the handle on the drum cartridge with the green roller

facing you. Then align the drum cartridge with the slots in

your printer.

AUTION

Insert the drum cartridge carefully so as not to scratch

and damage the surface of the green roller.
