Your New Plasma Display Panel

ENG

➢

The actual configuration on your PDP may be different,

depending on your model.

Rear Panel

a) DVI INPUT

Connect to digital video output jack for device

with DVI output.

b) MONITOR OUT (VIDEO / L-AUDIO-R)

Outputs for external devices

c) Ext.1, Ext.2

Inputs or outputs for external devices, such as

VCR, DVD, video game device or video disc

players.

d) PC INPUT (RGB IN / AUDIO)

Connect to the video and audio output jack on

your PC.

e) ONLY FOR SERVICE

Connector for service only.

f) S-VIDEO

Video and audio inputs for external devices with

an S-Video output, such as a camcorder or VCR.

g) AV (VIDEO / L-AUDIO-R )

Video and audio inputs for external devices, such

as a camcorder or VCR.

h) COMPONENT

Video (Y/Pb/Pr) and audio (L-AUDIO-R) inputs for

Component.

i) ANT IN VHF/UHF (75Ω)

75ΩCoaxial connector for Aerial/Cable Network.

j) EXT SPEAKER(8Ω)

Connectors for external speakers.

K) POWER IN

Connect the supplied power cord.

BN68-00699A-00_Eng 4/13/04 11:17 AM Page 7

ENG

)

You must insert or replace the batteries in the remote control when

you:

◆Purchase the PDP

◆Find that the remote control is no longer operating

correctly

1Remove the cover on the rear of the remote control by pressing

the symbol ( ) downwards and then pulling firmly to remove it.

2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking

care to respect the polarities:

◆

on the battery against

on the remote control

◆

on the battery against

on the remote control

3Replace the cover by aligning it with the base of the remote

control and pressing it back into place.

Inserting the Batteries in the Remote Control

Assembling the Stand-Base

1Assemble two support pins with the stand base and firmly secure

both sides of the support pins using 8 screws provided.

2Assemble the PDP with the stand and firmly secure the PDP using

4 screws provided.

➢◆

Two or more people should carry the PDP. Never lay the

PDP on the floor because of possible damage to the screen.

Always store the PDP upright.

BN68-00699A-00_Eng 4/13/04 11:17 AM Page 9

ENG

Installing the Display on the Wall Attachment Panel

Wall Mount Bracket

Mounting Kits

4 EA 4 EA

Plastic Hanger Screws

How to Adjust Mounting Angle

1Secure the PDP to the wall mount bracket.

(Please refer to the following instructions.)

2Set the angle by pulling the upper end of the

PDP attached to bracket in the direction of the

arrow.

3The angle can be adjusted from 0° to 15° by

±2°.

The wall mount bracket is delivered

separately. Please tighten the captive

screw in the direction of the arrow after

assembling the bracket.

Installation Notes

◆

Do not install the PDP on any place other than vertical walls.

◆

To protect the performance of the PDP and prevent troubles, avoid the followings:

Do not install next to smoke and fire detectors.

Do not install in an area subjected to vibration or high voltage.

Do not install near or around any heating apparatus.

◆

Use only recommended parts and components.

(depending on your model)

BN68-00699A-00_Eng 4/13/04 11:17 AM Page 10

ENG

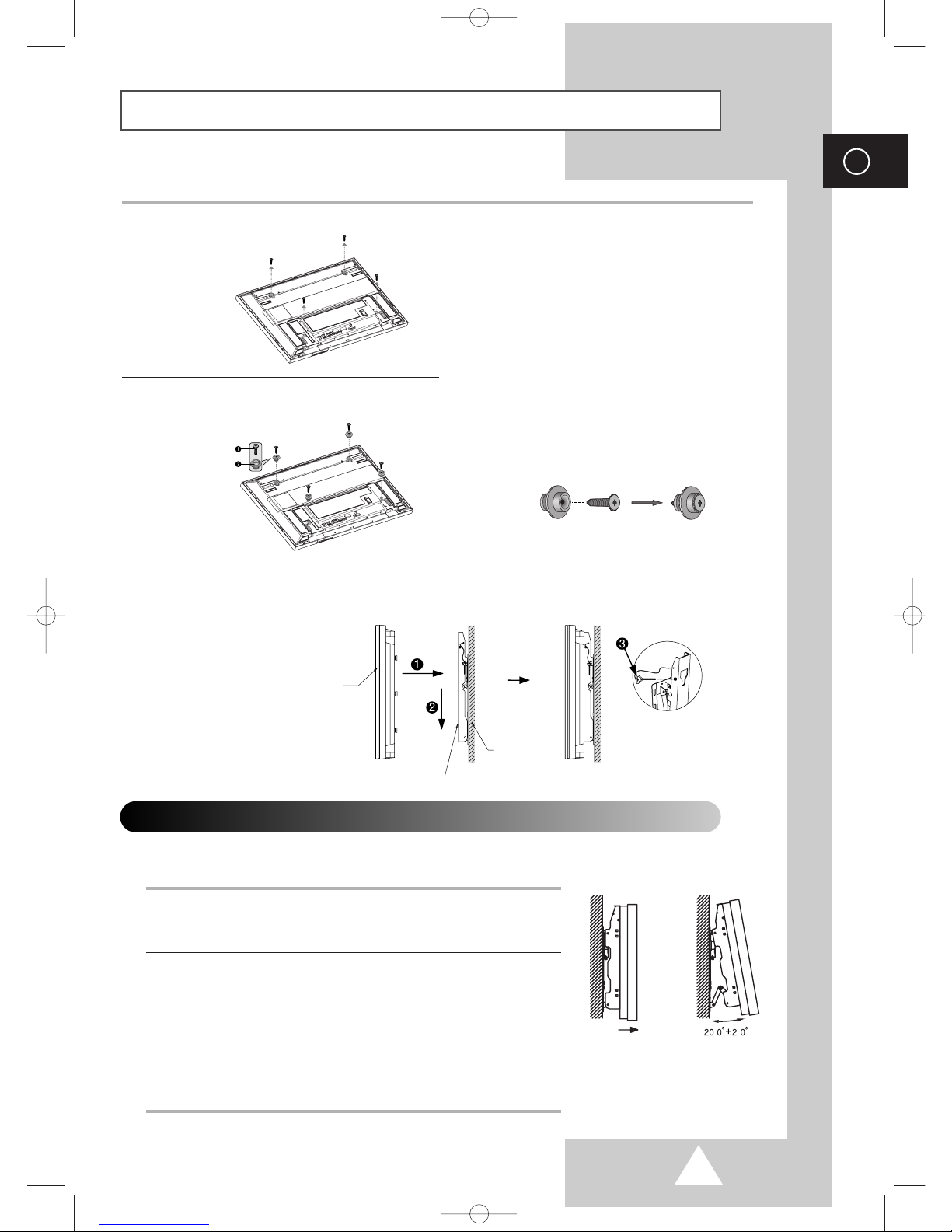

Installing the Display on the Wall Attachment Panel (continued)

1Remove the screws from the back of the PDP.

3Tighten the screws of the plastic hanger to the

back side of the PDP.

4Put the 4 pegs on the PDP in the grooves of the wall mount bracket and pull down on the PDP (!) to

secure it to the wall mount bracket (@). Tighten the screws as shown (#) so that the PDP cannot be

separated from wall mount bracket.

2Use the screws and assemble the plastic

hanger.

☛◆Please ask the installers to install the

wall mount bracket.

◆Please be sure to check if the plastic

hanger is completely secured on both

the left and right side after hanging

the PDP on the wall mount bracket.

◆Please avoid catching your fingers

while installing and adjusting the

angle.

◆Please tightly secure the wall mount

bracket to the wall to avoid injury

from a falling PDP.

Connecting External Devices to the PDP

1Be sure to remove the safety pins underneath the PDP.

◆If the safety pins are not removed, the angle cannot be adjusted.

Any attempt to do so may cause damage to the PDP.

2Pull out the bottom of the PDP (which has been attached to the Wall

Mount Bracket) in the direction indicated by the arrows (refer to

the illustration) until it clicks.

◆Using the PDP After Connecting External Devices.

Be sure to secure the PDP by inserting the 2 safety pins after

readjusting the angle of the PDP to 0

◆For safety, be sure to secure the PDP using the safety pins.

If the safety pins are not used, the PDP may fall, causing serious

injury.

➢The exterior of the PDP may be different than the picture.

(Assembly and installation of the plastic hanger is the same.)

◆

To connect external devices such as a DVD or a Home Theater System to the PDP, please refer

to following instructions:

PDP panel

Wall attachment panel bracket

Wall

BN68-00699A-00_Eng 4/13/04 11:18 AM Page 11

Connecting Speakers

ENG

1Remove the screws on the rear of the PDP.

2Hang the two “T” shaped hangers

on the square holes on the rear of

the PDP.

3Tighten the PDP and the speaker bracket using the screws removed from the PDP.

➢When moving your PDP, do NOT hold the speaker connected to your PDP. It may damage the

bracket clamping the speaker and your PDP together and result in a drop of your PDP and a risk of

personal damage and injury.

BN68-00699A-00_Eng 4/13/04 11:18 AM Page 12

Connecting Speakers (continued)

ENG

Connect the speaker audio cable to the external speaker output jack on the rear of the PDP matching

the “+” and “

” ends of the cable with the diagram on the PDP.

➢◆The speakers MUST have to a power handling capability of 10 watts minimum (impedance 8Ω).

◆When you connect the speaker wire to the external speaker out connector, first bind the speaker wire

round the ferrite core to secure it.

➢Before connecting the speaker wire to the PDP, turn off your PDP.

Ferrite Cores

The ferrite cores are used to attenuate undesired signals.

When connecting cables, attach one of these ferrite cores to

the cable near the connector.

BN68-00699A-00_Eng 4/13/04 11:18 AM Page 13

ENG

In order to watch television programmes broadcast via a satellite

network, you must connect a satellite receiver to the rear of the

PDP. Also, in order to descramble a coded transmission signal, you

must connect a decoder to the rear of the PDP.

Using a Coaxial cable

Connect a coaxial cable to the:

◆Receiver (or Decoder) output socket.

◆Television aerial input socket.

➢If you wish to connect both a satellite receiver (or decoder)

and a VCR, you should connect the:

◆Receiver (or Decoder) to the VCR

◆VCR to the PDP

Otherwise, connect the receiver (or decoder) directly to the

PDP.

Connecting a Satellite Receiver or Decoder

Rear of the PDP

Satellite receiver/

Decoder

To view television channels correctly, a signal must be received by

the set from one of the following sources:

◆An outdoor aerial

◆A cable television network

◆A satellite network

1In the first three cases, connect the aerial or network input cable to

the 75Ωcoaxial socket on the rear of the PDP.

2If you are using an indoor aerial, you may need to turn it when

tuning your PDP until you obtain a picture that is both sharp and

clear.

For further details, refer to:

◆“Storing Channels Automatically” on page 19

◆“Storing Channels Manually” on page 20

➢When installing or re-installing your PDP, be sure to use the

supplied coaxial antenna cable. If you connect using a different

coaxial cable, there is risk of noise or interference to the screen

image. (You must not use another general purpose cable.)

Connecting to an Aerial or Cable Television Network

Rear of the PDP

Cable Television

Network

BN68-00699A-00_Eng 4/13/04 11:18 AM Page 14

ENG

Connecting to the External Devices

“MONITOR OUT” are used for the equipment with an RGB output, such as

video game devices or video disc players.

Rear of the TV

(Input/Output)

①

This end can be fitted with:

◆A SCART connector

◆Three RCA connectors (VIDEO + AUDIO-L/R)

①

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

DVD

②

③

Rear of the TV

(Input/Output)

Camcorder

Video disc player

Video game device

Input/Output Specification

Connector Input Output

Video Audio (L/R) S-Video RGB Video + Audio (L/R)

Ext.1 ✔✔ ✔✔ Only TV output is available.

Ext.2 ✔✔ ✔ Output you can choose.

BN68-00699A-00_Eng 4/13/04 11:19 AM Page 52

ENG

Connecting to the S-Video Input

The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,

such as a camcorder or VCR.

Rear of the TV

Camcorder

VCR

①

To play picture and sound, both the S-VIDEO and RCA connectors must be used.

and

①

☛Whenever you connect an audio or video system to your television,

ensure that all elements are switched off. Refer to the documentation

supplied with your equipment for detailed connection instructions

and associated safety precautions.

BN68-00699A-00_Eng 4/13/04 11:19 AM Page 53

ENG

Connecting to the DVI Input

Connecting to the PC Input

The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC.

Personal Computer

and

Rear of the TV

The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output.

Personal Computer

Rear of the TV

and

BN68-00699A-00_Eng 4/13/04 11:19 AM Page 54
