Samsung PS50C7000 Manual de usuario

Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

Customer Care Centre

Web Site

AUSTRALIA 1300 362 603 www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

CHINA 400-810-5858

010-6475 1880

www.samsung.com

HONG KONG (852) 3698-4698 www.samsung.com/hk

www.samsung.com/hk_en/

INDIA 3030 8282

1800 110011

1800 3000 8282

1800 266 8282

www.samsung.com

INDONESIA 0800-112-8888

021-5699-7777

www.samsung.com

JAPAN 0120-327-527 www.samsung.com

MALAYSIA 1800-88-9999 www.samsung.com

PHILIPPINES 1-800-10-SAMSUNG(726-7864)

1-800-3-SAMSUNG(726-7864)

1-800-8-SAMSUNG(726-7864)

02-5805777

www.samsung.com

SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com

THAILAND 1800-29-3232

02-689-3232

www.samsung.com

TAIWAN 0800-329-999 www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com

[PC7000_Aus]BN68-02706A-01Eng.indb 1 2010-04-12 오전 11:24:31

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image

retention. This image retention is also known as “screen burn”. To avoid such image retention, refer to page 14 of this manual to reduce the degree of

brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the

product.

This is normal and does not indicate any defect or operation failure of the product.

However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or

humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of

the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to

the screen.

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

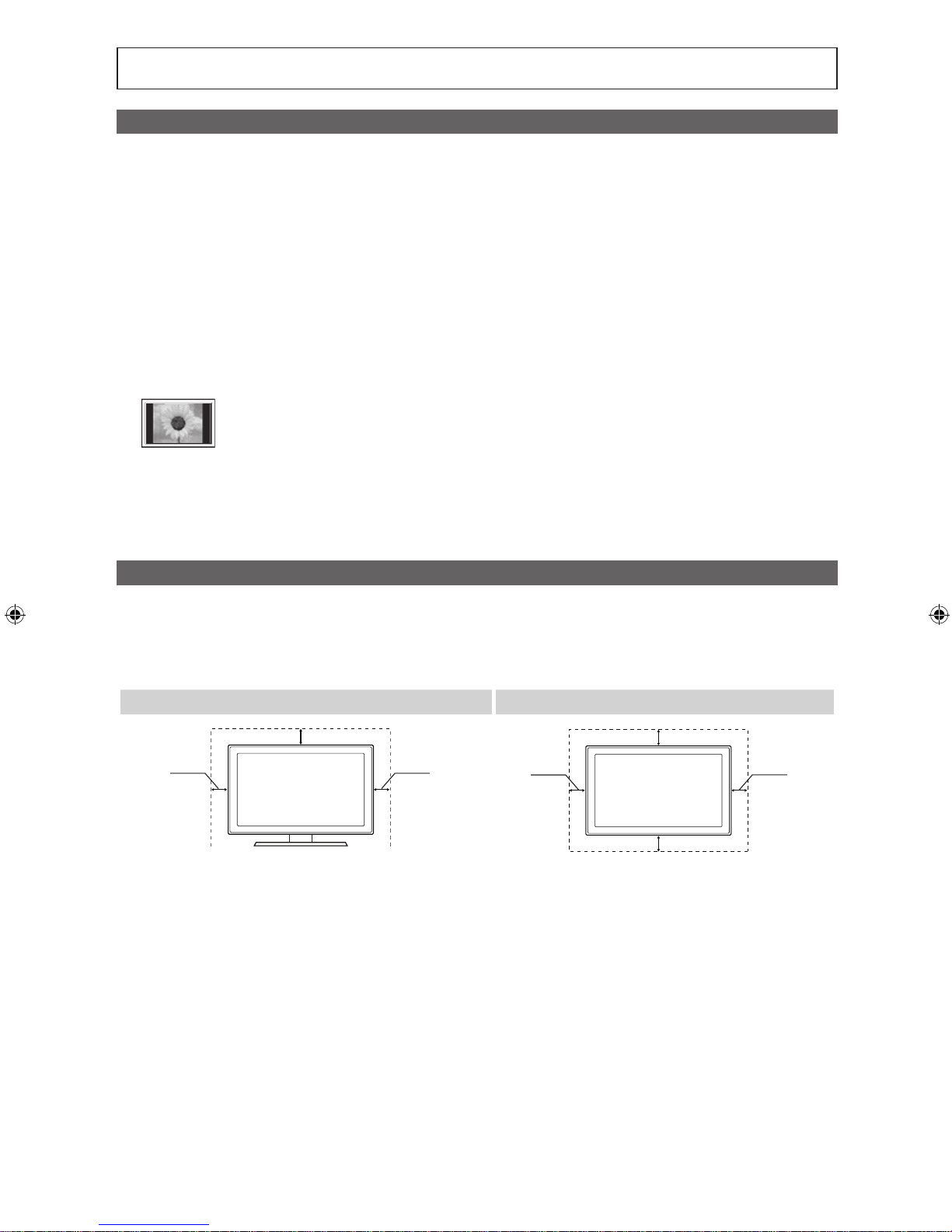

Securing the Installation Space

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm 10 cm

10 cm

[PC7000_Aus]BN68-02706A-01Eng.indb 2 2010-04-12 오전 11:24:32

ENGLISH

English

Contents

Getting Started

44 Accessories

5 Viewing the Control Panel

6 Viewing the Remote Control

7 Connecting to an Antenna

7 Plug & Play (Initial Setup)

Connections

88 Connecting to an AV Device

9 Connecting to an Audio Device

10 Changing the Input Source

Basic Features

10 10 How to Navigate Menus

11 Using the INFO button (Now & Next guide)

11 Planning Your Viewing

13 Channel Menu

14 Picture Menu

20 Sound Menu

21 Setup Menu

24 Support Menu

Advanced Features

26 26 Connecting to a PC

27 Network Connection

34 Media Play

42 Anynet+

46 Internet@TV

49 AllShare

Other Information

51 51 Analogue Channel Teletext Feature

52 Assembling the Cables

53 Installing the Wall Mount

54 Securing the TV to the wall

55 Troubleshooting

59 Speciﬁcations

60 Index

Check the Symbol!



This function can be used by

pressing the TOOLS button on the

remote control.

Note One-Touch Button

TOOLS

[PC7000_Aus]BN68-02706A-01Eng.indb 3 2010-04-12 오전 11:24:33

English

Getting Started

Accessories

✎

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

yRemote Control & Batteries (AAA x 2)

yWarranty Card / Safety Guide (Not available in some locations)

yCleaning Cloth

yOwner’s Instructions

yBlanking Bracket yCable tie yHolder-Wire stand

yHolder-Wire (3ea) yComponent Adapter yAV Adapter

yComponent Sound in Adapter yFerrite Core (2EA) yFerrite Core (2EA)

✎

Ferrite Core: The ferrite cores are used to shield

the cables from interference. When connecting a

cable, open the ferrite core and clip it around the

cable near the plug as shown in the figure.

Distance between the ferrite core and one end of

the cord put into the TV set.

yA : below 50 mm

yB : below 20 mm

See separate guide for installing the stand.

5EA (M4 X L12)

5EA (M4 X L10)

yStand (1EA) yGuide Stand (1EA) yScrews

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

yMaximum thickness - 0.55 inches (14mm)

(M4 X L12)

[PC7000_Aus]BN68-02706A-01Eng.indb 4 2010-04-12 오전 11:24:35

01 Getting Started

English

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE



Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER



button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.



Adjusts the volume. In the OSD, use the



buttons as you would use the

◄ and ► buttons on the remote control.



Changes the channels. In the OSD, use the



buttons as you would use the

▼ and ▲ buttons on the remote control.



(Power) Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Remote control sensor

Speakers

Power Indicator

[PC7000_Aus]BN68-02706A-01Eng.indb 5 2010-04-12 오전 11:24:35

Getting Started

English

Viewing the Remote Control

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control.

Avoid using nearby special fluorescent light or neon signs.

The colour and shape may vary depending on the model.

POWER SOURCE ON/OFF

PRE-CH

INTERNET

@TV

CONTENT

MEDIA.P

P.SIZEAD

SUBT.

A B C D

TTX/MIX

GUIDE

CH LIST

MUTE

TOOLS

RETURN

EXIT

INFO

Turns the TV on and off.

Displays and selects the available video

sources (p. 10).

Turns the remote control light on or

off. When on, the buttons become

illuminated for a moment when pressed.

(Using this button frequently will reduce

the battery usage time in the remote

control.)

Returns to the previous channel.

To mute all TV output sound.

Changes channels.

Displays channel lists on the screen

(p. 12).

Displays the EPG (Electronic Programme

Guide) (p. 11).

Displays information on the

TV screen.

Exits the menu.

Have direct access to channels.

Adjusts the volume.

Alternately select Teletext ON,

Double, Mix or OFF.

Opens the OSD.

Quickly select frequently used functions.

Displays the Content View, which

includes Guide, Internet@TV,

Media Play, and AllShare.

Returns to the previous menu.

Selects the on-screen menu items and

changes the values seen on the menu.

These buttons are for the

Channel Manager, Internet@TV,

Media Play menu, etc.

Use these buttons in Media Play

and Anynet+ modes (p. 34, 42).

(



: Controls recording for Samsung

recorders that have the Anynet+ feature)

MEDIA.P: Displays Media Play (p. 34).

INTERNET@: Link to various internet

services (p. 46).

3D: Activate 3D mode/menu (p. 17).

AD: Turns the audio description on and

off (p. 20). This is not available in some

locations.

P.SIZE: Selects the picture size (p. 16).

SUBT.: Displays digital subtitles (p. 23).

[PC7000_Aus]BN68-02706A-01Eng.indb 6 2010-04-12 오전 11:24:36

01 Getting Started

English

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the power cord and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER



button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

1Selecting Store Demo

or Home Use

Press the ◄ or ► button, then press the ENTER



button.

ySelect the Home Use mode. Store Demo Mode is for

retail environments.

yTo return the unit’s settings from Store Demo to

Home Use (standard): Press the volume button on the

TV. When you see the volume OSD, press and hold

MENU for 5 sec.

POWER

2Selecting a country Press the ▲ or ▼ button, then press the ENTER



button.

Select the appropriate country.

3Selecting a channel Press the ▲ or ▼ button, then press the ENTER



button.

After selecting the channel source to memorise, select Search. For more information, refer

to Channel → Auto Store. (p.13)

✎

Press the ENTER



button at any time to interrupt the memorisation process.

4Setting the

Clock Mode

Set the Clock Mode automatically or manually.

yAuto: Allows you to select a time zone.

✎

Press the ▲ or ▼ button to highlight the time zone for your local area. Press the

ENTER



button. (Australia only)

yManual: Allows you to manually set the current date and time (p. 21).

5Viewing the

HD Connection Guide.

The connection method for the best HD screen quality is displayed.

6Enjoy your TV. Press the ENTER



button.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to

change the PIN number, use the Change PIN function.

ANT OUT

VHF/UHF Antenna

Cable

[PC7000_Aus]BN68-02706A-01Eng.indb 7 2010-04-12 오전 11:24:37

English

Connections

Connecting to an AV Device

Using an HDMI or HDMI / DVI Cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver (STB)

✎

HDMI IN 1(DVI), 2(ARC), 3, 4, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable

connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the

PC/DVI AUDIO IN jacks for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI

versions older than 1.4 is connected, the TV may operate abnormally (e.g. no screen display / no sound /

annoying ﬂicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

suspect the version is older than 1.4, contact the provider of the device to conﬁrm the HDMI version and request

an upgrade.

Samsung TVs support the HDMI 1.4 (with 3D and Audio Return Channel). However, the ARC(Audio Return

Channel) function is only supported on HDMI IN 2(ARC).

– If 3D Auto View is On, some functions, such as Internet@TV, are disabled. If this is a problem, set 3D Auto

View or 3D Mode to Off.

The ARC function enables digital output of sound using the HDMI IN 2(ARC) port and can only be operated

when the TV is connected to an audio receiver that supports the ARC function.

– The ARC Single mode is only enabled when the TV is connected to the device when using an HDMI Standard

cable, HDMI High Speed cable, Hdmi Standard with Ethernet cable, HDMI High Speed with Ethernet cable.

– When the Input Source is the TV, the ARC function allows audio to be heard from a receiver. The audio is sent

to a receiver from the TV via an HDMI cable without the need for a separate optical cable.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

connection error may occur.

(DVI)

HDMI OUT

DVI OUT

R-AUDIO-L

AUDIO OUT

DVD /

Blu-Ray player

DVD /

Blu-Ray player

Red White

[PC7000_Aus]BN68-02706A-01Eng.indb 8 2010-04-12 오전 11:24:37

English

02 Connections

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

Connecting to an Audio Device

Using an Optical (Digital) or Headphone Cable Connection

Available devices: digital audio system, ampliﬁer, DVD home theatre

✎

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is

a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is

connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to

hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite

receiver directly to an amplifier or home theatre.

✎

Headphones



: You can connect your headphones to the headphones output on your set. While the

headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

PRPBY

COMPONENT OUT VIDEO OUTAUDIO OUT

R-AUDIO-L

AUDIO OUT

R-AUDIO-L

W R

WRWR

VCR / DVD

VCR

DVD /

Blu-Ray player

Red

White

Yellow

Red Blue Green

OPTICAL

digital audio system

[PC7000_Aus]BN68-02706A-01Eng.indb 9 2010-04-12 오전 11:24:39

English

Connections

Changing the Input Source

Source List

Use to select TV or other external input

sources such as DVD / Blu-ray players

/ cable box / STB satellite receiver

connected to the TV.

■TV /PC / AV / Component /

HDMI1/DVI / HDMI2 / HDMI3 /

HDMI4 / USB

✎

In the Source List, connected

inputs will be highlighted.

✎

PC always stay activated.

Edit Name

■VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC /

DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:

Name the device connected to the input jacks to make

your input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @

60Hz is connected to the HDMI IN 1(DVI) port,

you should set to DVI PC mode under Edit Name.

✎

When connecting an HDMI/DVI cable to the

HDMI IN 1(DVI) port, you should set to DVI PC or

DVI Devices mode under Edit Name.

SOURCE

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to

navigate the menu and select and adjust different functions.

WER

OURC

PRE-

INTERNET

NTENT

MEDIA

UBT

TTX

UID

H LI

MUTE

INF

RETURN

EXIT

1 ENTER



/ Direction button: Move the cursor and

select an item. Conﬁrm the setting.

2 RETURN button: Returns to the previous menu.

3 MENU button: Displays the main on-screen menu.

4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1MENU



The main menu options appear on

the screen:

Picture, Sound, Channel, Setup,

Input, Application, Support.

2▲ / ▼Select an icon with the ▲ or ▼

button.

3ENTER



Press ENTER



to access the

sub-menu.

4▲ / ▼Select the desired submenu with

the ▲ or ▼ button.

5◄ / ►Adjust the value of an item with the

◄ or ► button. The adjustment in

the OSD may differ depending on

the selected menu.

6ENTER



Press ENTER



to complete the

conﬁguration.

7EXIT



Press EXIT.

[PC7000_Aus]BN68-02706A-01Eng.indb 10 2010-04-12 오전 11:24:39

Otros manuales para PS50C7000

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Televisor de plasma de Samsung

Samsung

Samsung PS50C7000 Manual de usuario

Samsung

Samsung PS50A756T Manual de usuario

Samsung

Samsung BN68-02581B-04 Manual de usuario

Samsung

Samsung PL50A650T1R Manual de usuario

Samsung

Samsung 450 Series Manual de usuario

Samsung

Samsung D61B Guía de instalación

Samsung

Samsung PA43H4000 Manual de usuario

Samsung

Samsung PS42B451B2W Manual de usuario

Samsung

Samsung PS-42P2SB Manual de usuario

Samsung

Samsung PS50B451B2W Manual de usuario

Samsung

Samsung PN50A650T1FXZC Manual de usuario

Samsung

Samsung PE43H4500AW Manual de usuario

Samsung

Samsung SYNCMASTER PS50B430P Manual de usuario

Samsung

Samsung HPS5033 - 50" Plasma TV Manual de usuario

Samsung

Samsung 5 Series Manual de usuario

Samsung

Samsung PN42B400P3DXZA Guía de seguridad

Samsung

Samsung PS42A450P1 Manual de usuario

Samsung

Samsung HP-P5581 Manual de usuario

Samsung

Samsung Plasma Display Panel Television Manual de usuario

Samsung

Samsung PS-42P4A1 Guía de inicio rápido

Samsung

Samsung PS51F8505 Manual de usuario

Samsung

Samsung PS42B430P2W Manual de usuario

Samsung

Samsung ps64f8500am Manual de usuario

Samsung

Samsung PN42C430A1DXZA Manual de usuario

Manuales populares de Televisor de plasma de otras marcas

Hitachi

Hitachi 50PD9800TA Manual de usuario

Pioneer

Pioneer PDP-LX508G Manual de usuario

LG 60PM9700 Manual de usuario

LG 50PX4D Manual de usuario

Panasonic

Panasonic Viera TH-37PA20 Manual de usuario

Panasonic

Panasonic TH-103PF12E Manual de usuario

Panasonic

Panasonic VIERA TH-42PZ80Q Manual de usuario

LG 60PA5500 Manual de usuario

Sony

Sony WEGA KE-P42M1 Manual de usuario

VESTEL

VESTEL PL2000 Manual de usuario

VisionQuest

VisionQuest PVQ-32VGB Manual de usuario

Maxent

Maxent MX-5020HPM Manual de usuario

XOCECO

XOCECO PH-42T8 Manual de usuario

Maxent

Maxent MX-42VM7 Manual de usuario

Sampo

Sampo PME-42S6 Manual de usuario

Hitachi

Hitachi 32PD7800 Manual de usuario

LG 50PK550 Manual de usuario

Haier

Haier P42A1-AK Manual de usuario
