Great user manuals database on UserManuals.info Table Of Contents 2

Table Of Contents

BEFORE USING

THE PRODUCT

7 Copyright

7 Icons used in this manual

8 Cleaning

9 Securing the Installation Space

9 Precautions for storage

10 Safety Precautions

10 Symbols

11 Electricity and Safety

12 Installation and Safety

14 Operation and Safety

18 Correct posture to use the product

PREPARATIONS 19 Checking the Contents

19 Removing the Packaging

20 Checking the Components

21 Parts

21 Frontal Buttons

23 Reverse Side

24 Right Side View

25 Installation

25 Attaching the Stand

26 Adjusting the Product Tilt and Height

26 Rotating the Monitor

27 Installing a Wall-mount Kit or Desktop Stand

28 Anti-theft Lock

CONNECTING AND

USING A SOURCE

DEVICE

29 Before Connecting

29 Pre-connection Checkpoints

29 Connecting the Power

Great user manuals database on UserManuals.info

Table Of Contents

Table Of Contents 3

30 Connecting and Using a PC

30 Connecting to a PC

34 Driver Installation

35 Setting Optimum Resolution

36 Changing the Resolution Using a PC

SCREEN SETUP 40 Brightness

40 Configuring Brightness

41 Contrast

41 Configuring Contrast

42 Sharpness

42 Configuring Sharpness

43 SAMSUNG MAGIC Bright

43 Configuring SAMSUNG MAGIC Bright

44 SAMSUNG MAGIC Angle

44 Configuring SAMSUNG MAGIC Angle

45 Image Size

45 Changing the Image Size

47 H-Position & V-Position

47 Configuring H-Position & V-Position

48 Coarse

48 Adjusting Coarse

49 Fine

49 Adjusting Fine

CONFIGURING

TINT

50 Red

50 Configuring Red

51 Green

51 Configuring Green

Great user manuals database on UserManuals.info

Table Of Contents

Table Of Contents 4

52 Blue

52 Configuring Blue

53 Color Tone

53 Configuring the Color Tone Settings

54 Gamma

54 Configuring Gamma

RESIZING OR

RELOCATING THE

SCREEN

55 Language

55 Changing the Language

56 Menu H-Position & Menu V-Position

56 Configuring Menu H-Position & Menu V-

Position

57 Display Time

57 Configuring Display Time

58 Transparency

58 Changing Transparency

SETUP AND

RESET

59 Reset

59 Initializing Settings (Reset)

60 Eco Saving

60 Configuring Eco Saving

61 Off Timer

61 Configuring Off Timer

62 Turn Off After

62 Configuring Turn Off After

63 PC/AV Mode

63 Configuring PC/AV Mode

64 Key Repeat Time

64 Configuring Key Repeat Time

Great user manuals database on UserManuals.info

Table Of Contents

Table Of Contents 5

65 Source Detection

65 Configuring Source Detection

66 Customized Key

66 Configuring Customized Key

INFORMATION

MENU AND

OTHERS

67 INFORMATION

67 Displaying INFORMATION

68 Configuring Brightness and Contrast in

the Initial Screen

INSTALLING THE

SOFTWARE

69 Magic Tune

69 What is MagicTune?

69 Installing the Software

70 Removing the Software

71 MultiScreen

71 Installing the Software

72 Removing the Software

73 MagicRotation

73 Installing the Software

75 Removing the Software

TROUBLESHOOTI

NG GUIDE

76 Requirements Before Contacting

Samsung Customer Service Center

76 Testing the Product

76 Checking the Resolution and Frequency

76 Check the following.

78 Q & A

SPECIFICATIONS 80 General

82 PowerSaver

Great user manuals database on UserManuals.info

Table Of Contents

Table Of Contents 6

83 Standard Signal Mode Table

APPENDIX 85 Contact SAMSUNG WORLD WIDE

91 Responsibility for the Pay Service (Cost

to Customers)

91 Not a product defect

91 A Product damage caused by customer's fault

91 Others

92 Correct Disposal

92 Correct Disposal of This Product (Waste

Electrical & Electronic Equipment)

93 Terminology

Great user manuals database on UserManuals.info 7

Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Icons used in this manual

An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

(b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

The amount of such administration charge will be advised to you before any work or home visit is

carried out.

The following images are for reference only. Real-life situations may

differ from what is shown in the images.

Great user manuals database on UserManuals.info 8

Before Using the Product

Cleaning

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

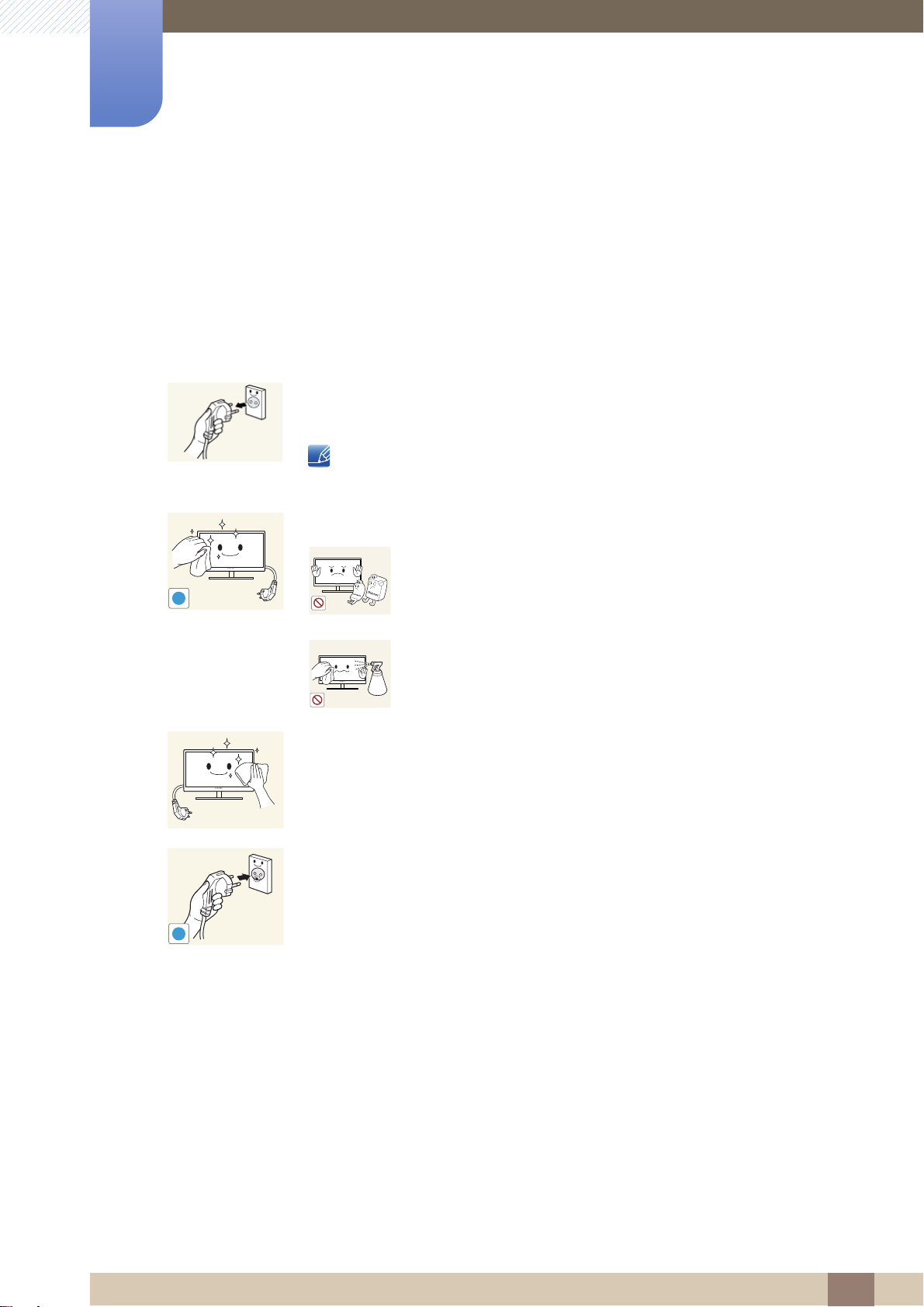

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor screen using a clean, soft and dry cloth.

Do not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

Do not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Great user manuals database on UserManuals.info 9

Before Using the Product

Securing the Installation Space

Ensure some space around the product for ventilation. An internal temperature rise may cause fire

and damage the product. Be sure to allow the amount of space as shown below or greater when

installing the product.

The exterior may differ depending on the product.

Precautions for storage

Be sure to contact Samsung Customer Service Center (page 85) if the inside of the monitor needs

cleaning. (Service fee will be charged.)

3.93

inches

(10 cm)

3.93

inches

(10 cm)

3.93 inches(10 cm)

Great user manuals database on UserManuals.info 10

Before Using the Product

Safety Precautions

Symbols

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance

has been included with this product.

Warning A serious or fatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.
