Samsung SyncMaster 460UTn-2 Manual de usuario

LCD DISPLAY

quick start guide

460UTn-2, 460UT-2, 460UTn-B, 460UT-B

Introduction

Package Contents

Checking the Contents of the Package

Remove the lock from the package box, as shown in the figure above.

Lift up the package box by

holding the grooves on

both sides of the package

box.

Check the contents of the

package.

Remove the Styrofoam

and vinyl cover.

Note

•After unpacking the package, make sure to check the contents of the package.

• Store the packaging box in case you need to move the Product later.

• If any items are missing, contact your dealer.

• Contact a local dealer to purchase optional items.

• After unpacking, you may use the lower part of the package box as a temporary stand for

product test or operation check.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

Power Cord D-Sub Cable MagicInfo Software CD,

MagicInfo Manual CD

(Applicable to the

460UTn-2, 460UTn-B

model only)

Others

Remote Control

(BP59-00138B)

Batteries (AAA X 2)

(Not available in all loca-

tions)

Sold separately

Semi Stand KIT LAN Cable USB Cable

(Applicable to the

460UTn-2, 460UTn-B

model only)

Introduction

Sold separately

RGB to BNC Cable RGB to COMPONENT Ca-

ble

Network Box

(Applicable to the

460UT-2, 460UT-B model

only)

Wall Mount KIT TV Tuner Box

Your LCD Display

Front

SOURCE

button

Switches from PC mode to Video mode. Selects the input source that an

external device is connected to.

[PC] →[DVI] →[AV] →[Component] →[HDMI1] →[HDMI2] →[Display-

Port] →[MagicInfo] →[TV]

Note

•A TV tuner box (sold separately) must be connected to use the TV.

• A network box (sold separately) must be connected to use MagicInfo

with a 460UT-2, 460UT-B model.

POWER

button

Use this button for turning the LCD Display on and off.

Power indicator

Shows PowerSaver mode by blinking green

Introduction

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Rear

Note

See the "Connections" section for details about cable connections. The LCD Display's con-

figuration at the back may vary slightly depending on the model.

POWER S/W ON [

│

] / OFF

Switches the LCD Display On/Off.

POWER

The power cord plugs into the LCD Display

and the wall outlet.

IR OUT/IN

Receives a signal from the remote control

and outputs the signal through Loopout when

a removable sensor board is connected.

AMBIENT SENSOR IN

Supplies power to the removable sensor

board and receives a signal from the light

sensor.

DVI OUT (LOOPOUT)

•Connect a monitor to another monitor

through a DVI, DVI to HDMI cable.

Introduction

• Connect a DVI or DVI-HDMI cable to

[DVI

OUT (LOOPOUT)]

on the product and

[DVI IN]

[HDMI IN]

on another monitor.

• HDMI and network signals sent via the

[DVI OUT(LOOPOUT)]

port are dis-

played on the second display which has

the

[DVI IN]

port.

Note

•The Loopout function can be used to du-

plicate the screen of the primary display.

Connect

[DVI OUT]

on the primary dis-

play to

[DVI IN]

[HDMI]

on another

display.

• A maximum of 50 monitors can be con-

nected to DVI-Loopout (using a 2m-long

DVI cable). Up to Full HD resolution can

be supported. Compatible input sources

include DVI IN, HDMI IN 1, and HDMI IN

2 (MagicInfo).

RGB/COMPONENT IN (PC/COMPO-

NENT Connection Terminal (Input))

•Connect the

[RGB/COMPONENT IN]

port on the monitor to the RGB port on the

PC using the D-SUB cable.

• Connect the

[RGB/COMPONENT IN]

port on the monitor to the COMPONENT

port on the external device using the RGB

to COMPONENT cable.

• Connect the

[RGB/COMPONENT IN]

port on the monitor to the BNC port on the

PC using the RGB to BNC cable.

DVI IN (PC Video Connection Terminal)

Connect the

[DVI IN]

port on the monitor to

the DVI port on the PC using the DVI cable.

RGB/DVI/DP/HDMI AUDIO IN (PC/DVI/

DP/HDMI Audio Connection Terminal (In-

put))

Connect the

[RGB/DVI/DP/HDMI AUDIO

IN]

terminal of the monitor and the speaker

output terminal of your computer's sound

card using a stereo cable (sold separately).

DP IN

Receives a signal from the Display port.

Introduction

Connect a DP cable to

[DP IN]

on the product

and DP IN on another display.

AV/COMPONENT AUDIO IN [L-AUDIO-

Connect the

[AV/COMPONENT AUDIO IN

[L-AUDIO-R]]

port on the monitor to the audio

output port on the PC or on the external de-

vice using an audio cable.

AV IN

Connect the

[AV IN]

terminal of your monitor

to the video output terminal of the external

device using a VIDEO cable.

AUDIO OUT

Connect a headphone or an External speak-

er.

DC OUT

Make sure to use connecting

[DC OUT]

ter-

minal to the authorized TV-Tuner Box

[SBB_DTC/ZA].

Otherwise, this may result in damage

to the product.

HDMI IN 1

•Connect the

[HDMI IN 1]

terminal at the

back of your LCD Display to the HDMI

terminal of your digital output device us-

ing a HDMI cable.

• Up to HDMI 1.3 can be supported.

Note

The

[HDMI IN 1]

port can be connected to

general external devices (DVD players, cam-

corders, etc.) or the TV set-top box.

HDMI IN 2 (MAGICINFO)

•Connect the

[HDMI IN 2 (MAGICINFO)]

terminal at the back of your LCD Display

to the HDMI terminal of your digital output

device using a HDMI cable.

• Up to HDMI 1.3 can be supported.

Introduction

Note

The MAGICINFO OUT port must be connec-

ted to the

[HDMI IN 2 (MAGICINFO)]

port.

RJ 45 MDC (MDC PORT)

MDC(Multiple Display Control) Program Port

Connect the LAN cable to

[RJ45 MDC]

on the

product and LAN on the PC. To use an MDC,

the MDC program must be installed on the

PC.

Note

Go to Multi Control and select RJ45 MDC as

the MDC Connection.

RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

Connect a serial cable (cross type) to

[RS232C]

on the product and RS232C on the

PC. To use an MDC, the MDC program must

be installed on the PC.

Note

Go to Multi Control and select RS232C

MDC as the MDC Connection.

RGB OUT

MagicInfo video output port

Note

Applicable to the 460UTn-2, 460UTn-B mod-

el only.

MAGICINFO OUT

Outputs MagicInfo HDMI signals. It should

be connected to

[HDMI IN 2 (MAGICINFO)]

via an HDMI cable.

LAN (LAN Connection Terminal)

Connects to a LAN cable to allow Internet or

network access in MagicInfo mode.

Note

Applicable to the 460UTn-2, 460UTn-B mod-

el only.

Introduction

USB (USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device

Compatible.

Note

Applicable to the 460UTn-2, 460UTn-B mod-

el only.

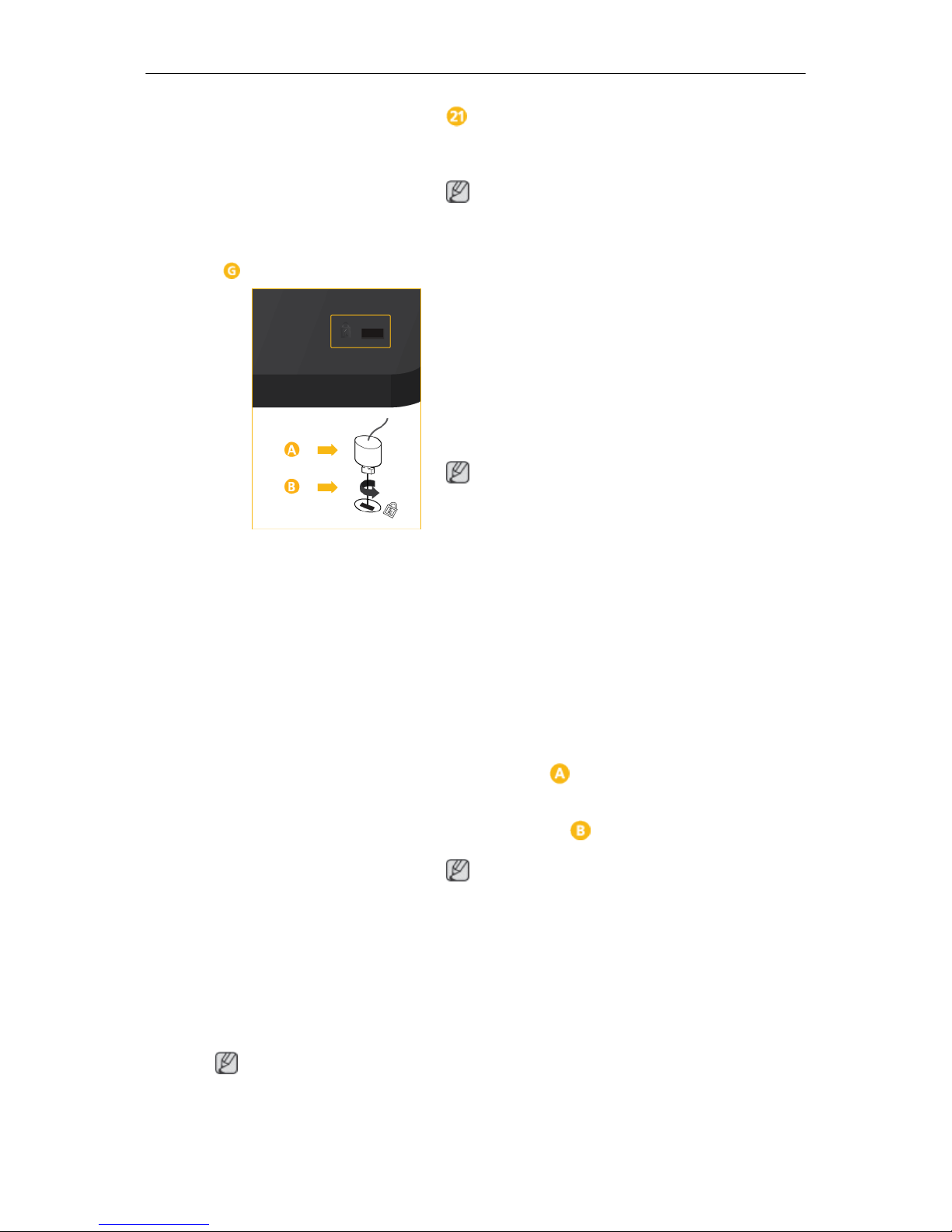

Kensington Lock slot

A Kensington Lock is an anti-theft device that

enables users to lock the product so that they

can safely use it in public locations. Since the

shape and usage of the locking device may

differ depending on the model and the man-

ufacturer, for more information, refer to the

User Manual supplied with the locking device

for more information.

Note

You must purchase the Kensington Lock

separately.

To lock the product, follow these

steps:

1. Wrap the Kensington lock cable around

a large, stationary object such as a desk

or chair.

2. Slide the end of the cable with the lock

attached through the looped end of the

Kensington lock cable.

3. Insert the Kensington Lock into the se-

curity slot ( ) on the back of the dis-

play.

4. Lock the lock ( ).

Note

•These are general instructions. For exact

instructions, see the User Manual sup-

plied with the locking device.

• You can purchase the locking device

from an electronics store, an online shop,

or our service center.

Note

See the "Connections" section for details about cable connections.

Introduction

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display , causing a malfunction due to interference with the frequen-

cy.

POWER

OFF

Number Buttons

DEL / GUIDE button

+ VOL -

SOURCE

D.MENU

TOOLS

Up-Down Left-Right buttons

INFO

PC/DVI/HDMI/DP

TTX/MIX

MTS/DUAL

ENTER/PRE-CH

MUTE

CH/P

RETURN

EXIT

MagicInfo

POWER Turns the product On/Off.

OFF Turns the product Off.

Number Buttons Used to enter the password during the OSD adjustment or

to use MagicInfo.

Press to change the channel.

DEL / GUIDE button The "-" button is used to select Digital channels.

Electronic Program Guide (EPG) display.

- This function does not work for this LCD Display.

+ VOL - Adjusts the audio volume.

Introduction

Otros manuales para SyncMaster 460UTn-2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Samsung

Samsung

Samsung PM32F Manual de usuario

Samsung

Samsung 400UXn-M - 40" LCD Public Info Display Guía del usuario

Samsung

Samsung SyncMaster 320MP Manual de usuario

Samsung

Samsung S19D300HY Manual de usuario

Samsung

Samsung T260 - SyncMaster - 25.5" LCD Monitor Guía del usuario

Samsung

Samsung SyncMaster 740N Plus Manual de usuario

Samsung

Samsung 400DX-2 - 40IN LCD 1920X1080 3000:1 VGA Dvi Manual de usuario

Samsung

Samsung SyncMaster 153V Manual de usuario

Samsung

Samsung LH98QMFPBGCEN Manual de usuario

Samsung

Samsung PN17K Series Manual de usuario

Samsung

Samsung SyncMaster S19B420BW Manual de usuario

Samsung

Samsung C43J892DK Series Manual de usuario

Samsung

Samsung SyncMaster 460UT-2 Manual de usuario

Samsung

Samsung SyncMaster S27A850T Manual de usuario

Samsung

Samsung LS27A650DS/ZA Manual de usuario

Samsung

Samsung SyncMaster 2333SW Manual de usuario

Samsung

Samsung 940BE - SyncMaster - 19" LCD Monitor Manual de instrucciones

Samsung

Samsung SyncMaster P2450H Manual de usuario

Samsung

Samsung SyncMaster 225MW Manual de usuario

Samsung

Samsung HLP4663W - 46" Rear Projection TV Manual de usuario

Samsung

Samsung SyncMaster FX2490HD Manual de usuario

Samsung

Samsung SMT-3222 Manual de usuario

Samsung

Samsung ME32B Manual de usuario

Samsung

Samsung SyncMaster 943BWT Guía del usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
