Samsung SyncMaster 320MX-3 Manual de usuario

LCD DISPLAY

quick start guide

320MX-3, 320MXN-3, 320MP-3, 320MPN-3

Introduction

Package Contents

Note

• After unpacking the package, make sure to check the contents of the package.

• Store the packaging box in case you need to move the Product later.

• If any items are missing, contact your dealer.

• Contact a local dealer to purchase optional items.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

Power Cord D-Sub Cable

Others

Remote Control Batteries (AAA X 2)

Others

(BP59-00138B) (Not available in all loca-

tions)

Sold separately

Semi Stand KIT LAN Cable USB Cable

(Applicable to the MXn-3, MPN-3

model only)

RGB to BNC Cable RGB to COMPONENT Ca-

ble

Network Box

(Applicable to the MX-3,MP-3

model only)

Wall Mount KIT RS232C Cable TV tuner box

Your LCD Display

The color and the appearance may differ depending on the product, and the specifications

are subject to change without prior notice to improve the performance.

Front

MENU button [MENU]

Introduction

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu

values.

Adjust buttons (Left-Right buttons) / Volume buttons

Moves from one menu item to another horizontally or adjusts selected

menu values. When OSD is not on the screen, press the button to adjust

volume.

ENTER button [ENTER]

Activates a highlighted menu item.

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Selects the input source that an

external device is connected to.

[PC] →[DVI] →[AV] →[Component] →[HDMI1] →[HDMI2] →[Dis-

playPort] →[MagicInfo] →[TV]

Note

•The [RGB/COMPONENT IN] port is compatible with RGB (PC) and

Component signals.

However, the picture may display abnormally if the connected external

input signal is different from the selected video signal.

• A TV tuner box (sold separately) must be connected to use the TV.

Note

Using MagicInfo

•To use MagicInfo with an MXN-3, MPN-3 model, connect the MagicInfo output

on the already included network box to [HDMI IN 2 (MAGICINFO)] on

the product.

•To use MagicInfo with an MX-3, MP-3 model, install inside the product a net-

work box specified by Samsung and connect the MagicInfo output on

the network box to[HDMI IN 2 (MAGICINFO)] on the product.

D.MENU button

Opens the on-screen D.MENU.

Note

The D.MENU button is activated when a TV tuner is connected and oth-

erwise, the PIP button is enabled.

PIP button

Push the PIP button to turn the PIP screen On / Off.

Power button [ ]

Use this button for turning the LCD Display on and off.

Introduction

Power indicator

Shows PowerSaver mode by blinking green.

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Rear

Note

See the "Connections" section for details about cable connections. The LCD Display's con-

figuration at the back may vary slightly depending on the model.

POWER S/W ON [ I ] / OFF

Switches the LCD Display On/Off.

POWER

The power cord plugs into the LCD Display

and the wall outlet.

Introduction

RGB/COMPONENT IN (PC/COMPO-

NENT Connection Terminal (Input))

•Connect the [RGB/COMPONENT IN]

port on the monitor to the RGB port on the

PC using the D-SUB cable.

•Connect the [RGB/COMPONENT IN]

port on the monitor to the COMPONENT

port on the external device using the RGB

to COMPONENT cable.

•Connect the [RGB/COMPONENT IN]

port on the monitor to the BNC port on the

PC using the RGB to BNC cable.

DVI IN (PC Video Connection Terminal)

Connect the [DVI IN] port on the monitor to

the DVI port on the PC using the DVI cable.

RGB/DVI/DP/HDMI AUDIO IN (PC/DVI/

DP/HDMI Audio Connection Terminal (In-

put))

Connect the [RGB/DVI/DP/HDMI AUDIO

IN] terminal of the monitor and the speaker

output terminal of your computer's sound

card using a stereo cable (sold separately).

DP IN

Receives a signal from the Display port.

Connect a DP cable to [DPIN]on the product

and DP IN on another display.

AV/COMPONENT AUDIO IN (R-AUDIO-

Connect the [AV/COMPONENT AUDIO IN

(R-AUDIO-L)] port on the monitor to the au-

dio output port on the PC or on the external

device using an audio cable.

AV IN

Connect the [AV IN] terminal of your monitor

to the video output terminal of the external

device using a VIDEO cable.

AUDIO OUT

Connect a headphone or an External speak-

er.

Introduction

DC OUT

Make sure to use connecting [DC OUT] ter-

minal to the authorized TV-Tuner Box

[SBB_DTC/ZA].

Otherwise, this may result in damage

to the product.

HDMI IN 1

•Connect the [HDMI IN 1] terminal at the

back of your LCD Display to the HDMI

terminal of your digital output device us-

ing a HDMI cable.

• Up to HDMI 1.3 can be supported.

Note

•A normal external device (DVD player or

camcorder, etc.) or a TV tuner box can be

connected to the [HDMI IN 1] terminal.

•To use a TV tuner box, make sure to con-

nect it to the [HDMI IN 1] terminal.

HDMI IN 2 (MAGICINFO)

•Connect the [HDMI IN 2 (MAGICINFO)]

terminal at the back of your LCD Display

to the HDMI terminal of your digital output

device using a HDMI cable.

• Up to HDMI 1.3 can be supported.

Note

Using MagicInfo

•To use MagicInfo with an MXN-3, MPN-3 model,

connect the MagicInfo output on the al-

ready included network box to [HDMI IN

2 (MAGICINFO)] on the product.

•To use MagicInfo with an MX-3,MP-3 model,

install inside the product a network box

specified by Samsung and connect the

MagicInfo output on the network box to

[HDMI IN 2 (MAGICINFO)] on the prod-

uct.

Introduction

RJ 45 MDC (MDC PORT)

MDC(Multiple Display Control) Program Port

Connect the LAN cable to [RJ45MDC]on the

product and LAN on the PC. To use an MDC,

the MDC Program must be installed on the

PC.

Note

Go to Multi Control and select RJ45 MDC

as the MDC Connection.

RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

Connect a serial cable (cross type) to

[RS232C]on the product and RS232C on the

PC. To use an MDC, the MDC Program must

be installed on the PC.

Note

Go to Multi Control and select RS232C

MDC as the MDC Connection.

Applicable to the MXn-3, MPN-3 model only

RGB OUT

MagicInfo video output port

MAGICINFO OUT

This is the output terminal for the video, au-

dio, and control signals of MagicInfo.

It can be used by connecting it to the [HDMI

IN 2 (MAGICINFO)] terminal using a DP to

HDMI cable.

LAN (LAN Connection Terminal)

Connects to a LAN cable to allow Internet or

network access in MagicInfo mode.

USB (USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device

Compatible.

Introduction

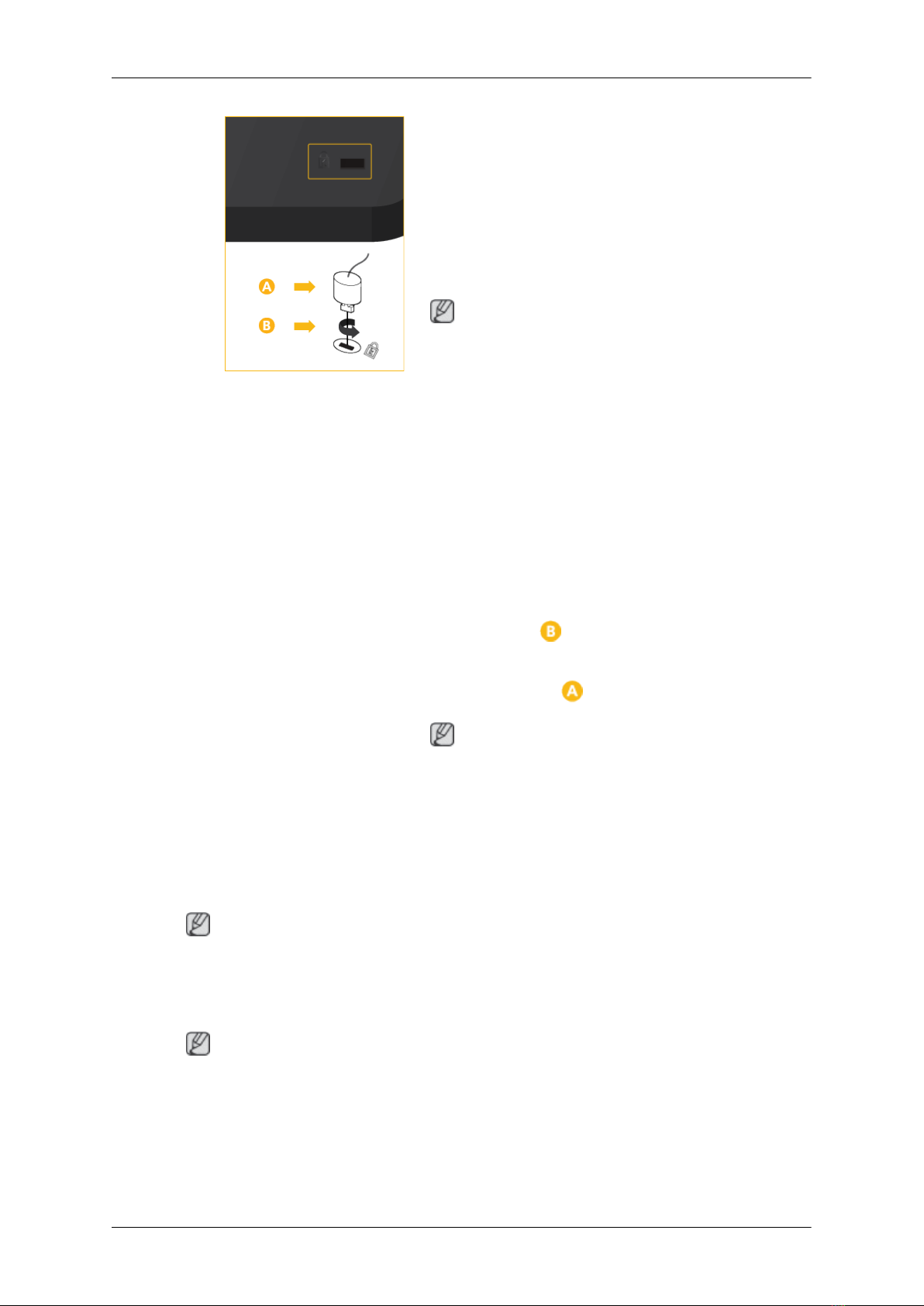

Kensington Lock slot

A Kensington Lock is an anti-theft device that

enables users to lock the product so that they

can safely use it in public locations. Since the

shape and usage of the locking device may

differ depending on the model and the man-

ufacturer, for more information, refer to the

User Manual supplied with the locking device

for more information.

Note

You must purchase the Kensington Lock

separately.

To lock the product, follow these

steps:

1. Wrap the Kensington lock cable around

a large, stationary object such as a desk

or chair.

2. Slide the end of the cable with the lock

attached through the looped end of the

Kensington lock cable.

3. Insert the Kensington Lock into the se-

curity slot ( ) on the back of the dis-

play.

4. Lock the lock ( ).

Note

•These are general instructions. For exact

instructions, see the User Manual sup-

plied with the locking device.

•You can purchase the locking device

from an electronics store, an online shop,

or our service Center.

Note

The power switches of both of the monitor and the network box must be turned on for the

network box to operate normally.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display, causing a malfunction due to interference with the frequency.

Introduction

POWER

OFF

Number Buttons

DEL / GUIDE button

+ VOL -

SOURCE

D.MENU

TOOLS

Up-Down Left-Right buttons

INFO

The Color button and the PC/DVI/HDMI/DP

selection button.

TTX/MIX

MTS/DUAL

ENTER/PRE-CH

MUTE

CH/P

RETURN

EXIT

MagicInfo

POWER Turns the product On.

OFF Turns the product Off.

Number Buttons Used to enter the password during the OSD adjustment or

to use MagicInfo.

Press to change the channel.

DEL / GUIDE button The "-" button is used to select Digital channels.

Electronic Program Guide (EPG) display.

Note

This button can only be used in TV mode while a TV tuner

box (sold separately) is connected.

+ VOL - Adjusts the audio volume.

Introduction
