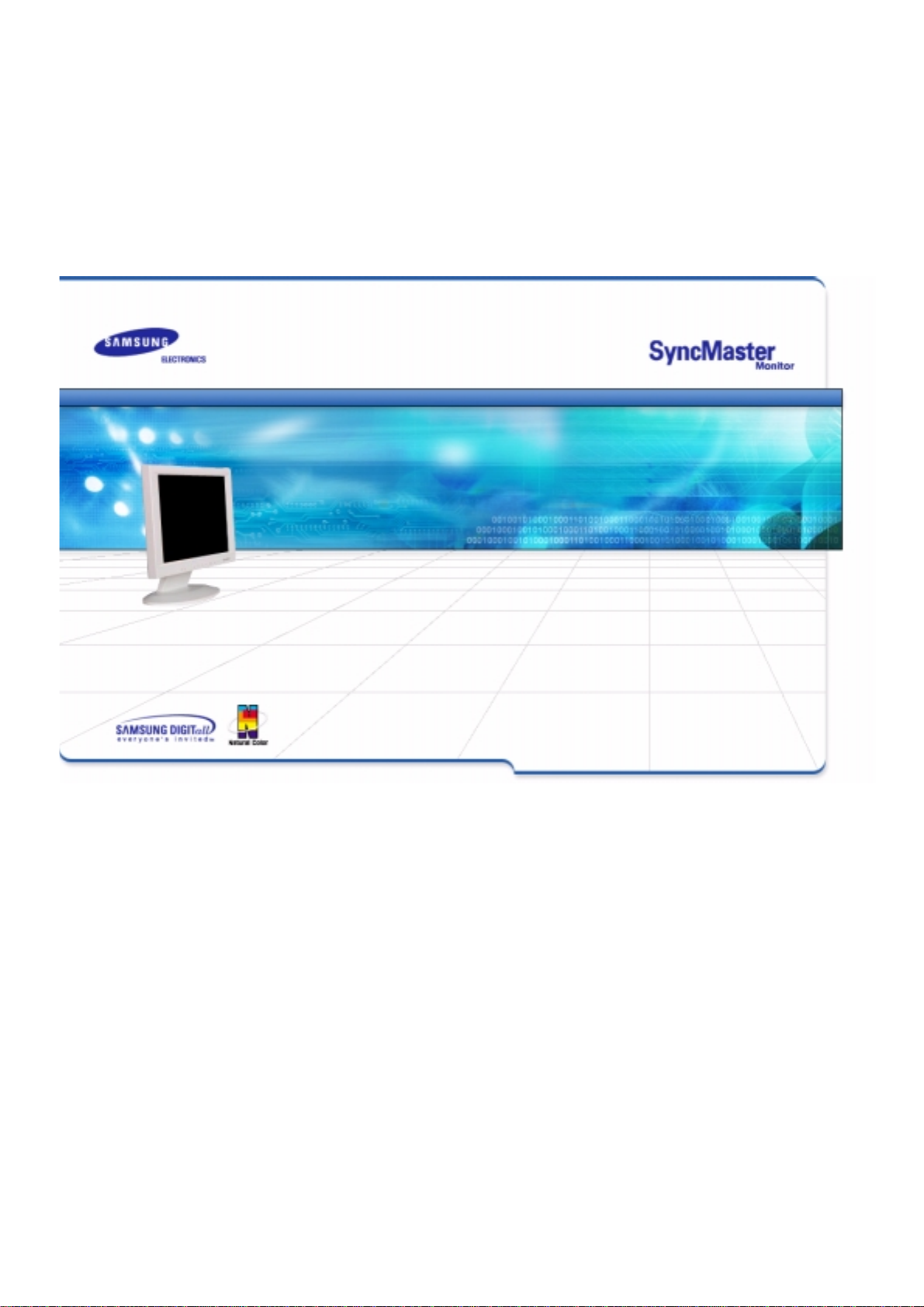

Samsung SyncMaster 152 B Manual de usuario

Samsung Syncmaster 152B-152S-172B-172S

Contents English

Safety Instructions

Unpacking Your Monitor

Setting up Your Monitor

Connecting Your Monitor

Self-Test Feature Check

Warning Messages

Environment

Useful Tips

SyncMaster 152B/152S

Adjusting Your Monitor

User Controls

Brightness

Contrast

Image Lock

Fine

Coarse

H-Position

V-Position

Reset

Geometry Reset

Color Reset

Color Temperature

Color Control

Language

Menu Position

H-Position

V-Position

Menu Display Time

Display Mode

Auto Adjustment

OSD Lock/Unlock

SyncMaster 172B/172S

Adjusting Your Monitor

User Controls

Brightness

Contrast

Image Lock

Fine

Coarse

H-Position

V-Position

Reset

Geometry Reset

Color Reset

Color Temperature

Halftone

Language

Menu Position

H-Position

V-Position

Menu Display Time

Display Mode

Auto Adjustment

OSD Lock/Unlock

Power Saver

Troubleshooting

Specifications

Display Modes

Safety Instructions

1. Do not use a damaged or loose plug.

2. Do not pull the plug out by the wire nor touch the plug with wet hands.

3. Use only a properly grounded plug and receptacle.

4. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

5. Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time.

6. Do not connect too many extension cords or plugs to an outlet.

7. Do not cover the vents on the monitor cabinet.

8. Put your monitor in a location with low humidity and a minimum of dust.

9. Do not drop the monitor when moving it.

10. Place the monitor on a flat and stable surface.

11. Set down the monitor carefully.

12. Do not place the monitor face down.

13. Do not spray detergent directly on the monitor.

14. Use the recommended detergent with a smooth cloth.

15. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.

16. Do not set a glass of water, chemicals or any small metal objects on the monitor.

17. Do not remove cover(or back). No user serviceable parts inside.

18. If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming

from it - unplug it immediately and contact an authorized deal-er or service.

19. Do not place any heavy objects on the monitor.

20. For each hour of looking at the monitor, you should let your eyes rest for 5 minutes.

21. Do not use or store inflammable substances near the monitor.

22. Do not try to move the monitor by pulling on the wire or the signal cable.

23. Do not move the monitor right or left by pulling only the wire or the signal cable.

24. Never insert anything metallic into the monitor openings.

Auto Exit Menu

Source

Monitor and Stand

Power Cord

Signal Cable

Sound CablesMultimedia Speaker Stand

For Multimedia model (Option)

Natural Color and

Driver Installation CD

User’s Manual

DC-Adapter VESA Mounting Bracket

Unpacking Your Monitor

Monitor and Stand

Setting up Your Monitor

Connecting Your Monitor

1. Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

2. Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.

3. Connect the monitor to the Macintosh computer using the D-SUB connection cable.

4. In the case of an old model Macintosh, you need to connect the monitor

using a special Mac adaptor.

5. Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Rear of Computer

New Model Macintosh

Old Model Macintosh

(Not included)

Adapter for Macintosh

Rear of Monitor

Setting up Your Monitor

Connecting Your Monitor

Setup-For Multimedia model

1. PC sound connection terminal (Input)

2. Headphone connection terminal (Output)

3. Volume

4. To listen in privacy, connect headphones here.

5. Connect a sound cable from the input source (sound card, computer, CD-ROM drive).

Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears

during normal operation if the video cable becomes disconnected or damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller

and computer system; your monitor is functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

If the monitor is functioning properly, you will see a box with a border and text inside

as shown in the following illustration:

The three boxes inside the border are red, green and blue.

Your monitor provides a self test feature that allows you to check whether your monitor

is functioning properly.

Setting up Your Monitor

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen

goes blank although the power indicator LED is still on. The message may indicate that the

monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

1. If there are any woofer speakers near the monitor, unplug and relocate the

woofer to another room.

2. Remove all electronic devices such as radios, fans, clocks and telephones that

are within 3 feet (one meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the PC. Therefore, if there is trouble with the PC or

the video card, this can cause the monitor to become blank, have poor coloring, noise, Video mode

not supported, etc. In this case, first check the source of the problem, and then contact a service

center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or an “Video mode not supported” message comes up,

disconnect the cable from the computer while the monitor is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the

monitor is in working condition.

In this case, check the computer for trouble.

Adjusting Your Monitor

User Controls

1 2 3 4

1. Use this button to auto adjustment direct access.

2. Use this button to Exit the active menu or the OSD.

3. These buttons allow you to highlight and adjust items in the menu.

4. Use this button to open the OSD and activate a highlighted menu item.

SyncMaster 152B/152S

Adjusting Your Monitor

Brightness

1. Push the Menu ( ) button.

2. Push the - button or + button until the

Contrast screen is displayed.

3. Push the Menu ( ) button to open the

Contrast adjustment screen.

4. Use the + button to increase the contrast or - button

to decrease the contrast.

Contrast

1. Push the Menu ( ) button.

2. Push the Menu ( ) button to open the

Brightness adjustment screen.

3. Use the + button to increase the brightness or - button

to decrease the brightness.

Direct Access Feature :

When OSD is not on the screen, Push the + or - button to

adjust brightness.

Adjust the Contrast.

Adjust the Brightness.
