Table of contents

Before Using the Product

Safety Precautions 7

Symbols 7

Cleaning 7

Storage 8

Electricity and Safety 8

Installation 9

Operation 11

Preparations

Checking the Components 15

Components 15

Parts 16

Panel key 16

Remote sensor and spacer logo (optional) 17

Reverse Side 18

Anti-theft Lock 19

Remote Control 20

Before Installing the Product (Installation

Guide) 22

Ventilation 22

Installing the Wall Mount 23

Installing the Wall Mount Kit 23

Wall Mount Kit Specifications (VESA) 23

Remote Control (RS232C) 24

Cable Connection 24

Connection 25

Control Codes 26

Connecting and Using

a Source Device

Before Connecting 31

Pre-connection Checkpoints 31

Connecting to a PC 31

Connection Using an HDMI-DVI Cable 31

Connection Using an HDMI Cable 32

Connecting to a Video Device 32

Connection Using an HDMI-DVI Cable 32

Connection Using an HDMI Cable 33

Connecting to an Audio System 33

Connecting the Antenna 34

Connecting to a TV Viewing Card slot 35

To connect the CI CARD, follow these steps: 35

Changing the Input source 36

Source 36

Using MDC

MDC Programme Installation/Uninstallation 37

Installation 37

Uninstallation 37

MagicInfo Express

Using MagicInfo Express 38

Managing templates 38

Managing schedules 38

Screen Adjustment

Picture Mode 39

If the input source is HDMI(PC) 39

If the input source is TV, HDMI(AV) 39

Backlight / Contrast / Brightness /

Sharpness / Colour/ Tint (G/R) 40

Picture Size 41

Position 42

Zoom/Position 42

4:3 Screen Size 43

PIP 44

Advanced Settings 45

Dynamic Contrast 46

Table of contents

Black Tone 46

Flesh Tone 46

RGB Only Mode 46

Colour Space 46

White Balance 47

Gamma 47

Motion Lighting 47

Picture Options 48

Colour Tone 49

Colour Temp. 49

Digital Clean View 49

MPEG Noise Filter 49

HDMI Black Level 50

Film Mode 50

Dynamic Backlight 50

Picture Off 51

Reset Picture 51

Sound Adjustment

Sound Mode 52

Sound Effect 53

DTS TruSurround HD 53

DTS TruDialog 53

Equaliser 53

Speaker Settings 54

Speaker Select 54

Auto Volume 54

Additional Settings 55

DTV Audio Level 55

Dolby Digital Comp 55

Reset Sound 56

Broadcasting

Auto Tuning 57

Cable Search Option 58

Aerial 59

Channel List 60

Mode 60

Guide 62

Schedule Manager 62

Edit Channel 63

Edit Favourites 65

Channel Settings 68

Country (Area)68

Manual Tuning 68

Fine Tune 69

Transfer Channel List 69

Delete CAM Operator Profile 69

Subtitle 70

Primary Subtitle 70

Secondary Subtitle 70

Audio Options 71

Audio Language 71

Audio Format 71

Audio Description 71

Programme Rating Lock 72

Digital Text 73

Teletext Language 74

Primary Teletext 74

Secondary Teletext 74

Common Interface 75

CI Menu 75

CAM video transcoding 75

Application Info 75

Channel Lock 76

Network

Network Status 77

Network Settings 77

Network Setting (Wireless) 78

WPS(PBC)80

Wi-Fi Direct 81

Soft AP (Wi-Fi Hotspot) 81

Table of contents

AllShare Settings 82

Content Sharing 82

Device Name 82

Applications

Source List 83

Edit Name 83

Information 83

MagicInfo 84

Playing content from the internal memory or

USB 84

Playing PC or mobile content 84

System

Setup 87

Menu Language 88

Multi Control 88

Configuring settings for Multi Control 88

Time 89

Clock 89

Sleep Timer 90

On Timer 90

Off Timer 91

Holiday Management 91

Eco Solution 92

Energy Saving 92

Eco Sensor 92

No Signal Power Off 92

Auto Power Off 92

Auto Protection Time 93

Screen Burn Protection 94

Pixel Shift 94

Timer 95

Immediate display 96

Side Grey 96

Ticker 97

Source AutoSwitch Settings 98

Source AutoSwitch 98

Primary Source Recovery 98

Primary Source 98

Secondary Source 99

General 100

Game Mode 100

Auto Power 100

Safety Lock 100

Button Lock 101

USB Auto Play Lock 101

Standby Control 101

Lamp Schedule 102

OSD Display 103

Temperature Control 103

Change PIN 104

Clone Product 104

Reset System 105

Reset All 105

DivX® Video On Demand 105

Support

Software Update 106

Update now 106

Use Mode 106

Contact Samsung 106

Table of contents

Playing photos, videos and

music (Media Play)

Read the following before using media play

with a USB device 107

Using a USB device 109

Menu items in the media content list page 110

Available buttons and features during photo

playback 111

Available buttons and features during video

playback 112

Available buttons and features during music

playback 113

Supported Subtitle and Media play file

formats 114

Subtitle 114

Compatible image file format 114

Supported music file formats 115

Supported Video Formats 115

Troubleshooting Guide

Requirements Before Contacting Samsung

Customer Service Centre 118

Testing the Product 118

Checking the Resolution and Frequency 118

Check the followings. 119

Q & A 125

Specifications

General 126

Preset Timing Modes 128

Appendix

Responsibility for the Pay Service (Cost to

Customers) 130

Not a product defect 130

A Product damage caused by customer's

fault 130

Others 130

Optimum Picture Quality and Afterimage

Burn-in Prevention 131

Optimum Picture Quality 131

Prevention of Afterimage Burn-in 131

Licence 133

Terminology 134

Before Using the Product

Chapter 01

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Microsoft, Windows are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Ownership of all other trademarks is attributed to their due owner.

•An administration fee may be charged if either

– (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

– (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

•The amount of such administration charge will be advised to you before any work or home visit is carried

out.

Safety Precautions

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has

been included with this product.

Symbols

Warning

A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Cleaning

―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

―Take the following steps when cleaning.

―The following images are for reference only. Real-life situations may differ from what is

shown in the images.

Power off the product and computer.

Disconnect the power cord from the product.

―Hold the power cable by the plug and do not touch the cable with

wet hands. Otherwise, an electric shock may result.

Wipe the product with a clean, soft and dry cloth.

•Do not use detergents that contain alcohol, solvent

or surface-active agents.

•Do not spraywater or detergent directly on the

product.

Wet a soft and dry cloth in water and wring thoroughly to clean

the exterior of the product.

Connect the power cord to the product when cleaning is

finished.

Power on the product and computer.

Storage

Due to the characteristics of high-glossy products, using a UV humidifier nearby may create

white-coloured stains on the product.

―Contact Customer Service Centre if the inside of the product needs cleaning (service fee will

be charged).

Electricity and Safety

―The following images are for reference only. Real-life situations may differ from what is

shown in the images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

•An electric shock or fire may result.

Do not use multiple products with a single power socket.

•Overheated power sockets may cause a fire.

Do not touch the power plug with wet hands. Otherwise, an electric

shock may result.

Insert the power plug all the way in so it is not loose.

•An unsecure connection may cause a fire.

Connect the power plug to a grounded power socket (type 1 insulated

devices only).

•An electric shock or injury may result.

Do not bend or pull the power cord with force. Be careful not to leave

the power cord under a heavy object.

•Damage to the cord may result in a fire or electric shock.

Do not place the power cord or product near heat sources.

•A fire or electric shock may result.

Clean any dust around the pins of the power plug or the power socket

with a dry cloth.

•A fire may result.

Caution

Do not disconnect the power cord while the product is being used.

•The product may become damaged by an electric shock.

Only use the power cord provided with your product by Samsung. Do

not use the power cord with other products.

•A fire or electric shock may result.

Keep the power socket where the power cord is connected

unobstructed.

•The power cord must be disconnected to cut off powerto the

product when an issue occurs.

•Note that the product is not completely powered down by using

only the power button on the remote.

Hold the plug when disconnecting the powercord from the power

socket.

•An electric shock or fire may result.

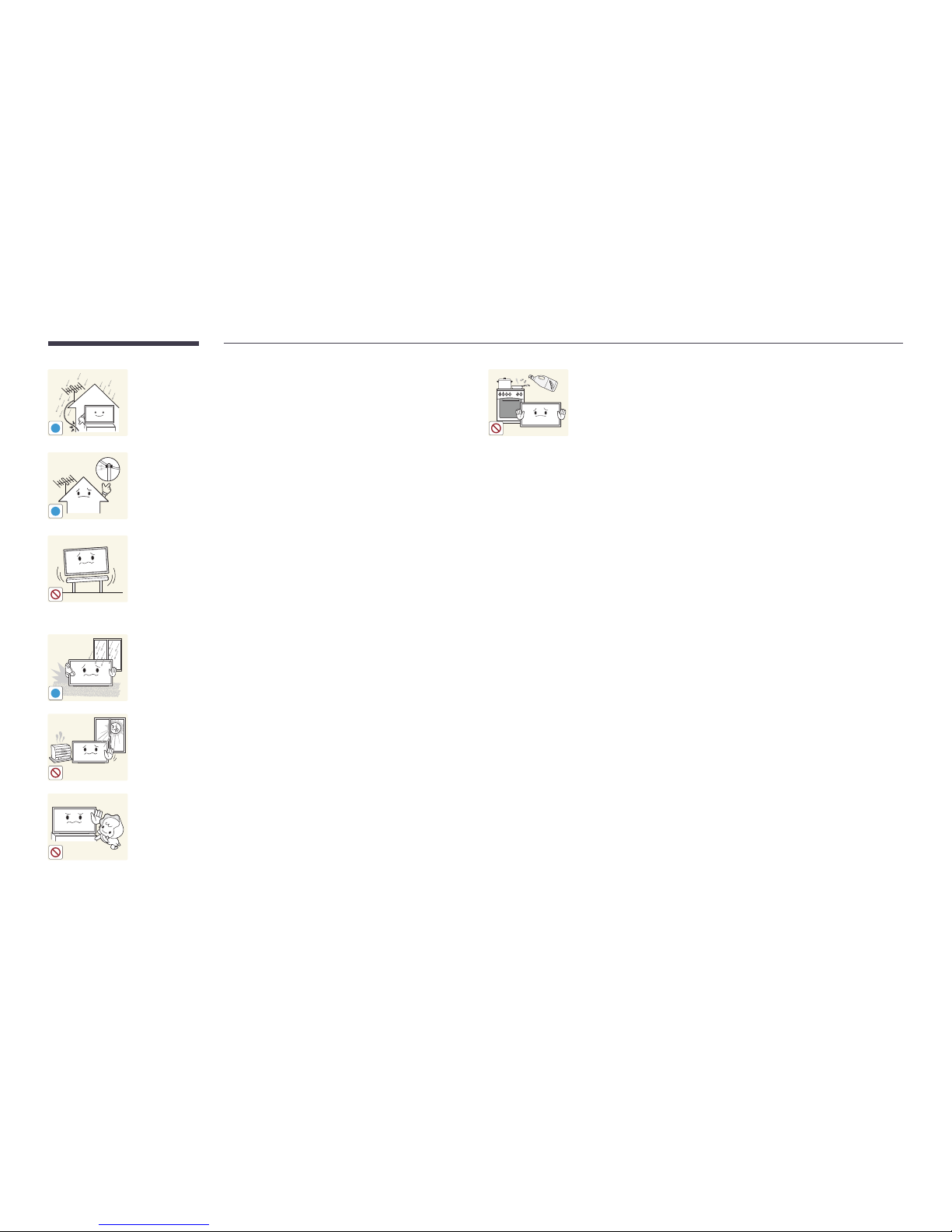

Installation

Warning

DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON

TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT

SOURCES.

•A fire may result.

Have a technician install the wall-mount hanger.

•Installation by an unqualified person can result in an injury.

•Only use approved cabinets.

Do not install the product in poorly ventilated spaces such as a

bookcase or closet.

•An increased internal temperature may cause a fire.

Install the product at least 10cm away from the wall to allow

ventilation.

•An increased internal temperature may cause a fire.

Keep the plastic packaging out of the reach of children.

•Children may suffocate.

Bend and keep part of the outdoor TV antenna cable hanging

downwards (the part inside the room) to prevent rainwaterfrom

entering the product.

•If rainwater enters the product, a fire or electric shock can occur.

When using an outdoor antenna, be sure to install the antenna away

from nearby power lines to prevent the antenna from collapsing onto

them in strong winds.

•A collapsed antenna can cause an electric shock orinjury.

Do not install the product on an unstable orvibrating surface

(insecure shelf, sloped surface, etc.)

•The product may fall and become damaged and/or cause an

injury.

•Using the product in an area with excess vibration may damage

the product or cause a fire.

Do not install the product in a vehicle or a place exposed to dust,

moisture (water drips, etc.), oil, or smoke.

•A fire or electric shock may result.

Do not expose the product to direct sunlight, heat, or a hot object

such as a stove.

•The product lifespan may be reduced or a fire may result.

Do not install the product within the reach of young children.

•The product may fall and injure children.

•As the front is heavy, install the product on a flat and stable

surface.

Edible oil, such as soybean oil, can damage or deform the product. Do

not install the product in a kitchen or near a kitchen counter.

Tabla de contenidos

Otros manuales de Monitor de Samsung

Samsung

Samsung S34C50 Series Manual de usuario

Samsung

Samsung SMT-1914 Manual de usuario

Samsung

Samsung TC222T Manual de usuario

Samsung

Samsung SyncMaster 940MG Manual de usuario

Samsung

Samsung 213T - SyncMaster 213 T Manual de usuario

Samsung

Samsung 320MXn-2 - SyncMaster - 32" LCD Flat Panel... Guía del usuario

Samsung

Samsung SyncMaster 230MXN Manual de usuario

Samsung

Samsung BN59-00786C-00 Manual de usuario

Samsung

Samsung SyncMaster 152 B Manual de usuario

Samsung

Samsung SyncMaster S22A350H Guía del usuario

Samsung

Samsung SYNCMASTER P2050N Manual de usuario

Samsung

Samsung 400PXN - SyncMaster - 40" LCD Flat Panel... Manual de usuario

Samsung

Samsung SyncMaster 711ND Manual de usuario

Samsung

Samsung SyncMaster 2043WM Manual de usuario

Samsung

Samsung SyncMaster S19B150N Manual de usuario

Samsung

Samsung 726-7864 Manual de usuario

Samsung

Samsung SyncMaster S22A650D Manual de usuario

Samsung

Samsung Odyssey G7 S27BG65 Series Manual de usuario

Samsung

Samsung SyncMaster 2043SWPLUS Manual de usuario

Samsung

Samsung SyncMaster 730XT Manual de usuario

Samsung

Samsung SBB-MBOXR48 Manual de usuario

Samsung

Samsung T220HD - SyncMaster - 22" LCD Monitor Manual de usuario

Samsung

Samsung SyncMaster 240MP Manual de usuario

Samsung

Samsung ME32B Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
