Luxurious Look

The Stainless Steel (STSS) exterior delivers a luxurious look to your kitchen. The design

matches perfectly with your other kitchen appliances, providing a harmonious kitchen interior.

Controllable Ventilation System

Depending on the duct location, you can set the orientation of the vent. You can also select

the ventilation power (High, Low, Off) depending on your cooking selection.

One Touch Instant Cooking

One touch Cooking saves you time and allows you to cook easily, simply by using

various instant cooking options consisting of frequently used choices. Moreover, your

Over The Range (OTR) oven provides optimal cook settings for various items guaranteeing

satisfaction.

Chiid Lock

The Child safety lock function of the new Over the Range (OTR) oven prevents children from

playing with the oven and accidentally harming themselves or damaging the oven.

Cook-top Lighting

Illuminate your cooking experience with Cook-top Lighting and even control the degree of

lighting (High/Low/Off).

2 features of your new m crowave oven

Throughout this manual, you'll see Warning and ©aution notes.

These warnings, cautions, and the important sCety instructions that follow do not

cover all possible conditions and situations that may occur.

It's your responsibility to use common sense, caution, and care when installing,

maintaining, and operation your microwave oven. Samsung is not liable for

damages resulting from improper use.

WHATTHEICONSANDSIGNSINTHISMANUALMEAN:

Z_ WARNING: Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

CAUTION: Hazards or unsafe practices that may result in minor personal injury or property

cAoT,o, damage.

Do not attempt or use.

_ Do not repair.

Do not touch.

[_ Be careful

_] Follow directions explicity.

Unplug the power plug from the wall socket.

_ Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

PRECAUTIONSTOAVOIDPOSSIBLEEXPOSURETO

EXESSIVEMICROWAVEENERGY:

[_Do not attempt to operate this microwave oven with the door open since open-

door operation can result in harmful exposure to microwave energy. It is important

not to defeat or tamper with the safety interlocks.

Do not place any object between the microwave oven front face and the door or

allow soil or cleaner residue to accumulate on sealing surfaces.

SAVETHESEINSTRUCTIONS

important safety instruction _.3

Do not operate the microwave oven if it is damaged. It is particularly important that

the microwave oven door close properly and that there is no damage to the

• Door (bent or dented),

Hinges and latches (broken or loosened),

Door seals and sealing surfaces.

[] The microwave oven should not be adjusted or repaired by anyone except

properly qualified service personnel.

IMPORTANTSAFETYINSTRUCTIONS

When using any electrical appliance, basic safety precautions should be followed,

including the following:

WARNING

[_ Always observe Safety Precautions when using your oven. Never try to repair the

oven on your own - there is dangerous voltage inside. If the oven needs to be

repaired, call 1-800-SAMSUNG (7267864) for the name of an authorized service

center near you.

TOREDUCERISKOFBURNS,ELECTRICSHOCK,FIRE,

PERSONALINJURYOREXPOSURETOEXCESSIVE

MICROWAVEENERGY:

Read all safety instructions before using the appliance.

Read and follow the specific "PRECAUTIONS TO AVOID EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY" on page 3.

This appliance must be grounded. Connect only to properly grounded outlets. See

"IMPORTANT GROUNDING INSTRUCTIONS" on page 7 of this manual.

Install or place this appliance only in accordance with the installation instructions

provided.

Use this appliance only for its intended use as described in the manual. Do

not use corrosive chemicals or vapors in this appliance. This type of oven is

specifically designed to heat, cook, or dry food. It is not designed for industrial or

laboratory use.

As with any appliance, close supervision is necessary when used by children.

Keep the inside of the oven clean. Food particles or spattered oils stuck to the

oven walls or floor can cause paint damage and reduce the efficiency of the oven.

Keep the power cord away from heated surfaces.

SAVETHESEINSTRUCTIONS

4....important safety instruction

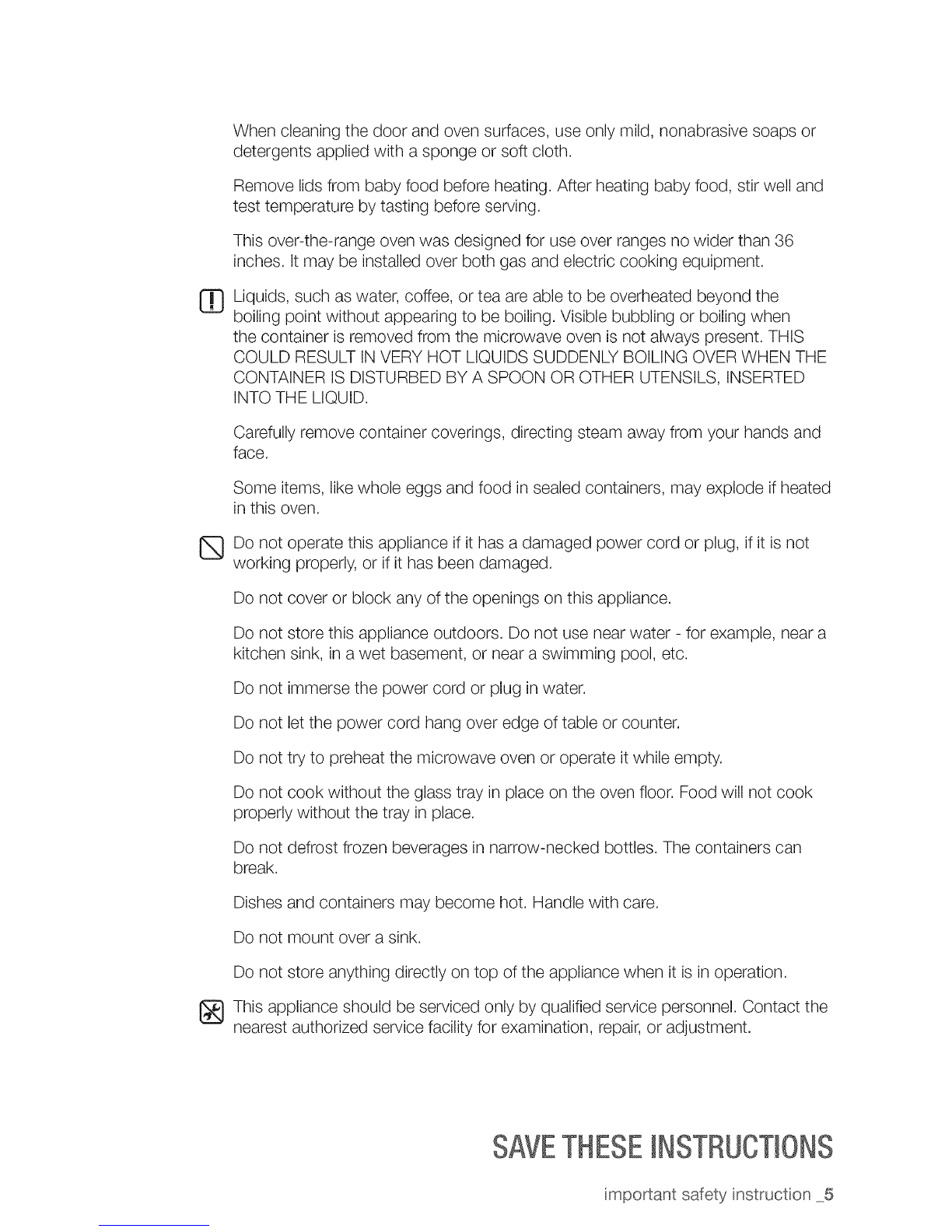

Whencleaningthedoorandovensurfaces,useonlymild,nonabrasivesoapsor

detergentsappliedwithaspongeorsoftcloth.

Removelidsfrombabyfoodbeforeheating.Afterheatingbabyfood,stirwelland

testtemperaturebytastingbeforeserving.

Thisover-the-rangeovenwasdesignedforuseoverrangesnowiderthan36

inches.Itmaybeinstalledoverbothgasandelectriccookingequipment.

[_ Liquids,suchaswater,coffee,orteaareabletobeoverheatedbeyondthe

boilingpointwithoutappearingtobeboiling.Visiblebubblingorboilingwhen

thecontainerisremovedfromthemicrowaveovenisnotalwayspresent.THIS

COULDRESULTINVERYHOTLIQUIDSSUDDENLYBOILINGOVERWHENTHE

CONTAINERISDISTURBEDBYASPOONOROTHERUTENSILS,INSERTED

INTOTHELIQUID.

Carefullyremovecontainercoverings,directingsteamawayfromyourhandsand

face.

Someitems,likewholeeggsandfoodinsealedcontainers,mayexplodeifheated

inthisoven.

[_ Donotoperatethisapplianceifithasadamagedpowercordorplug,ifitisnot

workingproperly,orifithasbeendamaged.

Donotcoverorblockanyoftheopeningsonthisappliance.

Donotstorethisapplianceoutdoors.Donotusenearwater-forexample,neara

kitchensink,inawetbasement,ornearaswimmingpool,etc.

Donotimmersethepowercordorpluginwater.

Donotletthepowercordhangoveredgeoftableorcounter.

Donottrytopreheatthemicrowaveovenoroperateitwhileempty.

Donotcookwithouttheglasstrayinplaceontheovenfloor.Foodwillnotcook

properlywithoutthetrayinplace.

Donotdefrostfrozenbeveragesinnarrow-neckedbottles.Thecontainerscan

break.

Dishesandcontainersmaybecomehot.Handlewithcare.

Donotmountoverasink.

Donotstoreanythingdirectlyontopoftheappliancewhenitisinoperation.

[_} Thisapplianceshouldbeservicedonlybyqualifiedservicepersonnel.Contactthe

nearestauthorizedservicefacilityforexamination,repair,oradjustment.

SAVETHESEINSTRUCTIONS

important safety instruction ....5

TOREDUCETHERISKOFFIREINTHEOVEN:

Remove wire twist-ties from plastic cooking bags before placing bags in oven.

_Do not use the oven compartment for storage purposes. Do not leave paper

products, cooking utensils, or food in the oven when not in use.

Do not overcook food. Watch appliance carefully if paper, plastic, or other

combustible materials are inside.

_lf materials inside the oven ignite, keep the oven door closed, turn the oven off,

disconnect the power cord, or shut off the power at the fuse or circuit breaker

panel. If the door is opened, the fire may spread.

TOREDUCETHERISKOFINJURYTOPERSONS:

_Stir the liquid both before and halfway through heating it.

After heating, allow the container to stand in the microwave oven for a short time

before removing the container.

[_Do not use straight-sided containers with narrow necks.

Do not overheat liquids.

_Use extreme when other utensils into the container.

care inserting aspoon or

SAVETHESEINSTRUCTIONS

6....important safety instruction

IMPORTANTGROUNDINGINSTRUCTIONS

_This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the

electrical current. This appliance is equipped with a power cord that includes a

grounding wire and a grounding plug. The plug must be plugged into an outlet

that is properly installed and grounded. Plug the three-prong power cord into a

properly grounded outlet of standard 115-120 voltage, 60 Hz. Your oven should

be the only appliance on this circuit.

WARNING

O Improper use of the grounding plug can result in a risk of electric shock. Consult a

....... qualified electrician or servicer ifyou do not understand the grounding instructions

or if you are not sure if the appliance is properly grounded.

[_Do not use an extension cord with this appliance. If the power cord is too short,

have a qualified electrician or service technician install an outlet near the appliance.

Do not cut or remove the third (ground) prong from the power cord under any

circumstances.

Connect the oven only to a 15A dedicated circuit.

THEVENTFAN

_] The fan will operate automatically under certain conditions.Take care to prevent

the starting and spreading of accidental cooking fires while the vent fan is in use.

Inthe event of a grease fire on the surface units below the microwave oven,

smother a flaming pan on the surface unit by covering the pan completely with a

lid, a cookie sheet or a flat tray.

Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate

on the ventilating hood.

When flaming foods under the hood, turn the fan on.

Use care when cleaning the vent-hood filter. A corrosive cleaning agent, such as

lyebased oven cleaner, may damage the filter.

Never leave surface units beneath your microwave oven unattended at high

heat settings. Boilovers cause smoking and greasy spillovers that may ignite

and spread if the microwave vent fan is operating. To minimize automatic fan

operation, use adequate sized cookware and use high heat on surface units only

when necessary.

SAVETHESEINSTRUCTIONS

important safety instruction ....7

content

SETTING UP YOUR NEW

MICROWAVE OVEN

2¸¸

10 Checking the parts

11 Warranty and service information

11 Setting up your microwave oven

12 Checking the control panel

14 Child lock

14 Demonstration mode

14 Setting the time

USING YOUR MICROWAVE OVEN 15 Using the Kitchen Timer Button

15 Using the One Minute+ Button

15 Using the More/Less Buttons

15 Using the Vent Hi/Lo/Off Button

15 Using the Light Hi/Lo/Off Button

15 Using the Sound On/Off Button

16 Using the Auto Cook Button

19 Using the Auto Defrost Button

20 Using the Auto Reheat Button

22 Using the Soften/Melt Button

Microwave cooking times & Power levels

COOKWARE GUIDE 24 Microwave-safe Utensils

COOKING GUIDE 26 Microwaves

8 contents

CLEANING AND MAiNTAiNiNG YOUR

MICROWAVE OVEN 29 Cleaning the exterior

29 Cleaning the interior

29 Cleaning the door and door seals

29 Cleaning the turntable and roller rings

30 Cleaning the grease filter

30 Storing and repairing your microwave oven

31 Replacing the Cooktop/Night light

31 Replacing the oven light

32 Replacing the charcoal filter

TROUBLESHOOTING 33 Check these points if your microwave oven...

APPENDIX 34 Specifications

WARRANTY

contents 9

sortng UD

Be sure to follow these instructions closely so that your new microwave oven works

properly,

CHECKING THE PARTS

Carefully unpack your microwave oven, and make sure you've received all the parts shown below. If your

microwave oven was damaged during shipping, or if you do not have all the parts, contact Samsung

Customer Service. (Refer to the "WARRANTY AND SERVICE INFORMATION" on page 11.)

Microwave oven

Glass tray Roller guide ring Charcoal filter

DE63-00536A DE92-90495C DE63-00367E

Grease filter Exhaust adaptor Hardware=kit

DE63-00196A DE92-90242E DE92-90505G

Manuals

(User DE68-035880&

Installataions DE68-0o587A

Templates

(Top DE68-03589A &

Wall DE68-02230P)

Registration card

6801-001581

10 setting up your new microwave oven

Otros manuales para SMH9151

Tabla de contenidos

Otros manuales de Microondas de Samsung

Samsung

Samsung CE1150R Manual de usuario

Samsung

Samsung MC32F6C6TCT Manual

Samsung

Samsung ME19R7041F Series Manual de usuario

Samsung

Samsung M308R Manual de usuario

Samsung

Samsung SMH1611 Manual de usuario

Samsung

Samsung MG23F301E Series Manual

Samsung

Samsung CE305CF Manual de usuario

Samsung

Samsung MR87-S Manual de usuario

Samsung

Samsung CM1039A-K Manual de servicio

Samsung

Samsung MC17F808KDT/AA Manual de usuario

Samsung

Samsung CM1012B Manual de usuario

Samsung

Samsung MG23K3505 Series Manual de usuario

Samsung

Samsung MG28F3C3TF Series Manual de usuario

Samsung

Samsung CE305CF Manual de usuario

Samsung

Samsung MG23K3515 Series Manual de usuario

Samsung

Samsung MC28H5013AK Manual de uso y cuidado

Samsung

Samsung MG23J5133 Series Manual de usuario

Samsung

Samsung MS23F301E Series Manual

Samsung

Samsung MW1250WA Manual de usuario

Samsung

Samsung CE287ASTR Manual de usuario

Samsung

Samsung G2719NR Manual de servicio

Samsung

Samsung CE2D33/CE2D33T Manual de servicio

Samsung

Samsung ME731KD Manual

Samsung

Samsung MW5896WC Manual de usuario

Manuales populares de Microondas de otras marcas

Daewoo

Daewoo KOG-574R0S Manual de usuario

LG MH7040SS Manual de usuario

Sharp

Sharp R-895(AL)M Manual de usuario

Dometic

Dometic DOTRM13W Manual de usuario

Sanyo

Sanyo EM-X680 Manual de usuario

Sharp

Sharp R-393M Manual de usuario

KitchenAid

KitchenAid KMCX4510 Instrucciones de instalación

Smeg

Smeg S45MCX1 Manual de usuario

Russell Hobbs

Russell Hobbs RHM2044 Manual de usuario

Sunbeam

Sunbeam SMW759 Manual de usuario

Gallet

Gallet FMOE230S Manual de usuario

Bosch

Bosch CEG732X.1B Manual de usuario

Dometic

Dometic Roadmate 230 Manual de usuario

Sanyo

Sanyo EM-P494WS Manual de usuario

Sharp

Sharp R-240 Manual de usuario

Electrolux

Electrolux EMS2840 Manual de usuario

Daewoo

Daewoo KOC-984T2S13 Manual de usuario

Impecca

Impecca CM07M2 Manual de usuario
