Samsung LE22B450C8W Manual de usuario

English -4

Connecting a AV device

W R

BWY R

W YR

HD connection

DVD / Blu-Ray player / Cable Box

/ Satellite receiver (STB)

Using a DVI Cable

AUDIO OUTDVI OUT

HD connection

DVD / Blu-Ray player / HD Cable

Box / HD Satellite receiver (STB)

Using an HDMI Cable

HDMI OUT

Audio/Video connection

VCR

Using an Audio/Video Cable

AUDIO OUTVIDEO OUT

Component connection

DVD / Blu-Ray player / Cable

Box / Satellite receiver

Using a Component Cable

AUDIO OUT COMPONENT OUT

HDMI/DVI

PC/COMPONENT

EXT/VIDEO

Best

Normal

VCR / DVD

Using a Scart Cable

EXT

BN68-02287W-00Eng.indd 1 2009-06-25 �� 3:14:56

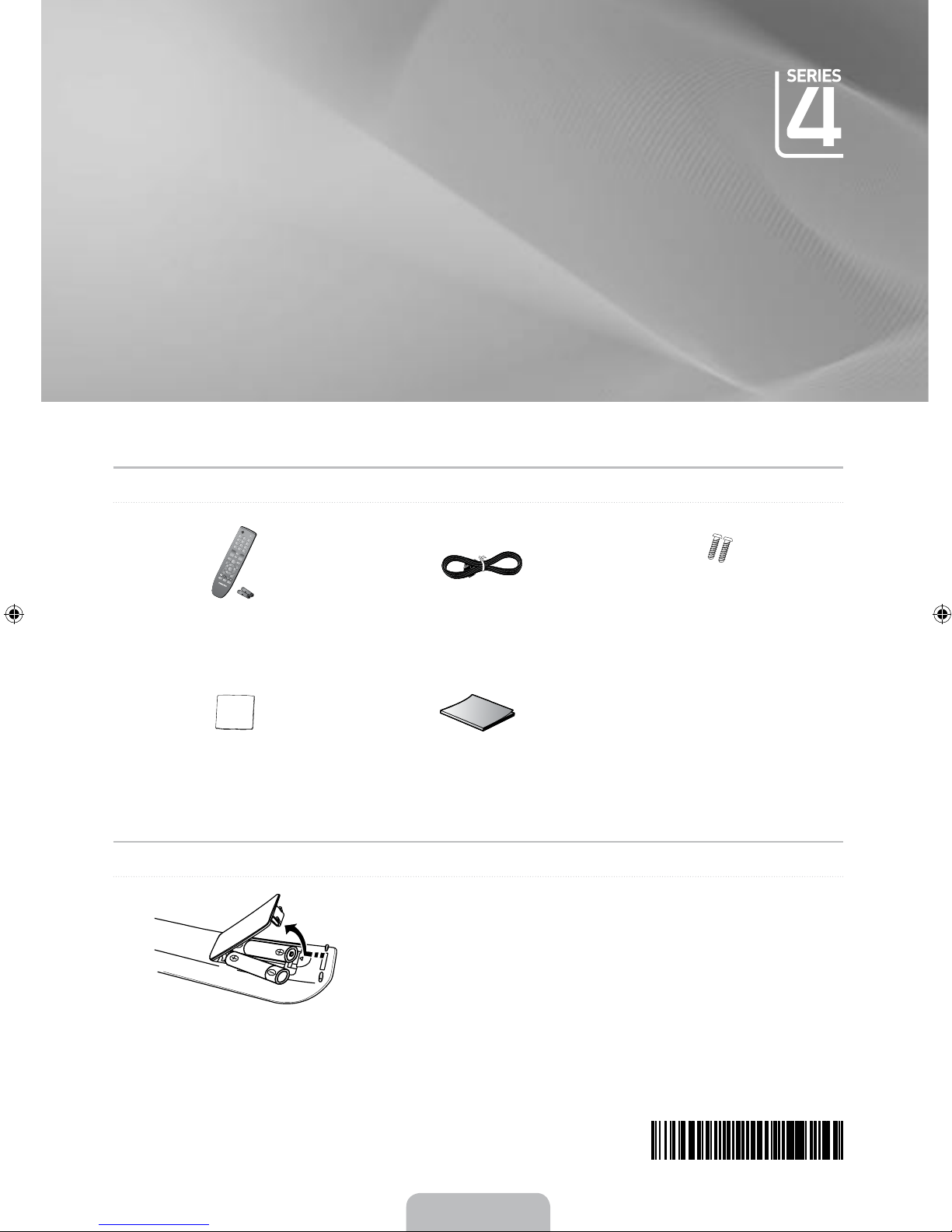

The Supplied Accessoris

(M4 X L16)

Remote Control & Batteries (AAA x 2) Power Cord Stand Screw X 2

Cleaning Cloth User Manual

Installing Batteries in the Remote Control

LCD TV

QUICK SETUP GUIDE

English - 1

BN68-02287W-00

BN68-02287W-00Eng.indd 2 2009-06-25 �� 3:14:57

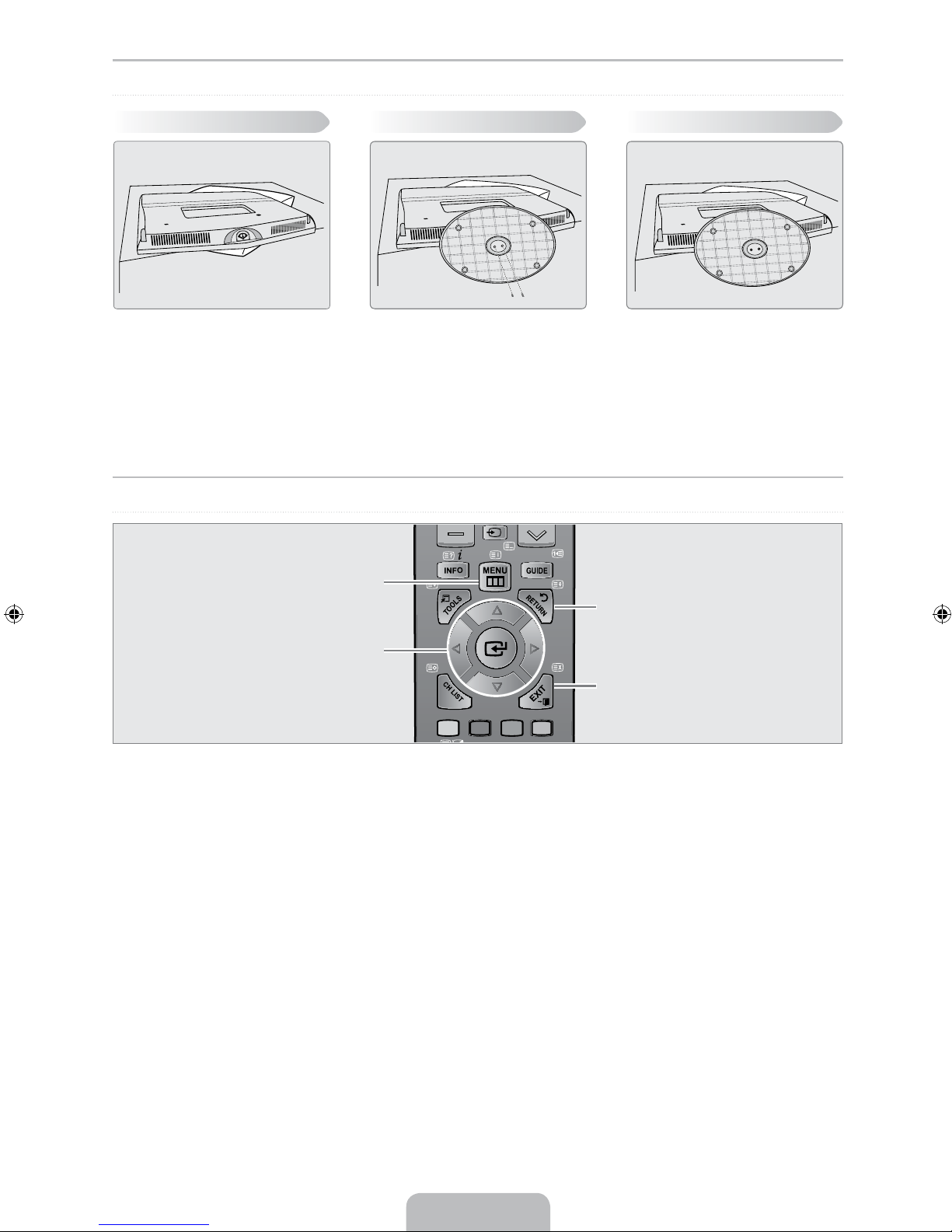

Installing the Stand

Step 1. Place the front of the TV onto a soft cloth or cushion on a table.

Align the TV bottom along the table edge.

Step 2. Fasten screws at bottom of the stand.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one

side.

Using the remote control buttons

MENU Button

Display the main on-screen menu.

ENTER

/ DIRECTION Button

Move the cursor and select an

item. Select the currently selected

item. Confirm the setting.

RETURN Button

Return to the previous menu.

EXIT

Exit the on-screen menu.

English - 2

Step 1 Step 2 Step 3

BN68-02287W-00Eng.indd 3 2009-06-25 �� 3:14:57

English - 3

Plug & Play

When the TV is initially powered on, basic settings proceed automatically and subsequently.

If you want to reset this feature, press the MENU button to display menu.

You can set the Plug & Play by selecting Setup → Plug & Play.

On the screen, you can set as follows.

The each step may vary depending on the Antenna source.

Plug & Play

You can set the menu language.

Menu Language : English

Move

Enter

▲

Nederlands

English

Eesti

▼

Plug & Play

Select 'Home Use' when installing this TV in your home.

Move

Enter

Store Demo Home Use

Plug & Play

Select Country.

Country : English

Move

Enter

▲

Switzerland

United Kingdom

CIS

▼

Plug & Play

Select the Antenna source to memorise.

Move

Enter

Skip

Stert

Air

Cable

Plug & Play

Select the Channel source to memorise.

Move

Enter

Skip

Stert

Digital & Analogue

Digital

Analogue

Plug & Play

Auto Store in progress.

Digital Channels : 5 Analogue Channels : 6

Enter

Skip

Stop

Frequency 113 MHz

15%

Plug & Play

Set the Clock Mode.

Clock Mode : Auto

Move

Enter

Skip

Auto

Manual

Plug & Play

How to get the best perfotmance from your new HDTV

Step 1. Connect the HD Source Unit to the TV using the Component video (Red, Green,

Blue) and audio (Red, White) cables or HDMI Cable.

Step 2. Press the Source button on the Remote Control to select HDMI or Component

Input.

Depending on your location, HD programs may also be viewd using an RF antenna.

For more detalls, please refer to HD Connections in the Owner Manual.

Enter

HD Cable

Component Cable

▼

HD box

▼

TV rear view

Plug & Play

Enjoy your TV.

Step 1 Step 2 Step 3

Step 4 Step 5 Step 6

Step 7 Step 8 Step 9

BN68-02287W-00Eng.indd 4 2009-06-25 �� 3:14:58
