Samsung UN60F6350AFXZA Guía

E-MANUAL

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model Serial No..

Screen Position

Screen Menu > Picture ) Picture Size ) Position

The screen position can be adjusted if Picture Size is set to Zoom1, Zoom2, Wide Fit, or Screen Fit. In

DTV mode, the screen position cannot be adjusted if the Picture Size is set to Screen Fit.

PDP 5500, LED 6400 series and above

To adjust the screen position, select Position and then Position from the popup window.

2, Drag on the touch pad to move the screen. Once done, select Position and then Close. Select

Reset to reset the screen position.

LED 4300 - 6300 series

To adjust the screen position, select Position and then Position from the popup window.

2, Press the arrow buttons on the remote to move the screen. Once done, select Position and then

Close. Select Reset to reset the screen position.

Picture Off

Screen Menu > Picture > Picture Off

Turns off the screen and plays audio only. To turn the screen back on, press any button except TV and

volume buttons.

Reset mmage Settings

Screen Menu > Picture > Reset Picture

Reset all image settings for the current Picture Mode to the default settings. This does not affect other

Picture Modes.

Advanced ngs

Screen Menu > Picture > Advanced Settings

The disp ayed image may differ depending on the mode,

Use Advanced Settings to fine-tune how images are displayed on the TV screen. The Advanced

Settings option is only available when Picture Mode is set to Standard or Movie. When the TV is

connected to a computer via an HDMI-DVl cable, only White Balance and Gamma can be adjusted.

o Dynamic Contrast

Automatically adjusts the screen contrast. Use this option to achieve the optimal contrast setting.

o Black Tone

Adjuststheblackcolordepth.

o Flesh Tone

Adjusts the amount of red in skin-color tones.

o RGBOnlyMode

Adjuststhered,green,andbluelevelsindividually.

e Color Space

Adjusts the range of colors that can be expressed on screen. Auto automatically adjusts the

color space depending on the input signal, and Native applies a range that is wider than the input

signal. Custom allow the user to manually adjust a range of the desired color in the colors of the

input signal.

Custom mode s O_y ava labe wth 6300 se_es and above

White Balance

Adjusts the color temperature of the picture to make white objects look white and the overall

picture appear natural. Adjust each color's luminosity with the offset menu and the brightness

with the gain menu. To restore the default values, select Reset. _i_! i::!:i::

10p White Balance

This function is not available with LED 4300, 5500 series and PDP 5500 series.

Adjusts the white balance by adjusting the brightness of the red, green, and blue elements in

10-point intervals. This option is only available when Picture Mode is set to Movie and may not

be supported by some external devices.

Gamma

Adjusts the primary color intensity.

Expert Pattern

This function is not available with LED 4300, 5500 series and PDP 5500 series.

Displays picture calibration patterns on the screen without using a separate pattern generator or

filter. Pattern1 is used to calibrate the contrast, and Pattern2 is used for calibrating the color and

color saturation. If the screen menu disappears or a different menu is activated while the screen

is being calibrated, this option will save the changes up to that point and automatically deactivate

that menu. This feature is enabled in Component and HDMI modes only.

Motion Lighting

Adjusts the picture brightness depending on the on-screen movements for reduced power

consumption. This feature is only available when Picture Mode is set to Standard and is not

available in 3D mode. In addition, adjusting Contrast or Brightness automatically deactivates this

feature.

Picture Options

Screen Menu > Picture > Picture Options

The displayed image may differ depending on the model,

Use Picture Options to further improve the picture quality. When connected to a computer via an

HDMI-to-DVl cable, users can only change Color Tone.

,, Color Tone

Adjusts the color tone. The setting is applied on an individual Picture Mode basis. When Picture

Mode is changed, the corresponding setting will apply automatically. If Picture Mode is set to

Dynamic, users can only choose between Cool and Standard. _ :!/:_

,, Digital Clean View

Reduces static and ghosting caused by weak signals. This feature is only available for ATV

channels. Selecting Auto Visualization displays the signal strength on the screen. Green indicates

the best possible sign a I.

,, MPEG Noise Filter

Reduces MPEG noise and improves the video quality.

o HDM_BlackLevem

Thisisavailableonlyfor videoinputviaan HDMIcable.Usethisto reduceimageretentionthat

mayoccurwhenwatchingvideofrom anexternaldevice.Chooseoneof theblacklevels.

FilmMode

Optimizesthe picturequalityfor movies.Selectthe modefor watchingmovies.Thisfeatureis

only availablewhenwatchingTVorwhenthe inputsignal is AV,Component(480i,1080i),or

HDMI(1080i).TheCinemaSmoothoption isonly activewhenthe TV inputsan HDMI24Hzsignal.

TheCinemaSmoothoption isonly availablefor PDP5500series.

Blackoptimizer

Thisfunction isavailableonly with PDP5500seriesandLED6800series.

Adjust overallblackcolor depthto givea changeto picturedepth.Thisisnotavailablewhen

playingamediafile or usingthe TVasa computerdisplay.

Auto Motion Plus

Use this to reduce blur and judder from scenes with rapid movement. If you select Custom, you

can configure the afterimage and screen trembling removal ratio and you can view a sharper

image through the LED Clear Motion function. This feature is only available for LED 6300 series

and above.

While Auto Motion PJus s runninf/:_ seect the vrtual remote panel s or the _eg_ a_ remote s INFO button

todispaythereso_,donandfleq_encyofthe ncomingvdeosignal(60Hz)Iihedispayedfrequency s

not the same as the freq_ ency of the p ct_ re the IiV ;s disp ay;ng when A_to Motio _ P_s ;s activated

Cinema Black

This function is only available on the LED 7050/7100 series, except 75-inch TVs. In Movie mode,

this feature dims the top and bottom areas of the video image to provide a more immersive

viewing experience.

LED Clear Motion

Removes drag from fast scenes with a lot of movement to provide a clear picture. This function is

only available for the LED 4300, 5500 series.

Basic Sound ngs

Screen Menu > Sound

The dispIayed image may differ depending on the modet,

Use the Sound Settings to change the sound mode, enable/disable surround sound, adjust the

equalizer, and optimize the TV's sound.

Changing the Sound Mode

Screen Menu > Sound > Sound Mode

Sound modes make adjustments to the sound output. However, Sound Modes are not available when

using external speakers only.

o Standard: This is the normal sound mode.

o Music: This mode emphasizes normal music instead of voices.

o Movie: This mode is calibrated to provide the best sound for movies.

o Clear Voice: This mode emphasizes voices.

o Amplify: This increases the overall intensity of high-frequency sounds for a better listening

experience. It is designed for hearing-impaired listeners.

o Stadium: This is chosen automatically when Sports Mode is turned on under the Smart Features

menu. This function is not available on U.S.A. and Canada.

Adjusting the Sound Settings

Screen Menu > Sound > Sound Effect

Use sound effects to alter how the TV projects sound. These options are available only when Speaker

Sebct is set to TV Speaker and Sound Mode is set to Standard.

.DTS TruSurround: Produces sound that will make you feel like you are sitting in a movie theater

or concert hall.

- DTS TruDiab9: Increases the voice intensity to make dialog clearer.

- Equalizer: Adjusts the speaker balance and makes bandwidth adjustments. Select Reset to reset

the settings. _:_

Auto Volume

Screen Menu > Sound > Speaker Settings > Auto VoBme

Because each station has its own set of broadcasting conditions, the volume may fluctuate as the

channel changes. The Auto Volume function automatically adjusts the volume of a channel by lowering

or raising the sound output. Normal applies a normal level of volume adjustment, whereas Night

applies a slightly lower volume level than Norman and is ideal for nighttime TV viewing. To use the

volume control of a connected source device, deactivate the Auto Volume function. When using the

Auto Volume function with a source device, the device's volume control may not function properly.

TV mnsta Mation Type

Screen Menu > Sound > Speaker Settings ) TV _nstaIBtion Type

Select the TV's installation type. Choose between Wall Mount and Stand to optimize the TV's sound

automatically.

Resetting the Sound

Screen Menu > Sound > Reset Sound

This resets all sound settings to the factory defaults.

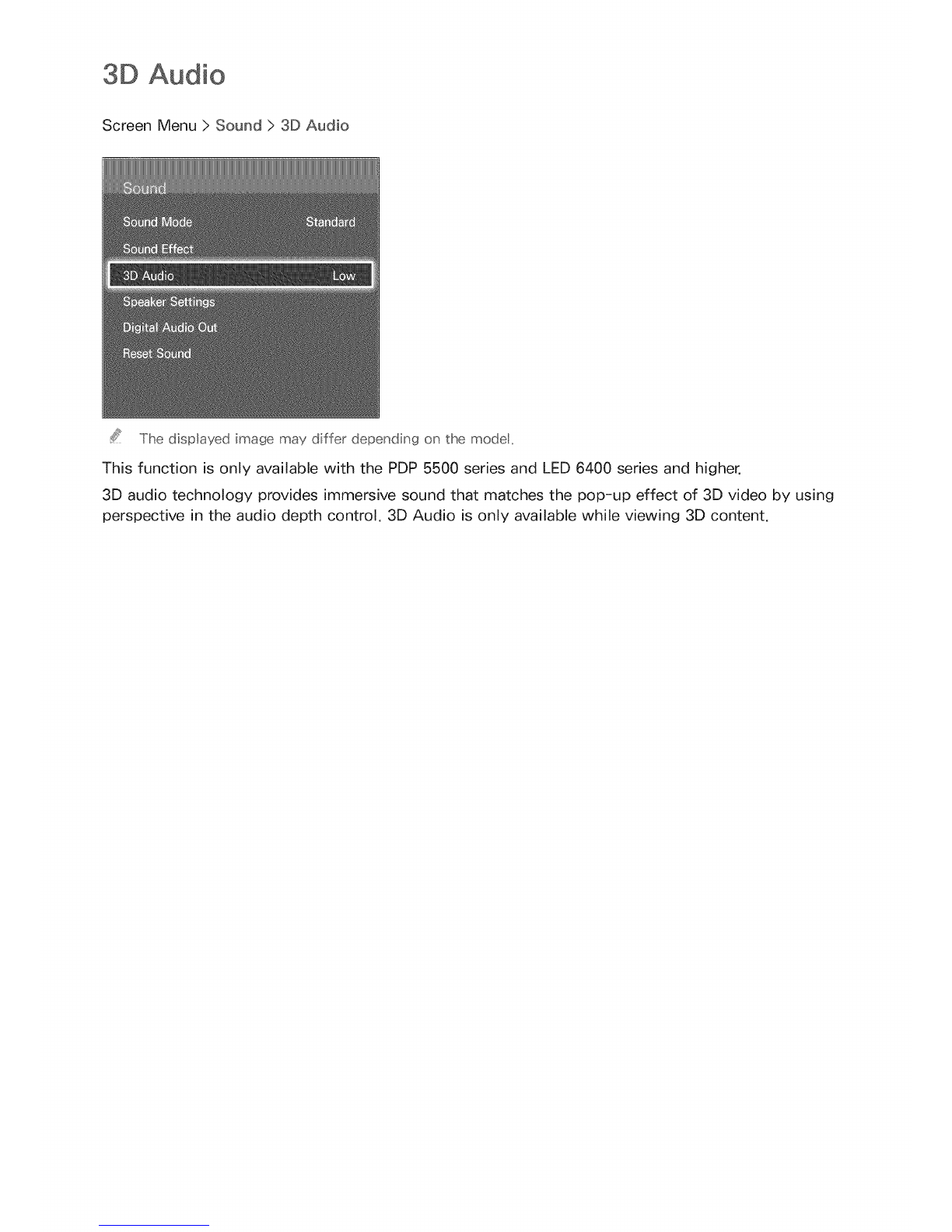

3D Audio

Screen Menu > Sound > 3D Audio

The displayed image may differ depending on the modet,

This function is only available with the PDP 5500 series and LED 6400 series and higher.

3D audio technology provides immersive sound that matches the pop-up effect of 3D video by using

perspective in the audio depth control. 3D Audio is only available while viewing 3D content.

Speaker Settings

The dispIayed image may differ depending on the modet,

If the TV's audio is sent to an external device such as a home theater system, you can designate

which speakers to use and make adjustments to eliminate decoding speed echoes.

Speaker Select

Screen Menu > Sound > Speaker Settings > Speaker SeLect

You can choose which speakers to use from among available several speakers. Choose one from the

list of speakers. To use both the TV speakers and the AV receiver speakers simultaneously, set this

option to TV Speaker. If there is a delay between the two sounds, choose any other than TV Speaker

to mute the TV speakers.

Using the extema speakers only disables the volume button and the mute function_ In addition, certain

Sound options wi be disabed,
