Samsung DW80B6060UG Manual de usuario

Dishwasher

Installation manual

DW80B70* Series, DW80B60* Series

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 1 2021-11-09  4:41:03

Contents

English2

Contents

Safety instructions 3

Important safety instructions 3

Before using your dishwasher 5

Installation 6

Product dimensions 11

Cabinet dimensions 12

Specications 37

Scan the QR code* to view our

helpful installation videos.

* Requires reader to be installed on your

smartphone.

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 2 2021-11-09  4:41:03

Safety instructions

English 3

SAVE THESE INSTRUCTIONS

Safety instructions

Throughout this manual, you will see Warning and Caution notes. The warnings, cautions,

and the important safety instructions that follow do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care

when installing, maintaining, and operating the dishwasher. Samsung is not liable for

damages resulting from improper use.

Important safety instructions

What the icons and signs in this installation guide mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in personal injury or property damage.

CAUTION

To reduce the risk of re, explosion, electric shock, or personal injury when using the

dishwasher, follow these basic safety precautions:

NOTE

Indicates that a risk of personal injury or material damage exists.

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

STOP

These installation instructions are intended for use by qualied installers.

If you are having problems installing this dishwasher

U.S.A

Please call: 1-800-SAMSUNG (726-7864)

1-844-SAM-PAYS (726-7297)

for assistance: www.samsung.com/us/support

CANADA

Please call: 1-800-SAMSUNG (726-7864)

for assistance: www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 3 2021-11-09  4:41:03

Safety instructions

English4

SAVE THESE INSTRUCTIONS

California Proposition 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Read all instructions before using the appliance.

Install and store the dishwasher inside, away from exposure to weather.

CAUTION

• Do not install the dishwasher near electrical components. Keep the dishwasher away

from open ames.

• Do not install the dishwasher on a carpet as this is a re hazard.

• Do not install the dishwasher in a location where the water may freeze (where the

temperature falls below 32 °F (0 °C)). Frozen water in the hoses or pipes may damage

the dishwasher.

• As with all equipment using electricity, water, and moving parts, potential hazards

exist. To safely operate this appliance, become familiar with its operation and exercise

care when using it.

The dishwasher must be properly grounded. Never connect it to an ungrounded outlet.

Prior to removal of original dishwasher and the installation of your new unit, make

sure to switch off your circuit breaker. Do not connect the dishwasher until you have

completed the installation. Connecting the power cable is the last step when installing the

dishwasher.

All wiring and grounding must be done in accordance with the electrical code applicable

to the region.

GROUNDING INSTRUCTIONS

For a permanently connected appliance:

This appliance must be connected to grounded metal, a permanent wiring system, or an

equipment-grounding conductor must be run with the circuit conductors and connected to

the equipment-grounding terminal or lead on the appliance.

The dishwasher is very heavy. Do not attempt to move or carry a dishwasher alone. Two

or more people are needed to move a dishwasher and avoid potential injuries.

CAUTION

• If the power cable is damaged, it must be replaced by the manufacturer, a service

agent or similarly qualied person in order to avoid a hazard.

• Do not touch the power cable with wet hands.

• Do not connect another appliance to the same power outlet as the dishwasher.

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 4 2021-11-09  4:41:03

Safety instructions

English 5

SAVE THESE INSTRUCTIONS

Make sure to use a new water supply line. Old lines are susceptible to breakage because

they become hardened and may cause property damage due to a water leakage.

The dishwasher must be connected to a hot water supply with a temperature between

120 °F (49 °C)~149 °F (65 °C). This temperature range provides the best washing result

and shortest cycle time. Temperature should not exceed 149 °F (65 °C) to prevent damage

to dishes.

Ensure that the water supplied to the dishwasher does not freeze. Frozen water can

damage the hoses, valves, pump, or other components.

Certied residential dishwashers are not intended for licensed food establishments.

(NSF/ANSI Standard 184 for Residential Dishwashers)

For a full list of safety information, please refer to the User Manual.

Before using your dishwasher

WARNING

Tip-Over Hazard

• Do not use the dishwasher until it is correctly installed.

• Do not push down on the dishwasher door when it is open.

• Do not place excessive weight on the dishwasher door when it is open.

Electric Shock Hazard

Failure to follow these instructions can result in death, re, or electric

shock:

• Electrically ground the dishwasher.

• Connect the ground wire to the green ground connector in the junction

box.

• Do not use an extension cord.

To reduce the risk of electric shock, re, or injury to persons, the installer

must ensure that the dishwasher is completely enclosed at the time of

installation.

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 5 2021-11-09  4:41:04

Installation

English6

Installation

Be sure that you or your installer follow these instructions closely so that the new

dishwasher works properly and that you are not at risk of injury when washing dishes.

STEP 1 Check the parts and tools

Before starting on the installation, prepare all the necessary tools and parts required to

install the dishwasher. This will save installation time and simplify the installation process.

Parts required

Provided with the dishwasher. Check when you unbox the dishwasher in STEP 5.

2 Installation brackets Kick Plate 4 screws

(for the Bracket Installation)

Protective sticker Nut connector & seal

(for 3/4" 90° tting)

6 plastic caps

2 black color screws

(for the Kick plate)

Hose clamp

(for drain hose)

2 screws

(for the bespoke door)

2 plastic caps

(for the bespoke door)

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 6 2021-11-09  4:41:04

English 7

Installation

Not provided

Power cable Twist on wire

connector

Strain relief Electrical tape &

Standard duct tape

Hot water supply

line

90° Fitting (3/4") Tube ttings Air gap

Rubber connector

NOTE

For the hot water supply line – We strongly recommend using 3/8" minimum O.D. copper

tubing with a compression tting or a exible stainless steel braided hot water supply

line.

[Warning: Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a

leak inside the tube tting.]

You also need a 90° Fitting with 3/4" N.P.T. external pipe threads on one end and a tting

sized to t your hot water supply line (copper tubing/compression tting or braided hose)

on the other.

For the power cable, we recommend a jacketed 12-2 cable with ground. Note that some

local codes may require the cable to have a BX style metal jacket.

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 7 2021-11-09  4:41:04

Installation

English8

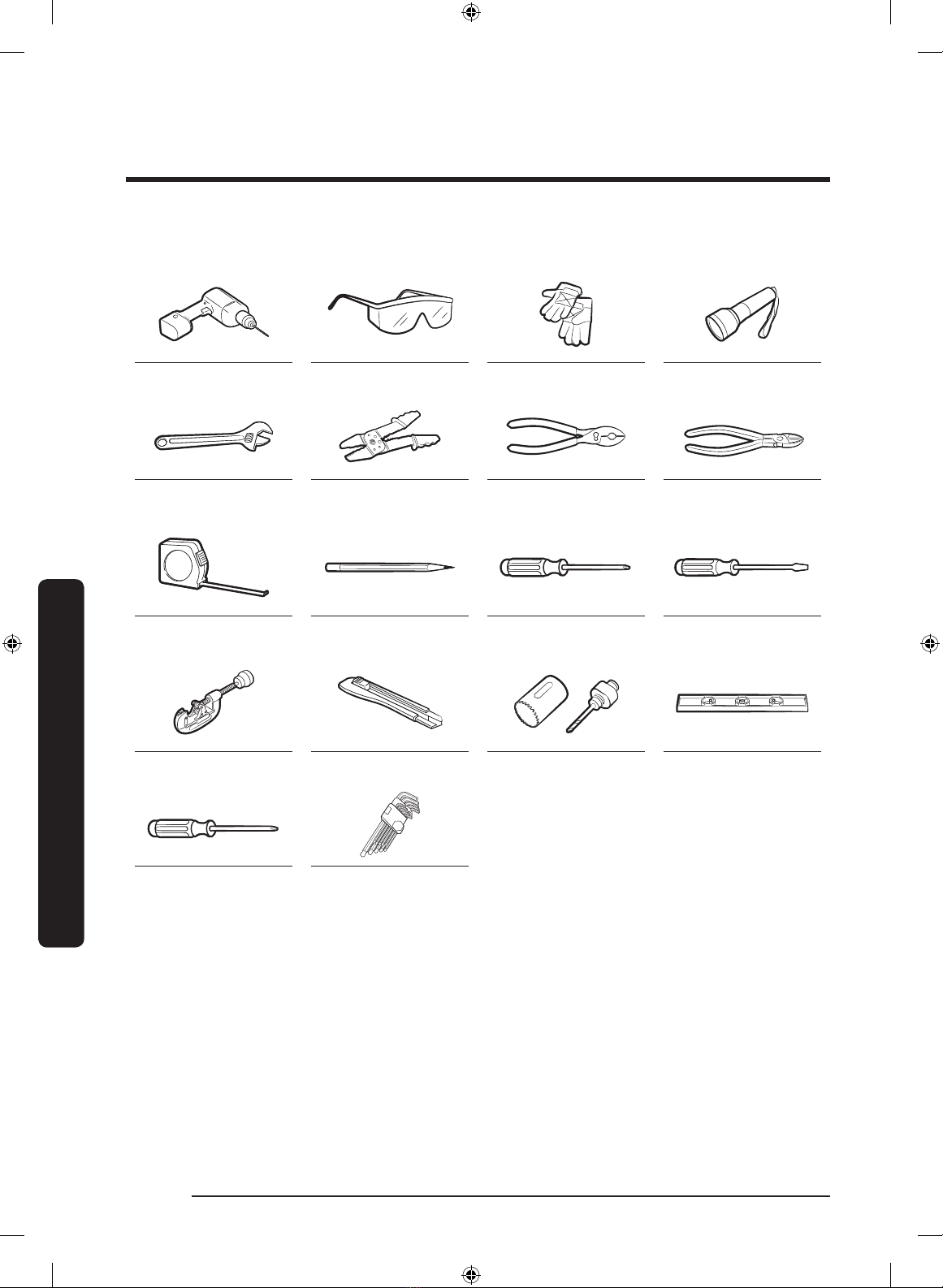

Tools required

Electric drill Safety glasses Gloves Flashlight

Adjustable wrench Wire stripper Pliers Nipper

Tape measure Pencil Phillips screwdriver Flat screwdriver

Tubing cutter Cutting knife Hole saw Level

Torx t20 Hex L-wrench

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 8 2021-11-09  4:41:05

English 9

Installation

NOTE

New installation

If the dishwasher is a new installation, most of the installation work must be done before

the dishwasher is moved into place.

Replacement

If the dishwasher is replacing an old dishwasher, you must check the exising dishwasher

connections for compatibility with the new dishwasher. Replace the existing connections

as necessary.

STEP 2 Select the best location for the dishwasher

The following criteria are important to ensure the best location for the dishwasher:

• The location must have a solid oor that is able to support the weight of the

dishwasher.

• The location must be near a sink with easy access to the water supply, drain, and

electrical outlet.

NOTE

For the drain to operate properly, the dishwasher should be installed within 9.8 ft (3 m)

of the sink.

• The location must let you load your dishes into the dishwasher easily.

• The location must have sufcient space for the dishwasher door to open easily and

provide enough space between the dishwasher and the cabinet sides (at least 0.1 in

(2 mm)).

NOTE

If the dishwasher is installed in a corner, ensure that the side of the dishwasher is more

than 2 in. (50 mm) from the wall or cabinet to its right or left.

• The wall at the back must be free of obstructions.

• Make sure the cabinet for the dishwasher is secured to the oor. If the cabinet is not

secured, it may increase noise when the dishwasher is operating.

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 9 2021-11-09  4:41:05

Installation

English10

If this is a new installation, follow these steps:

1. Using a 21/2inch hole saw, cut a hole into the side of the cabinet that holds the sink as

shown in Figure 1-1 below.

2. If the base inside the sink cabinet is raised above the kitchen oor and is higher than the

connections on the dishwasher, make a hole in the base inside the cabinet and in the cabinet

side as shown in Figure 1-2.

NOTE

Depending on where your electrical outlet is, you may need to cut a hole in the opposite

cabinet side.

Figure 1-1

The hole for the water supply line, drain

hose and power cables.

Figure 1-2

CAUTION

Make sure the edges of the cabinet hole are smooth before you insert the drain hose

through the hole. Sharp edges from the cabinet hole may cause damage to the drain hose,

resulting in a leak from the hose.

DW7000B_DW80B7070_AA_DD68-00242A-00_EN.indd 10 2021-11-09  4:41:05
