Samsung Digital

Presenter

Software

User’s Guide

French German Italian SpanishEnglish

Contents (Windows Program)

Installing Samsung Digital Presenter Software......3

System requirements...............................................................................3

Installing software ....................................................................................4

Connecting Samsung Digital Presenter to PC .................................4

Installing USB driver .........................................................................5

Installing Samsung Digital Presenter program ................................7

Installation tips .........................................................................................9

How can I determine if my computer's USB port is enabled?...........9

How do I remove the USB driver and Samsung Digital Presenter program?

...10

Running Samsung Digital Presenter Program ........11

Samsung Digital Presenter View Panel overview..................................12

Samsung Digital Presenter Control Panel overview ..............................15

Capturing/Saving/Printing images .........................................................19

Samsung Digital Presenter Mini Control Panel overview.......................22

Quick Save ([F2] key) ............................................................................23

Applying DIP(Digital Image Effect Processing) Functions .....................24

Digital Image Effect Processing Description..........................................25

Using Samsung Digital Presenter TWAIN Driver...27

Scanning Images ..................................................................................28

Keyboard Map ......................................................................................29

Using Samsung Digital Presenter AVI Capture

..................30

Troubleshooting..................................................................................35

English French German Italian Spanish

Contents (Macintosh Program)

Installing the SDP Viewer

.......................................................................37

System Requirements.............................................................................37

Connecting the Samsung Digital Presenter ............................................38

Program Installation ................................................................................39

Running the SDP Viewer

.........................................................................43

Samsung Digital Presenter Viewer Screen .............................................43

Samsung Digital Presenter Viewer Control Buttons................................46

Image Capture/Save/Output....................................................................49

Quick Saving and Configuration..............................................................52

Image Rotation........................................................................................52

Troubleshooting(Macintosh Program)

..............................................53

English French German Italian Spanish

Installing Samsung Digital Presenter Software

The supplied Samsung Digital Presenter program CD contains :

• USB driver

• Samsung Digital Presenter program

To control your Samsung Digital Presenter on the PC, save the images into the

computer HDD, or print the images, you must connect Samsung Digital Presenter to

the PC through USB interface, then install the USB driver and Samsung Digital

Presenter program using the supplied program CD.

Follow the procedures below.

S stem requirements

To install the Samsung Digital Presenter software, your computer must have at least

the following system configuration :

• IBM or IBM compatible computer with a Pentium II 350Mhz or higher processor

(*USB 2.0: Pentium 4 or higher)

• Windows 98 or later (*USB 2.0: Windows 2000 pro or later)

• Display : XGA 1024 x 768, 65536 colors or higher

• USB 2.0/1.1 interface connector

(*USB 2.0: On-board type USB chipset recommended)

• 64MB or higher RAM (*USB 2.0: 128MB or higher recommended)

• CD-ROM drive

✔Note : • USB 2.0 mode is not officially supported in the Windows

98/98SE/ME OS.

• It cannot perform at regular speed when you use

PCI/PCMCIA type USB 2.0 card.

Installing software

To install the software

1. Connect your Samsung Digital Presenter to the PC with USB cable. See the

current page.

2. Install the USB driver. See page 5.

3. Install the Samsung Digital Presenter control program. See page 7.

Follow the instructions below to complete the installation:

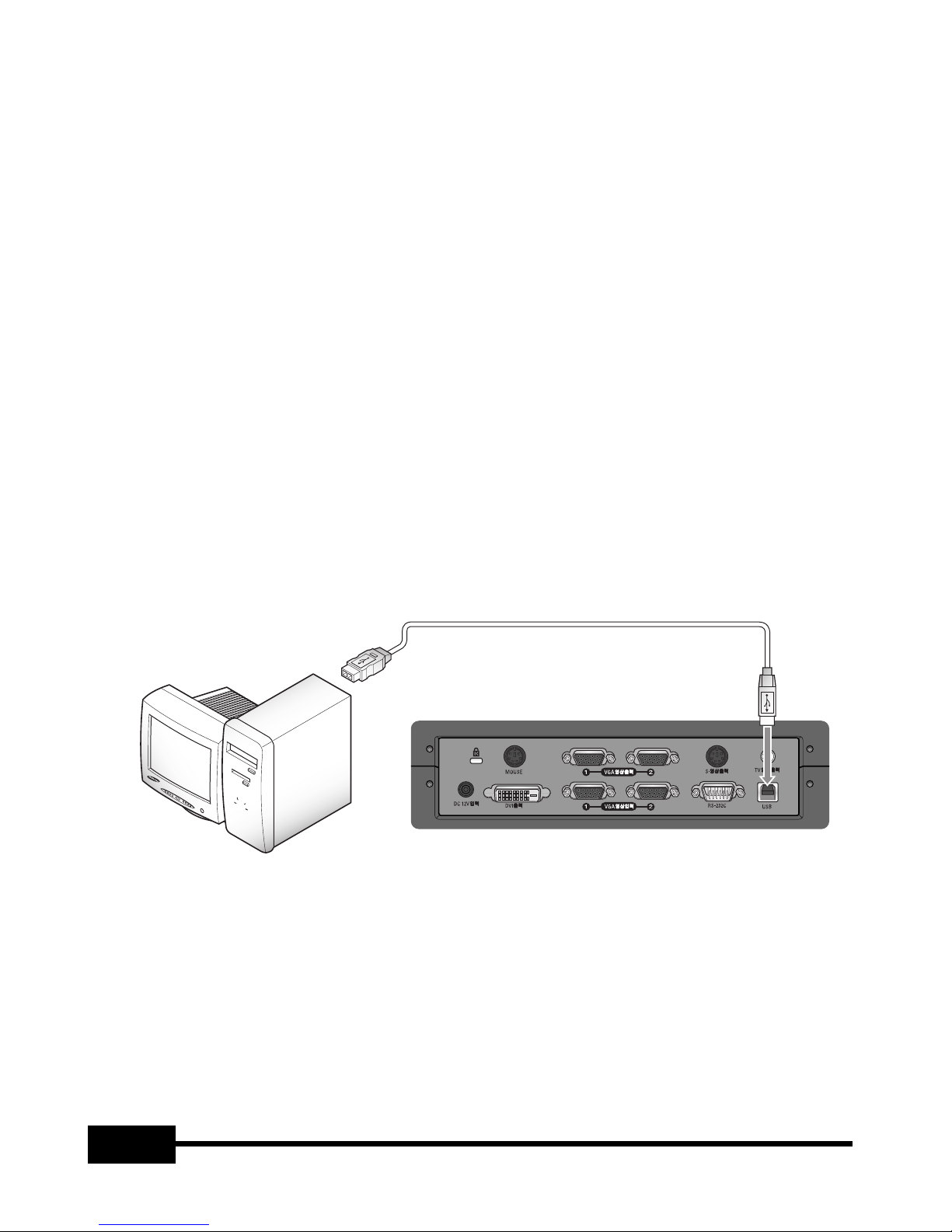

Connecting Samsung Digital Presenter to PC

1. Make sure that both the Samsung Digital Presenter and a computer are turned on.

2. Plug one end of the USB cable into the USB port on the Samsung Digital

Presenter.

3. Plug the other end into the USB port on the computer.

✔Caution : • We recommend to connect to USB port which is attached

on computer main board.

(It can make troubles in extended front-side USB port or

USB hub without power depending on computers.)

Installing USB driver

1. The Add New Hardware Wizard dialog box appears.

( Case of Windows XP )

2. Put a checkmark on the Install from a list or specific location (Advanced) box

and click Next.

( Case of Windows XP )

✔Note : In the Windows 98, it may demand the

Windows 98 original CD.

English French German Italian Spanish

3. Insert the SAMSUNG program CD into your CD-ROM drive, then put a checkmark

on the CD-ROM drives box and Include this location in the search box then

type x:\ (where x is the drive letter for the CD-ROM drive). Click Next.

4. Click Finish. The USB driver will be inserted.

Installing Samsung Digital Presenter program

1. Insert the Samsung Digital Presenter Program CD in a CD-ROM drive and the

install program will be auto-run. And then select ENGLISH.Click Next.

2. The InstallShield Wizard window opens.

3. You can select components you want to install.

English French German Italian Spanish

4. Choose installing MPEG-4 Video Codec for compressing AVI file in SDP AVI

Capture Program. If you do not install MPEG-4 Codec, You cannot compress AVI

file. We recommend to install codec.

5. When installing MPEG-4 codec, Hardware Installation dialog box appears. Click

[Continue Anyway] to complete setup. AVI Capture program shortcut and the

software manual appears in the [Start] Menu.

6. After the Samsung Digital Presenter software is properly installed, you can see the

Samsung Digital Presenter icon in the [Start] Menu and the desktop and

Software manual shortcut in the [Start] Menu.
