Samsung L830 - Digital Camera - Compact Manual de usuario

CONTENTS

ⅠⅠ. SPECIFICATION

1. CAMERA SPECIFICATION ………………………………………………………………………………… 4

2. System Requirements ……………………………………………………………………………………… 7

3. LCD monitor indicator………………………………………………………………………………………… 8

4. CONNECTION DIAGRAM ………………………………………………………………………………… 11

5. IDENTIFICATION OF FEATURES………………………………………………………………………… 12

ⅡⅡ..

EEXXPPLLOODDEEDD

VVIIEEWW

AANNDD

PPAARRTTSS

LLIISSTT

1. MAIN ASSEMBLY…………………………………………………………………………………………… 14

2. BODY ASSEMBLY 1 ……………………………………………………………………………………… 16

3. BODY ASSEMBLY 2 ……………………………………………………………………………………… 18

4. BARREL ASSEMBLY ……………………………………………………………………………………… 20

5. TOP COVER ASSEMBLY ………………………………………………………………………………… 24

6. FRONT COVER ASSEMBLY ……………………………………………………………………………… 26

7. BACK COVER ASSEMBLY ………………………………………………………………………………… 28

8. PACKING ITEM……………………………………………………………………………………………… 30

ⅢⅢ. ADJUSTMENT

1. FIRMWARE ………………………………………………………………………………………………… 34

2. ADJUSTMENT CAUTION ………………………………………………………………………………… 46

ⅣⅣ..

PPAATTTTEERRNN

DDIIAAGGRRAAMM

1. PARTS ARRANGEMENT FOR EACH PCB ASS’Y

1) MAIN_TOP

………………………………………………………………………………………………… 59

2) MAIN_BOTTOM

…………………………………………………………………………………………… 60

3) CCD

………………………………………………………………………………………………………… 61

4) MODE

……………………………………………………………………………………………………… 62

5) STROBO

…………………………………………………………………………………………………… 63

ⅤⅤ..

CCIIRRCCUUIITT

DDIIAAGGRRAAMM

1) MAIN

……………………………………………………………………………………………………… 64

2) MAIN_MEMORY

…………………………………………………………………………………………… 65

3) MAIN_CCD

………………………………………………………………………………………………… 66

4) MAIN_LCD

…………………………………………………………………………………………………… 67

5) MAIN_KEY

…………………………………………………………………………………………………… 68

6) MAIN_STROBO

……………………………………………………………………………………………… 69

7) MAIN_POWER

……………………………………………………………………………………………… 70

8) MAIN_MOTOR

……………………………………………………………………………………………… 71

9) CCD

………………………………………………………………………………………………………… 72

10) MODE

……………………………………………………………………………………………………… 73

11) STROBO

…………………………………………………………………………………………………… 74

ⅥⅥ..

SSEERRVVIICCEE

IINNFFOORRMMAATTIIOONN

…………………………………………………………………………………75

Ⅰ.SPECIFICATION

1. CAMERA SPECIFICATION

Image Sensor - Type : 1/2.5" CCD

- Effective Pixel : ·L830 : Approx. 8.1 Mega-pixel

·L730 : Approx. 7.2 Mega-pixel

- Total Pixel : ·L830 : Approx. 8.3 Mega-pixel

·L730 : Approx. 7.4 Mega-pixel

Lens - Focal Length : NV Lens f = 6.3 ~ 18.9mm (35mm film equivalent : 38 ~ 114mm)

- F No. : F 3.0 ~ F 7.7(Wide), F 5.6 ~ F 14.1(Tele)

- Digital Zoom : ·L830 : ·Still Image mode : 1.0X ~ 5.0X

·Play mode : 1.0X ~ 12.8X (depends on image size)

·L730 : ·Still Image mode : 1.0X ~ 5.0X

·Play mode : 1.0X ~ 12.0X (depends on image size)

LCD Monitor - 2.5" color TFT LCD (230,000 dots)

Focusing - Type : TTL auto focus, Multi-AF, Face Recognition AF

- Range

Shutter - Speed 1 ~ 1/1,500 sec. (Manual : 8 ~ 1/1,500 sec.)

Exposure - Control : Program AE

- Metering : Multi, Spot, Face Recognition

- Compensation : ±2EV (1/3EV steps)

- ISO : ·L830 : Auto, 80, 100, 200, 400, 800, 1600

·L730 : Auto, 80, 100, 200, 400, 800, 1600

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red-eye Fix

- Range : Wide : 0.2m ~ 4.6m, Tele : 0.5m ~ 2.6m(ISO AUTO)

- Recharging Time : Approx. 4 sec

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

Color Effect - Normal, B&W, Sepia, Red, Blue, Green, Negative, Custom Color

White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max. 10 hours)

- Voice Memo in Still Image (max. 10 sec.)

Normal Macro Auto Macro

Wide 10cm ~ 80cm 10cm ~ Infinity

Tele 50cm ~ 80cm 50cm ~ Infinity

80cm ~

Infinity

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

·Mode : Auto, Program, ASR, Manual, Scene, Portrait, Night

·Scene : Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Fireworks,

Beach & Snow

·Shooting : Single, Wise shot, Continuous, AEB, Motion Capture

·Self-timer : 2 sec., 10 sec., Double

- Movie Clip

·With Audio or without Audio(user selectable, recording time : memory capacity dependent)

※The maximum memory capacity of continuous movie clip is 2 hours.

·Size : 800x592, 640x480, 320x240 (20fps Only 800x592 quality)

·Frame rate : 30 fps, 20 fps, 15 fps

(15/20 fps for 800x592, 720x480)

(30fps / 15fps Only 640x480, 320x240 quality)

·Frame rate : 30 fps, 20 fps, 15 fps

Storage - Media

·Internal memory : 10MB flash memory

·External Memory (Optional)

: SD (up to 2GB guaranteed)

SDHC Card (up to 4GB guaranteed)

MMC Plus (Up to 1GB, 4bit 20MHz)

- File Format

·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0

·Movie Clip : AVI (MPEG-4)

·Audio : WAV

- Image Size

·L830

·L730

Ⅰ.SPECIFICATION

3264x2448 3264x2176 3264x1836 2592x1944 2048x1536 1024x768

3072x2304 3072x2048 3072x1728 2592x1944 2048x1536 1024x768

Ⅰ.SPECIFICATION

- Capacity (256 MB Size)

·L830

·L730

※These figures are measured under Samsung standard conditions and may vary depending

on shooting conditions and camera settings.

““E””

Button - Effect : Color, Image Adjust, Fun (Highlight, Composite, Photo Frame)

- Editing : Resize, Rotate, Color, Special Color, Image Adjust (Red Eye Fix, Brightness,

Contrast,Saturation ,Add Noise), Fun (Cartoon, Highlight, Composite, Photo Frame,

Sticker)

Image Play - Type : Single image, Thumbnails, Slide show, Movie Clip

Interface - Digital output connector : USB 2.0 High Speed

- Audio : Mono

- Video output : NTSC, PAL (user selectable)

Power Source - Rechargeable battery : SLB-0937, 3.7V (900mAh)

- Adaptor : SAC-46 (DC 4.2V, 450mA)

Dimensions (WxHxD)

- 95 X 59 X 21mm (excluding protrusions)

Weight - Approx. 132.6g (without batteries and card)

Operating Temperature

- 0 ~ 40°C

Operating Humidity

- 5 ~ 85%

Software - Samsung Master, Adobe Reader

Super Fine

53 63 76 94 142 459

Fine

104 118 144 181 264 710

Normal

151 197 223 256 363 822

Super Fine

67 80 95 95 142 459

Fine

128 157 183 183 269 710

Normal

188 223 269 269 363 822

Ⅰ.SPECIFICATION

For Windows For Macintosh

2. System Requirements

PC with processor better than Pentium II 450MHz

(Pentium 800MHz recommended)

Minimum 128MB RAM

(Over 512MB recommended)

200MB of available hard disk space

(Over 1GB recommend)

Windows 98SE/2000/ME/XP/Vista

USB port

CD-ROM drive

1024x768 pixels, 16bit color display compatible

monitor (24bit color display recommended)

MicroSoft DirectX 9.0C

MPlayer (For movie clip)

Power Mac G3 or later

Mac OS 10.0 ~ 10.4

Minimum 64MB RAM

110MB of available hard-disk space

USB port

CD-ROM drive

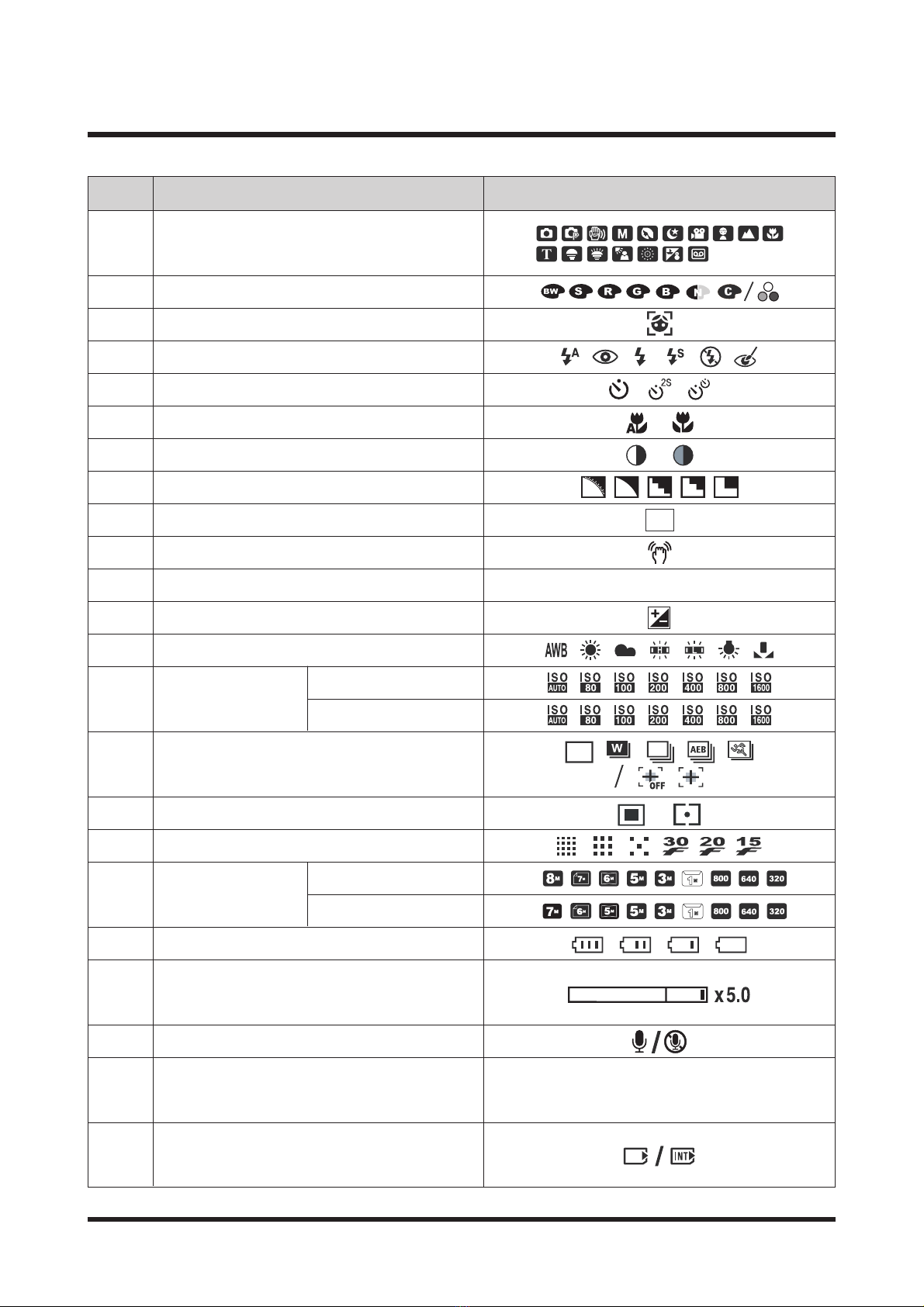

3. LCD monitor indicator

Ⅰ.SPECIFICATION

■Recording mode

[ Image & Full Status ]

②

③

④

⑤

⑥

⑦

⑧

⑨⑩ ⑪

①   ⑳

⑫

⑬

⑭

⑮

⑯

⑰

⑱

⑲

Ⅰ.SPECIFICATION

No. Description Icons

1Recording mode

2Color / Saturation

3Face Recognition

4Flash

5Self-timer

6Macro

7Contrast

8Sharpness

9Auto Focus Frame

10 Camera shake Warning

11 Date / Time 2007/07/01 01:00 PM

12 Exposure compensation

13 White Balance

16 Metering

17 Image Quality / Frame Rate

19 Battery

21 Voice Memo / Mic. Off

18 Image Size L830

L730

Memory card icon /

Internal memory icon

Number of available shots

remaining / Remaining time 6/00:00:00

Optical / Digital Zoom bar /

Digital Zoom rate

Drive mode /

Stabiliser

ISO L830

L730

No. Description Icons

1 Battery

2Folder name & File name 100-0010

3Memory card indicator

4 Playback mode

5 Voice Memo

6Protect

7DPOF

8 Recording date 2007/06/01

9 Image size 3264x2448 ~ 256X192

10 Flash ON/OFF

11 Shutter speed 15 ~ 1/2000

12 Aperture value F3.5 ~ F8.0

13 ISO 50 ~ 1600

Ⅰ.SPECIFICATION

■Play mode

①②③④

⑤

⑥

⑦⑬

⑫

⑪

⑩

⑨

⑧
