Samsung MIM-B16 Manual de usuario

INSTALLATION

MANUAL

MIM-B16

DB98-32320A(1)E

PIM

(Pulse Input Module)

MIM-B16_PIM_IM_E 32320-1.indd 33 2010-05-20 ｿﾀﾈﾄ 7:19:08

E-2

Safety Precautions

Read carefully this installation manual before

installation and check if the PIM is installed correctly

after installation.

 Do not attempt to install or repair this PIM by yourself.

This PIM contains no user-serviceable parts.

Always consult authorized service personnel for repairs.

When moving, consult authorized service personnel for

disconnection and installation of the PIM.

Ensure that the wall is strong enough to support the

weight of the PIM.

Must install the PIM with rated power supply.

The PIM must be installed according to

the national electrical rules by an installation specialist.

If you wish to uninstall the PIM, consult an authorized

installation center.

WARNING

CAUTION  Do not use inflammable gases near the PIM.

Do not install the PIM in a location where

it will come into contact with combustible gases,

machine oil, sulphide gas, etc.

Avoid locations where acid/alkali solution or special

spray is used.

Choose a location that is dry and sunny, but not exposed

to direct sunlight. Suitable temperature is between

0°C(32°F) and 39°C(102.2°F).

 Do not spill water into the PIM.

Do not apply tensile strength to the cable to avoid cable

damage.

Do not press the buttons with a sharp object.

Do not connect the power cable to the control terminal.

If the PIM is installed in a hospital or other special places,

it should not affect other electronic devices.

This installation manual describes how to install the PIM. For installation of other

optional accessories, refer to the appropriate installation manual.

MIM-B16_PIM_IM_E 32320-1.indd 2 2010-05-20 ｿﾀﾈﾄ 7:18:42

E-3

Contents

 SAFETY PRECAUTIONS

.....................................................................

 ACCESSORIES

.....................................................................................

 VIEWING THE PARTS

........................................................................

 PRODUCT DIMENSIONS

...................................................................

 PIM SYSTEM ARCHITECTURE

.........................................................

 INSTALLING THE PIM

.....................................................................

 SETTING THE PIM

...........................................................................

 PIM MENU DESCRIPTION

.............................................................

MIM-B16_PIM_IM_E 32320-1.indd 3 2010-05-20 ｿﾀﾈﾄ 7:18:42

E-4

Installation

manual Cable tie

1 1

Adapter Power cable M4x16 Screw

1 6

Make sure you have each item. Supplied items may vary depending on your

country or service provider.

Accessories

 The PIM must be installed by a trained installer.

 Ensure the main power is turned off before installing

the PIM.

 Be sure to use adapter and power cable we provide.

 The power cable and the communication cable must

be installed according to the national electrical wiring

regulations.

(Use 2C x 0.75mm2 communication cable.)

Item PIM

Quantity 1

Shape

MIM-B16_PIM_IM_E 32320-1.indd 4 2010-05-20 ｿﾀﾈﾄ 7:18:43

E-5

PIM Exterior

LCD Display

Shows current time and power

consumption by channel.

Various menus will be displayed

depending on button input.

LCD Operation button

There are 4 buttons [Menu, ▼(Down), ▲(Up),

Set] and you can access, move and

check the menu.

LED Indicator

Checks the status using 14 LEDs such as Power,

COM1 TX/RX, Signal, COM2 TX/RX and Check.

PIM Bottom cover

Unfasten 2 screws on the bottom and

separate the bottom cover from PIM.

Then check cable connection part.

Item Name Status

Power Power indicator Turns blue when the

power is supplied.

COM1 TX/RX Data transmission/reception with DMS indicator

Blinks in orange during

the normal transmission/

reception.

Signal (1)~(8) Power consumption pulse input indicator

Blinks in orange when

the normal pulse is input

from the watt-hour meter.

COM2 TX/RX Reserved Reserved

Check Error indicator

Blinks in orange when the

error occurs. (It will be off

when the error is cleared.)

LED Indicator

Viewing the Parts

Main Parts

MIM-B16_PIM_IM_E 32320-1.indd 5 2010-05-20 ｿﾀﾈﾄ 7:18:43

E-6

Name Description

Pulse input

terminal

(CH1~CH8)

Terminal that the pulse from watt-hour meter is inputted

(Channel1~Channel8)

Power terminal

Terminal to connect PIM adapter

Reset button

Button used to reset PIM

RS485

Communication

terminal

(COM1)

Connection terminal for RS485 communication with DMS or DMS2



COM2: Reserved

Cable tie groove Groove for arranging cables

Viewing the Parts (Continued)

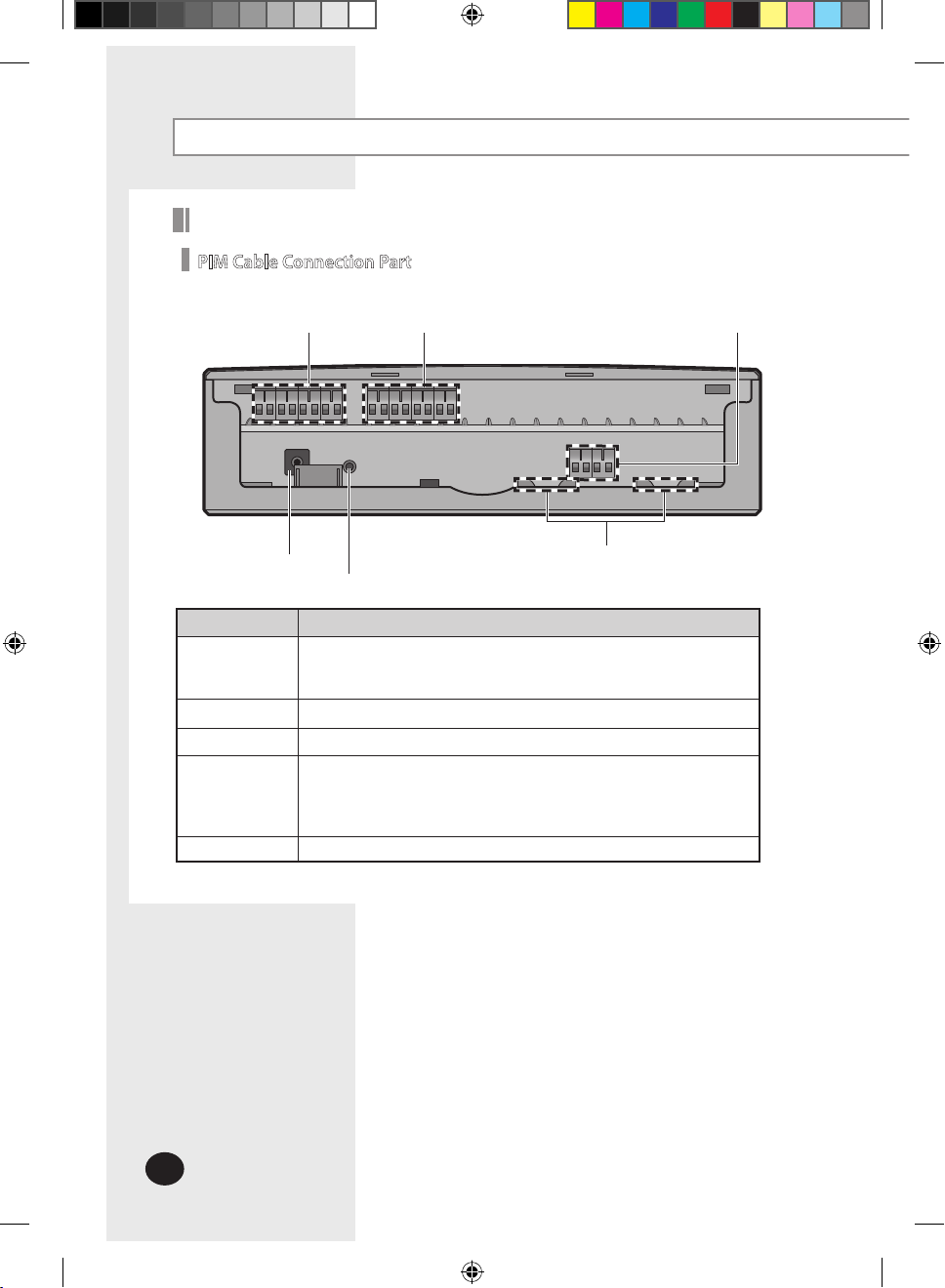

PIM Cable Connection Part

Cable tie groove

Power terminal

Reset button

Pulse input terminal

(Channel 1~4)

RS485 communication terminal

(COM1, COM2)

Pulse input terminal

(Channel 5~8)

Main Parts

MIM-B16_PIM_IM_E 32320-1.indd 6 2010-05-20 ｿﾀﾈﾄ 7:18:43

E-7

Viewing the Parts (Continued)

240

255

64.80 (Unit : mm)

Display board

40-pin cable

20-pin cable

Main board

Sub board

PIM Interior

Product Dimensions

MIM-B16_PIM_IM_E 32320-1.indd 7 2010-05-20 ｿﾀﾈﾄ 7:18:45

E-8

PIM System Architecture

Maximum 8 PIM units can be connected to DMS or DMS2.

Maximum 8 watt-hour meters can be connected to PIM.

R2 R1 R2 R1

R1 R2

R2 R1 R2 R1

R1 R2

R2 R1 R2 R1

R1 R2

R2 R1 R2 R1

R1 R2

DMS or DMS2

Centralized

controller

PIM

Watt-hour

meter

Watt-hour meter

(max. 8 units)

Interface

module

ROOM 0 ROOM 1 ROOM 2

Outdoor Unit

Pulse input

MIM-B16_PIM_IM_E 32320-1.indd 8 2010-05-20 ｿﾀﾈﾄ 7:18:46

E-9

Installing the PIM

Installation

plate

Assistant hole

Wiring groove

Separate the installation plate on the rear side of PIM.

2Fix the installation plate on the wall using 4 screws.

Hang the PIM on the groove which is on the top of the

installation plate.

4Open the bottom cover and fix the installation plate and

PIM using 2 screws.

 Depending on the installation environment, open the top

cover and fix PIM using assistant holes.

( Screws for assistant hole are not provided.)

If you install PIM inside of the wall or wiring from the rear

side is needed, use wiring groove on the bottom of PIM.

Installing the PIM on the Wall

To prevent breakdown and damage of PIM and for safe usage,

it is recommended to install PIM on the wall.

MIM-B16_PIM_IM_E 32320-1.indd 9 2010-05-20 ｿﾀﾈﾄ 7:18:47

E-10

Installing the PIM (Continued)

Unfasten the 2 screws on the bottom of the PIM front

cover. Hold the bottom 2 sides of the PIM and push

downwards to slide open the cover.

2Connect the adapter to the power terminal.

 Arrange the adapter as shown in the figure.

Connect PIM and watt-hour meter as many as you want.

In this step, use communication cable and 8 terminal

blocks which are attached to the pulse input terminal

of PIM.

 For the communication cable connection instruction of

watt-hour meter or additional setting instruction, refer

to the installation manual of watt-hour meter.

 Connect the communication cable considering the

polarity. [Left:(+), Right:(-)]



Maximum 8 watt-hour meters can be connected to 1 PIM.



Use 2Cx0.75mm2 communication cable.

Adapter

Connecting Watt-Hour meter and PIM

Connecting Watt-hour meter, PIM and DMS

Connect

communication

cable

Watt-hour meter

(+) (-)

MIM-B16_PIM_IM_E 32320-1.indd 10 2010-05-20 ｿﾀﾈﾄ 7:18:48
