3-1

Chapter 3Installing Printed Circuit Cards

Before installing each card, unpack it and check it for signs of physical damage. If you detect any

problem, call Samsung Technical Support immediately.

MCP

The iDCS 500 Main Control Processor (MCP) controls the system operation. The MCP installs in the

MCP/LCP slot in the first cabinet of the system. The MCP is required for all system configurations.

The MCP has a 512 channel time switch matrix and positions for 3 daughter boards. With a multiple

cabinet system a ESM daughter board must be installed on the MCP to expand the switch matrix.

The MCP supports the following options.

y8 position DIP Switch

yMemory Backup On/Off Switch

ySmartMedia card slot

y12 LED’s

y3 daughter board positions, one with external connections to support a MISC

yMOH Internal Melody

y2 SIO circuits

Figure 3-1 MCP Card

12 LED’s give operational status of the CPU, SmartMedia status, LAN status and the status of card

slots 1~9. These are stenciled on the face of the MCP card. The LED indications are as follows:

3-2 Chapter 3

Installing Printed Circuit Cards

LED Indications for M Version System

OFF indicates the MCP card is powered down.

MP ON indicates the MCP card is booting Flicker Indicates normal operation.

OFF indicates the SmartMedia card is not installed or not recognized.

SM ON indicates the SmartMedia card is inserted and recognized Flicker indicates the

SmartMedia card is being accessed.

OFF indicates a LAN is not installed or power is off

LAN ON indicates the LAN board is bootingFlicker indicates normal operation

OFF indicates all circuits idle or no card installed

S1~S9 ON indicates one or more circuits bus

Flicker indicates the card has a fault or is inserted in

the wron

slots.

(

i.e. TEPRI,PRI,BRI card must be inserted in the slot 1, or 2 or 3,

otherwise LED flickers.)

LED Indications for L Version System

OFF indicates the MCP card is powered down

MP ON indicates the MCP card is booting Flicker Indicates normal operation.

OFF indicates the SmartMedia card is not installed or not recognized

SM ON indicates the SmartMedia card is inserted and recognized Flicker indicates the

SmartMedia card is being accessed.

OFF indicates a LAN is not installed or power is off

LAN ON indicates the LAN board is booting Flicker indicates normal operation.

S1 Not used.

SCP HDLC RX (Receive) Status

OFF indicates that there is no link from the SCP card

ON indicates that the link from the SCP card is being set up Flicker indicates a message has

been received.

SCP HDLC TX (Transmit) Status

OFF indicates that there is no link from the SCP card

ON indicates that the link from the SCP card is being set up Flicker indicates a message has

been transmitted.

LCP(C#2) HDLC RX (Receive) Status

OFF indicates that there is no link from the LCP card

ON indicates that the link from the LCP card is being set up Flicker indicates a message has

been received.

LCP (C#2) HDLC TX (Transmit) Status

OFF indicates that there is no link from the LCP card

ON indicates that the link from the LCP card is being set up Flicker indicates a message has

been transmitted.

LCP(C#3) HDLC RX (Receive) Status

OFF indicates that there is no link from the LCP card

ON indicates that the link from the LCP card is being set up Flicker indicates a message has

been received. (continued)

3-3

LCP(C#3) HDLC TX (Transmit) Status

OFF indicates that there is no link from the LCP card

ON indicates that the link from the LCP card is being set up Flicker indicates a message has

been transmitted.

S8 Not used.

S9 Not used.

There are several daughter boards that can mount on the MCP (see Figure 3-1). The daughter boards

have offset pin connectors which prohibits improper installation of the Daughter board(s).

Depending on the installation requirements the daughter boards provide the following:

yMISC : 2 External music/audio inputs, 1 external page audio output, 1 Loud bell relay contact

closures (2 page relay, 1 common bell) (iDCS-M only)

ySCM : 18 Conference channels, 12 DTMF receivers (iDCS-M only)

yMFM : 12 DTMF receivers(iDCS-M only)

yRCM : 14 CID receivers and 8 R2 Receivers(iDCS-M only)

yIPM : Motorola MC 68302 25Mhz processor for message handling, 1.5 Mbyte SRAM, 4 Megabytes

DRAM, 3 synchronous communication ports for inter processor communications. This

board is required for multiple cabinet systems.

yLAN : 10BASE-T LAN Interface, 0.5 Megabytes of SRAM, 2 Serial I/O circuits.

yESM : Increases the system to 1024 channel time switch. This board is required for multiple cabinet

systems.

MAIN CONTROL PROCESSOR (MCP) DAUGHTER BOARD CAPABILITIES

Position Types of Daughter Boards allowed per position

LOC1 MFM, SCM, RCM and ESM*

LOC2 MFM, SCM, RCM, LAN and IPM**

LOC3 MFM, SCM, RCM, LAN and MISC

* The ESM must be installed in this position in an L system

** The IPM must be installed in this position in an L system

NOTE: Only one of any type of daughter board may be installed on any processor card.

DIP SWITCH USE on the iDCS 500 MCP

ON (left) OFF (right)

4 Di

it Trunk Numbers SW8 3 Digit Trunk Numbers

4 Di

it Station Grou

sSW7 3 Digit Station Groups

4 Di

it Station Numbers SW6 3 Digit Station Numbers

APD Enable SW5 APD Disable

Countr

Select SW4 Country Select

Countr

Select SW3 Country Select

Countr

Select SW2 Country Select

Countr

Select SW 1 Country Select

3-4 Chapter 3

Installing Printed Circuit Cards

ySwitches 1 through 4 select the country the system is installed in.

4 3 2 1 Country

OFF OFF OFF OFF Korea

OFF OFF OFF ON USA

OFF OFF ON OFF UK

OFF OFF ON ON Italy

OFF ON OFF OFF Australia

OFF ON OFF ON New Zealand

OFF ON ON OFF Holland

OFF ON ON ON Denmark

ySwitch 5 select whether APD enable or not.

APD(Auto Program Download) :

When it is set to "ON" and the version of SMARTMEDIA is not match to current system version,

system S/W will be replaced to the S/W of SMARTMEDIA.

yThese DIP switches will not take effect unless the switches are set in the wanted position and the

system memory is cleared manually by using the Memory Backup switch.

Install the SmartMedia card. Install daughter board(s). Set the MCP DIP switches on the card to the

desired positions.

Insert MCP card in the CAB slot labeled MCP/LCP (see Figure 3-2). Push firmly at the top and bottom

of the card to ensure that it is fully inserted into the back plane connector. To prevent accidental

damage to the MCP card, the MCP/LCP connector on the back plane is positioned to mate only with

the MCP or LCP card. Other interface cards will not mate with this connector and the MCP card will

not mate with any other connector.

NOTE: Do not insert this card with system power ON.

Figure 3-2 MCP Location

3-5

SCP CARD

The iDCS 500 Switch Control Processor (SCP) is used when the system is expanded to more than one

cabinet. In a multiple cabinet system the SCP becomes the processor for the first iDCS 500 cabinet

and communicates via a high speed data link to the MCP. The SCP installs in the ninth (9) slot in the

first cabinet. The SCP can have three daughter boards installed as indicated by the table below.

SWITCH CONTROL PROCESSOR (SCP) DAUGHTER BOARD CAPABILITIES

Position Types of Daughter Boards allowed per position

LOC1 MFM, SCM, RCM

LOC2 MFM, RCM and MISC

LOC3 MFM, RCM

* The SCM must be installed in this position of the SCP in the L system.

NOTE: yOnly one of any type of daughter board may be installed on any processor card.

yDo not insert this card with system power ON.

yWhen it is set to "ON" and the version of SMARTMEDIA is not match to current system version, system

S/W will be replaced to the S/W of SMARTMEDIA.

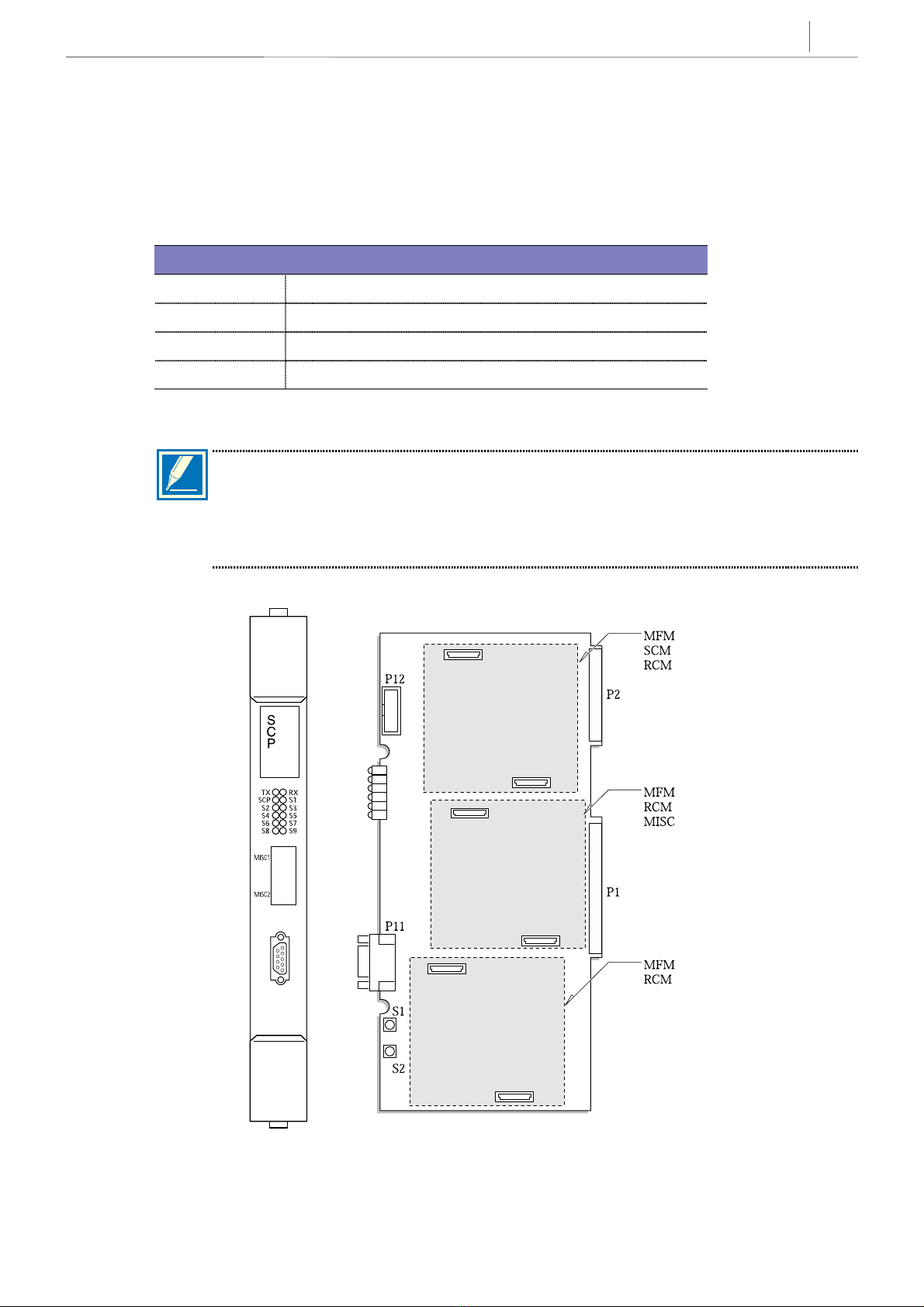

Figure 3-3 SCP Card

3-6 Chapter 3

Installing Printed Circuit Cards

There are 12 LED indicators on the front of the SCP card. The uses are as follows:

SCP HDLC TX (Transmit) Status

OFF indicates that there is no link from the SCP card

ON indicates that the link from the SCP card is being set up Flicker indicates a message has

been transmitted.

SCP HDLC RX (Receive) Status

OFF indicates that there is no link from the SCP card

ON indicates that the link from the SCP card is being set up Flicker indicates a message has

been received.

SCP Processor Status

OFF indicates that Power is OFF

SCP

ON indicates that the SCP is booting Flicker indicates normal operation.

Card Status

OFF indicates that the card is idle or not installed

S1~S8

ON indicates one or more circuits busy Flicker indicates the card has a fault or is inserted in

the wrong slots. (i.e. TEPRI,PRI,BRI card must be inserted in the slot 1, or 2 or 3,

otherwise LED flickers.)

S9 Not Used.

3-7

LCP CARD

The iDCS 500 Local Control Processor (LCP) is used when the system is expanded to more than one

cabinet. The LCP is the processor for the second and or third iDCS 500 cabinet(s) and communicates

via a high-speed data link to the MCP. The LCP installs in the MCP/LCP slot in the second or third

cabinets of a multiple cabinet system. The SCP can have three daughter boards installed as indicated

by the table below.

SWITCH CONTROL PROCESSOR (LCP) DAUGHTER BOARD CAPABILITIES

Position Types of Daughter Boards allowed per position

LOC1 MFM, RCM

LOC2 MFM, RCM and MISC

LOC3 MFM, RCM

NOTE: Only one of any type of daughter board may be installed on any processor card.

Figure 3-4 LCP Card

Push firmly at the top and bottom of the card to ensure that it is fully inserted into the back plane

connector. Connect the iDCS 500 Inter-Processor Connection cable (CIC) to the front of the LCP.

Connect the opposite end of the CIC to the connector on the front of the MCP. Connect the second

CIC in a similar manner between LCP cards. The CIC is supplied with the LCP.

P12 P3

P11

SW1

SW2

P10

MFM

RCM

MISC

MFM

RCM

MFM

RCM

MISC

LCP

TX RX

MISC1

MISC2

3-8 Chapter 3

Installing Printed Circuit Cards

NOTE: Do not insert this card with system power ON.

To prevent accidental damage to the LCP card, the MCP/LCP connector on the back plane is

positioned to mate only with the MCP or LCP card. Other interface cards will not mate with this

connector and the MCP or LCP card will not mate with any other connector.

There are twelve (12) LED indicators on the front of the LCP card. The uses are as follows:

LCP HDLC TX (Transmit) Status

OFF indicates that there is no link from the LCP card

ON indicates that the link from the LCP card is being set up Flicker indicates a message has

been transmitted.

LCP HDLC RX (Receive) Status

OFF indicates that there is no link from the LCP card

ON indicates that the link from the LCP card is being set up Flicker indicates a message has

been received.

LCP Processor Status

OFF indicates that power is OFF

LCP

ON indicates that the LCP is booting Flicker indicates normal operation.

Card Status

OFF indicates that the card is idle or not installed

S1~S9

ON indicates one or more circuits busy Flicker indicates the card has a fault or is inserted in

the wrong slots. (i.e. TEPRI,PRI,BRI card must be inserted in the slot 1, or 2 or 3,

otherwise LED flickers.)

3-9

ESM BOARD

This board has no selectable options and installs in position LOC1 of the MCP card when the system

has more than one cabinet installed (see Figure 3-2). The ESM board is required to expand the system

from 512 to 1024 time slots. To install the ESM board remove the two (2) screws holding the MCP

protective casing together (see Figure 3-6) and separate the two halves of the case. Place the ESM

board face down over the three connectors, taking care to properly line them up and press gently on

the back of the board to seat it. The MCP case can now be reassembled if all required daughter

boards have been installed.

Figure 3-5 ESM Board Figure 3-6 MCP Card Screw Location

Otros manuales para iDCS 500

Tabla de contenidos

Otros manuales de Hardware de computadora de Samsung

Samsung

Samsung MT3204 Series Manual de usuario

Samsung

Samsung SMDK-C100 Manual de usuario

Samsung

Samsung SC32442B54 Manual de usuario

Samsung

Samsung HW-Q630A Instrucciones de instalación

Samsung

Samsung SVMi-4 Manual de usuario

Samsung

Samsung M391B5273DH0 Instrucciones de uso

Samsung

Samsung S3C80A5B Manual de usuario

Samsung

Samsung SGH-Z800 Manual de usuario

Samsung

Samsung SM-V201 Manual de usuario

Samsung

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a... Manual de usuario

Samsung

Samsung S3F84A5 Instrucciones de instalación y funcionamiento

Samsung

Samsung WNI20NC0301 Manual de usuario

Samsung

Samsung SMART HOME DONGLE Manual de usuario

Samsung

Samsung S5PC100 Manual de usuario

Samsung

Samsung S3C2450 Manual de usuario

Samsung

Samsung S3C2451X Manual de usuario

Samsung

Samsung MT6402-48A Manual de usuario

Samsung

Samsung S3F80JB Manual de usuario

Samsung

Samsung HW-Q600A Instrucciones de instalación

Samsung

Samsung S3C2410 Manual de usuario

Samsung

Samsung S3C6410 Manual de usuario

Samsung

Samsung VG-STDB10 Manual de usuario

Samsung

Samsung S5PC110 Manual de usuario

Samsung

Samsung S3C2501X Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario

Samsung iDCS 500 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas
