Samsung SGH-ZV30 Manual de usuario

SGH-ZV30

UMTS TELEPHONE CONTENTS

1. Specification

2. Circuit Description

3. Exploded Views and Parts List

4. Electrical Parts List

5. Block Diagrams

6. PCB Diagrams

7. Flow Chart of Troubleshooting

UMTS TELEPHONE

Samsung Electronics Co.,Ltd. September. 2005

Printed in Korea.

Code No.: GH68-08450A

BASIC.

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

ⓒ

SAMSUNG Proprietary-Contents may change without notice

1. Specification

This Document can not be used without Samsung's authorization

1-1

EGSM 900 DCS1800 PCS1900 W-CDMA

Freq.

Band[MHz]

Uplink/Downlink

880~915

925~960 1710~1785

1805~1880 1850~1910

1930~1990 1920~1980

2110~2170

ARFCN range 0~124 &

975~1023 512~885 512~810 UL:9612~9888

DL:10562~10838

Tx/Rx spacing 45MHz 95MHz 80MHz 190MHz

Mod. Bit rate/

Bit Period 270.833kbps

3.692us 270.833kbps

3.692us 3.84Mcps

Time Slot

Period/Frame

Period

576.9us

4.615ms 576.9us

4.615ms Frame length : 10ms

Slot length : 0.667ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK QPSK

HQPSK

MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm ~ - 50dBm

Power Class 4

(max +33dBm) 1

(max +30dBm) 1

(max +30dBm) 3

(max +24dBm)

Sensitivity -102dBm -100dBm -100dBm -106.7dBm

TDMA Mux 8 8 8

Cell Radius 35Km 2Km 2Km 2Km

1-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Specification

1-2

TX Power

control level PCS1900

030±3dBm

128±3dBm

226±3dBm

324±3dBm

422±3dBm

520±3dBm

618±3dBm

716±3dBm

814±3dBm

912±4dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control level GSM900

533±2dBm

631±2dBm

729±2dBm

827±2dBm

925±2dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control level DCS1800

030±3dBm

128±3dBm

226±3dBm

324±3dBm

422±3dBm

520±3dBm

618±3dBm

716±3dBm

814±3dBm

912±4dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

1-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice

2. Circuit Description

This Document can not be used without Samsung's authorization

2-1

2-1. SGH-ZV30 RF Circuit Description

- Antenna Switch Module (U106)

The antenna switch module allows multiple operating bands and modes to share the same antenna. A common

antenna connects to one of five paths: 1) UMTS-2100 Rx/Tx, 2) EGSM-900 Rx, 3) EGSM-900 Tx, 4) DCS-1800

Rx, and 5) DCS-1800 Tx. 6) PCS-1900 Tx, 7) PCS-1900 Rx, UMTS operation requires simultaneous reception and

transmission.

-Filter

To convert Electromagnetic Field Wave to Acoustic Wave and then pass the specific frequency band.

- GSM Rx FILTER (F100) : For filtering the frequency band between 925 ~ 960 MHz.

- DCS Rx FILTER (F101) : For filtering the frequency band 1805 and 1880 MHz.

- PCS Rx FILTER (F102) : For filtering the frequency band 1930 and 1990 MHz.

- WCDMA Rx FILTER (F201) : For filtering the frequency band 2110 and 2170 MHz.

- WCDMA Tx FILTER (F202) : For filtering the frequency band 1920 and 1980 MHz.

- VCTCXO (OSC201)

To generate the 19.2MHz reference clock to drive the logic and RF.

- Duplexer (F204)

A duplexer splits a single operating band into receive and transmit paths.

- UMTS PAM (U202)

This is a key component in the transmitter chain and must complement the RTR6250 IC precisely; jointly they

dominate the UMTS transmitter performance characteristics. Parameters such as gain, output power level, ACLR,

harmonics, Rx-band noise, and power supply current are critical.

- GSM/DCS/PCS PAM (U105)

The PAM is a key component in any transmitter chain and must complement the rest of the transmitter

precisely.For GSM, DCS, PCS operation, the closed-loop transmit power control functions add even more

requirements relative to the UMTS PA. In addition to gain control and switching requirements, the usual RF

parameters such as gain, output power level, several output spectrum requirements, and power supply current are

critical..

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Circuit Description

2-2

- GSM/DCS/PCS l Tx VCO (OSC101)

The Tx VCO outputs for EGSM, DCS, PCS drive a resistive network that splits the active signal into two signals:

1) the input to the active PAM / this is the low loss path, and 2) the OPLL feedback signal.

- RF VCO (OSC202)

The single-band UHF VCO is a key component within its phase-locked loop; VCO performance directly impacts

PLL and transceiver performance. UMTS Rx LO signal is generated from this VCO's output.

- RFL6200 (U201)

The RFL6200 includes an LNA circuit optimized for UMTS-2100 operation. The LNA is separated from all other

receive functions contained within the RFR6200 receiver IC to improve mixer LO to RF isolation a critical

parameter in the Zero-IF architecture.

- RFR6200 (U203)

The RFR6200 provides the Zero-IF receiver signal path, from RF to analog baseband, for UMTS-2100 applications.

The RFR6200 accepts its UMTS input signal from the handset RF front-end design. The UMTS input is configured

differentially to optimize second-order inter-modulation and common mode rejection performance, and implements

MSM-controlled gain adjustments to extend the receiver dynamic range.

- RTR6250 (U104)

The RTR6250 supports multi-band, multi-mode phones with two receiver signal paths and three transmitter signal

paths:

1) Receiver paths

- EGSM-900

- DCS-1800

-PCS-1900

2) Transmitter paths

- EGSM-900 (using OPLL technique)

- DCS-1800 (using OPLL technique)

-PCS-1900

- UMTS-2100

Numerous secondary functions are integrated on-chip as well:

SAMSUNG Proprietary-Contents may change without notice

Circuit Description

This Document can not be used without Samsung's authorization

2-3

2-2. Baseband Circuit description of SGH-ZV30

2-2-1. PM6650

- Power Management

Ten low-dropout regulators designed specifically for GSM applications power the terminal and help ensure

optimal system performance and long battery life. It provides LDOs support for 1.375V, 1.8V, 2.6V,

2.85V,3.3V.IC-level interfaces include the three-line serial bus interface(SBI) used by the MSM6250 device to

control and status the PM6650 IC.

- TCXO Controller and Buffers

The PM6650 IC includes circuits for controlling the TCXO warm-up and buffering its signal for distribution

throughout the handset. Performance specifications are presented below.

2-2-2. Connector

- LCD Connector

LCD is consisted of main LCD(color 262K TFT LCD) and small LCD(OLED color 65K LCD). Chip select

signals in the U302, MAIN_LCD_CSB can enable main LCD and SUB_LCD_CSB can enable small

LCD.Dimming signal enables white LED of main LCD and Dimming Control. C_Main_LCD_RESETB signal

initiates the reset process of the main LCD. C_SUB_LCD_RESETB signal initiates the Reset process of the

small LCD. 16-bit data lines(D2(0)~D(15)) transfers data and commands to LCD. Data and commands use

"C_A2(1)" signal. If this signal is high, Inputs to LCD are commands. If it is low, Inputs to LCD are data.

The signal which informs the input or output state to LCD, is required. But this system is not necessary this

signal. Power signals for LCD are "VBATT and VREG_MSMP". "EAR1OP" and "EAR1ON" are used for audio

speaker. And "MOTOR_EN" from U302 enables the motor.

-Key

This is consisted of key interface pins among U302, KEY_N(0:4). These signals compose the matrix.Result of

matrix informs the key status to key interface in the U302. Power on/off key is seperated from the matrix.

The key LED use the "VBATT" supply voltage. "KEY_LED_ON" signal enables LEDs with current control.

"HALL_SW" informs the status of folder (open or closed) to the. This uses the hall effect IC, EM1681

- EMI ESD Filter

This system uses the EMI ESD filter, GMF05LC to protect noise from IF CONNECTOR part.

- IF connector

It is 24-pin connector. They are designed to use VBATT, CF, UART1_TX, UART1_RX, UART1_RFR,

UART1_CTS, JIG_ON, RTCK, TCK, TDI, TDO, TMS and GND. They connected to power supply

IC,microprocessor and signal processor IC.

2-2-3. Audio

EAR1OP and EAR1ON from U302 are connected to the main Receiver. MIC1P and MIC1N are connected to

the main MIC. And MIC2P and MIC2N are connected to the Earphone. YMU769 has a built-in amplifier, and

thus, is an ideal device for outputting sounds that are used by mobile phones in addition to game sounds and

ringing melodies that are replayed by a synthesizer.

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Circuit Description

2-4

The synthesizer section adopts "stereophonic hybrid synthesizer system" that are given advantages of both FM

synthesizers and Wave Table synthesizers to allow simultaneous generation of up to 32 FM voices and 32

Wave Table voices. Furthermore, YMU769 has a built-in hardware sequencer that helps to realize complex play

without heavily loading the host CPU. And this device also has a built-in circuit for controlling vibrators and

LEDs synchronizing with play of music. The consumed electric current can be stopped to the minimum by

power down mode when not operating. The hardware sequence built in this device allows playing of the

complex music without giving excessive load to the CPU of the portable telephones. Moreover, the registers of

the FM synthesizer can be operated directly for real time sound generation, allowing, for example, utilization of

various sound effects when using the game software installed in the portable telephone.

2-2-4. Memory

The signals in the MSM6250 enable two memories. They use two volt supply voltage, VREG_MSME and

VREG_MSMP from the PM6650. This system uses SEC's memory, KBE00F005M-F411. It is consisted of 1G

bits flash NAND memory and 512M bits SDRAM memory. It has 16 bit data line, D1[0~15] which is connected

to MSM6250.It has 22 bit address lines, A[1~22]. ROM_CS and RAM_CS signals is chip select.

2-2-5. Camera

The camera module consists of 1.3 Mega pixel. The Mega camera is a highly integrated CMOS color image

sensor implemented by Hynix CMOS sensor process realizing high sensitivity and wide dynamic range. Total

pixel array size is 1298H x 982V, and 1280H x 960V pixels are active.

2-2-6. IRDA

This system uses IRDA module, HSDL_3208, Agilent's. This has signals, "IRDA_EN"(enable signal),

"RXD0"(Input data) and "TXD0"(output data). These signals are connected to U302(MSN6250). It uses two

power signals. "VREG_MSMP" is used for circuit and "VBATT" is used for LED.

2-2-7. TransFlash Card (External Memory Card)

Memory Module has eight exposed contacts on one side. The host is connected to the module using a

dedicated eight-pin connector. Measuring just 11mm by 15mm and 1mm thick, Two-thirds the size of a SIM

module, TransFlash is even smaller than many embedded memory devices.

SAMSUNG Proprietary-Contents may change without notice

3. Exploded View and Parts List

3-1

This Document can not be used without Samsung's authorization

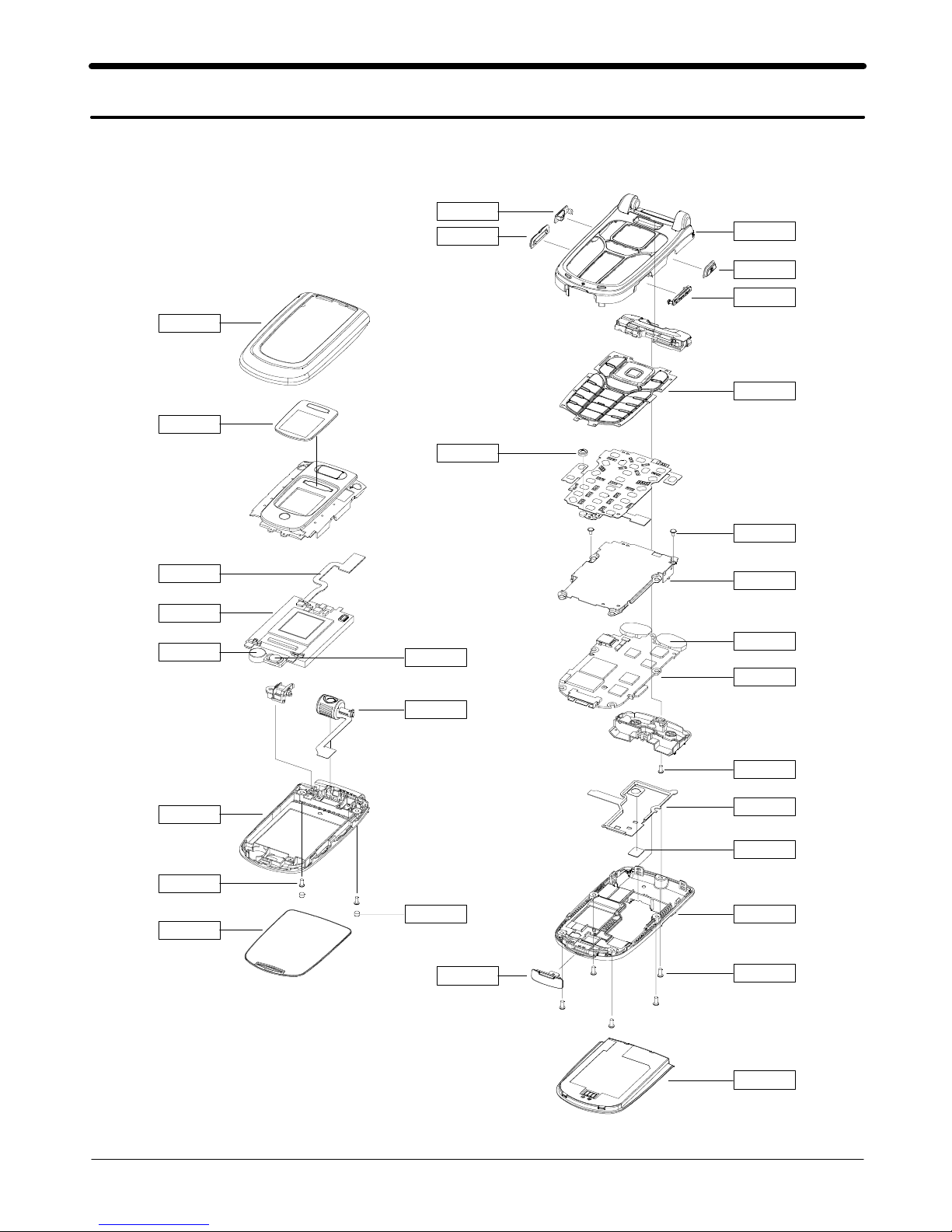

3-1. Exploded View

QFU01

QRF03

QVO01

QMI03

QIF01

QWD01

QLC01

QMO01 QAR01

QFL01

QMW01

QME03

QCA01

QFR01

QCK01

QCW04

QKP01

QFR02

QCR12

QME06

QMP01

QCR04

QRE02

QRF01

QRE01

QCR11

QBA01

QSC12

QCR16

SAMSUNG Proprietary-Contents may change without notice

Exploded view and Part List

3-2

This Document can not be used without Samsung's authorization

3-2. Parts List

Location No Description Sec Code

QAR01 ㅤAUDIO-RECEIVER;32ohm,110dB±2dB,11x7 3009-001132

QBA01 ㅤBATTERY-1000MAH,SIL,ENG,M;BST474ASB, GH43-01990A

QCA01 ㅤUNIT-CAMERA;SGH-ZV30,MOMFA331U1A,-,E GH59-02281A

QCK01 ㅤMEC-CAMERA KEY;SGH-ZV30,VODAFON,PC,- GH75-06987A

QCR04 ㅤSCREW-MACHINE;PH,+,-,M1.4,L4,ZPC(BLK 6001-001479

QCR11 ㅤSCREW-MACHINE;PH,+,M1.7,L4,ZPC(BLK), 6001-001654

QCR12 ㅤSCREW-MACHINE;PH,+,M1.4,L2.5,ZPC(BLK 6001-001530

QCR16 ㅤSCREW-MACHINE;PH,+,-,M1.7,L4.5,ZPC(B 6001-001878

QFL01 ㅤMEC-FOLDER LOWER;SGH-ZV30,VODAFON,PC GH75-06980A

QFR02 ㅤMEC-FRONT SHIELD CAN;SGH-ZV30,VODAFO GH75-06983A

QFU01 ㅤMEC-FOLDER UPPER;SGH-ZV30,VODAFON,PC GH75-06979A

QIF01 ㅤPMO-IF COVER V2;SGH-ZV30,PC+URETHANE GH72-25828A

QKP01 ㅤMEC-KEYPAD(VOD/D_GRY);SGH-ZV30,VODAF GH75-06982A

QLC01 ㅤLCD-SGHZV30 MODULE;UF-17E101-A,SGH-Z GH07-00754A

QME03 ㅤUNIT-FPCB;SGH-ZV30,KBSGHZV30KM,-,OMN GH59-02284A

QME06 ㅤUNIT-SPK MODULE;SGH-ZV30,SS-SGH-ZV30 GH59-02356A

QMO01 ㅤMOTOR DC-SGHZV30;DMJBRK94B,SGH-ZV30, GH31-00177A

QMP01 ㅤPBA MAIN-SGHZV30;SGH-ZV30,VODAFONE,G GH92-02152A

QMW01 ㅤMEC-MAIN WINDOW;SGH-ZV30,VOD,PC,-,-, GH75-07462A

QRE01 ㅤMEC-REAR COVER;SGH-ZV30,VODAFON,PC,- GH75-06985A

QRE02 ㅤMEC-REAR SHIELD CAN;SGH-ZV30,VODAFON GH75-06984A

QRF01 ㅤMPR-SHEET REAR SHIELD CA;SGH-ZV30,PC GH74-15903A

QSC12 ㅤRMO-FOLDER SCREW;SGH-ZV30,SI RUBBER, GH73-05042A

QVO01 ㅤMEC-VOLUME KEY;SGH-ZV30,VODAFON,PC,- GH75-06986A

QWD01 ㅤPCT-SUB WINDOW;SGH-ZV30,ACRYL,SIL,-, GH72-25186A

QFR01 ㅤMEC-FRONT COVER;SGH-ZV30,VODAFON,PC, GH75-06981A

ㅤQCW04 PMO-TRANS FLASH COVER;SGH-ZV30,PC,D/ GH72-21805A

ㅤQMI03 RMO-RUBBER MIC;SGH-ZV30,205C,5XT2.35 GH73-04677A

ㅤQRF03 PMO-EAR JACK COVER;SGH-ZV30,PC+URETH GH72-21806A

Otros manuales para SGH-ZV30

Tabla de contenidos

Otros manuales de Teléfono móvil de Samsung

Samsung

Samsung i780 Manual de usuario

Samsung

Samsung SM-N915F Manual de usuario

Samsung

Samsung SM-N7506V Manual de usuario

Samsung

Samsung GT-S8300 Manual de usuario

Samsung

Samsung GT-C3595 Manual de usuario

Samsung

Samsung SGH P107 Manual de usuario

Samsung

Samsung SM-A507FN/DS Manual de usuario

Samsung

Samsung SMG990U Manual de usuario

Samsung

Samsung GALAXY S5 mini Manual de usuario

Samsung

Samsung SM-J320P Manual de usuario

Samsung

Samsung EP-TG935 Manual de usuario

Samsung

Samsung GALAXY MEGA Manual de usuario

Samsung

Samsung SM-A305F/DS Manual de usuario

Samsung

Samsung SCH-R270X Manual de usuario

Samsung

Samsung Galaxy S9 Enterprise Edition Manual de usuario

Samsung

Samsung SGH-E370 Manual de usuario

Samsung

Samsung GT-E1200M Manual de usuario

Samsung

Samsung CorbyPRO Manual de usuario

Samsung

Samsung SGH-D600 Manual de usuario

Samsung

Samsung SPH-M930 Manual de usuario

Samsung

Samsung GT-i6220 Manual de usuario

Samsung

Samsung SGH-T209 Manual de usuario

Samsung

Samsung Gusto SCH-U360 Manual de usuario

Samsung

Samsung Galaxy S6 edge Manual de usuario

Manuales populares de Teléfono móvil de otras marcas

Zte

Zte BLADE A520 Manual de usuario

Nokia

Nokia Lumia 620 Manual de usuario

Blackbe;rry

Blackbe;rry KEYone Manual de usuario

Bea-fon

Bea-fon X5 Premium Manual de usuario

Blackbe;rry

Blackbe;rry 8707 Series Manual de usuario

Blackbe;rry

Blackbe;rry Storm Instrucciones de funcionamiento

LG LM-X420QN Manual de usuario

LifeWatch

LifeWatch V Manual de usuario

Bea-fon

Bea-fon SILVER LINE SL860 Manual de usuario

IKI Mobile

IKI Mobile KF4.5i Manual de usuario

Hitech

Hitech HT-850 Manual de usuario

Yezz

Yezz Fashion F10 Manual de usuario

Point Mobile

Point Mobile PM60 Manual de usuario

Blackbe;rry

Blackbe;rry Q10 Manual de usuario

Blackbe;rry

Blackbe;rry Bold 9900 Manual de usuario

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manual de usuario

LG LM-K420EMW Manual de usuario

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manual de usuario
