Warning / Caution

Warning : This symbol indicates explanations about extremely dangerous matters.

If users ignore this symbol and handle the device the wrong way, serious injury or death could

result.

Caution : This symbol indicates explanations about dangerous matters.

If users ignore this symbol and handle the device the wrong way, damage to home or property

could result.

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to

equipment.

Prohibited

Important to read and understand at all times

Do not disassemble

Any change or modification not expressly approved by designated qualified personnel could void your

authority to operate this device.

Always make sure that the disc does not have a crack before use. If the disc has a crack (especially

around the center hole), it is recommended to make a copy immediately and use the copy instead.

When a cracked disc is used continuously, the size of the crack is likely to grow and this will eventually

result in irreparable damage to the disc.

Important to read and understand at all times.

Connecting the Cables

Safety Precaution

Place the drive on a level surface.

-Failure to do so may cause the device to fall onto a hard surface,

resulting in damage or malfunction.

Do not place the drive in direct sunlight.

Avoid low

- or high-temperature environments.

Avoid high

-humidity environments.

Connecting the Cables

Safety Precaution

Installation

Handle with caution to prevent damage from external shock.

Do not drop the drive, and protect it fromsevere shocks.

- It can damage the drive or cause it to malfunction.

Do not move the drive while in operation and do not attempt to open

the disc tray byforce.

Make sure to close all working programs before attempting to open the

tray and always usethe open/close button.

- Do not insert a pin into the emergency opening while in operation.

Do not use cracked, distorted or damaged discs.

- In particular, a disc with a crack on the inner tracks may break while in

use.

Connecting the Cables

Safety Precaution

While Operating

Never allow food particles or foreign substances to enter the drive

casing.

To protect against the risk of fire, do ot spill such liquids as

alcohol and benzene on the drive.

Do not disassemble, attempt to repair or modify the device

without express approval as directed in the manual.

Arbitrary removal of the bezel may cause the disc to pop out

during operation.

- To reduce the risk of damage, electric shock, and fire,

Connecting the Cables

Safety Precaution

Other

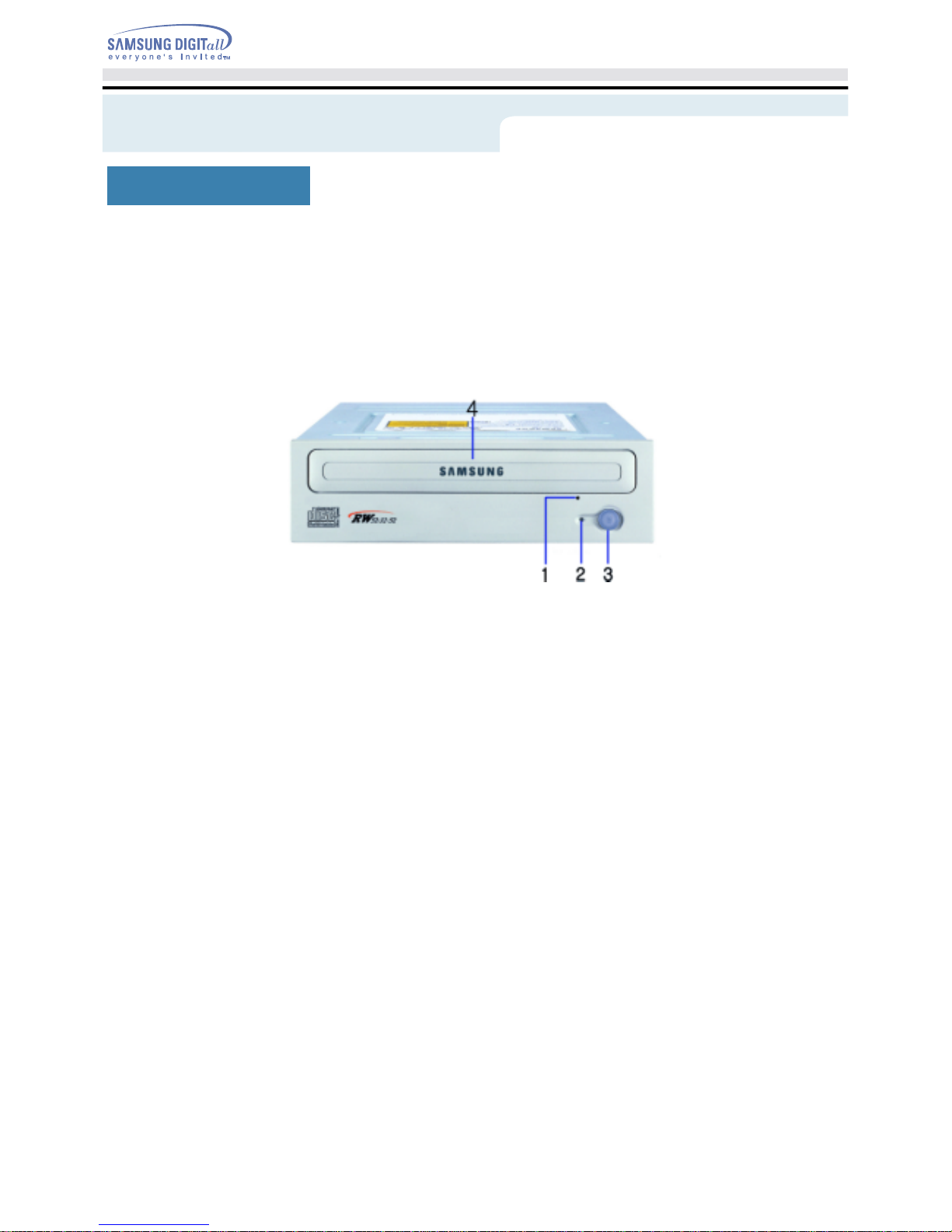

1. Emergency eject hole

if the compartment does not open when you press the Eject button, power off the computer, insert a pin or

unfolded paper clip in the hole and push firmly

2. LED

Indicator Light. (GREEN: Read / Write)

3. Eject button

4. Disc compartment

the compartment opens and closes automatically when you press the Eject button

Connecting the Cables

Introduction

Front

1. Digital output terminal

You can connect a sound card or MPEG card which support Digital output terminal to your drive using this

two-pin terminal.

2. Sound output terminal

You can connect a sound card to your drive using this four-pin terminal.

This function is not covered in detail in this guide. Refer to the documentation supplied with your sound

card.

3. Master/slave select terminal

Usually, this is a pre-set configuration as illustrated below.

Verify that the setting is as illustrated. If it is not, simply remove the jumper and place it in the correct

position.

4. Interface terminal

This input/output interface terminal is used to connect the 40-pin flat cable from the IDE interface to the

CD-R/RW drive.

5. Power terminal

The power terminal is a four-conductor male plug.

(A : +5V DC)

(B : +12V DC)

Connecting the Cables

Introduction

Rear

To install your CD-R/RW Drive in the PC, proceed as follows.

Installing the CD-R/RW Drive

Make sure that the PC is powered off and disconnected from any power source.

If necessary, attach a horizontal bracket to both sides of the drive.

Remove the cover from a free expansion slot and install the CD-R/RW drive, as shown in the illustration.

Important: Use the fixing screws provided with purchase and make sure the screws are tightened

securely.Insufficiently tightened screws may cause increased noise.

(Screws for use: M3 X 6 X 4 pieces)

Make sure to use the standardized screws supplied (M3 X 6).

(To use screws other than M3 X 6 may result in malfuction.)

Connecting the Cables

Setup

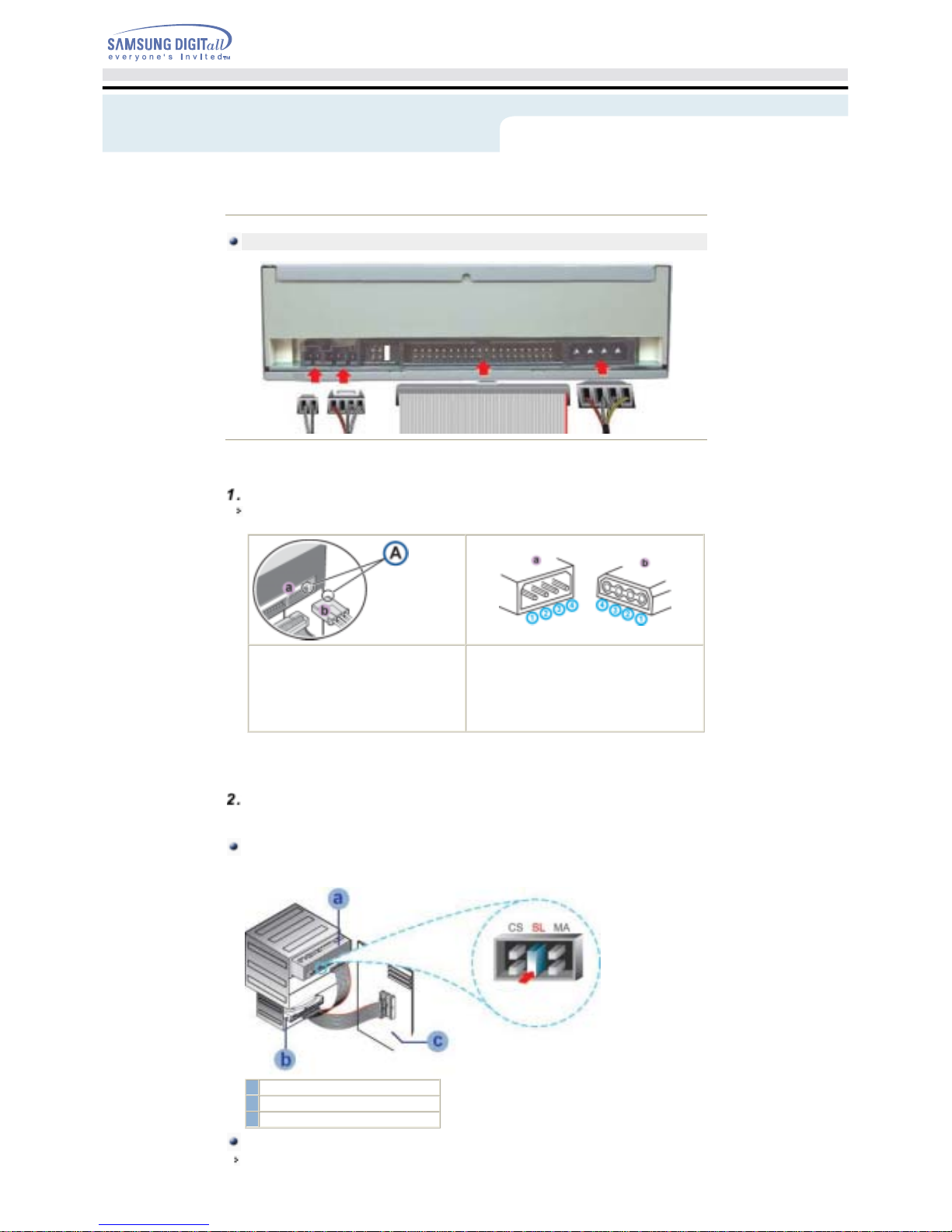

Connecting the Cables

Connecting the power cable

The 4-pin power cable from the internal power unit of your computer must be connected to the power

terminal on the rear of the CD-R/RW drive.

A - Cut Side

1+5V DC

2Ground

3Ground

4+12V DC

Note: An improperly connected power cable may cause trouble. Check the direction of the power connector

and the incline side of the CD-R/RW drive before connecting.

Connecting the E-IDE cable

Insert the IDE cable (40-pin), which is connected to the hard disk to the interface terminal.

(Place the red line of the cable close to the Pin 1.)

When using one E-IDE cable

Connect the cable to the SL (Slave) of the Master/Slave Select Terminal at the rear of the CD-R/RW

drive.

a : Slave Drive (Choose the SL Jumper)

b: Hard Drive

c: MainBoard

When using two E-IDE cable

If there is only one CD-R/RW drive, select MA (Master).

Connecting the Cables

Setup

a: Master Drive (Choose the MA Jumper) b: Hard Drive

c: MainBoard d: Primary 1

e: Secondly 1

If there is two CD-R/RW drive, select MA (Master) / SL (Slave).

a: Master Drive (Choose the MA Jumper)

b: Slave Drive (Choose the SL Jumper)

c: Hard Drive d: MainBoard

e: Primary 1 f: Secondly 1

Connecting the Cables

Setup
