Air Conditioner

installation manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please

www.samsung.com/register

Panel (1 way / 2 way / 4 way cassette type)

ITFRESEN PT DE EL

DB68-03683A(1)

ARRU

NASA_PANEL_IM_EN_03683A(1).indd 13 2013-01-14 오후 8:35:41

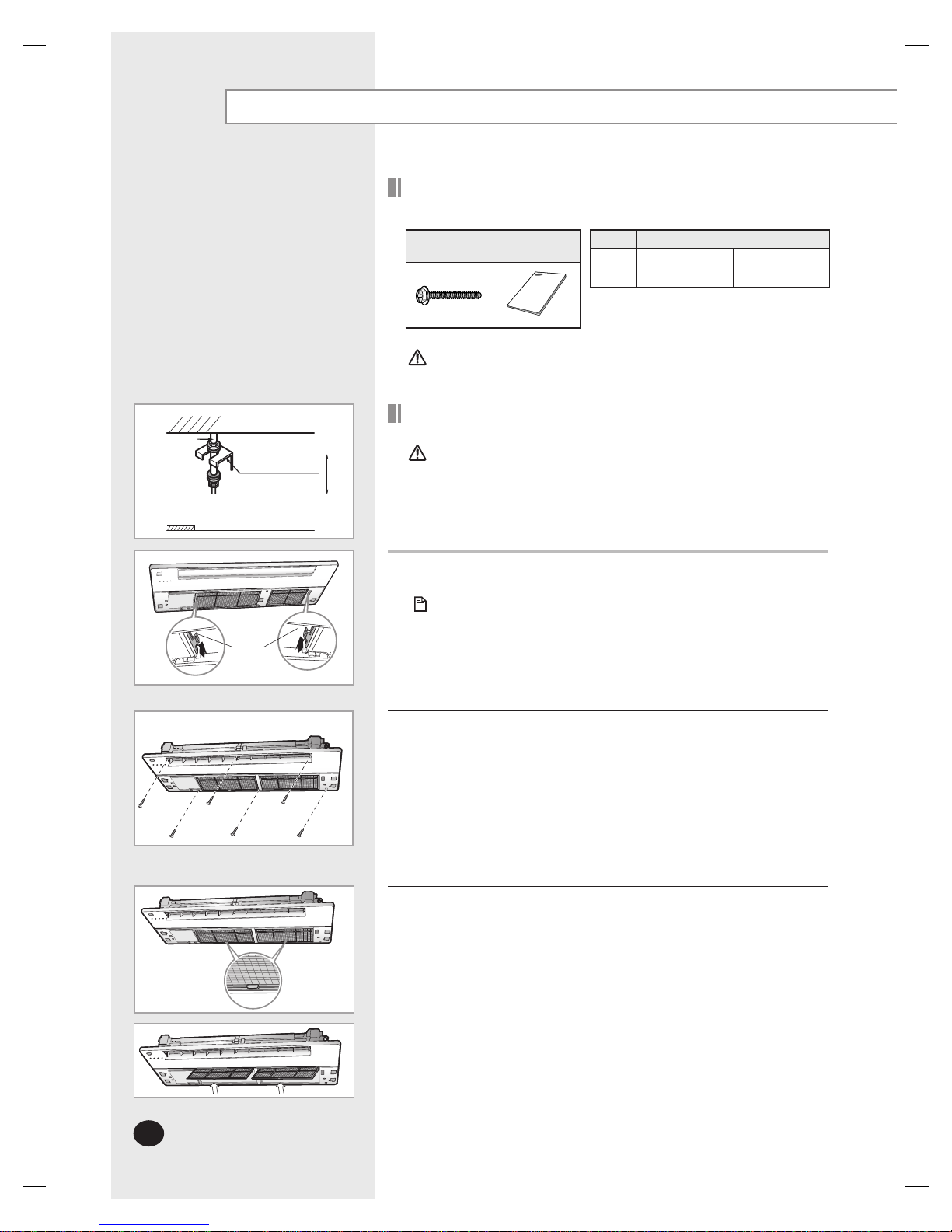

For Slim 1 Way cassette

Fix 2 hooks of the panel on both sides of the indoor unit.

Tighten the panel fixing screws.

2-1 Tighten the panel fixing screws temporarily.

2-2 Close the gap between the panel and the ceiling by adjusting the

position of the panel and then tighten the screws completely.

Open the filter by pressing the two [PUSH] signs on the filter.

Accessories

Handle the panel carefully.

 Do not lean the panel against the wall and do not place the

panel on a projecting object. Otherwise, scratches might form on

the surface of the panel.

 Be careful when gripping the air intake panel for installation.

Hook

Installing the product

Please check the components below before you install the product.

Screw Tightening torque

M4 12.0 ~ 15.0

kgf•cm

1.2 ~ 1.5

N•m

M4x25

bolt

Installation

manual

After the installation, the installer should explain to users how to

use the product.

CAUTION

6 fixing screws

PC1NUSMAN

NASA_PANEL_IM_EN_03683A(1).indd 2 2013-01-14 오후 8:35:32

ENGLISH

For Slim 1 Way cassette

Connect the cables between the indoor unit and the panel.

4-1 Remove the 3 screws of the electrical component box and take out

the electrical component box cover.

4-2 Connect the panel connector to the indoor unit PCB connector.

 Connect the swing motor of the panel or the connectors of

remote controller sensor to each connector of the indoor unit.

 Make sure the colors of the connector match.

4-3 Reassemble the electrical component box.

4-4 Close the filter.

If the connector is disconnected or the color of the cables is mixed

up, the air conditioner and the remote control will not operate.

Make sure that there is no gap here.

Connect the grille.

6-1 Connect the safety clips of the panel to each side of the grille.

6-2 Fix the grille by pushing the [Push] button.

Before installing the grille, you should connect the safety clips to

each side of the grille in order to prevent the grille from dropping.

Motor

connector for

driving grille

Check if the panel is firmly fixed to the indoor unit.

5-1 When tightening the screws, make sure that there is no gap between

the panel and the ceiling and the panel should be parallel with the

ceiling or ceiling joint.

 If the panel is installed incorrectly, air may leak.

 When there is a gap between the panel and the ceiling, adjust the

height of the indoor unit.

5-2 Check the installation again as incomplete installation might

cause the below problems.

 If the gap between the panel and the indoor unit is over 15mm,

air may leak or condensing water may come out. Therefore, the

15mm distance between the panel and the indoor unit should be

maintained by using a vertical gauge (pattern sheet).

Air leak

Dirts

Dew

Make sure that there is no gap here.

NOTE

NASA_PANEL_IM_EN_03683A(1).indd 3 2013-01-14 오후 8:35:33

For Slim 1 Way cassette

Fix 2 hooks of the panel on both sides of the indoor unit.

Tighten the panel fixing screws.

2-1 Tighten the panel fixing screws temporarily.

2-2 Close the gap between the panel and the ceiling by adjusting the

position of the panel and then tighten the screws completely.

Open the filter by pressing the two [PUSH] signs on the filter.

Accessories

Handle the panel carefully.

 Do not lean the panel against the wall and do not place the

panel on a projecting object. Otherwise, scratches might form on

the surface of the panel.

 Be careful when gripping the air intake panel for installation.

Installing the product

Please check the components below before you install the product.

M4x25

bolt

Installation

manual

After the installation, the installer should explain to users how to

use the product.

 When the hooks of the panel cannot be fixed to the indoor unit,

check whether the step motor covers that are at the left or right

inside the panel (2 places) are touching the base bolt.

 When the length of the base bolt is 30mm for hanger hole, the

step motor cover will not touch the base bolt.

NOTE

CAUTION

6 fixing screws

PC1NUPMAN

Hook

Ceiling

Base bolt

Ceiling sleeve

30mm

Hanger bracket

Screw Tightening torque

M4 12.0 ~ 15.0

kgf•cm

1.2 ~ 1.5

N•m

NASA_PANEL_IM_EN_03683A(1).indd 4 2013-01-14 오후 8:35:34

ENGLISH

For Slim 1 Way cassette

Connect the cables between the indoor unit and the panel.

4-1 Remove the 3 screws of the electrical component box and take out

the electrical component box cover.

4-2 Connect the panel connector to the indoor unit PCB connector.

 Connect the swing motor of the panel or the connectors of

remote controller sensor to each connector of the indoor unit.

 Make sure the colors of the connector match.

4-3 Reassemble the electrical component box.

4-4 Close the filter.

If the connector is disconnected or the color of the cables is mixed

up, the air conditioner and the remote control will not operate.

Motor

connector for

driving grille

5Check if the panel is firmly fixed to the indoor unit.

5-1 When tightening the screws, make sure that there is no gap between

the panel and the ceiling and the panel should be parallel with the

ceiling or ceiling joint.

 If the panel is installed incorrectly, air may leak.

 When there is a gap between the panel and the ceiling, adjust the

height of the indoor unit.

5-2 Check the installation again as incomplete installation might

cause the problems below.

 If the gap between the panel and the indoor unit is over 15mm,

air may leak or condensing water may come out. Therefore, the

15mm distance between the panel and the indoor unit should be

maintained by using a vertical gauge (pattern sheet).

Air leak

Dirts

Dew

Make sure that there is no gap here.

NOTE

Connect the grille.

6-1 Hook the grille by putting the hinge part into the groove, fit the

3 link parts as shown in the picture and then pull them down to

connect.

※ Caution when detaching the panel.

 When detaching the panel, grip the link part where the panel and

intake panel are connected (❶) and push up the link at the panel

part (❷) to disconnect as shown in the picture(1).

 When power supply malfunctions, detach the panel by using a

driver at the marked point (2) and proceed with the same method

as shown in the picture(1) to detach the panel and then check the

power connection status.

Before installing the grille, you should connect the safety clips to

each side of the grille in order to prevent the grille from dropping.

NOTE

(2)

(1)

❶

❷

NASA_PANEL_IM_EN_03683A(1).indd 5 2013-01-14 오후 8:35:34

Fix 2 hooks of the panel on both sides of the indoor unit.

Assemble 8 bolts to the panel and the indoor unit temporarily,

then adjust it not to leave a gap between the ceiling and the panel.

Remove the front grille.

2-1 Remove the safety clips.

2-2 Open the front grille about 45° and pull it forward.

Open the front grille by pushing on both sides and center.

For 2 Way Cassette

M4x12

bolt

M4x16

bolt

Installation

manual

User’s

manual

Accessories

PC2NUSMEN

NASA_PANEL_IM_EN_03683A(1).indd 6 2013-01-14 오후 8:35:38

ENGLISH

Install the air flow blade.

5-1 Fix the right part of the blade to the indoor unit.

5-2 Fix the other side of the blade.

5-3 Fix the middle part of the blade by pushing slightly the middle tab

in the indoor unit.

If the direction is incorrect, the blade will not be inserted smoothly.

Check that prominence of the right side has a small rectangular

groove.

Connect cables between the electrical component box and panel.

6-1 Detach 2 screws from the electrical component box.

6-2 Connect the connector of the panel to the electrical component box.

6-3 Reassemble the electrical component box.

Be careful about the color of cables not so that they will be mixed up.

Indoor unit

Panel

Insulation

Must fit tightly against the

ceiling without any gap.

If there is a gap between the panel and the ceiling, adjust the height of

the indoor unit. Unless adjust the height, dew may form and drip from

the gap.

Check out that the panel is fixed to the indoor unit.

7-1 Fix bolts tightly between the panel and the surface of the ceiling.

7-2 Check it out not to cause air leaks.

If the panel is installed incorrectly, air may leak.

Do not close any discharge area of panel.

Air leaks

Dirts

Dew

Must fit tightly against the

ceiling without any gap.

Reinstall the front grille in the reverse way.

CAUTION

For 2 Way Cassette

NASA_PANEL_IM_EN_03683A(1).indd 7 2013-01-14 오후 8:35:39

For 4 Way Cassette

Open the electrical component box cover.

• After untightening the screws, slide the electrical component box cover

in the direction of the arrow as shown in the figure and pull it down.

Push the switch type handles inward and pull the grille to open.

• Handles are located on the left and right side of the Samsung logo on

the grille.

• You may have to open the air flow blades first in order to find the

handles.

Bolt(M5XL35 MACHINE)

(4)

Installation manual

(1)

Accessories

PC4NUSKAN / PC4NUSKEN / PC4NBSKAN

Detach the front grille

1) Remove the safety clips first.

2) Pull the green switch on the hinge part

towards the sign and press and pull

the hinge part to remove the grille.

( There are two hinges on the grille and

you must apply this step on both of them

to remove the grille.)

3) For attaching the front grille, reverse

the procedure above.

There is no need to detach the grille for the installation of the panel.

However, if you want to detach the grill follow the instructions below.

If the supplied bolt is lost, you may purchase M5 machine bolt

(with length of the thread more than 20mm long) and a circular

washer from any retail hardware store to replace the lost bolt.

CAUTION

NASA_PANEL_IM_EN_03683A(1).indd 8 2013-01-14 오후 8:35:40

ENGLISH

For 4 Way Cassette

ENGLISH

Install the panel using 2 hooks on the both sides of the indoor unit.

Detach the 4 corners of the panel. Use two grooves on the each corner of

the panels when pulling them out.

• Handle the corner with digital display gently, since there are electrical

cables connected to that corner.

Connect 3 cables between the indoor unit and the panel.

• Make sure you check the number of pins on the two white terminal

before connecting the cables.

Fix the bolt to the panel.

5-1 Fix 4 bolts to the panel temporarily.

5-2 Fix them tightly not to make a gap between the panel and the ceiling.

Groove

Hook

Panel

White(11 PIN)

White(13 PIN)

Blue

NASA_PANEL_IM_EN_03683A(1).indd 9 2013-01-14 오후 8:35:40

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Samsung

Samsung

Samsung AS18WJWB Manual de usuario

Samsung

Samsung AC NN4DCH Series Manual de usuario

Samsung

Samsung AM18B1B2C09 Manual de lista de piezas

Samsung

Samsung AVMGH052EA4 Manual de usuario

Samsung

Samsung MWR-TH00 Manual de usuario

Samsung

Samsung AD18B1C09 Manual de usuario

Samsung

Samsung AC026JNNCEH Manual de usuario

Samsung

Samsung AVXWVH022EE Manual de usuario

Samsung

Samsung MXD-A22K100X Manual de usuario

Samsung

Samsung AS09HM1N/XSA Manual de usuario

Samsung

Samsung AF MV1MAEENTC Series Guía

Samsung

Samsung AC TN4FEC Series Manual de usuario

Samsung

Samsung AW07P1HBA Manual de usuario

Samsung

Samsung Electronics DVM Series Manual de usuario

Samsung

Samsung MCM-A202D Manual de usuario

Samsung

Samsung AC BXADCH Series Manual de usuario

Samsung

Samsung AVXDSH071EE Manual de usuario

Samsung

Samsung AE090JNYDGH Manual de usuario

Samsung

Samsung AC071JN4CEH Manual de usuario

Samsung

Samsung AS09BPAN Manual de usuario

Samsung

Samsung AC052HBMPKH Manual de usuario

Samsung

Samsung AQ24A1QE Manual de usuario

Samsung

Samsung AC071RN4PKG Manual de usuario

Samsung

Samsung AQ12PGGE Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Frigidaire

Frigidaire FAZ12ES2A Manual de usuario
