Samson Q8x Manual de usuario

PROFESSIONAL DYNAMIC

VOCAL MICROPHONE

OWNER'S MANUAL

Thank you for purchasing the Samson Q8x Professional Dynamic Vocal Microphone. The Q8x microphone brings a high level of accuracy and

clarity to your audio performance and vocal miking applications.

The Q8x is a hand held dynamic microphone that excels both on the stage and in the recording studio. Thanks to its neodymium magnet and

lightweight diaphragm, the Q8x provides a linear frequency response for superior reproduction, with the capability to withstand high sound

pressure levels. It employs a tight supercardioid pattern to reduce feedback as well as a pneumatic shock-mounted element that minimizes

handling noise and provides additional protection.

With proper care and maintenance, your microphone will operate trouble-free for many years. Should your microphone ever require servicing, a

Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted.

Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. We recommend retaining the original packing materials and,

if possible, return the unit in its original carton. If your microphone was purchased outside of the United States, contact your local distributor

for warranty details and service information.

If you have any questions or comments do no hesitate to contact us at support@samsontech.com.

Q8x Professional Vocal Microphone

EN FR DE ES IT

• Dynamic mic element with neodymium magnet provides an

extended range frequency response for optimum reproduction

and exceptionally clear, crisp sound.

• Ultra sensitive element picks up all of the nuances of any

performance

• Frequency response tailored for vocal performance with a mid-

range lift and low-frequency roll off.

• Tight supercardioid polar pattern minimizes feedback problems

and effectively rejects signals not originating directly in front of

the mic capsule.

• Able to withstand high SPL (Sound Pressure Levels) lending itself

to a wide range of miking situations

• Special pneumatic shock-mounting greatly reduces handling

noise.

• Rugged zinc alloy die-casting case ensures reliable performance

in even the most demanding environments.

• Gold plated XLR Connector

• Includes a zipper carry pouch and mic clip.

Features

Unidirectional microphones, exhibit a phenomenon known as

“proximity effect.” Very simply put, proximity effect is a resulting

change in the frequency response of a microphone based on the

position of the microphone capsule relative to the sound source.

Due to the result of the proximity effect, slight adjustments of the

microphone position and angle can make a big difference in sound.

Speciﬁcally, when you point the microphone directly at the sound

source (on axis) you will get the best frequency response, however

when you start pointing the microphone slightly away (off axis)

you will notice the low frequency response dropping off and the

microphone will start to sound thinner.

The Q8x will boost bass frequencies when the microphone is between

0 – 2 inches from the sound source. As you move the sound source

further away from the microphone, the bass response will gradually

roll off.

Proximity Effect

-20

-10

50 100 200 500

FREQUENCY IN Hz

1000 2000 5000 10000 20000 Hz

EN FR DE ES IT

Microphone Placement Guidelines

Listed are some common microphone placement techniques. Use these suggestions as a guide and let your ears determine what works best in

your situation.

• Sound source less than 6 inches away from mic — Full sound, pronounced bass, increased isolation from background noise.

• Sound source 6 inches to 2 feet away from mic — Balanced natural sound, less bass, some background noise.

• Sound source 3 to 6 feet away from mic — Thinner ambient sound.

• Aim the microphone at the desired source. Keep unwanted sound sources at a 135° angle from the front of the microphone.

• Place the microphone as close to the sound source as possible.

• Utilize the 3 to 1 Rule when positioning microphones. A microphone should be placed at least three times the distance from other

microphones as it is from the sound source.

• Never cup your hand over the microphone grill as it can change the performance characteristics of the microphone and may cause

undesired effects to the audio.

Every microphone has a characteristic polar pattern that determines

how well it accepts or rejects signal coming from various areas around

the microphone. For example, omnidirectional mics accept all signals

regardless of wherever those signals originate (in front of the mic,

behind it, to the side, etc.). In contrast, directional cardioid mics are

speciﬁcally designed to accept mostly coming from directly in front,

and to reject signal coming from behind or from the side. The Q8x has

a supercardioid pattern, which is a variation of the standard cardioid

pattern with a slightly tighter pick-up pattern that helps increase the

side-to-side rejection. For this reason, the Q8x excels in environments

where there is a good deal of unwanted ambient sound (like a live

sound stage) as it deliver signals originating directly in front of the

mic capsule itself while rejecting those that originate from behind.

250 Hz

500 Hz

1000Hz

0°

–5

–10

–15

–20

45°

135° 135°

180°

90°

8000 Hz

4000 Hz

2000 Hz

0°

–5

–10

–15

–20

45°

135° 135°

180°

90°

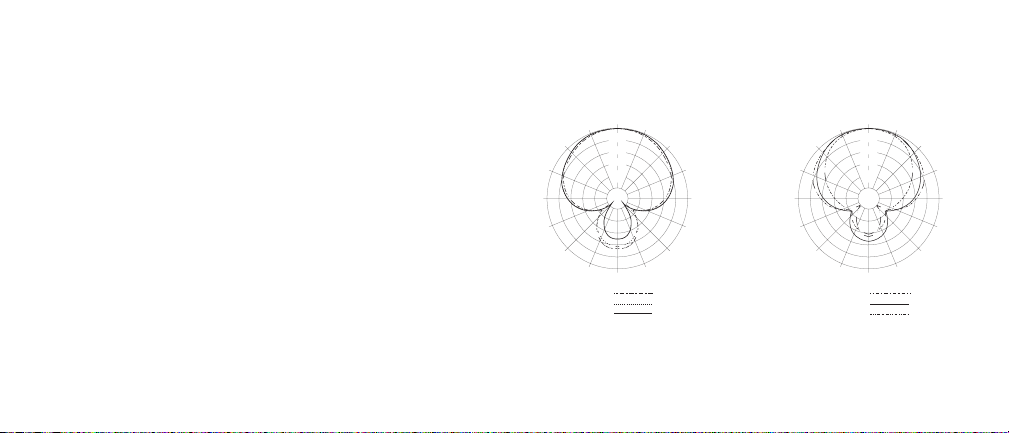

Polar Pickup Pattern

EN FR DE ES IT

-20

-10

50 100 200 500

FREQUENCY IN Hz

1000 2000 5000 10000 20000 Hz

The Q8x microphone has been designed with a frequency response

that has been tailored for vocal performance with a slight lift in

the mid-range and a low end roll-off. The Q8x also excels at miking

instruments and speaker cabinets. The response is created by the

careful consideration of the microphone element and the design of

the capsule porting.

Frequency Response

Female XLR

Hot (2)

Cold (3)

Common (1)

Solder Points

End View

2 1

Female XLR

Male Phone

Jack (TS)

Male Phone

Jack (TRS)

Hot (2)

Cold (3)

Common (1)

Solder Points

End View

2 1

Tip (Hot) Hot

Cold

Ring (Cold)

Sleeve (Common)

Tip (Hot) Hot

Sleeve (Common and Cold)

Common

Common and Cold

Female XLR

Male XLR

Hot (2)

Cold (3)

Common (1)

Hot (2)

Cold (3)

Common (1)

Solder Points

End View

Solder Points

1 2

2 1

The Q8x can be connected to any type of equipment that has a

microphone preamp using a standard microphone cable. As shown in

the wiring diagrams below, connect the female XLR end directly to the

Q8x’s gold-plated connector and the other end to the microphone input.

Wiring

EN FR DE ES IT

Element . . . . . . . . . . . . .Dynamic

Magnet structure. . . . . . . . .Neodymium

Frequency Response . . . . . . . 50 Hz – 16 kHz

Polar Pattern. . . . . . . . . . .Supercardioid (unidirectional)

Impedance . . . . . . . . . . . 300 ohms balanced (low-Z)

Sensitivity . . . . . . . . . . . . -54 dBV/pa (2.5 mV/pa)

Max SPL. . . . . . . . . . . . .150 dB SPL

Microphone Connector . . . . . . 3-pin, XLR-type

Polarity . . . . . . . . . . . . . Positive pressure on diaphragm

causes positive voltage on pin 2

ref. Pin 3

Accessories . . . . . . . . . . . Mic clip, zipper pouch

Dimensions . . . . . . . . . . . 7.09” x 2.125” (180mm x 54mm)

Weight. . . . . . . . . . . . . .0.97lb (0.44kg)

Speciﬁcations

Merci d’avoir acheté le microphone vocal dynamique professionnel Q8x de Samson. Le microphone Q8x confère un haut niveau de précision et

de clarté à vos enregistrements audio et à vos applications de prise de son vocale.

Le Q8x est un microphone dynamique à main, idéal aussi bien pour la scène que pour les enregistrements en studio. Grâce à son aimant en

néodyme et à son léger diaphragme, le modèle Q8x assure une réponse en fréquence linéaire et permet une reproduction supérieure du son,

tout en supportant des niveaux de pression sonores très élevés. Il utilise une courbe supercardioïde étroite pour réduire le retour ainsi qu’un

composant pneumatique, monté sur amortisseurs, qui minimise les effets du bruit de manipulation et assure une protection supplémentaire.

En l’entretenant et en l’utilisant correctement, vous bénéﬁcierez de votre microphone pendant de nombreuses années. Si votre microphone doit être

réparé, vous devez demander un numéro RA (Autorisation de retour, Return Authorization) avant d’expédier votre appareil à Samson. Sans ce numéro,

l’unité ne sera pas acceptée. Veuillez visiter le site Web www.samsontech.com/ra aﬁn d’obtenir un numéro RA avant d’expédier votre appareil. Nous vous

recommandons de conserver les matériaux d’emballage d’origine et, si possible, retourner l’appareil dans son carton d’origine. Si vous avez acheté votre

microphone en dehors des États-Unis, contactez votre distributeur local pour en savoir plus sur la garantie et les services d’entretien.

Pour toute question ou commentaire, n’hésitez pas à nous contacter en nous envoyant un email à support@samsontech.com.

Microphone vocal professionnel Q8x
