Salus HTRS230 Guía del usuario

INSTALLER MANUAL

Wired Digital Thermostat

Model: HTRP230

Contents of the box Product Compliance and Safety Info

Manual Contents:

Box Contents

Introduction

Product Compliance and

Safety Information

Installation

User Interface

Status/LED indication

Installers notes

Warranty

Icons used in this manual:

Safety

Important info

Your beneﬁt

Fixing Screws 1 x Installer Manual

INSTALLER MANUAL

Wired Digital Thermostat

Model: HTRP230

HRTP230 Thermostat

Product Compliance

SALUS Controls hereby declares that the product complies with the essential

requirements of the following EC Directives: 2014/30/EU, 2014/35/EU and 2011/65/EU.

The full text of the EU Declaration of Conformity is available at the following internet

address: www.saluslegal.com.

Safety Information

Use in compliance with safety regulations. The unit is to be used for the control of

room temperature inside the house.

Installation

This accessory must be ﬁtted by a competent person, and installation must comply

with the guidance, standards and regulations applicable to the city, country or state

where the product is installed. Failure to comply with the relevant standards could

lead to prosecution.

2 HTRP230 Instruction Manual

Product Compliance and Safety Info

Product Compliance

SALUS Controls hereby declares that the product complies with the essential

requirements of the following EC Directives: 2014/30/EU, 2014/35/EU and 2011/65/EU.

The full text of the EU Declaration of Conformity is available at the following internet

address: www.saluslegal.com.

Safety Information

Use in compliance with safety regulations. The unit is to be used for the control of

room temperature inside the house.

Installation

This accessory must be ﬁtted by a competent person, and installation must comply

with the guidance, standards and regulations applicable to the city, country or state

where the product is installed. Failure to comply with the relevant standards could

lead to prosecution.

HTRP230 Instruction Manual 3

Product Description 1. Mounting the Thermostat

Installing the unit

Thank you for purchasing the Salus HTRP230 Thermostat. This thermostat is a device

that lets you customize the heating and cooling of your home as needed.

The HTRP230 device from Salus Controls is a stylish and accurate digital room

thermostat that is ﬁtted with a large easy to read LCD screen and one touch buttons.

You can now simply adjust your home temperature as desired in order to create a

comfortable home environment.

We hope you enjoy our product.

Install the HTRP230 digital room thermostat roughly about 1.5m above ﬂoor level. It

should be mounted in a location where the thermostat is easily accessible and away

from direct sunlight. You can mount the thermostat directly on the wall or you can

install it on top of a wall-box.

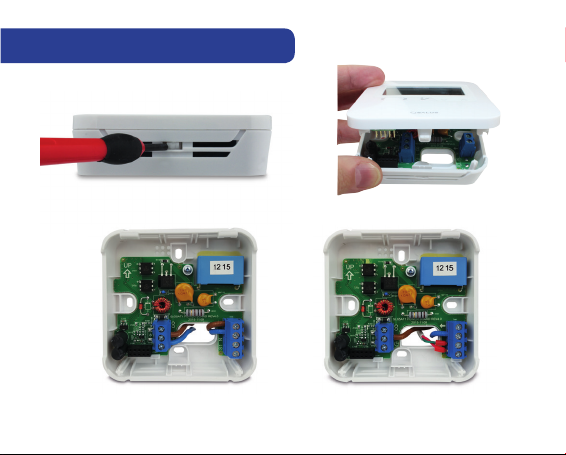

Gently remove front housing.

4 HTRP230 Instruction Manual

1. Mounting the Thermostat

Thank you for purchasing the Salus HTRP230 Thermostat. This thermostat is a device

that lets you customize the heating and cooling of your home as needed.

The HTRP230 device from Salus Controls is a stylish and accurate digital room

thermostat that is ﬁtted with a large easy to read LCD screen and one touch buttons.

You can now simply adjust your home temperature as desired in order to create a

comfortable home environment.

We hope you enjoy our product.

Install the HTRP230 digital room thermostat roughly about 1.5m above ﬂoor level. It

should be mounted in a location where the thermostat is easily accessible and away

from direct sunlight. You can mount the thermostat directly on the wall or you can

install it on top of a wall-box.

Gently remove front housing.

Without ﬂoor sensor With ﬂoor sensor

HTRP230 Instruction Manual 5

2. Terminal Connection

S1 ACTUATOR

OPTIONAL

EXTERNAL

PROBE

E.G.

HEAT

PUMP

OUTPUT

TO MULTIPLE

DEVICES

NSB

OUTPUT

230VAC

50Hz

Note: You can wire the thermostat directly to

the KL08NSB wiring centre or to an actuator

(purchased separatly).

6 HTRP230 Instruction Manual

3. Thermostat Icons

BOX means to select mode.

e.g. means Hi temp is selected

means the Hi temp is not selected.

Sunny: Hi comfortable temperature

Moon: Low comfortable temperature

Indicates AUTO ON or AUTO OFF

Frost Protection Indicator:

Frost protection is active, not available in cooling mode.

Indicates that the Party Mode is active

Indicates that the Holiday Mode is ON.

Heat Mode indicator: Indicates heating is running

HTRP230 Instruction Manual 7

4. Thermostat Icons Continued 5. Button Functions

Programs number indicator.

Indicates the time.

Indicates the the day of the week

Temporary override indicator:

The hand will appear until the next programs starting

Cool Mode indicator:

The icon is ﬂashing when cooling mode is active

Temperature indicator

• Display the room temperature

• Display the set temp

8 HTRP230 Instruction Manual

5. Button Functions

Mode selection.

Long press to return home without saving.

OK key. Short press to conﬁrm selection.

Long press to save and return home.

Long press to enter Temperature oﬀset Heat/Cool.

Decrease or increase Setpoint Temperature.

Note: LCD backlight is activated by pressing any key.

HTRP230 Instruction Manual 9

6. Setting Date and Time 6. Setting Date and Time

When you ﬁrst power up your device you

will have to set up the date and time.

Press to

conﬁrm.

Press or to

choose 12/24 hr

then press

to conﬁrm.

1 2

10 HTRP230 Instruction Manual
