Salus TRV10RFM-3 Manual de usuario
Wireless Radiator Controller
Models: TRV10RFM-3 and TRV28RFM-3
INSTRUCTION MANUAL
02 TRV10RFM-3 and TRV28RFM-3 Instruction Manual
Contents
For the latest PFD Instruction Manual, go to
www.salus-controls.com
Important info
Icons used in this manual
Safety
Box Contents
Product Compliance and Safety Info
System Overview
Check the compatibility
Connecting to a Danfoss RA Valve
TRV28RFM Installation
Installing the unit
Preparing to pair the unit
Pairing the unit
Leaving the network
Using the unit
Button Usage
LED Indication
Manual Override
Technical Details
Warranty
TRV10RFM-3 and TRV28RFM-3 Instruction Manual 03
Box Contents
2 AA Batteries
TRV28RFM-3 Pack
Metal Washer
TRV28RFM
Manual
Wireless Radiator Controller
Models: TRV10RFM, TRV10RAM and TRV28RFM
INSTRUCTION MANUAL
TRV10RFM-3Pack
Adapter
TRV10RFM
Product Compliance & Safety Information
INTRODUCTION
The device is battery-powered, mini-size thermostatic radiator valves (TRV)
controlled using ZigBee wireless communication. Simply replace the existing,
passive head on the standard radiator valve with the TRV10RFM-3 and
TRV28RFM-3 (referred to from now on as the unit). Use the unit with the VS10RF
or VS20RF series of wireless thermostats and a CO10RF wireless coordinator.
The VS10RF or VS20RF wireless thermostats are VS10BRF, VS10WRF, VS20BRF,
and VS20WRF, where B is the black model and W is the white model.
You can optionally use the RX10RF wireless boiler receiver and other iT600
wireless products.
VS10RF / VS20RF Thermostat
(Required)
CO10RF
(Required)
RX10RF
(Optional)
SALUS Wiring Centre
KL08RF or KL10RF
04 TRV10RFM-3 and TRV28RFM-3 Instruction Manual
Product Compliance
SALUS Controls Plc hereby declares that these TRV’s comply with
the essential requirements and other relevant provisions of Directive
2014/53/EC, 2004/108/EC, 2006/95/EC, 2011/65/EU and 2009/125/
EC. The full text of the EU declaration of conformity is available at the
following internet address: www.saluslegal.com
Safety Information
Use in accordance with the regulations. The unit is to be used for the
control of room temperature inside the house.
Installation
This accessory must be tted by a competent person, and installation
must comply with the guidance, standards and regulations applicable to
the country or state where the product is installed. Failure to comply with
the relevant standards could lead to prosecution.
Product Compliance & Safety Information
TRV10RFM-3 and TRV28RFM-3 Instruction Manual 05
+
System Overview
To achieve the best control from the unit and thermostat, we recommend they
are used with the SALUS system receiver congured to RX1. The system receiver
will turn the boiler on or o when requested by the thermostat. See your boiler
receiver manual for more information about the RX1 conguration.
Up to three units can be connected to a VS10RF/VS20RF
The unit is modulating, which means it opens or closes partially or 100%
depending on the relationship between the actual room temperature and
the required room temperature measured by the VS10/20RF.
06 TRV10RFM-3 and TRV28RFM-3 Instruction Manual
Checking the compatibility of your heating system
The unit is compatible with the majority of thermostatic radiator valves. Before tting,
please check your valve is suitable for use with the SALUS TRV.
Note: If all the measurements are as stated on this page then the TRV will t directly to your
valve. Also if your valve is not suitable please consider changing your existing valves, contact
your installer.
mm102030
Valve
1
mm102030
40
50
32
Remove the TRV head
Measure the thread diameter (It
must measure 30mm if you are
fitting a TRV10RFM-3 or 28mm
if you are tting a TRV28RFM-3
valve)
Measure the pin length of the valve
when it is in the open position.
(It must measure between
13-15mm for TRV10RFM-3
and between 10-11mm for
TRV28RFM-3.)
TRV10RFM-3 and TRV28RFM-3 Instruction Manual 07
TRV28RFM-3 Installation
There is no need for
a metal washer
for the Comap
M28 valve.
Before installing the unit make sure you
have added the metal washer on MMA
or Herz M28 valves.
Herz valve
Comap valve
MMA valve
Metal washer
08 TRV10RFM-3 and TRV28RFM-3 Instruction Manual
TRV10RFM-3 Installation
If you are connecting to standard valve then
the TRV10RFM-3 will screw directly to it, as
shown below.
TRV10RFM-3 and TRV28RFM-3 Instruction Manual 09

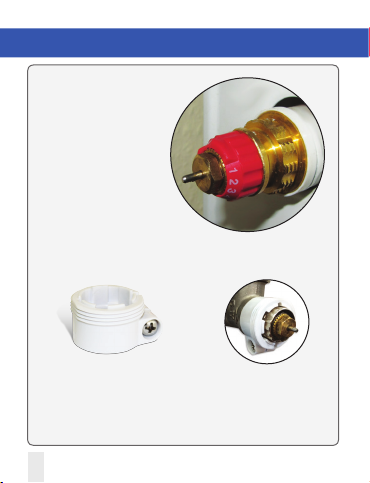

Connecting to a Danfoss RA Valve
Push the RA adaptor onto
the 30mm Danfoss RA valve Tighten the adaptor using
a screwdriver and then
screw on the TRV10RFM-3.
If you are connecting to a
Danfoss RA valve (shown
in this picture), you can use
the RA adapter supplied
when tting a TRV10RFM-3.
10 TRV10RFM-3 and TRV28RFM-3 Instruction Manual
