Sage Barista Pro Manual de usuario

the User Guide

B###### / S######

EN QUICK GUIDE

FR GUIDE RAPIDE

IT GUIDA RAPIDA

PT MANUAL RÁPIDO

DE KURZANLEITUNG

NL SNELSTARTGIDS

ES GUÍA RÁPIDA

PL SZYBKI PRZEWODNIK

the Barista Pro™

BES878 / SES878

2Sage®Recommends Safety First

6Components

8Features

9Assembly

11 Functions

18 Care & Cleaning

22 Troubleshooting

26 Guarantee

Contents

• A downloadable version of this

document is also available at

sageappliances.com

• Before using for the rst

time, please ensure that your

electricity supply is the same as

shown on the rating label on the

underside of the appliance. If

you have any concerns please

contact your local electricity

company.

• The installation of a residual

current safety switch is

recommended to provide

additional safety when using

all electrical appliances.Safety

switches with a rated operating

current not more than 30mA

are recommended. Consult

an electrician for professional

advice.

• Remove and discard any

packaging materials safely,

before rst use.

• To eliminate a choking hazard

for young children, discard the

protective cover tted to the

power plug safely.

• Ensure the product is properly

assembled before rst use.

• This appliance is for household

use only. Do not use the

appliance for anything other

than its intended purpose. Do

not use in moving vehicles or

boats.Do not use outdoors.

Misuse may cause injury.

SAGE®

RECOMMENDS

SAFETY FIRST

At Sage®we are very safety

conscious.We design and

manufacture appliances

with your safety foremost in

mind.We also ask that you

exercise a degree of care

when using any electrical

appliance and adhere to

the following precautions.

READ ALL INSTRUCTIONS

BEFORE USE AND SAVE

FOR FUTURE REFERENCE

• Position the appliance on a

stable, heat resistant, level, dry

surface away from the counter

edge, and do not operate on

or near a heat source such as

a hot plate, oven or gas hob.

• Fully unwind the power cord

before operating.

• Do not let the power cord

hang over the edge of a

counter or table. Do not let the

power cord touch hot surfaces

or become knotted.

• Do not leave the appliance

unattended when in use.

• If the appliance is to be:

- left unattended

- cleaned

- moved

- assembled; or

- stored

Always switch o the espresso

machine by pressing the

POWER button to OFF.

Switch o and unplug from

the power outlet.

• Regularly inspect the power

cord, plug and actual appliance

for any damage. If found to

be damaged in any way,

immediately cease use of

the appliance and return the

entire appliance to the nearest

authorised Sage Service

Centre for examination,

replacement or repair.

• Keep the appliance and

accessories clean. Follow

the cleaning instructions

provided in this book. Any

procedure not listed in this

instruction booklet should be

performed at an authorised

Sage Service Centre.

• The appliance can be used by

children aged 8 or older and

persons with reduced physical,

sensory or mental capabilities

or a lack of experience and

knowledge, only if they have

been given supervision or

instruction concerning use

of the appliance in a safe

way and understand the

hazards involved.

• Children should not play with

the appliance.

• Cleaning of the appliance

should not be carried out by

children unless they are

8 years or older and under

adult supervision.

• The appliance and its

cord should be kept out

of reach of children aged

8 years and younger.

• Do not use attachments

other than those provided

with the appliances.

• Do not attempt to operate

the appliance by any method

other than those described

in this booklet.

• Do not move the appliance

whilst in operation.

• Do not use any other liquid

apart from cold mains/town

water.We do not recommend

the use of highly ltered,

de-mineralised or distilled

water as this may aect the

taste of the coee and how the

espresso machine is designed

to function.

• Never use the appliance without

water in the water tank.

• Ensure the portalter is

rmly inserted and secured

into the brewing head before

using the machine.

• Never remove the portalter

during the brewing operation as

the machine is under pressure.

• Do not place anything, other

than cups for warming, on top

of the appliance.

• Use caution when operating

machine as metal surfaces are

liable to get hot during use.

• Do not touch hot surfaces.Allow

the product to cool down before

moving or cleaning any parts.

• Heating element surface is

subject to residual heat after use.

• Always ensure the appliance

is turned OFF, unplugged at

the power outlet and has been

allowed to cool before cleaning,

attempting to move or storing.

• The appliance is not intended

to be operated by means of

an external timer or separate

remote-control system.

• The use of attachments not

sold or recommended by

Sage may cause re, electric

shock or injury.

• Always turn the appliance to

the o position, switch o at

the power outlet and unplug

at the power outlet when the

appliance is not in use.

• Any maintenance other

than cleaning should be

performed by an authorised

Sage®service centre.

• Do not use the appliance on

a sink drain board.

• Do not operate the appliance

if it is in an enclosed space,

or within a cupboard.

• Use caution when descaling

as hot steam may be released.

Before descaling, ensure drip

tray is empty and inserted.

Refer to ‘Care & Cleaning’ for

further instructions.

• Do not operate the grinder

without the hopper lid in position.

Keep ngers, hands, hair,

clothing and utensils away from

the hopper during operation.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

NOTICE TO CUSTOMERS

REGARDING MEMORY

STORAGE

Please note that in order to better

serve our customers, internal

memory storage has been

imbedded into your appliance.

This memory storage consists

of a small chip to collect certain

information about your appliance

including the frequency of use

of the appliance and the manner

in which your appliance is being

used. In the event your appliance

is returned for service, the

information collected from the

chip enables us to quickly and

eciently service your appliance.

The information collected also

serves as a valuable resource

in developing future appliances

to better serve the needs of our

consumers. The chip does not

collect any information regarding

the individuals who use the

product or the household where

the product is used. If you have

any questions regarding the

memory storage chip please

priv[email protected]

SPECIFIC INSTRUCTIONS

FOR WATER FILTER

• Filter cartridge should be kept

out of reach of children.

• Store lter cartridges in a dry

place in the original packaging.

• Protect cartridges from heat

and direct sunlight.

• Do not use damaged

lter cartridges.

• Do not open lter cartridges.

• If you are absent for a prolonged

period of time, empty the water

tank and replace the cartridge.

The symbol shown

indicates that this appliance

should not be disposed of

in normal household waste.

It should be taken to a local

authority waste collection centre

designated for this purpose or to

a dealer providing this service.

For more information, please

contact your local council oce.

To protect against electric

shock, do not immerse

the power cord, power plug

or appliance in water or any

other liquid.

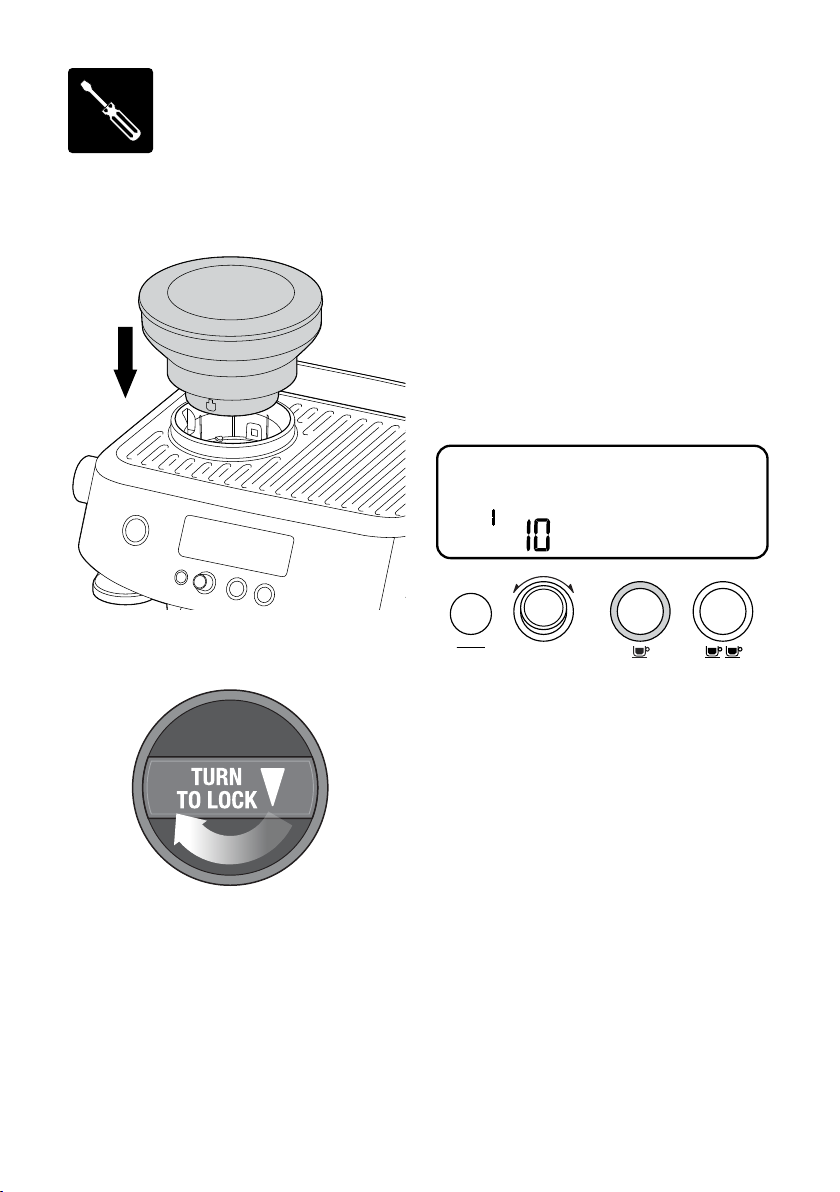

A. 250g bean hopper

With locking system for easy removal,

storage and transfer of coee beans.

B. Integrated conical burr grinder

C. Grind size selector

30 espresso grind settings from

ne to coarse.

D. Power button

E. Integrated removable 54mm tamper

F. Grinder outlet

G. Grinding cradle

H. 54mm stainless steel portalter

With commercial style spouts.

I. Storage tray (located behind drip tray)

For storage of accessories.

J. Removable drip tray grid

K. Removable drip tray

With tray full indicator.

L. 2L removable water tank

With replaceable water lters

to reduce scale and impurities.

M. Steam dial

Selector control for steam and hot water.

N. LCD display

With grinding and extracting

progress animations.

O. Control panel

With menu, GRIND AMOUNT/ FILTER SIZE,

1 cup and 2 cup buttons.

P. Group head

Q. Dedicated hot water outlet

For making long blacks and

pre-heating cups.

R. Extra-tall cup clearance

S. 360° swivel steam wand

Easily adjusts to the perfect position

for texturing milk.

Components

Rating Information

ACCESSORIES

1. Stainless steel milk jug

With MIN and MAX markings.

2. Dual wall lter baskets (1 cup & 2 cup)

Use with pre-ground coee.

3. Single wall lter baskets (1 cup & 2 cup)

Use when grinding fresh whole coee beans.

4. Water lter and lter holder

5. Cleaning disc

220–240V~ 50 - 60Hz 1380 - 1650W

6. Cleaning tablets

7. Cleaning brush

8. The Razor™precision dose trimming tool

9. Steam wand and lter basket cleaning tool

10.Descaling powder

11.The Dosing Funnel™54

All parts of the Barista Pro™

that come into contact with coee,

water and milk are BPA Free.

234

* Sage makes its BPA free claim for this product based on independent laboratory testing performed

for all the food contact plastic materials of the product per EU Commission regulation No 10/2011.

BPA Free Materials*

10 11

Barista ProTM

Features

THERMOJET™HEATING SYSTEM

Innovative heating system achieves ideal

extraction temperature in 3 seconds.

INTEGRATED CONICAL BURR GRINDER

Precision conical burrs maximise ground coee

surface area for a full espresso avour. Upper and

lower burrs are removable for cleaning.

ADJUSTABLE GRIND SIZE

30 espresso grind settings from ne to coarse for

optimal extraction.

ADJUSTABLE GRIND AMOUNT

Adjust the amount of fresh ground coee dosed

into the lter basket to suit the neness or

coarseness of the grind.

AUTOMATIC DOSING

The grinder will dispense the required

amount of ground coee for a single or double

cup dose.

HANDS FREE GRINDING

Auto stop for hands free grinding directly into

the portalter.

THE RAZOR™DOSE TRIMMING TOOL

Patented twist blade trims down the puck to the

right level for precision dosing and a consistent

extraction.

ADJUSTABLE SHOT

TEMPERATURE CONTROL

For optimum coee avour.

PID TEMPERATURE CONTROL

Electronic PID temperature control for increased

temperature stability.

INSTANT HOT WATER

Dedicated hot water outlet for making

Long Blacks and pre-heating cups.



Applies low water pressure at the start

of the extraction to gently expand grinds

for an even extraction.

VOLUMETRIC CONTROL

Pre-set 1 & 2 cup volumes, manual over-ride

or programmable shot volumes.

DRY PUCK FEATURE

Removes excess water from the ground coee

in the lter basket after extraction for easy

disposal of the coee puck.

LARGE DRIP TRAY

With more usable workspace.

Assembly

BEFORE FIRST USE

Machine Preparation

Remove and discard all labels and packaging

materials attached to your espresso machine.

Ensure you have removed all parts and

accessories before discarding the packaging.

Remove the packaging and the plastics bags

containing the water lter and water lter holder.

Clean the water tank, portalter, lter baskets,

milk jug and drip tray using warm water and

a gentle dish washing liquid. Rinse well,

then dry thoroughly before reassembling.

INSTALLING THE WATER FILTER

• Remove the water lter and water lter holder

from the packaging.

• Set the reminder for the next month of

replacement.We recommend to replace

the lter after 3 months.

• Soak the lter in cold water for 5 minutes.

• Wash the lter holder with cold water.

• Insert the lter into the two parts of the lter

holder. Ensure they are connected.

• Remove the water tank from the machine.

Align the base of the lter holder with the

adapter inside the water tank.Push down

to lock into place.

• Fill the water tank with cold potable water and

reattached the machine, ensuring it is properly

attached and sitting ush to the back of the

machine.

• Refer to ‘Care & Cleaning’ on page 18 for further

instructions.

NOTE

DO NOT use highly ltered, demineralised or

distilled water in this machine. This may aect

the taste of the coee.

NOTE

For replacement water lters, visit the Sage

webpage or contact Sage Customer Service.

FILLING THE WATER TANK

• Ensure the water lter is securely tted inside

the water tank.

• Use the handle at the top of the water tank to

assist in lifting it up and away from the machine.

Refer to Instruction Book for more information.

Contact the Breville Customer Service Centre

for further assistance.

AUS 1300 139 798

NZ 0800 273 845

www.Breville.com.au

INSTALL

WATER

FILTER

Rinse filter and

mesh

2 43 6

Replace water tankAssemble Set date + 2 months Install filter in tank

Soak for

5 minutes

Replace water filter

every 2 months or

60 tank refills

MAX

MIN

MAX

MIN

MAX

MIN

• Fill the water tank with cold potable tap water

to below the MAX marking indicated on the side

of the water tank.

• Replace the water tank back on the machine,

pressing down to ensure that it is properly

positioned and attached to the machine.

Refer to Instruction Book for more information.

Contact the Breville Customer Service Centre

for further assistance.

AUS 1300 139 798

NZ 0800 273 845

www.Breville.com.au

INSTALL

WATER

FILTER

Rinse filter and

mesh

2 43 6

Replace water tankAssemble Set date + 2 months Install filter in tank

Soak for

5 minutes

Replace water filter

every 2 months or

60 tank refills

MAX

MIN

MAX

MIN

MAX

MIN

NOTE

Replace the water daily. The water tank should be

lled with fresh, cold tap water before each use.

Assembly

ATTACHING THE HOPPER

Insert the bean hopper into position on top

of the machine.

Turn the dial to lock the hopper into place.

Fill with fresh coee beans.

FIRST USE CYCLE

A rst use cycle must be completed before

the initial use of the machine. The rst use

cycle rinses the machine and primes the

heating system.

1. Fill the water tank.

2. Ensure machine is fully assembled with the

bean hopper, drip tray and water tank securely

attached to the machine.

3. Press the POWER button.The machine will

beep and go into FIRST CYCLE mode.

4. The LCD will display FLUSH and the 1 CUP

button will be illuminated.

PRE-INFUSE

SHOT

STEAM

SEC

AMOUNT

MANUAL

PAUSED

HOT

WATER

FLUSH

RESET

DEFAULTS

DESCALE

PROGRESS

FILL

TANK

GRIND

DOUBLE

SINGLE

LOCK

HOPPER

GRIND

SIZE

SHOT TEMP

FASTER

POUR

SLOWER

POUR

CUSTOM

HOTTER

COOLER

CUSTOM

FILTER SIZE

EXIT

5. Press the 1 CUP button.The LCD will show

a count down for the remaining time of the rst

use cycle.

6. Once complete, the machine will go into

READY mode.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cafetera de Sage

Sage

Sage Barista Express BES870 Manual de usuario

Sage

Sage the Bambino SES450BSS4GUK1 Manual de usuario

Sage

Sage Bambino Plus Manual de usuario

Sage

Sage Nespresso Vertuo Creatista Manual de usuario

Sage

Sage the Barist Express SES875 Manual de usuario

Sage

Sage Smart Grinder Pro BCG820 Manual de usuario

Sage

Sage Barista Touch SES880 Manual de usuario

Sage

Sage The Oracle BES980 Manual de usuario

Sage

Sage CREATISTA UNO Manual de usuario

Sage

Sage Barista Touch SES880BTR Manual de usuario

Sage

Sage Barista Touch BES880 Manual de usuario

Sage

Sage Bambino Plus SES500 Manual de usuario

Sage

Sage Barista Express BES875 Manual de usuario

Sage

Sage the Barista Express Impress Manual de usuario

Sage

Sage Oracle Touch SES990 Manual de usuario

Sage

Sage the Barist Express SES875 Manual de usuario

Sage

Sage Barista Express BES875 Manual de usuario

Sage

Sage Oracle Touch SES990 Manual de usuario

Sage

Sage Barista Express SES875UK Manual de usuario

Sage

Sage Nespresso Creatista Uno Manual de usuario

Sage

Sage Barista Express BES875 Manual de usuario

Sage

Sage Oracle Touch SES990BST Manual de usuario

Sage

Sage BES500 Manual de usuario

Sage

Sage Bambino Plus SES500 Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Philips

Philips HL3844N Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario
