Introduction

TB-100 Software Installation and Conguration Guide

Introduction

The TB-100 Bluetooth Transmitter is a device that can be added to new and existing Flashback systems (including

Flashback2s, Flashback3s, and FlashbackHDs) to enable bi-directional Bluetooth transmission between Flashback

system(s) and BWX-100 body worn camera(s) (BWCs). This enables your recording devices to remotely initiate recordings

on other devices that are within transmission range. It also enables other recording devices to remotely initiate recordings

on your devices*.

Installing a TB-100

TB-100 Kit

The TB-100 Kit includes the following parts:

Item # Description Item # Description

1Transmitter module model TB-100—Qty: 1 6Screw, #6 x 1/2 lg, pan head, sheet metal, steel—

Qty: 2

2Antenna—Qty: 1 7Cable assembly, signal and power—Qty: 1

3ZCable, antenna—Qty: 1 8Cable assembly, Flashback pigtail—Qty: 1

(Flashback version only)

4Bracket, antenna mounting—Qty: 1 9Cable assembly, Fuse Holder, 2A—Qty: 1

5Screw, #8 x 1/2 lg, hex head, sheet metal, drill point,

steel—Qty: 4

10 Butt Splice, 22-16 AWg—Qty: 1

If you are using this TB-100 with a Flashback in-car video system, see "Installing a TB-100 in a Vehicle with a Flashback

Recorder" on page 4.

If you are using this TB-100 with BWX-100s only, see "Installing a TB-100 in a Vehicle without a Flashback Recorder" on

page 6.

Installing a TB-100

TB-100 Software Installation and Conguration Guide

Installing a TB-100 in a Vehicle with a Flashback Recorder

1. Check your Flashback wiring harness for the gray Aux 2 wire. If your wiring harness includes the gray Aux 2 wire, then

proceed to the next step. If your wiring harness does not include the gray Aux 2 wire and your Aux 1 wire is already

connected to another device, then you’ll need to order an FB3/FBHD Wiring Harness (W-FB-IO-C Axx), which includes the

Aux 2 wire. For assistance, contact SF Mobile-Vision Inc. Sales at 1-800-336-8475.

2. Disconnect the vehicle battery's negative lead.

3. Mount the transmitter box.

a. Select a location that is:

• On a at surface in the trunk or cabin.

• Within 4 feet of the proposed antenna location and within 10 feet of the Flashback DVR

• Away from possible spills.

b. Mount the transmitter box (Item #1 on page 3) to the surface using the self-tapping screws provided.

4. Mount the antenna.

NOTE: Antenna Mounting Location

Because the TB-100 utilizes a “line of sight” signal, it’s important to mount the antenna as high as you can so the signal

can easily pass through the vehicle’s glass.

a. Select a location that is within 4 feet of the TB-100:

• If TB-100 is mounted in the trunk, then mount the antenna on the rear deck or C pillar.

• If TB-100 is mounted in the center console, then mount the antenna on the cage or A pillar.

• If TB-100 is mounted in the rear of an SUV, then mount the antenna on the cage or C pillar.

b. Mount the antenna (item #2 on page 3) using the provided bracket hardware (item #4 page 3).

5. Connect the antenna cable (item # 3 on page 3) to the antenna (item #2).

6. Connect the other end of the antenna cable (item # 3) to the TB-100.

7. Plug the Signal & Power cable (item #7 on page 3) into the POWER/SIGNAL port on the back of the TB-100.

8. Connect the wires, as shown in the following diagram. For a list of connections, see "Connections for Installing a TB-

100 in a Vehicle with a Flashback Recorder" on page 6.

Installing a TB-100

TB-100 Software Installation and Conguration Guide

Antenna

Item #2

Item #4

Antenna

mounting

bracket

Item #8 FB pigtail cable

DVR

Item #3 Antenna cable

PWR: Power LED. Turns solid green when

unit has power and vehicle ignition is on.

To same ground

location as

Flashback.

battery

positive

2-amp fuse

(white label)

Aux 2

Not used;

cap off

2-amp fuse

(yellow label)

Item #1 TB-100 Bluetooth Transmitter

Item #7

Signal and

Power cable

ashback

monitor

To grill light,

if used

STAT: Status LED:

• Solid Green: System is fully

initialized; ready to receive input

commands.

• Solid Red: Transmission output

is activated due to any of the

Flashback inputs.

• Blinking Red: Transmission

output is activated due to an

external transmission from a

BWX-100 or another TB-100.

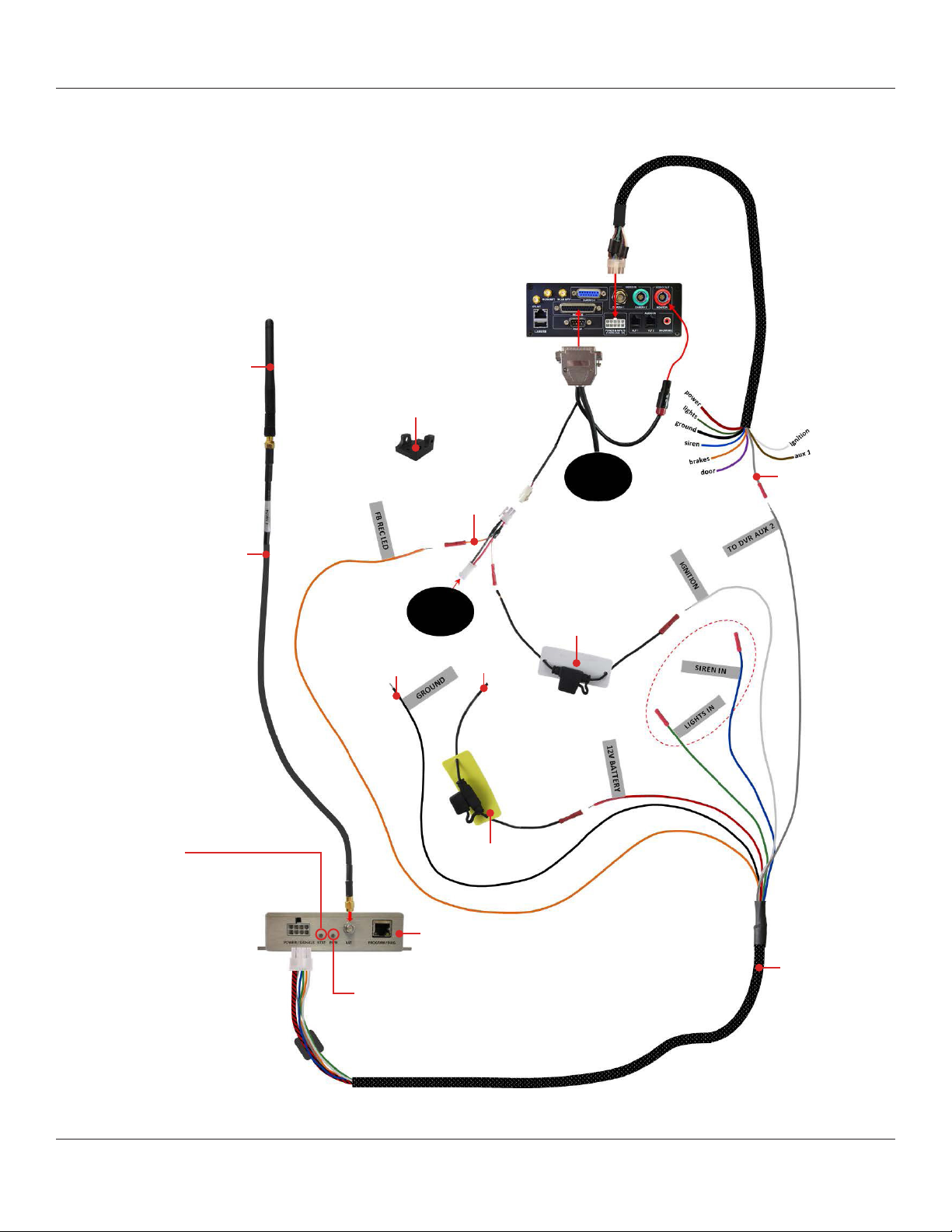

Wiring Diagram for Installing a TB-100 in a Vehicle with a Flashback Recorder

Installing a TB-100

TB-100 Software Installation and Conguration Guide

Wire Color Connect to...

FB REC LED Orange Orange wire on Flashback Pigtail cable

GROUND Black Same ground location as Flashback

12 V BATTERY Red 2-amp fuse, then to battery positive

IGNITION White 2-amp fuse, then to white wire on Flashback Pigtail cable

TO DVR AUX 1 or AUX 2 Gray The brown Aux 1 wire or gray Aux 2 wire

9. Connect the Flashback Pigtail cable (item #8 on page 3) to the white lead on the back of the Flashback monitor

cable.

10. Reconnect negative lead of vehicle battery.

Connections for Installing a TB-100 in a Vehicle with a Flashback Recorder

Installing a TB-100 in a Vehicle without a Flashback Recorder

In this application, the TB-100 is used for sending a signal from the vehicle's lights or siren that can be received by other

Bluetooth-Transmitter-enabled Flashback systems or transmission-enabled BWX-100s.

1. Disconnect the vehicle battery's negative lead.

2. Mount the TB-100:

a. Begin by selecting a location that is:

• On a at surface in the trunk or cabin.

• Within 4 feet of the proposed antenna location.

• Away from possible spills.

b. Mount the TB-100 (item #1 on page 3) to the surface using the provided self-tapping screws.

3. Mount the antenna.

Begin by selecting a location that is within 4 feet of the TB-100, such as on the vehicle’s back deck, cage wall, or A-pillar.

Next, mount the antenna (item #2 page 3) using the provided bracket hardware (item #4 on page 3).

4. Connect the antenna cable (item #3 page 3) to the antenna (item #2).

5. Connect the other end of the antenna cable (item #3) to the TB-100.

6. Plug the Signal & Power cable (item # 7 on page 3) into the POWER/SIGNAL port on the back of the TB-100.

7. Make the wiring connections:

Installing a TB-100

TB-100 Software Installation and Conguration Guide

Antenna

Item # 2

Item # 4

Antenna

mounting

bracket

Item #3 Antenna cable

PWR: Power LED. Turns solid green when unit has

power and vehicle ignition is on.

To battery

positive

chassis

ground

2-amp fuse

(white label)

Not used;

cap off

2 amp fuse

(yellow label)

Item #1 TB-100 Bluetooth Transmitter

Item #7

Signal and

Power cable

STAT: Status LED:

• Solid Green: System

is fully initialized;

ready to receive input

commands

• Solid Red:

Transmission output

is activated due to

any of the Flashback

inputs

2-amp fuse

(green label)

2-amp fuse

(green label)

To 12 V

light signal

To vehicle

ignition sensor

To 12 V siren signal

(requires part MV-Siren)

Wiring Diagram for Installing a TB-100 in a Vehicle without a Flashback Recorder

 NOTE: Compliance Information

See "Appendix H: FCC Compliance" on page 32 for compliance information.

Installing a TB-100

TB-100 Software Installation and Conguration Guide

Connections for Installing a TB-100 in a Vehicle without a Flashback Recorder

Wire Color Connect to...

SIREN IN Blue Emergency lights or siren

GROUND Black Chassis ground

12 V BATTERY Red 2-amp fuse, then to battery positive

IGNITION White 2-amp fuse, then to vehicle ignition sense

LIGHTS IN Green Emergency lights or siren

Conguring Flashback DVRs to Interact with TB-100s

Depending on how you installed the TB-100 Bluetooth Transmitter, you will need to turn on either the Aux 1 or Aux 2 trigger

in your Flashback DVR.

From DES

The way you congure your BWX-100 DVRs depends on whether your agency uses the Fleet Management feature.

To check if the feature is enabled (if applicable), refer to the Enabling or Disabling Fleet Management section in the DES

Administrator's Guide, found on the SafeFleet Community.

If Fleet Management is Disabled (or not applicable)

• Follow steps 1-10 in the Turning the Aux1/2 Trigger On subsection of the Flashback 3/HD User Guide.

• Complete steps 1-7 and 17 in the Turning the Aux 1/2 Trigger On/Off subsection of the Flashback2 User Guide.

If Fleet Management is Enabled and Your DVR is Assigned to a DVR Group

1. Complete steps 1-2 in the Conguring DVR Groups section of the DES Administrator’s Guide.

2. Review step 3 of the Conguring Audio, Video, Trigger, and Display Settings subsection of the Conguring a Flashback

DVR Group section.

3. Ensure that either Aux 1 Trigger or Aux 2 Trigger is selected.

If Fleet Management is Enabled and Your DVR is Not Assigned to a DVR Group

1. Complete steps 1-3 in the Conguring Flashback DVRs section in the DES Administrator’s Guide.

2. Review the Conguring Triggers Subsection of the Conguring a Flashback DVR Not Assigned to a DVR Group.

3. Ensure that either Aux 1 Trigger or Aux 2 Trigger is selected.

Installing a TB-100

TB-100 Software Installation and Conguration Guide

From Flashback3 or FlashbackHD:

1. Turn the vehicle ignition On. Once the Flashback has nished booting, proceed to step b.

2. Make sure the door to your DVR is open and Auto mode is O. (If necessary, press the button until the light turns

off.)

3. Press . The Flashback Main Menu displays.

4. Press the or button until Recording is highlighted.

5. Press to select the Recording option. The Recording menu displays.

6. Press twice to advance to the Input option.

7. Press to select the Input option. The Input screen displays.

8. Highlight the Flashback connection you used for the TO DVR AUX 2

connection:

From Flashback 2:

1. Turn the vehicle ignition On. Once the Flashback has nished booting, proceed to step 2.

2. Make sure the door to your DVR is open and Auto mode is O. (If necessary, press the button until the light

turns off.)

3. Press . The Flashback2 Main Menu displays.

4. Press the or button until Input Setup is highlighted.

5. Press . The Input Setup screen displays.

6. Highlight the Flashback connection you used for the TO DVR AUX 2

connection:

For Aux 1, press six times to advance to the AUX1 Dsp/Trg

eld.

—OR—

For Aux 2, press eight times to advance to the AUX2 Dsp/Trg

eld.

7. Press . A blue dot displays to the left of the AUX1 Dsp/Trg or

AUX2 Dsp/Trg eld.

8. Press to toggle the eld value from OFF to ON.

9. Press three times to save your changes and exit this option.

For Aux 1, press two times to advance to the AUX1 Trigger eld.

—OR—

For Aux 2, press three times to advance to the AUX2 Trigger eld.

9. Press to toggle the eld value from OFF to ON.

10. Press twice to save your changes and exit this option.

Otros manuales para TB-100

Tabla de contenidos

Otros manuales de Transmisor de Safe Fleet

Safe Fleet

Safe Fleet TB-100 Manual

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
