Safe Fleet Prime Design HRR3-E-SP Manual de usuario

PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net

410

Top Connector (2X) Bottom Connector (2X)

M8 Bolt (4X)

M6 T-Insert (12X)Neoprene Washer (24X)Fender Washer (12X)

End Caps (4X) Screws (8X)

60” Channels (2X)

48” Channels (2X)

Brackets (4X)

M6 Lock Nut (12X)

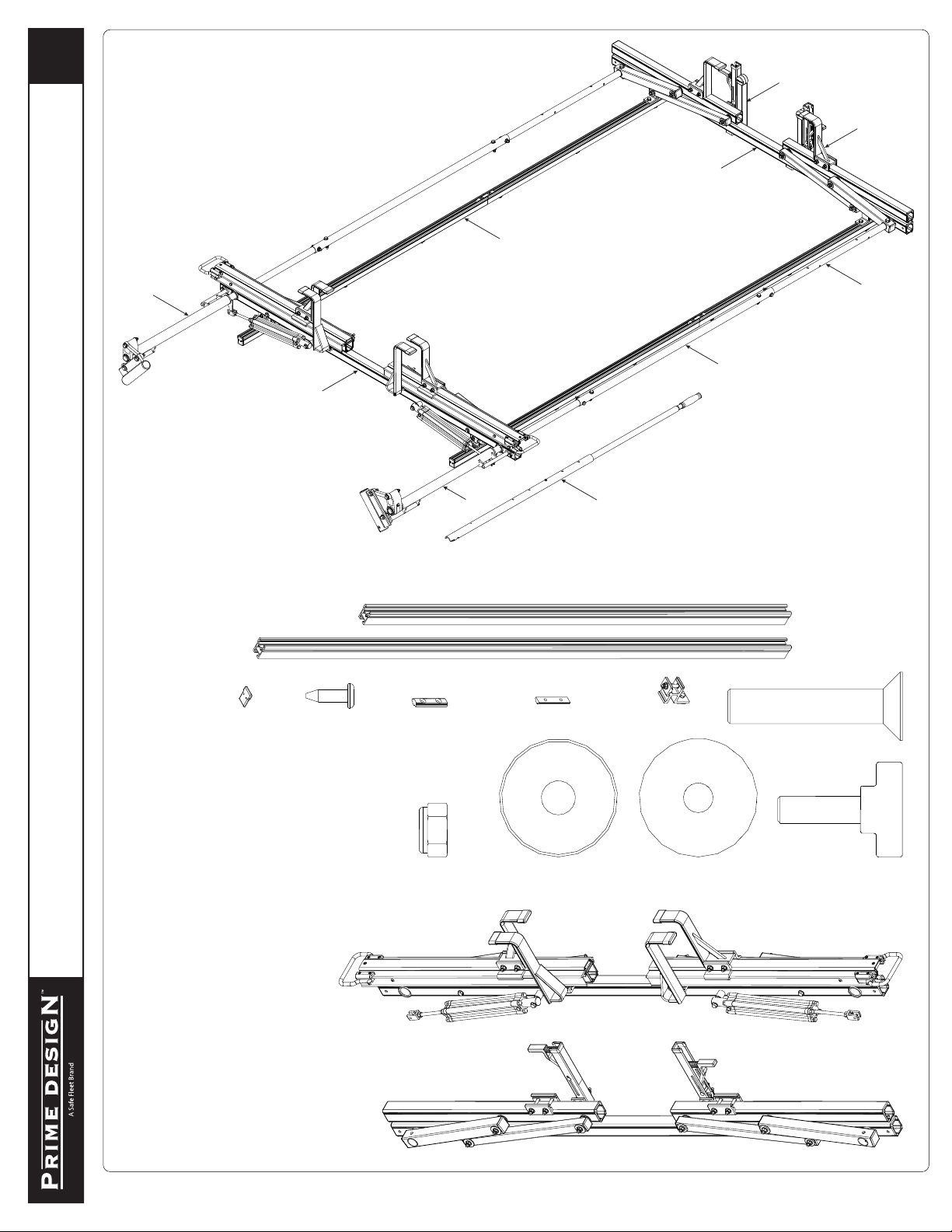

HRR-E-SP ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

CONTENTS OVERVIEW

2—Rear Crossbar Assembly.................................. (Qty 1)

3—Front Crossbar Assembly ................................. (Qty 1)

1—FBM-0057......................................................... (Qty 1)

Channels with hardware

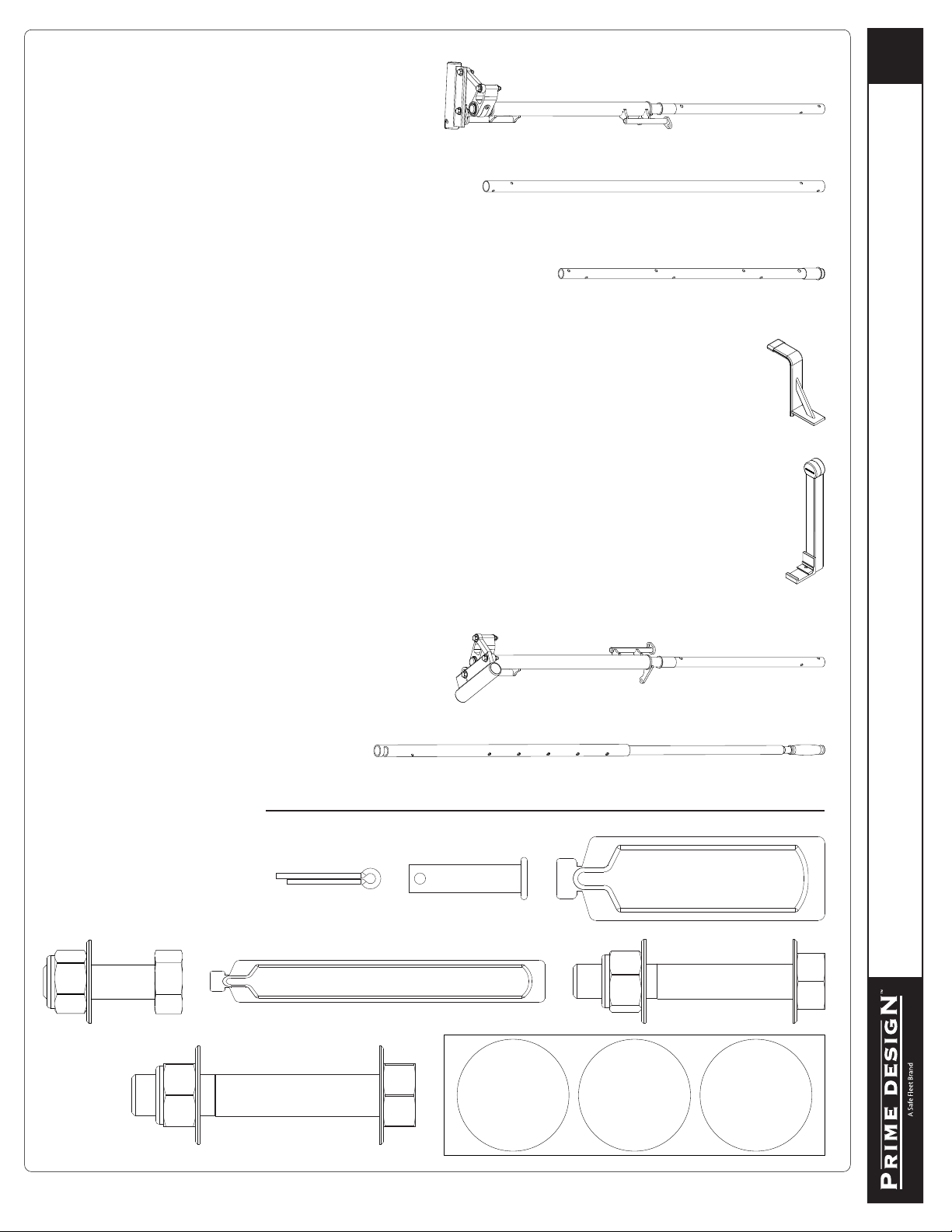

HRR-E-SP ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

6—Front Drive Shaft .............................................. (Qty 2)

B Version, 35.75”

7—Z Post ................................................................ (Qty 2)

Adjustable, 7.25”

9—Drive Shaft........................................................ (Qty 1)

Rear, Left Hand, 50.00”

5—Connecting Bar................................................. (Qty 2)

48.00”

4—Drive Shaft........................................................ (Qty 1)

Rear, Right Hand, 50.00”

10—HRR Removeable Handle Assembly ............. (Qty 1)

HKT-8163-Rotation Hardware Kit

ASZ-0101 (2X)

LUB-0101 (2X)

CLP-1100-F (2X)CTP-1075-B (2X)

BLT-6850-M8 (8X)

BLT-6822-H (4X) LBL-0105 (16X)

BLT-6824-M8 (2X)

8—L Post ................................................................ (Qty 2)

Gen2, Roller Cap, 9.25”

Rear

Front

Rear

Front

42”

60”

Neoprene Washer (outside)

M6 T-Insert

Neoprene Washer (inside)

Fender Washer

M6 Lock Nut

Right Rear

6.375”

Left Rear

6.375”

HRR-E-SP ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

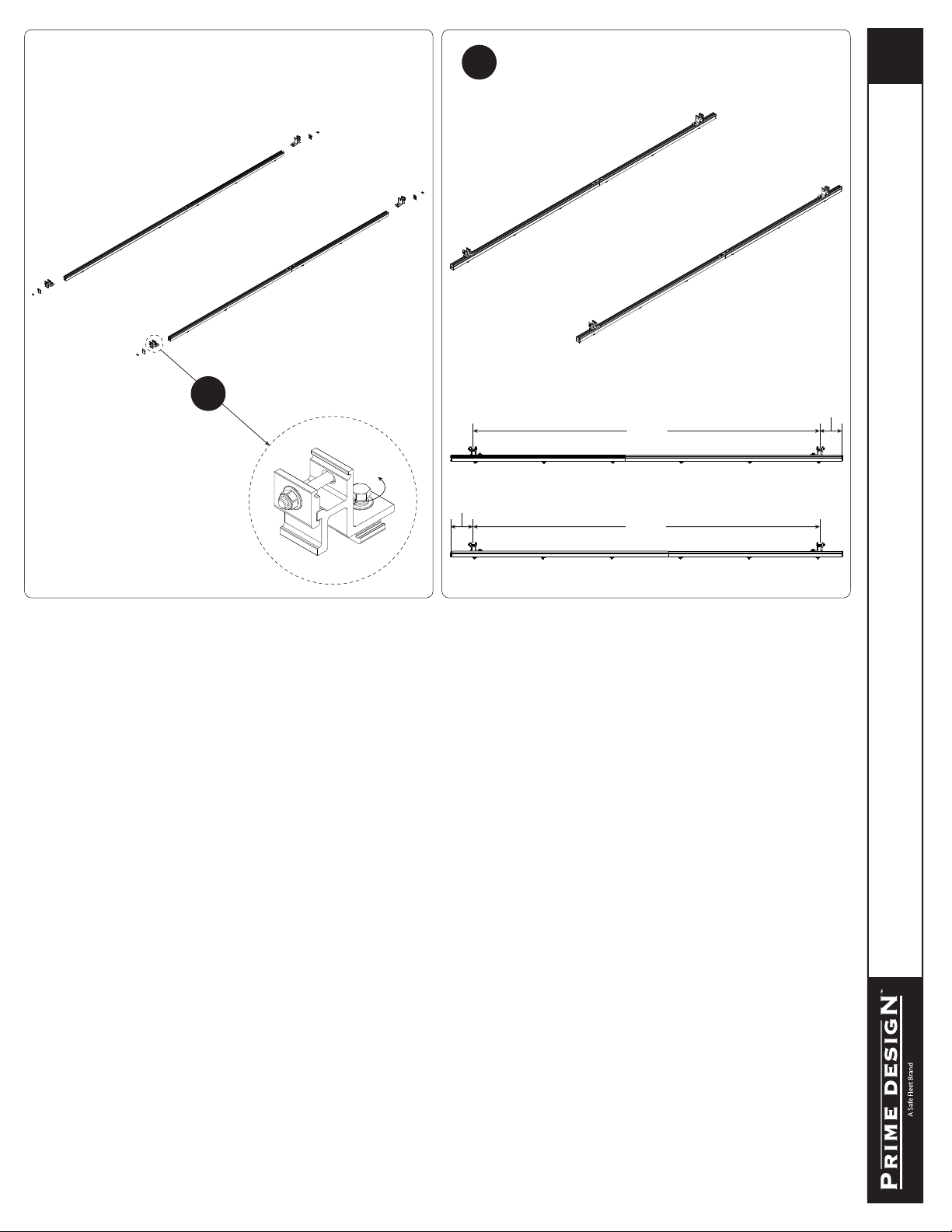

Assemble Channel hardware

through roof as shown, but

do not tighten.

0.1

Slide the upper and lower

Channel Connectors into

Channels and align holes

0.2

0.3

Slide Channels onto

Mounting Brackets

0.4

Torque screws to 90 in-lbs

M8 x 40MM Bolt

0.5 Set to specied distances shown below, then torque Mounting

hardware nuts to 80 in-lbs.

FBM-0057

MOUNTING BRACKETS

Right Rear

96.00”

5.375”

Left Rear

96.00”

5.375”

HRR-E-SP ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

0.6 Loosen bolts

0.7 Set to distances then torque Bracket nuts to 90 in-lbs

3/17

Rear

Front

Even

Front

Rear

RIGHT ROTATION ASSEMBLY

CROSSBARS CROSSBAR ADJUSTMENT

HRR-E-SP ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

1.1

Torque to

90 in-lbs

1.2

HRR-E-SP ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

REAR DRIVE SHAFT

2.1

2.2

2.3

Torque to

90 in-lbs

2.4

CYLINDER HARDWARE CONNECTING BAR

3.2

4.1

3.1

4.2

HRR-E-SP ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

FRONT DRIVE SHAFT

L POST

SEE QUICK START GUIDE FOR ADJUSTMENTS

CONNECTING BAR FASTENERS

7.2

Torque to 90 in-lbs

7.1

Z POST

SEE QUICK START GUIDE FOR ADJUSTMENTS

5.2

5.3

8.2

Torque to 90 in-lbs

8.1

5.1

10/17

HRR-E-SP ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION

LEFT ROTATION ASSEMBLY

REAR DRIVE SHAFT

9.1

Torque to

90 in-lbs

9.2

9.3

9.4

HRR-E-SP ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION

CYLINDER HARDWARE

FRONT DRIVE SHAFT CONNECTING BAR FASTENERS

CONNECTING BAR

10.2

10.1

11.1

11.2

12.2

12.1

12.3
