Saeco 10002520 Instrucciones de funcionamiento

Saeco

International Group S.p.A.

Via Torretta, 240

I-40041 Gaggio Montano, Bologna

Tel: + 39 0534 771111

Fax: + 39 0534 31025

www.saeco.com

Type SUP031OR Cod.15000724 Rev.00 del 28-08-06

The manufacturer reserves the right to change the features of the product without prior notice.

Le producteur se réserve le droit d“apporter toutes modifications sans préavis.

Operation and maintenance manual

Before using the machine, please read the attached operating instructions.

Carefully read the safety rules

Mode d'emploi

Veuillez lire attentivement le mode d'emploi

(notamment les consignes de sécurité) avant d'utiliser l'appareil.

FOR HOUSEHOLD USE ONLY

The manufacturer reserves the right to change the features of the product without prior notice.

Le producteur se réserve le droit d“apporter toutes modifications sans préavis.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed to reduce the risk of fire, electric shock, and/or injury to persons,

including the following:

1Read all instructions and information in this instruction book and any

other literature included in this carton referring to this product before

operating or using this appliance.

2Do not touch hot surfaces. Use handles or knobs.

3To protect against fire, electric shock and personal injury do not immerse

cord, plugs or appliance in water or other liquid.

4Close supervision is necessary when any appliance is used by or near

children.

5Unplug from outlet when not in use and before cleaning. Allow to

cool before putting on or taking off parts, and before cleaning the

appliance.

6Do not operate any appliance with a damaged cord or plug or after

the appliance malfunctions or has been damaged in any way. Return

appliance to the nearest authorized service centre for examination,

repair or adjustment.

7The use of accessory attachments not recommended by the appliance

manufacturer may result in fire, electric shock or personal injury.

8Do not use outdoors.

9Do not let cord hang over edge of table or counter, or touch hot

surfaces.

10 Do not place on or near a hot gas or electric burner, or in a heated

oven.

11 Always turn appliance “OFF”, then plug cord into the wall outlet. To

disconnect, turn switch to “OFF”, then remove plug from wall outlet.

12 Do not use appliance for other than intended household use.

13 Use extreme caution when using hot steam.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use only. Any servicing, other than cleaning

and user maintenance, should be performed by an authorized service

centre. Do not immerse machine in water. To reduce the risk of fire or

electric shock, do not disassemble the machine. There are no parts inside

the machine serviceable by the user. Repair should be done by authorized

service personnel only.

1Check voltage to be sure that the voltage indicated on the nameplate

corresponds with your voltage.

2Never use warm or hot water to fill the water tank. Use cold water only.

3Keep your hands and the cord away from hot parts of the appliance

during operation.

4Never clean with scrubbing powders or harsh cleaners. Simply use a soft

cloth dampened with water.

5For optimal taste of your coffee, use purified or bottled water. Periodic

descaling is still recommended every 2-3 months.

INSTRUCTIONS FOR THE POWER

SUPPLY CORD

AA short power-supply cord is provided to reduce risks of tangling or

tripping over a longer cord.

BLonger extension cords are available and may be used if care is exercised in

their use.

CIf a long extension cord is used:

1 the marked electrical rating of the extension cord should be at least as great

as the electrical rating of the appliance.

2 if the appliance is of the grounded type, the extension cord should be a

grounding type

3 the cord should not hang from the table to avoid the risk of tangling or

tripping.

CONTENTS

GENERALINFORMATION................................................................................................5

APPLIANCE.......................................................................................................................6

ACCESSORIES..............................................................................................................................................6

INSTALLATION..................................................................................................................7

STARTING THE MACHINE.............................................................................................................................7

“AQUAPRIMA” FILTER...................................................................................................................................8

CONTROLPANEL.............................................................................................................9

ADJUSTMENTS..............................................................................................................10

COFFEE VOLUMEADJUSTMENT PER CUP..............................................................................................10

"AROMA" (OPTI-DOSE) INDICATES THE COFFEE DOSE PER CUP........................................................10

DRIP TRAY HEIGHTADJUSTMENT............................................................................................................10

COFFEE GRINDERADJUSTMENT.............................................................................................................11

COFFEE BREWING........................................................................................................12

HOT WATER DISPENSING.............................................................................................13

CAPPUCCINO.................................................................................................................14

DESCALING....................................................................................................................15

CLEANINGAND MAINTENANCE...................................................................................17

HOW TO CLEAN THE MACHINE.................................................................................................................17

CLEANING THE BREW GROUP..................................................................................................................18

TROUBLESHOOTING.....................................................................................................19

SAFETY RULES..............................................................................................................20

TECHNICALDATA...........................................................................................................22

GENERAL INFORMATION

This coffee machine is suitable for preparing espresso coffee using coffee beans, and it is equipped with

a device to dispense steam and hot water.

The machine is designed for domestic use only and is not suitable for heavy or professional use.

Warning: no liability is assumed for any damage caused by:

• incorrect use not in accordance with the intended uses;

• repairs not carried out by authorized customer service centres;

• tampering with the power cable;

• tampering with any part of the machine;

• the use of non-original spare parts and accessories;

• failure to descale the machine or use at temperatures below 0°C (32°F).

IN THESE CASES, THE WARRANTY IS NOT VALID.

THE WARNING TRIANGLE INDICATES ALL IMPORTANT

INSTRUCTIONS FOR THE USER’S SAFETY. PLEASE FOLLOW THESE

INSTRUCTIONS CAREFULLY TO PREVENT SERIOUS INJURIES!

HOW TO USE THESE OPERATING INSTRUCTIONS.

Keep these operating instructions in a safe place and make them available to anyone else who may use the

coffee machine. For further information or in case of problems, please refer to any authorized service centre.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

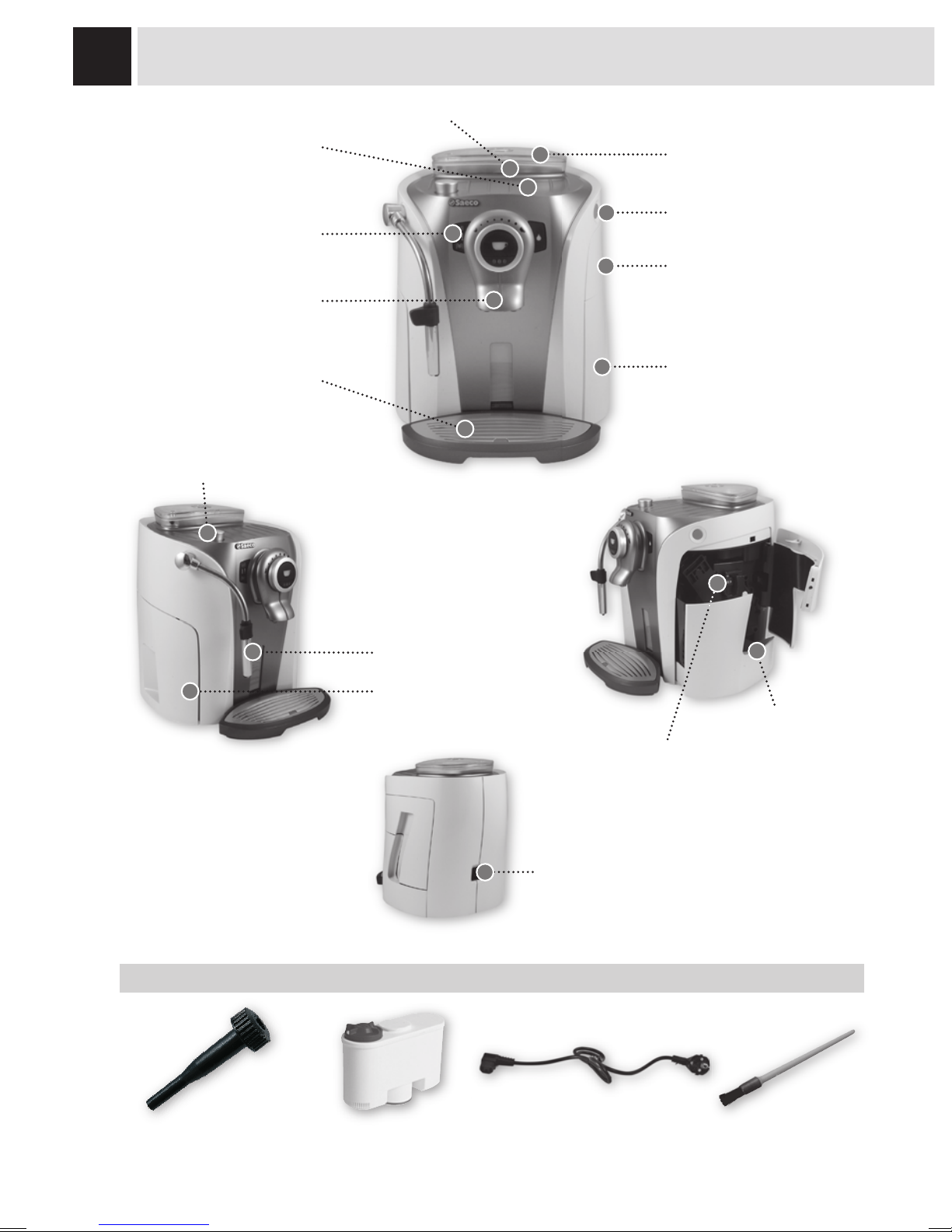

APPLIANCE

ACCESSORIES

“Aqua Prima”

water ﬁ lter (optional)

Power cable Cleaning brush

Brew Group

Coffee grounds drawer

Socket for power cable

Coffee bean hopper

Cup stacking surface

Power button

Service door

Coffee bean hopper cover

Drip tray

Control panel

Dispensing head

Drip tray + grill and ﬂ oat

Hot water / steam

spout

Water tank

Hot water / steam knob

Grinder adjustment key

1 2

8 9

4 5 6

INSTALLATION

STARTING THE MACHINE

Make sure the power button is not pressed and the machine is turned off. Check the machine features on

the label on the bottom of the appliance.

Lift the cover of the coffee bean

hopper. Remove the water tank.

We recommend installing the

“Aqua Prima” water ﬁ lter (see

page 8).

Fill the container with coffee

beans. Close the cover placing

it correctly on the hopper.

Fill the tank with fresh drinking

water up to the MAX level.

Reinsert the tank.

Firmly push down the power

button to turn on the machine.

The machine performs a self-

test.

Insert the plug into the socket

located in the rear panel of the

machine and insert the other

end into a socket with suitable

current.

Place a container beneath the

steam spout. Turn the knob until the

position is reached.

Press the water button. The

indicator light turns on.

The machine automatically primes the circuit. If this operation is not completed, proceed manually as described

from step 7 to 12.

1 2 3

Wait until a steady ﬂ ow of water

comes out of the spout. Press the water button again.

The indicator light turns off.

Remove the container. The

machine is ready for use.

Turn the knob until it is in the

rest position ( ).

Remove the “Aqua Prima” ﬁ lter

from its packaging. Enter the

date of the current month.

Fill the tank with fresh water. Let

the ﬁ lter soak for 30 minutes.

After 30 minutes discard the

water in the tank and reﬁ ll with

fresh water.

Insert the ﬁ lter in the empty tank.

The reference mark and the

groove must match. Push ﬁ rmly

until it is completely inserted.

Place a container beneath the steam

spout. Dispense the water in the

tank using the hot water function

(see page 13).

Fill the tank again with fresh

drinking water.

The machine is ready for use.

“AQUAPRIMA” WATER FILTER (OPTIONAL)

To improve the quality of the water you use, it is recommended to install the “Aqua Prima” ﬁ lter. Before

using it, leave the ﬁ lter immersed in the tank for 30 minutes.

“AQUA PRIMA” WATER FILTER

When the correct temperature is reached, the machine performs a rinse cycle of the internal circuits.Asmall

amount of water is dispensed; during this phase, the lights ﬂ ash counterclockwise. Wait for this cycle to be

completed.

CONTROL PANEL

Coffee dose adjusting knob (see page 10).

Coffee button:

• slow ﬂ ash:1 coffee has been selected (the button has been pushed

once).

• quick ﬂ ash: 2 coffees have been selected (the button has been

pushed twice).

Hot water button:

• off: steam function is selected

• on: hot water function is

selected

Ground coffee quantity button (Opti-dose) (see page 10).

Alarm light:

• permanently on (one or more events): signals the machine is out of coffee, that the

water tank is empty, or the drip tray is full.

• on and slowly ﬂ ashing (one or more events): signals that the Brew Group is not

inserted, the grounds drawer is not inserted, the cover of the coffee hopper is not closed,

the service door is open.

• on and quickly ﬂ ashing: signals the need to prime the water circuit.

Descaling light:

• on and ﬂ ashing: signals the need to perform a descaling cycle (see page 15).

Machine ready light:

• permanently on: signals that the machine is ready for use.

• on and ﬂ ashing: signals that the machine is warming up.

Alarm light to empty the coffee grounds drawer:

• permanently on: signals the need to empty the grounds drawer; this operation must be

performed with the machine turned on (steps 4 and 5, page 17).

If the and lights ﬂ ash alternately, switch off the machine and turn it on again after 30 seconds. If this

signal appears again, contact the customer service centre.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cafetera de Saeco

Saeco

Saeco NEXTAGE CAP010 Guía del usuario

Saeco

Saeco Group 200 Manual de usuario

Saeco

Saeco PicoBaristo HD8927 Manual de usuario

Saeco

Saeco 740802409 Manual de usuario

Saeco

Saeco XSMALL HD8642 Instrucciones de montaje

Saeco

Saeco Minuto HD8867/11 Manual de usuario

Saeco

Saeco INTELIA EVO HD8753 Manual de usuario

Saeco

Saeco Gran Crema Sin010 Manual de usuario

Saeco

Saeco HD8914 Manual de usuario

Saeco

Saeco Office One SUP028R Manual de usuario

Saeco

Saeco AROMA SM Instrucciones de uso

Saeco

Saeco Intuita HD8750 Manual de usuario

Saeco

Saeco Intelia Evo Bella HD8770 Manual de usuario

Saeco

Saeco Incanto SUP021 YDR Manual de usuario

Saeco

Saeco Incanto HD8918 Manual de usuario

Saeco

Saeco Saeco Estrosa HD8527/01 Manual de usuario

Saeco

Saeco AROMA COMPACT SE Instrucciones de uso

Saeco

Saeco Gran Crema Sin010 Manual de usuario

Saeco

Saeco 721439311 Manual de usuario

Saeco

Saeco Philips Intelia HD8752 Manual de usuario

Saeco

Saeco Lirika SUP041EU Manual de usuario

Saeco

Saeco Tchibo Cafissimo Series HD8603 Manual de usuario

Saeco

Saeco Moltio HD8769 Manual de usuario

Saeco

Saeco Energica HD8852/47 Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Philips

Philips HL3844N Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario

LAVAZZA

LAVAZZA CLASSY PLUS Manual de usuario
