S.R.Smith MultiLift 2 Guía

700-9700 7.14.2022

multiLiftTM2 POOL LIFT

S.R. SMITH, LLC

CORPORATE HEADQUARTERS

P.O. Box 400 • 1017 S.W. Berg Parkway

Canby, Oregon 97013 USA

Phone (503) 266 2231 • Fax (503) 266 4334

www.srsmith.com

OWNER’S MANUAL

MAINTENANCE PROCEDURES

700-9700 7.14.2022
2

TABLE OF CONTENTS
DECK PROFILE SHEET CONFIRMATION ..................................................................................3
INTRODUCTION ..................................................................................................................4
Using the multiLift™2 ..........................................................................................................4
WARNINGS AND SAFETY SUMMARY.......................................................................................5
PRODUCT OVERVIEW ..........................................................................................................6
COMPONENT DESCRIPTION..................................................................................................7
UNPACKING & ASSEMBLY INSTRUCTIONS............................................................................11
POOL DECK INSTALLATION FOR THE multiLift2.....................................................................24
INSTALLING ANCHORS INTO EXISTING CONCRETE DECK……………………………………………………………...25
INSTALLING ANCHOR JIG INTO NEW CONCRETE DECK…………………………………………………………………..28
USING THE multiLift2 ........................................................................................................29
TRANSFERRING THE USER TO THE WATER……………………………………………………………………..30
STANDARD ACCESSORIES/OPTIONAL ACCESSORIES ............................................................31
MAINTENANCE and CLEANING ............................................................................................31
TROUBLE SHOOTING.........................................................................................................32
LONG-TERM STORAGE .......................................................................................................32
WARRANTY INFORMATION .................................................................................................33
SPECIFICATIONS ..............................................................................................................34
1. Dimensions/Capacity……...………………………………………………………………………………………….34
2. Actuator...………………………………………………………………………………………………………………34
3. Battery…...……………………………………………………………………………………………………………..34
4. Range of MotionInformation………………………………………………………………………………………….34
5. Noise……………………………………………………………………………………………………………………34
6. Materials and Finish Information…………………………………………………………………………………….34
APPENDIX A: multiLift2 SEAT w/FOOTREST (160-9200).........................................................35
APPENDIX B: NEW CONSTRUCTION JIG (500-5000A) ............................................................36
APPENDIX C: MULTILIFT2 POOL LIFT (580-0000)..................................................................37
















PRODUCT REGISTRATION

Stay informed about the latest product updates and safety information. Visit
srsmith.com/en-us/customer-service/product-registration/ to register your lift TODAY!

700-9700 7.14.2022

DECK PROFILE SHEET CONFIRMATION

Aquatic access lifts are application specific. A completed Deck Profile Sheet helps to ensure the lift purchased

for the application will work in accordance with ADA guidelines. S.R.Smith reviews all submitted Deck Profile

Sheets as a service to our customers, free of charge. Before installing the pool lift, the installer must review and

confirm the information provided on the Deck Profile Sheet. If the description of the application does not match

the installation site, a new Deck Profile Sheet must be completed and submitted to S.R.Smith.

NOTE: FAILURE TO COMPLETE AN ACCURATE DECK PROFILE SHEET MAY RESULT IN THE LIFT NOT

MEETING ADA COMPLIANCE GUIDELINES.

To complete the Deck Profile Sheet online, visit www.srsmith.com/liftprofile, contact Customer Service at (800)

824-4387 or email.

700-9700 7.14.2022

READ THESE INSTRUCTIONS IN THEIR ENTIRETY BEFORE BEGINNING

INSTALLATION.

INTRODUCTION

The purpose of this document is to provide information relating to the installation, safe operation, care and

maintenance of the multiLift2.

Intended Lift User

S.R.Smith’s lifts have been designed to assist individuals requiring assistance entering or exiting a swimming

pool or spa. The user must not exceed the weight limit of the product (350 lb. / 158.75 kg). It is the responsibility

of the lift owner to ensure that safety procedures are put in place and a risk assessment is completed. Mental or

physical disabilities may require assisted transfer, and the owner is responsible for determining the number of

qualified attendants to complete the poolside transfer and the number of persons required to be in the water,

ready to receive and assist the user. The seatbelt must be attached to the seat, fully fastened and used during

each transfer.

Our goal is to provide our customers with the most advanced and innovative designs offering exceptional quality

at affordable prices. All S.R.Smith lifts meet the specifications set forth by the Access Board - ADAAG 2004.

The lift system and AC powered battery charger complies with EN60601-1-2, 2007/03.

Using the multiLift2

Obey all User Instructions listed in the Owner’s Manual whenever using lift. Obey all Caution, Warning,

Operating Instruction(s) and Labels located on the lift whenever using. It is the responsibility of the lift Owner to

ensure that the correct safety procedures have been put in place and a risk assessment carried out. If a User is

mentally challenged or has physical disabilities these issues must be considered to determine the number of

persons required to complete the transfer onto the seat and the number of persons required to be in the water,

ready to receive the User. If the multiLift2 will be used by a disabled person living on their own, a communication

device should be installed in the area of use to call for assistance in the event of an emergency. Only persons

healthy enough for water activities should use the multiLift2. Users should consult with their physician to

determine if water activities are appropriate for the User. Keep fingers and hands clear of lift arms during use.

Model / Product

No.______

Product Name

___________

S.R. Smith, LLC

PO Box 400

1017 SW Berg Parkway

Canby, Oregon 97013 USA

Phone: 503-266-2231

Fax: 503-266-4334

www.srsmith.com

Made in USA

SN S

24 VDC

700-9700 7.14.2022

WARNINGS AND SAFETY SUMMARY

DANGER –FAILURE TO FOLLOW THESE WARNINGS, INSTRUCTIONS AND THE OWNER’S MANUAL MAY RESULT IN SEROUS

INJURY OR DEATH

ADA GUIDELINE SUMMARY* (USA Only)

1009.2.1 Pool Lift Location

Pool lift shall be located where the water level does not exceed 48”. If entire pool water level exceeds 48”, place

pool lift where convenient.

1009.2.2 Seat Location

In the raised position, the centerline of the seat shall be located over the deck a minimum of 16” from the edge of

the pool.

1009.2.3 Clear Deck Space

On the side of the seat opposite the water; a clear deck space shall be provided parallel with the seat. The

space shall be 36” wide minimum and shall extend forward 48” minimum from a line located 12” behind the rear

edge of the seat.

1009.2.4 Seat Height

The lift shall stop at 16” – 19” measured from the deck to the top of the seat surface when in the loading position.

1009.2.8 Submerged Depth

The lift shall submerge the seat a minimum of 18” below the stationary water level.

*Compliance with ADA is the responsibility of the pool owner. Visit www.ada.gov for complete guidelines.

700-9700 7.14.2022

multiLift2 AQUATIC LIFT SYSTEM

PRODUCT OVERVIEW

The multiLift2 Aquatic Lift is a fixed lift system designed so that individuals with disabilities and mobility

impairments can have access to residential, hospitality and multi-unit facility swimming pools or spas. The

multiLift2 is powered by a 24-volt rechargeable battery operated by a screw driven electronic actuator that

provides the lifting and lowering motions. Following all instructions in the Owner’s Manual and all product labels

is necessary to achieve safe, reliable, and proper performance of the lift and avoid injury. This ensures

consistent safe operation and minimizes service problems.

The multiLift2 has a mast height of 58.5 in / 148.6 cm above the deck. It is intended to be used with simple pool

gutter configurations having a deck to water distance of no more than 14.5”, see Figure 19 on page 24 to

determine if the multiLift2 is appropriate for use on a specific pool. The maximum weight capacity for multiLift2 is

350 lb. / 158.75 kg. Only persons healthy enough for water activities should use the multiLift2. Users should

consult with their physician to determine if water activities are appropriate for the user.

multiLift2 - PRODUCT COMPONENTS

Figure 1

700-9700 7.14.2022

COMPONENT DESCRIPTION

The lift is made up of several main components:

multiLift2 Assembly- Primary lift assembly includes frame components, mounting base, and actuator. All metal

lift components are manufactured from stainless steel or aluminum and powder-coated for additional corrosion

protection. The multiLift2 can be assembled in either a right side or left side, field reversible, seat configuration.

Seat Assembly - The seat is manufactured from roto-molded plastic with a stainless-steel frame. The seat

comes standard with a seatbelt. The seatbelt must be used during each use. It is recommended that the seat be

rinsed off with fresh water between each use and cleansed daily with a disinfectant solution of 1:100 dilution of

household bleach to fresh water and then rinsed with fresh water. In the event of a contamination incident such

as patient/user excreta - cleanse seat and seatbelt immediately with the above disinfectant solution. Do not use

seatbelt if it is damaged or becomes worn.

The armrests are designed for support when transferring onto the seat. They can be rotated up out of the way

during transfer.

The lift seat assembly is designed to be used exclusively with S.R.Smith aquatic access lifts.

Footrest- The footrest is constructed of roto-molded plastic and is easily removable.

Control Box - The LiftOperator unit controls all lift operations identical to the user handset.

Two cables connect to the bottom of the Control Box to enable operation of the lift. The

largest connector is for the hand control. Connector # 2 is for the actuator cable.

Touchpad Control –

The touchpad control arrow keys can be used in the event the Hand Control is out of

reach or fails. Simply press and hold the arrow for the desired action for one

movement at a time –Up, Down, Releasing the Arrow stops movement.

Battery Level LED Indicators –

The Battery Level LED Indicators show battery charge levels. The LED’s will illuminate when either the

touchpad control or the Hand Control is activated and will stay lit for 10 seconds. At greater than 50% the

LED glows Green, at less than 50% the LED glows Amber, and less than 25% the LED glows Red and

indicates the battery requires charging. If the less than 25% LED glows Red, do not operate the lift.

Remove the battery and fully charge before use.

Service Required LED –

The Service Required LED will illuminate when the battery pack has been removed/replaced 120 times -

approximately once every 4 months. This indicates that required maintenance for the lift must be

completed. Please see the Maintenance Section of the Lift Owner’s Manual for the requirements. The

Service Required LED can be reset by inserting a standard FAT-formatted USB mass storage device

(not included) into the USB Port on the bottom of the controller. When the service light is illuminated

the lift must not be used until required maintenance is performed.

CONNECTOR 2

(ACTUATOR

CABLE)

700-9700 7.14.2022

Emergency Stop Button –

In the event of an emergency, or if you need to stop lift movement immediately, pressing the Emergency

Stop Button (red button on the control) will stop all lift movement. At the same time an audible alert will

sound for 10 sec. then pause for 5 sec. and then the sequence will repeat until the button is reset by

turning it in the direction of the arrows on the button (clockwise). The Emergency Alert LED will also flash

Red when the button is pressed and will remain flashing until the button is reset.

The Emergency Alert (audible and LED) can be activated by pressing any two buttons on the Hand

Control at the same time (provided with the lift). This will stop all lift movement and activate the audible

alert and the Red LED will flash. Once both buttons are released, the lift will return to normal operation

and the emergency audible alert will silence.

USB Port –

The LiftOperator control contains a USB port that is used to download the performance log of the lift.

Using any standard FAT file formatted USB memory stick (widely available through retail outlets) insert

the stick into the slot on the bottom of the control on the far-right hand side. Press any of the touchpad

control arrows; all three of the Battery Level LED’s will flash. During downloading the Green greater than

50% Battery Level LED will flash. If the unit has a problem downloading the performance log the Red

less than 25% LED will flash. Remove the USB from the port and re-insert it. If the Red 25% LED

flashes again, confirm that the USB you are using is FAT file formatted. The information from the USB

can be downloaded to a PC for review and/or copied to a spread sheet. The performance log will retain

approximately 7,600 events. Once the file is full it will remove the oldest event and replace with the

newest. After the summary data, the events are shown with the oldest first. The first column is the time

in seconds from that last event. The second column is the text describing the event. The third column is

duration of the activity noted in seconds.

An example of a short log file:

Activity Description

dev_id_upper,0 Programming data

dev_id_lower,1 Programming data

fw_rev,90 Firmware rev.

batt_volt_float,24929 Non-loaded battery voltage in millivolts

batt_volt_load,21487 Loaded battery voltage in millivolts

batt_capacity,99 Estimated battery capacity in %

charge_starts,8 Number of times charging was attempted

charge_completes,1 Number of times charging was finished successfully

0, power_on,1 Connecting Battery Pack

0, key enable, Inserting Activation Key

2, alert pressed, Emergency Button pressed

3, alert released, Emergency Button released

8, lift_up,2 Lift movement - up

5, lift_down,2 Lift movement - down

4, turn_left,2 Lift movement - turn left

3, turn_right,1 Lift movement - turn right

308, key disable, Removing Activation Key

3, log write, USB File Download

700-9700 7.14.2022

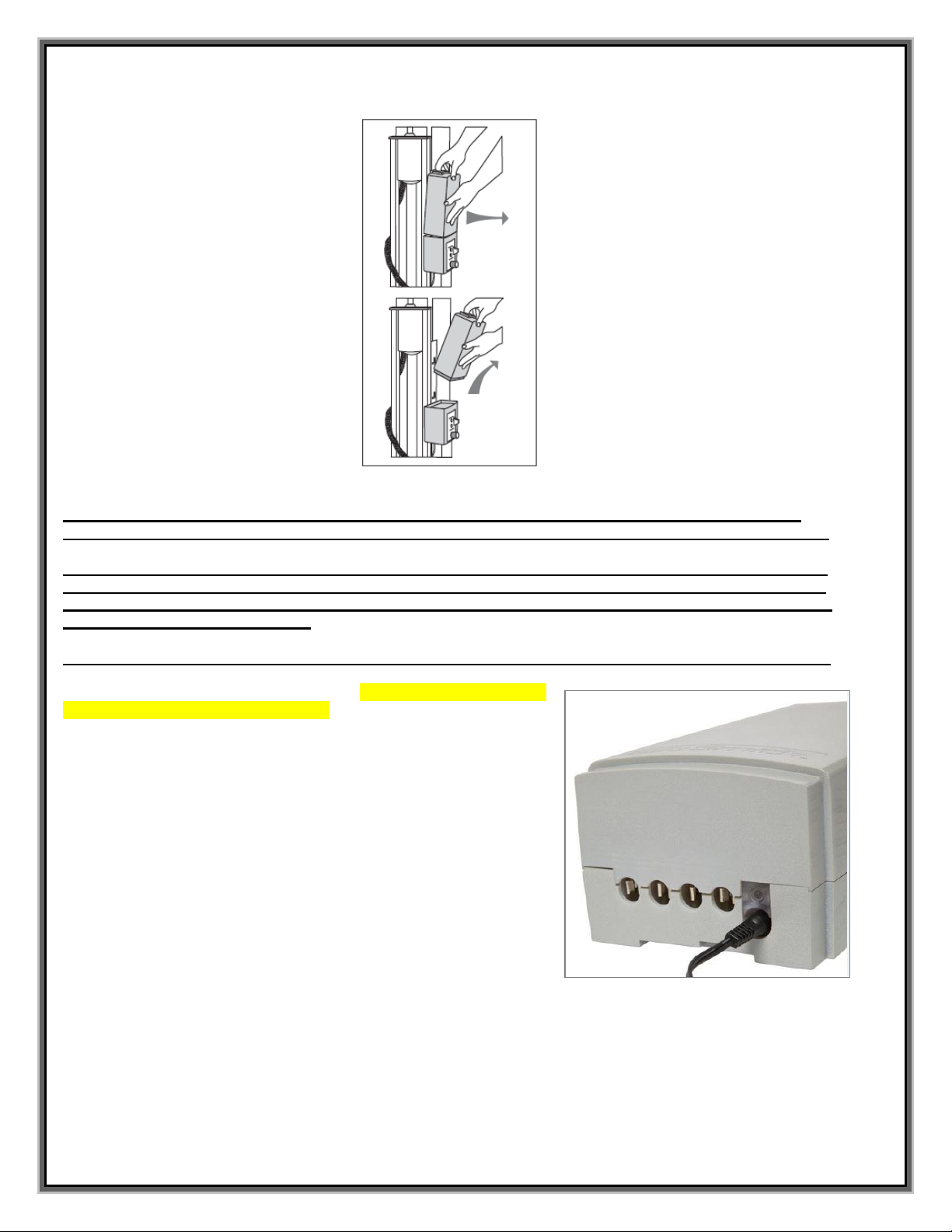

Battery Pack - The battery pack is located on top of the Control Box and is removable.

To remove - pull the battery pack away from the mounting plate so that the latch on the battery pack

clears the side tabs on the mounting plate - then lift the battery pack up and away from the Control Box.

To replace - align the battery pack with the mounting plate so that the latch will drop over the center tab

and that the bottom of the battery pack will fit in the recessed area on top of the Control Box. Lower the

battery pack in place so that the latch is fully captured by the mounting plate and the battery pack drops

fully seated onto the Control Box.

The battery must be completely removed from the lift and located away from the pool deck for charging.

The battery pack should be charged daily. Do not allow battery to fully

discharge, as it will shorten battery life.

The battery pack has an LED indicator near the plug-in-port. It will

glow Red when first plugged into the transformer. If the LED remains

Red, this indicates the battery pack needs charging. When fully

charged the LED will glow Green. If the battery is fully charged and is

plugged into the transformer the LED will glow Red for approximately

10 sec., then glow Green. If the LED flashes Red when plugged in

this indicates a fault with the battery and indicates the battery pack

should be replaced. All batteries are inspected prior to shipment. See

warranty policy regarding battery replacement for problems after sale.

Batteries have a normal lifespan of between 2-3 years, depending on

use and care. A fully charged battery will provide approximately 30 to

40-lifting cycles, depending on the weight of the users. Prior to use the

battery charge level should be checked by observing the LED indicator

above the charger plug to ensure sufficient charge level. The charger

must be connected to the battery to view the LED.

700-9700 7.14.2022

It is not necessary to fully discharge the battery prior to charging. Battery should be charged daily and cannot be

overcharged. It takes up to twelve hours to fully charge depending upon battery usage

Do not drop the battery, as it could cause the unit to fail. If the battery case is cracked do not use and replace the

battery. During temperature extremes beyond the range of 41˚F (5˚C) to 104˚F (40˚C) remove battery and place

in a controlled environment or battery life may be shortened.

Battery Disposal - The batteries located inside the battery pack are recyclable and shall be disposed of in

accordance with applicable local, state/provincial, or federal/national regulations.

Locking Plate Assembly - The battery pack can be secured to the mounting plate using the provided lock plate

assembly. To install open the lock plate so that the bottom tabs are moved close to one another to allow the lock

plate to be inserted into the slots on the mounting plate secured to the lift. Close the lock plate assembly so that

the tabs are captured by the slots. Insert a padlock (not provided) through the holes on the lock plate assembly

to secure it.

Hand Control –The two button unit controls lift movement. The arrows indicate direction of movement. The

Hand Control is fully waterproof and meets IP67 standards.

1001601

Tabla de contenidos

Otros manuales de Equipo de iluminación de S.R.Smith

S.R.Smith

S.R.Smith SlideAway Guía de instalación

S.R.Smith

S.R.Smith pLX-PL60 Guía de inicio rápido

S.R.Smith

S.R.Smith AQUABLAST Manual de usuario

S.R.Smith

S.R.Smith SWIM CLUB II FUNSLIDE Manual de usuario

S.R.Smith

S.R.Smith PT-6001 Power Tower Manual de usuario

S.R.Smith

S.R.Smith Power Tower PT-6002 Manual de usuario

S.R.Smith

S.R.Smith rogue2 Manual de usuario

S.R.Smith

S.R.Smith LM10 Manual de usuario

S.R.Smith

S.R.Smith R Series Manual de usuario

S.R.Smith

S.R.Smith TURBOTWISTER Manual de instrucciones

S.R.Smith

S.R.Smith TYPHOON Manual de instrucciones

S.R.Smith

S.R.Smith heliX2 Manual de instrucciones

S.R.Smith

S.R.Smith CYCLONE Manual de instrucciones

S.R.Smith

S.R.Smith PAL Series Manual de usuario

S.R.Smith

S.R.Smith Star Series Manual de usuario

S.R.Smith

S.R.Smith VORTEX Manual de instrucciones

S.R.Smith

S.R.Smith ROGUE GRAND RAPIDS Manual de usuario

S.R.Smith

S.R.Smith SRS-TX-30 Manual de usuario

S.R.Smith

S.R.Smith BYOS 2 Manual de programación

S.R.Smith

S.R.Smith 6004 Series Manual de usuario

S.R.Smith

S.R.Smith EDGE 6 Manual de programación

S.R.Smith

S.R.Smith FRONTIER II Manual de usuario

S.R.Smith

S.R.Smith rogue2 Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario

S.R.Smith multiLift 2 Guía

Manuales populares de Equipo de iluminación de otras marcas
