Ryobi RYRM8002 Manual de usuario

Suivez toutes les instructions lorsque vous assemblez cette ton-

deuse électrique autoportée. Si l’une des pièces est endommagée

ou manquante, elle devrait être remplacée avant de poursuivre.

AVERTISSEMENT : Pour réduire le risque de

blessure, vous devez lire et comprendre ce guide d’assemblage

avant d’assembler ce produit.

Siga todas las instrucciones al armar este podadora de pasto tipo

tractor. Si falta alguna pieza o hay piezas dañadas, dichas piezas

deben reemplazarse antes de proceder a utilizar el producto.

ADVERTENCIA: Para reducir el riesgo de lesiones,

debe leer y comprender esta guía de armado antes de intentar

armar este producto.

CONSERVER CE GUIDE POUR

FUTURE RÉFÉRENCE GUARDE ESTE GUÍA PARA

FUTURAS CONSULTAS

SAVE THIS GUIDE FOR FUTURE REFERENCE

Follow all instructions when assembling this riding lawn mower. If any parts are damaged or missing, those parts must be

replaced before proceeding.

WARNING: To reduce the risk of injury, you must read and understand this assembly guide before attempting

to assemble this product.

ASSEMBLY GUIDE

GUIDE D’ASSEMBLAGE

GUÍA DE ARMADO

ELECTRIC

ZERO TURN MOWER

TONDEUSE ÉLECTRIQUE

À BRAQUAGE ZÉRO

PODADORA ELÉCTRICA

DE GIRO CERO

RYRM8002/

RYRM8002CAN

Scan the QR Code to view an instructional video.

Lire le code QR pour afficher une vidéo d’instruction.

Escanee el código QR para ver un video instructivo.

2 — English

Rules for Safe Assembly ...................................................................................................................................................2

Symbols.............................................................................................................................................................................3

Tools Needed.....................................................................................................................................................................3

Unpacking .........................................................................................................................................................................4

Loose Parts List.................................................................................................................................................................5

Assembly....................................................................................................................................................................... 6-8

Final Preparation ........................................................................................................................................................... 8-9

WARNING:

Strictly adhere to all torque wrench tightening specifica-

tions. Failure to do so could cause serious personal injury.

Allinformation, illustrations, photographs, and specifications

contained in this manual are based on the latest product

information available at the time of publication. Due to

updates or other changes, there may be some differences in

this manual. We reserve the right to make product changes

at any time, without notice and without incurring any obliga-

tion to make the same or similar changes to any products

previously built or sold.

Any person attempting to assemble this product must

have proper training and experience. Read this manual

carefullyandfollowallassemblyproceduresasdescribed.

All assembly must be completed with the unit on a level

surface.

RULES FOR SAFE ASSEMBLY

TABLE OF CONTENTS

3 — English

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper

interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL NAME DESIGNATION/EXPLANATION

Safety Alert Indicates a potential personal injury hazard.

Electricity This product is considered to have hazardous voltage.

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL MEANING

DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or

serious injury.

WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or

serious injury.

CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or

moderate injury.

NOTICE: (Without Safety Alert Symbol) Indicates information considered important, but

not related to a potential injury (e.g. messages relating to property damage).

SYMBOLS

The following tools (not included or drawn to scale) are needed for assembly:

TORQUE WRENCH

TIRE PRESSURE GAUGE

TOOLS NEEDED

SOCKET WRENCH WITH 12 mm

AND 14 mm SOCKETS AND 6 mm HEX BIT

(IF NOT USING TOOL KIT PROVIDED)

4 — English

UNPACKING

Before you unpack, scan the QR code below to view an

instructional video.

Remove the bolts securing the corner and side braces

to the frame bottom, then lift the braces to remove.

Cut the nylon straps securing the front and rear wheel

axles to the frame.

Removeboxescontaininglooseparts, assemblyhardware,

and documentation.

Remove and set aside all accessible packaging and wrap

from unit and parts. Do not discard the packing material

until you have carefully inspected and satisfactorily oper-

ated the product.

WARNING:

If any parts on the Loose Parts List are already assem-

bled to your product when you unpack it, verify the part

is assembled correctly, is properly tightened, and is

torqued correctly (where applicable) before proceeding

to the next assembly step. Use of a product that may

have been improperly assembled could result in death

or serious personal injury.

Inspect the product carefully to make sure no breakage

or damage occurred during shipping.

If any parts are damaged or missing, please call

1-800-525-2579 for assistance.

NOTE: Mower should be assembled while positioned on

the frame bottom. Once assembly is complete, raise the

cutting deck to its highest position, position a ramp next to

the frame bottom, release the parking brake and slowly and

carefully drive mower off frame.

WARNING:

Use extra care when driving the mower off of the frame.

Press the low speed drive button and carefully move the

joystick and/or press the brake pedal as needed to con-

trol the speed. When driving the mower off of the frame,

do not exceed the maximum recommended operation

angle of 15°. Failure to follow these instructions can result

in loss of control and result in death, serious personal

injury, or property damage.

NOTICE:

If no ramp is available, slowly and carefully drive the

mower off the frame in reverse while looking down and

behind. Driving the mower off the frame in the forward

direction without a ramp can cause damage to the

mower’s cutting deck.

5 — English

LOOSE PARTS LIST

Key

No. Description Qty.

1 Side Discharge Assembly

Side Discharge Chute....................................... 1

Bolts and Nuts.............................................ea. 2

2 Joystick Assembly

Joystick ............................................................ 1

Dust cover ........................................................ 1

Hex screws....................................................... 2

3 Charger ................................................................ 1

4 Seat Back............................................................. 1

5 Towing Plate Assembly

Towing Plate ..................................................... 1

Bolts ................................................................. 2

6 Tool Bag ............................................................... 1

7 Keys ..................................................................... 3

Key

No. Description Qty.

Assembly Guide (Not Shown) .............................. 1

Operator’s Manual (Not Shown)........................... 1

WARNING:

If any parts are damaged or missing do not assemble

this product until the parts are replaced with new original

manufacturer’s parts or their equivalent. Assembly of this

product with damaged, missing, or incorrect parts could

result in serious personal injury.

6 — English

SEAT BACK

ASSEMBLY

MOUNTING

BRACKET

BOLT

Fig. 1

TAB

BOLT

NUT

INSTALLED

BOLT

MOUNTING

BRACKET

TAB

INSTALLED BOLT

WARNING:

Strictly adhere to all torque wrench tightening specifica-

tions. Failure to do so could cause serious personal injury.

WARNING:

Do not attempt to modify this product or create acces-

sories not recommended for use with this product. Any

such alteration or modification is misuse and could result

in a hazardous condition leading to possible serious

personal injury.

WARNING:

To prevent accidental starting that could cause serious

personal injury, always remove the start key from the tool

when you are assembling parts.

NOTE: The mower includes a side discharge chute that

can be installed as an option. For installation instructions,

see Installing the Side Discharge Chute in the Operation

section of the operator’s manual.

INSTALL THE SEAT BACK

See Figure 1.

Remove the bolts from the nuts fastened to the seat bot-

tom frame.

Place the seat back assembly over the outer edges of

the bottom frame mounting brackets and align the holes.

Allow the tab on the seat back to rest against the bottom

frame to assist in the alignment.

Thread the bolts into the nuts that are fastened to the

bottom frame. Hand tighten each bolt.

NOTE: The mower is shipped with an installed bolt on

each side of the seat back that has been left loosened

to aid in bracket alignment. Once the lower two bolts are

installed, tighten all three bolts on both sides to 40.5 ft-lb.

INSTALL THE JOYSTICK

See Figure 2.

Insert the joystick through the dust cover as shown.

Align the holes on the joystick to the holes on the mount-

ing shaft.

Insert the hex screws and tighten securely with the in-

cluded hex key.

Align the tabs on the dust cover with the base and press

down to lock the dust cover into place.

INSTALL THE TOWING PLATE

See Figure 3.

Align the holes in the towing plate with the holes in the

rear crossmember.

Install two hex head bolts and tighten securely.

ASSEMBLY

MOUNTING

SHAFT

JOYSTICK

DUST

COVER

HEX KEY

HEX

SCREW

Fig. 2

Fig. 3

HEX HEAD

BOLTS

TOWING

PLATE

DUST

COVER

TAB

7 — English

BATTERY QUICK-

CONNECT PLUGS

TAB

QUICK-CONNECT PORT

Fig. 4

ASSEMBLY

SEAT JOYSTICK

Fig. 5

CENTER EDGE

CONNECTING THE 80V BATTERIES

See Figures 4 - 5.

When shipped from the factory, the mower’s batteries are

disconnected.

To connect:

Place the joystick in the neutral andlocked position. (See

Learning to Drive the Mower in the Operation section

of the operator’s manual.)

Adjust the seat all the way forward.

Press the center edge on the battery compartment cover

to release the latch. The cover will raise to gain access

to the compartment below.

Install the battery pack’s quick-connect plugs. This plug

connects the batteries to the mower.

NOTE: Be sure each battery latch is locked to secure the

batteries.

Lower the lid to the battery compartment and press on

the center edge to engage the lock.

NOTE: Make sure the battery compartment cover is se-

curely locked before readjusting the seat. Check to be

sure the safety interlock cable is still connected.

CONNECTING THE 40V BATTERIES

See Figures 6 - 8.

When shipped from the factory, the mower’s batteries are

disconnected.

To connect:

Open the battery covers located on each side of the

mower.

Raise the battery from the port.

Remove the foam ring from the bottom of the port.

To reinstall, align the raised ribs on the battery pack with

grooves in the battery port and install the battery pack

into the mower.

Make sure the latch is securely locked into place.

Lowerthe battery cover and make sureit is closed securely.

Repeat the steps for the other batteries.

WARNING:

Make sure the latch on the bottom of the battery packs

snaps in place and the battery pack is fully seated and

secure in the mower’s battery port before beginning

operation. Failure to securely seat the battery packs could

cause the battery packs to fall out, resulting in serious

personal injury.

For complete charging instructions, refer to the Operator’s

Manuals for your battery packs and charger models.

80V

BATTERY

BATTERY LATCH

BATTERY

COMPARTMENT

COVER

8 — English

ASSEMBLY

CHECK TIRE PRESSURE

Check the air pressure in all tires before use. Improper air

pressure will affect handling, steering response, traction,

tire life, level cutting, and operator comfort. Be sure tires are

inflated to the pressure shown below.

NOTE:Tirepressureshould only be measuredor adjusted

when tires are cold.

Recommended

Pressure

Front Rear

19 PSI 18 PSI

WARNING:

Check the tire pressure carefully while inflating. Too much

air in the tire could cause the tire to burst, causing seri-

ous personal injury.

FINAL PREPARATION

CHARGE THE MOWER

See Figure 9.

Mower batteries must be fully charged before first use. To

verify mower batteries are fully charged, check the battery

level indicator.

To charge:

Insert charger plug into charging port on mower, making

sure it is properly connected.

Connectchargerto power supply using normal household

current of 120 V, AC only, 60 Hz.

Do not charge in an area of extreme heat or cold.

Removethechargerfromthemoweronceitisfullycharged

and ready for use.

Fig. 6 Fig. 7 Fig. 8

FOAM

BATTERY

COVER

9 — English

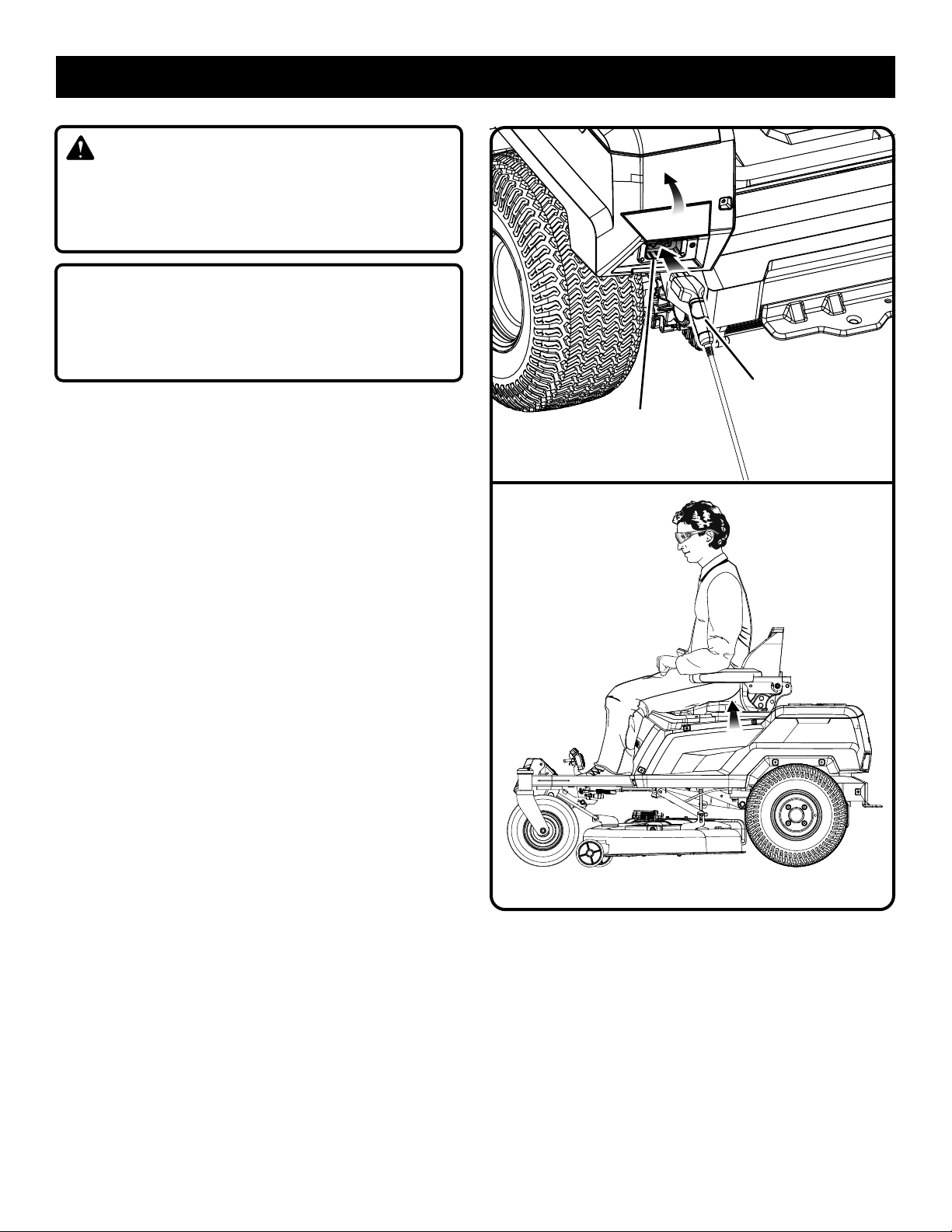

Fig. 10

FINAL PREPARATION

Fig. 9

CHARGER

PLUG

CHARGING

PORT

WARNING:

To avoid accidental starting or movement of the mower

that could result in death or serious personal injury,

always remove the start key and set the parking brake

when leaving the mower unattended.

NOTICE:

Always connect the mower to the charger when the unit

is not in use. If it is not possible to leave the mower char-

ger connected, make sure to charge the batteries fully at

least once a month.

TEST THE SAFETY INTERLOCK SYSTEM

See Figure 10.

This mower features a Safety Interlock System to protect

the operator by shutting off the blades if the operator leaves

the seat with the blades running. Test the system to be sure

it is working correctly.

To test:

Position the mower on a level surface.

Set the parking brake.

Make sure the joystick is in the locked, neutral position

and blade engage knob is down.

Install start key and turn to ON position.

Raise blade engage knob to activate blades.

Briefly lift off the seat, but do not get off the mower.

The blades should shut off within 5 seconds. If they don’t,

verify you connected the safety interlock cable as described

on page 6. If the cable is connected but the system still

doesn’t function, contact customer service. Do not operate

themoweruntilthe safety interlock system has been repaired.

VERIFY MOWER CONDITION

Inspect the entire product for damaged, missing, or loose

parts such as screws, nuts, bolts, caps, etc. Tighten securely

all fasteners and caps and do not operate this product until

any missing or damaged parts are replaced.

2 — Français

AVERTISSEMENT :

Respectez strictement toutes les spécifications de couplage

de la clé dynamométrique. Ne pas le faire pourrait causer

de graves blessures corporelles.

Toutes les informations, illustrations, photographies et

spécifications contenues dans ce manuel sont basées sur

les toutes dernières informations disponibles relativement au

produit au moment de la publication. En raison mises à jour ou

d’autres changements, il pourrait y avoir certaines différences

dans ce manuel. Nous nous réservons le droit d’effectuer des

changementsauproduiten tout temps, sans préavis et sansêtre

obligés de faire les mêmes changements ou des changements

similaires aux produits construit ou vendu auparavant.

Toute personne qui essaye d’assembler ce produit doit avoir

une formation et une expérience appropriées. Veuillez lire

ce manuel attentivement et suivre toutes les procédures

d’assemblage telles que décrites.

Toutl’assemblagede l’unité doit êtreeffectuésur une surface

à niveau.

RÈGLES À SUIVRE POUR UN ASSEMBLAGE SÉCURITAIRE

TABLE DES MATIÈRES

Règles à suivre pour un assemblage sécuritaire......................................................................................................................... 2

Symboles ....................................................................................................................................................................................3

Outils nécessaires .......................................................................................................................................................................3

Déballage ....................................................................................................................................................................................4

Liste des pièces lâches............................................................................................................................................................... 5

Assemblage..............................................................................................................................................................................6-8

Préparation finale .....................................................................................................................................................................8-9
