Russell Hobbs 13406 Manual de usuario

instructions

Read the instructions and keep them safe. Pass them on if you pass the coﬀee maker

on. Remove all packaging, but keep it till you know the coﬀee maker works.

important safeguards

Follow basic safety precautions, including:

1 The coﬀee maker must only be used by or under the supervision of a responsible

adult. Use and store the coﬀee maker out of reach of children.

2 Don’t put the coﬀee maker in liquid, don’t use it in a bathroom, near a

source of water, or outdoors.

3 Sit the coﬀee maker on a stable, level, heat-resistant surface.

4 The scald hazard lasts long after boiling. Keep the coﬀee maker and cable away from

the edges of worktops.

5 Steam will collect under the lid. To avoid the risk of scalding, don’t open the lid till

the coﬀee maker has cooled.

6 Check that the lid is properly closed before using the coﬀee maker.

7 Take care when pouring – don’t over-tilt the carafe.

8 Don’t connect the coﬀee maker to an external timer or remote control system.

9 Don’t touch hot surfaces e.g. carafe or hotplate. Use the handle and grip.

10 Route the cable so it doesn’t overhang and can’t be caught or tripped over

accidentally.

11 Unplug the coﬀee maker when not in use, before moving or cleaning. Let it cool

down before cleaning and storing away.

12 Fill the coﬀee maker from a jug or the carafe, not directly from the tap.

13 Don’t ﬁll the coﬀee maker above the max mark.

14 Put the carafe on the hotplate before brewing.

15 To stop the coﬀee maker, press the [button. The light beside the button will go out.

16 Before adding water, or reusing the coﬀee maker, let it cool for 10 minutes, to avoid

spitting.

17 Don’t use the coﬀee maker for any purpose other than those described in these

instructions.

18 Don’t put the carafe in a microwave oven.

19 Don’t try to reposition the carafe handle. You risk breaking the glass.

20 Keep the coﬀee maker, carafe, and cable away from hotplates, hobs, and burners.

21 Don’t use accessories unless we provide them.

22 Don’t use the coﬀee maker if it’s damaged or malfunctions.

23 If the cable or plug is damaged, return the coﬀee maker, to avoid hazard.

household use only

before using for the ﬁrst time

Fill the reservoir to the max mark with water, and run the coﬀee maker without coﬀee.

When it’s ﬁnished, discard the hot water and clean the coﬀee maker.

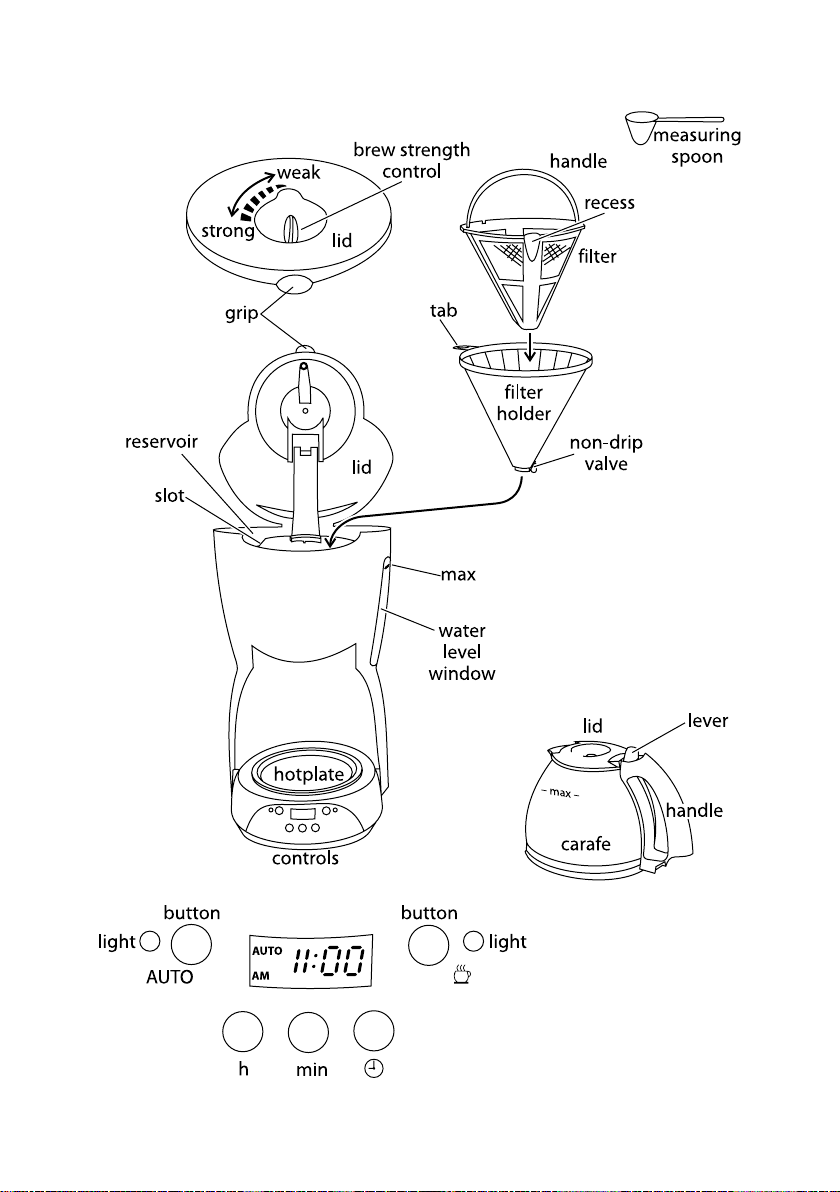

positioning

1 Sit the coﬀee maker on a stable, level, heat-resistant surface.

2 Route the cable so it doesn’t overhang, and can’t be tripped over or caught.

3 Don’t plug it in yet.

water ﬁll

4 Use the carafe to ﬁll the reservoir, to avoid overﬁlling.

5 Remove the carafe from the hotplate.

6 Pull the lever back towards the handle, to open the carafe.

7 Use the grip to open the coﬀee maker lid, to expose the reservoir, the ﬁlter holder,

and the ﬁlter.

8 Fill the reservoir with at least 2 cups of water, but don’t ﬁll above the max mark. If

you overﬁll, excess water will escape from the overﬂow at the rear of the coﬀee

maker.

9 Close the carafe lid, and sit the carafe on the hotplate.

coﬀee ﬁll

10 Put ﬁlter-ground coﬀee into the ﬁlter. The amount will vary with the type of coﬀee,

and individual taste, but we suggest starting with one scoop per cup of water.

11 Use the grip to close the coﬀee maker lid – it must cover the ﬁlter holder and the

reservoir before you power up the coﬀee maker.

brew strength

12 Turn the brew strength control (on top of the lid) anti-clockwise to strengthen the

brew, clockwise to lighten the brew.

13 It works by diverting some of the water past the coﬀee grounds.

power up

14 Plug the coﬀee maker into the power socket (switch the socket on, if it’s switchable).

15 The display will show 0:00, ﬂashing.

coﬀee now

16 To make coﬀee right away:

a) ignore the display

b) press the [button, the [light will come on

c) after a few seconds, coﬀee will drip into the carafe

coﬀee later

17 If you want to use the timer to make coﬀee later:

set the time now

a) Press and release the

h(hour) and min (minute) buttons to set the display to the

correct time

b) AM or PM will show at the side of the display – check you’ve got the right one

set the brewing time

c) press the Tbutton, and keep it pressed while you set the brewing time

d) press and release the

h(hour) and min (minute) buttons to set the display to the

time you want the coﬀee maker to start brewing

e) AM or PM will show at the bottom of the display – check you’ve got the right one

release the Tbutton – the display will revert to the correct time

g) now press and release the AUTO button to activate the timer – the AUTO light

will come on, and AUTO will appear in the display,

h) at the time you set, the AUTO light will go out, AUTO will disappear from the

screen, the [light will come on, and the coﬀee maker will start up

next time

i) next time you use the coﬀee maker, remember that the timer has already been

set – it’ll remember the time set until you unplug it, or set it again

18 If you need to cancel the timer before brewing has started, press and release the

AUTO button, the AUTO light will go out, and AUTO will disappear from the display.

19 If you need to stop the coﬀee maker whilst it’s brewing, press the [button. The [

light will go out.

,If you want to check the brewing time, press T. You must then press AUTO ,or you’ll

cancel the brewing.

done

20 When the brewing process has ﬁnished, the hotplate will stay on for 2 hours to keep

your coﬀee hot, then it’ll switch the hotplate oﬀ, and the [light will go out.

pouring

21 To pour, remove the carafe from the hotplate, and pour from the spout.

22 Replace the carafe on the hotplate to keep your coﬀee warm.

23 You may notice some resistance when you replace the carafe – this is caused by the

top of the carafe pushing against the non-drip valve.

a quick cup

24 You may remove the carafe to pour coﬀee at any time. The non-drip valve will stop

coﬀee dripping on to the hotplate.

25 To avoid overﬂowing, replace the carafe within 30 seconds. This may not sound

much, but its more than enough time to pour a couple of cups.

ﬁnished?

26 When the carafe is empty, press the [button to switch the hotplate oﬀ.

27 Unplug the coﬀee maker and let it cool down fully before cleaning, or for 10 minutes

before reﬁlling.

caution beware of steam when you open the lid

ground coﬀee

28 If you want to buy ready-ground coﬀee, medium-ground ﬁlter coﬀee will give you

the best results. The amount will vary with the type of coﬀee and your individual

taste. We suggest starting with two rounded teaspoons of medium-ground coﬀee

per cup.

storing coﬀee

29 Coﬀee is best kept in an airtight container in a cool dry place, or in the fridge.

Exposure to air oxidises coﬀee and allows the ﬂavour to evaporate.

milk

30There’s a great deal of contention on the subject of milk in coﬀee. Our view is that

personal taste should rule, not convention. If you like milk in your coﬀee, use warm

or hot milk, to avoid overcooling the coﬀee. To extract maximum ﬂavour from the

coﬀee, it should be cool enough not to scald or burn the mouth, but hot enough to

let the ﬂavour ﬁll the mouth, nose and sinuses, not just the taste buds.

bottled water

31 If you use bottled water, check that there are no added ingredients, ﬂavourings, etc.,

and use still water, not sparkling. The carbon dioxide which gives the sparkle will

adversely aﬀect the ﬂavour of your coﬀee.

taste

32 Don’t be tempted to reheat coﬀee in the coﬀee maker. You’ll damage the coﬀee

maker and the coﬀee will be undrinkable.

33 Clean the ﬁlter holder, ﬁlter, and carafe after each use. Residue from a previous brew

will spoil your coﬀee.

34If left for much more than an hour, chemical changes in the coﬀee liquor start to

aﬀect the ﬂavour. It’s best to pour it away and make a fresh pot.

care and maintenance

35 Unplug the coﬀee maker and let it cool down fully.

36Use the grip to open the lid.

37 Use the ﬁlter handle to lift out the ﬁlter, then tip the used coﬀee grounds into the

bin.

38Use the tab on the ﬁlter holder to lift the ﬁlter holder out of the coﬀee maker.

39Wipe the outer surfaces of the coﬀee maker with a damp cloth.

40 Wash the ﬁlter, ﬁlter holder and carafe in warm soapy water, rinse thoroughly and

dry.

41 Turn the ﬁlter to bring the recess on the side of the ﬁlter to the front, and replace it in

the ﬁlter holder.

42 Align the tab on the side of the ﬁlter holder with the slot inside the top of the coﬀee

maker.

43 Use the grip to close the coﬀee maker lid.

44 Replace the carafe on the hotplate.

45 Don’t wash any part in a dishwasher.

46 Don’t put the coﬀee maker in any liquid.

47 Don’t use harsh or abrasive cleaners or solvents.

descale regularly – even in soft water areas

Limescale may be white, coloured, even rusty-looking, but it’s normally visible.

Phosphate scale isn’t generally visible, but it’s there, even in soft water areas.

All scale causes overheating, and reduces the life of the coﬀee maker.

So, even with soft water, descale regularly, to help keep your coﬀee maker in working

order.

Use a proprietary brand of descaler suitable for use in plastic-bodied products. Follow

the instructions on the package of descaler. When descaling has ﬁnished, empty the

carafe and operate the coﬀee maker twice more with fresh water, but without coﬀee.

Discard the water to ensure that no chemical residues are left in the coﬀee maker.

,Products returned under guarantee with faults due to scale will be subject to a

repair charge.

connection

The product must be earthed. It has a 13A BS1362 fuse in a 13A BS1363

plug. To replace the plug, ﬁt the green/yellow wire to Eor E, the blue wire

to N, and the brown wire to L. Fit the cord grip. If in doubt, call an

electrician. Don’t use a non-rewireable plug unless the fuse cover is in

place. If you remove the plug, dispose of it.

service

If you ring Customer Service, please have the Model No. to hand, as we won’t be able

to help you without it. It’s on the rating plate (usually underneath the product).

The product isn’t user-serviceable. If it’s not working, read the instructions, check the

plug fuse and main fuse/circuit breaker. If it’s still not working, consult your retailer. If

that doesn’t solve the problem:

Pack carefully, with a note of your name, address, day phone number, and what’s

wrong. If under guarantee, say where and when purchased, and include proof of

purchase (till receipt). Send it to Customer Returns (address below right).

Customer Service Customer Returns

(correspondence only) Salton Europe Ltd

Salton Europe Ltd Heath Mill Road

Failsworth Wombourne

Manchester Wolverhampton

M35 0HS WV5 8AQ

Customer Service (serv[email protected])

telephone 0845 658 9700 (local rate number)

guarantee

Defects aﬀecting product functionality appearing within one year of purchase will be

corrected by replacement or repair provided the product is used and maintained in

accordance with the instructions. Your statutory rights are not aﬀected.

Documentation, packaging, and product speciﬁcations may change without notice.

online

www.russellhobbs.co.uk for more products.

439-814

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cafetera de Russell Hobbs

Russell Hobbs

Russell Hobbs RHCM50 Guía de instalación

Russell Hobbs

Russell Hobbs 18503 Hoja de información del producto

Russell Hobbs

Russell Hobbs 24390-56 Manual de usuario

Russell Hobbs

Russell Hobbs Allure Grind 20060-56 Manual de usuario

Russell Hobbs

Russell Hobbs Black Glass 23370-56 Manual de usuario

Russell Hobbs

Russell Hobbs 21710 -56 Manual de usuario

Russell Hobbs

Russell Hobbs 24030-56 Manual de usuario

Russell Hobbs

Russell Hobbs Essentials 18542 Manual de usuario

Russell Hobbs

Russell Hobbs 24210-56 Manual de usuario

Russell Hobbs

Russell Hobbs 24031-56 Manual de usuario

Russell Hobbs

Russell Hobbs 22620-56 Manual de usuario

Russell Hobbs

Russell Hobbs 19381-56 Manual de usuario

Russell Hobbs

Russell Hobbs 20680-56 Manual de usuario

Russell Hobbs

Russell Hobbs RH1915 Manual de usuario

Russell Hobbs

Russell Hobbs 21430-56 Manual de usuario

Russell Hobbs

Russell Hobbs 20133-56 Manual de usuario

Russell Hobbs

Russell Hobbs 20181 Manual de usuario

Russell Hobbs

Russell Hobbs Buckingham 20680 Manual de usuario

Russell Hobbs

Russell Hobbs 28250-56 Manual de usuario

Russell Hobbs

Russell Hobbs 14741-56-RH Manual de usuario

Russell Hobbs

Russell Hobbs CAFE BARISTA RHCM45 Guía de instalación

Russell Hobbs

Russell Hobbs 21430-56 Manual de usuario

Russell Hobbs

Russell Hobbs 28251 Manual de usuario

Russell Hobbs

Russell Hobbs 13402 Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Philips

Philips HL3844N Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario
