Real Time Automation, Inc.

1-800-249-1612

Firmware Version 8.7.53

460ECMM-N34

Protocol Gateway

Product User Guide

Real Time Automation, Inc.

1-800-249-1612

Trademarks

CompactLogix, ControlLogix, & PLC-5 are registered trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of the ODVA.

MicroLogix, RSLogix 500, and SLC are trademarks of Rockwell Automation, Inc. Microsoft, Windows, and Internet Explorer are registered

trademarks of Microsoft Corporation. BACnet®is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning

Engineers (ASHRAE). All other trademarks and registered trademarks are the property of their holders.

Limited Warranty

Real Time Automation, Inc. warrants that this product is free from defects and functions properly.

EXCEPT AS SPECIFICALLY SET FORTH ABOVE, REAL TIME AUTOMATION, INC. DISCLAIMS ALL OTHER WARRANTIES, BOTH

EXPRESSED AND IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR APPLICATION. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER

RIGHTS, WHICH VARY FROM STATE TO STATE.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements

associated with any particular application, Real Time Automation, Inc. cannot assume responsibility or liability for actual use based on the

examples and diagrams. Except as specifically set forth above, Real Time Automation and its distributors and dealers will in no event be liable

for any damages whatsoever, either direct or indirect, including but not limited to loss of business profits, income, or use of data. Some states

do not allow exclusion or limitation of incidental or consequential damages; therefore, the limitations set forth in this agreement may not apply

to you.

No patent liability is assumed by Real Time Automation with respect to use of information, circuits, equipment, or software described in this

manual.

Government End-Users

If this software is acquired by or on behalf of a unit or agency of the United States Government, this provision applies: The software (a) was

developed at private expense, is existing computer software, and was not developed with government funds; (b) is a trade secret of Real Time

Automation, Inc. for all purposes of the Freedom of Information Act; (c) is “restricted computer software” submitted with restricted rights in

accordance with subparagraphs (a) through (d) of the Commercial “Computer Software-Restricted Rights” clause at 52.227-19 and its

successors; (d) in all respects is proprietary data belonging solely to Real Time Automation, Inc.; (e) is unpublished and all rights are reserved

under copyright laws of the United States. For units of the Department of Defense (DoD), this software is licensed only with “Restricted Rights”:

as that term is defined in the DoD Supplement of the Federal Acquisition Regulation 52.227-7013 (c) (1) (ii), rights in Technical Data and

Computer Software and its successors, and: Use, duplication, or disclosures is subject to restrictions as set forth in subdivision (c) (1) (ii) of the

Rights in Technical Data and Computer Software clause at 52.227-7013. If this software was acquired under GSA schedule, the U.S.

Government has agreed to refrain from changing or removing any insignia or lettering from the Software or documentation that is provided or

from producing copies of the manual or media. Real Time Automation, Inc.

Real Time Automation, Inc.

1-800-249-1612

Revision History ............................................................................................................................................5

Overview.......................................................................................................................................................6

Hardware Platforms......................................................................................................................................7

Hardware –N34........................................................................................................................................8

Powering The Gateway .............................................................................................................................9

Port Configuration ......................................................................................................................................11

Mounting with a DIN Rail............................................................................................................................12

Installing..................................................................................................................................................12

Removing ................................................................................................................................................12

Accessing the Main Page.............................................................................................................................13

Committing Changes to the Settings ..........................................................................................................15

Main Page ...................................................................................................................................................16

Device Configuration...................................................................................................................................17

Network Configuration ...............................................................................................................................18

EtherNet/IP Scanner Configuration ............................................................................................................19

EtherNet/IP Scanner Device Configuration.................................................................................................20

Configuring Input Instance......................................................................................................................21

Configuring Output Instance...................................................................................................................22

Modbus RTU Client Configuration..............................................................................................................23

Modbus RTU Client Device Configuration ..................................................................................................24

Configuring Read and Write Scan Lines ..................................................................................................26

Mapping - Transferring Data Between Devices ..........................................................................................28

Display Mapping and Values.......................................................................................................................29

Display Data ............................................................................................................................................29

Display String...........................................................................................................................................32

Display String use case................................................................................................................................34

Data and String Mapping –Auto-Configure................................................................................................35

Data Mapping –Explanation.......................................................................................................................36

Data Mapping –Adding Diagnostic Information ........................................................................................37

String Mapping –Explanation.....................................................................................................................41

Mapping –Auto-Configure Mode to Manual Configure Mode ..................................................................42

Mapping –Manual Configure Mode to Auto-Configure Mode ..................................................................43

Real Time Automation, Inc.

1-800-249-1612

View as Text ................................................................................................................................................44

Data Mapping..........................................................................................................................................44

String Mapping........................................................................................................................................44

Base Triggering –Data Validiation Triggering.........................................................................................45

Security Configuration ................................................................................................................................47

Security Configuration-Security Levels ...................................................................................................48

Security - Log In.......................................................................................................................................49

Security - Log Out....................................................................................................................................49

Email Configuration ....................................................................................................................................50

Alarm Configuration....................................................................................................................................51

Diagnostics –Alarm Status......................................................................................................................53

Alarms –Active .......................................................................................................................................53

Alarms –Clear.........................................................................................................................................54

Change of State (COS) Configuration..........................................................................................................55

Diagnostics Info...........................................................................................................................................56

Diagnostics Mapping...............................................................................................................................56

Diagnostics –EtherNet/IP Scanner .............................................................................................................57

Diagnostics –Modbus RTU Client..............................................................................................................61

LED Configuration .......................................................................................................................................66

Configuration Files ......................................................................................................................................67

Export Configuration...............................................................................................................................67

Import Configuration ..............................................................................................................................67

Save and Replace Configuration Using SD Card..........................................................................................69

Saving Configuration Using SD Card........................................................................................................69

Replacing Configuration Using SD Card ..................................................................................................69

Utilities........................................................................................................................................................70

Real Time Automation, Inc.

1-800-249-1612

Revision History

Version

Date

Notes

8.4.5

11/18/2019

Features Added

1. Released OPC UA Server (US) Protocol

2. Ability to now Import/Export Template Files with out an FTP session

Bug Fixes

3. Updated Profinet Server (PS) on N34 hardware Platform

4. Updated Wi-Fi software

8.6.0

2/28/20

Bug Fixes

1. Omron Plc Communication fixes for EtherNet/IP

2. Profinet GSDML Substitute values fix

8.7.4

9/1/20

Features Added:

1. BMS, BM, DFM, DS, DM, TCP, USB, PBS have been ported to the latest base software

2. TCP,BMS,BM now Available on N2E and N2EW hardware Platform

3. New ASCII Mode Available on TCP/A/USB/WI protocols

4. User Guides updated with more examples

Bug Fixes:

1. Improved Data Mapping and String Mapping performance

2. Improved functionality/performance on EC,ETC,ES,MC,MS,BS,BC, A,,WI,PS protocols

8.7.22

4/6/21

Features Added:

1. Support for RSLogix Versions 32 + with unsigned data type support

2. ETC now support Long integer files (L files) for MicroLogix PLCS that support them

3. SC now supports data block (DB) access

8.7.53

4/28/21

Features Added:

5. Added support for the NNBU hardware platform

6. Improved RFIDeas scanner support

7. Updated MM and MRS to use Modbus RTU Client and Modbus RTU Server terminology

Real Time Automation, Inc.

1-800-249-1612

Overview

The 460ECMM-N34 gateway connects up to 32 EtherNet/IP Adapters with as many as 32 Modbus RTU

Slave devices. By following this guide, you will be able to configure the 460ECMM-N34 gateway.

Number of ASCII devices is dependent on the Hardware and Product number of the 460 gateway.

For further customization and advanced use, please reference the appendices located on the CD or

online at: http://www.rtautomation.com/product/460-gateway-support/.

If at any time you need further assistance, do not hesitate to call Real Time Automation support.

Support Hours are Monday-Friday 8am-5pm CST

Toll free: 1-800-249-1612

Email: support@rtautomation.com

Real Time Automation, Inc.

1-800-249-1612

Hardware Platforms

The 460 Product Line supports a number of different hardware platforms. There are differences in how

they are powered, what serial settings are supported, and some diagnostic features supported (such as

LEDs). For these sections, be sure to identify the hardware platform you are using.

To find which hardware platform you are using:

1) Look on the front or back label of the unit for the part number.

2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select

Utilities. Click the Listing of Revisions button. The full part number is displayed here.

Once you have the full part number, the platform will be the number following the “-N”:

Real Time Automation, Inc.

1-800-249-1612

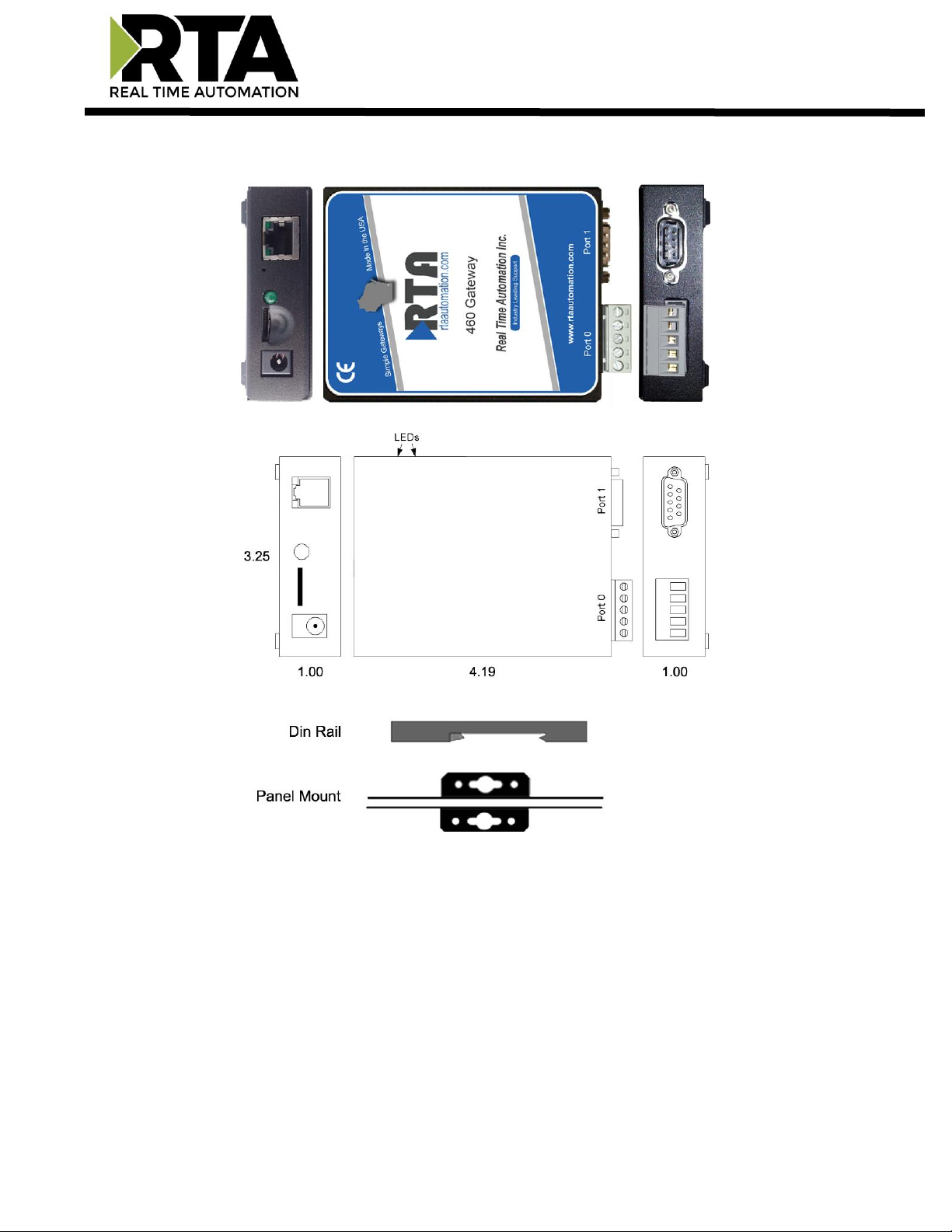

Hardware –N34

Real Time Automation, Inc.

1-800-249-1612

Powering The Gateway

The following steps will allow you to properly and safely power the gateway.

1) Connect a 24 VDC power source to the gateway.

a. The unit draws 125 mA at 24 VDC

b. The gateway has a voltage operating range from 8-28 VDC, 24 VDC is recommended.

Warning improper wiring will cause unit

failure! Use the Barrel Connector OR the Screw

Terminal’s power connection, NOT both!

Hazardous Environment Power & Installation

Instructions

This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, or non-

hazardous locations only.

WARNING –EXPLOSION HAZARD - Do not disconnect equipment unless power has been

removed or the area is known to be non-hazardous.

WARNING –EXPLOSION HAZARD - Substitution of components may impair suitability for Class I,

Division 2.

THIS EQUIPMENT IS AN OPEN-TYPE DEVICE AND IS MEANT TO BE INSTALLED IN AN

ENCLOSURE SUITABLE FOR THE ENVIRONMENT SUCH THAT THE EQUIPMENT IS ONLY

ACCESSIBLE WITH THE USE OF A TOOL.

WARNING –POWER JACK (Barrel Connector, J1) IS FOR MAINTENANCE USE ONLY AND MAY ONLY

BE USED WHILE THE AREA IS KNOWN TO BE FREE OF IGNITIBLE CONCENTRATIONS OF FLAMMABLE

GASES OR VAPORS. IT IS NOT TO BE CONNECTED UNDER NORMAL OPERATION.

In Hazardous Environments the unit must be powered with between 12-24 VDC, 860 mA (6 W)

max. Supervised. The unit is certified to be operated at -40C to 50°C.

Real Time Automation, Inc.

1-800-249-1612

Instructions d’alimentation et d’installation pour environnement

dangereux

Cet équipement est conçu pour être utilisé uniquement dans des lieux de classe I, division 2, groupes A, B, C et D,

ou non dangereux.

AVERTISSEMENT - RISQUE D'EXPLOSION - Ne débranchez pas l'équipement à moins que le courant ne soit coupé

ou que la zone ne présente aucun danger.

AVERTISSEMENT - RISQUE D'EXPLOSION - La substitution de composants peut compromettre l'adéquation à la

classe I, division 2.

CET APPAREIL EST UN DISPOSITIF DE TYPE OUVERT ET IL FAUT L'INSTALLER DANS UN ENCEINTE ADAPTÉ À

L'ENVIRONNEMENT TEL QU'IL N'EST ACCESSIBLE À L'UTILISATION D'UN OUTIL.

AVERTISSEMENT - LE POWER JACK (bornes à vis, J1) est destiné exclusivement à la maintenance et ne peut être

utilisé que lorsque la zone est connue pour être exempte de concentrations inintéressantes de gaz ou de vapeurs

inflammables. IL NE DOIT PAS ÊTRE CONNECTÉ SOUS UN FONCTIONNEMENT NORMAL.

Dans les environnements dangereux, l'unité doit être alimentée entre 12-24 VDC, 860 mA (6 W) max. Supervisé.

L'appareil est certifié pour fonctionner entre -40 ° C et 50 ° C.

Tabla de contenidos

Otros manuales de Puerta de RTA

RTA

RTA 460MRSUS-NNA1 Hoja de especificaciones

RTA

RTA 460MRSBC-N700 Hoja de especificaciones

RTA

RTA 460BMSPBS-N70PB Hoja de especificaciones

RTA

RTA 460PSUS-N2EW Hoja de especificaciones

RTA

RTA 460MRSQT-NNA1 Hoja de especificaciones

RTA

RTA 460ESBMS-N700 Hoja de especificaciones

RTA

RTA 460A-N700 Hoja de especificaciones

RTA

RTA 460BSUSB-N70U Hoja de especificaciones

RTA

RTA 460PSMRS-N34 Hoja de especificaciones

RTA

RTA 460ESMRS-N700 Hoja de especificaciones

RTA

RTA 460MCBS-N2EW Hoja de especificaciones

RTA

RTA 460SC-NNA1 Hoja de especificaciones

RTA

RTA 460ETCDFM-N34 Hoja de especificaciones

RTA

RTA 460BSA-NNA1 Hoja de especificaciones

RTA

RTA 460PSUSB-NNCU Hoja de especificaciones

RTA

RTA 460BMUSB-N70U Hoja de especificaciones

RTA

RTA 460BCSC-NNA1 Hoja de especificaciones

RTA

RTA 460ESMS-NNA1 Hoja de especificaciones

RTA

RTA 460PSBC-NNA4 Hoja de especificaciones

RTA

RTA 460BMS-NNA4 Hoja de especificaciones

RTA

RTA 460PSDM-N34 Hoja de especificaciones

RTA

RTA 460ECMS-N2E Manual de usuario

RTA

RTA 460DFMQT-N2E Hoja de especificaciones

RTA

RTA 460US-N2E Hoja de especificaciones

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario

Rosonix Technology

Rosonix Technology RSG-3000 Manual de usuario
