Royal Sovereign 1650C Manual de usuario

Royal Sovereign LAMINATORS

OWNER'S MANUAL

RSC-1650H/1650C

PLEASE READ AND SAVE INSTRUCTIONS

- 1 -

TOPICS PAGE

INSTRUCTION --------------------------------------------------------------

SAFETY PRECAUTIONS -----------------------------------------------------

CHARACTERISTICS ----------------------------------------------------------

SPECIFICATIONS --------------------------------------------------------------

NAMES OF MAJOR PARTS OF MACHINE-----------------------------------

SETTING UP FILM ------------------------------------------------------------

HANGING FILM ---------------------------------------------------------------- 7

CONTROL OF ROLLER PRESSURE ---------------------------------------

INSTRUCTIONS FOR CONTROL PANEL ---------------------------------

1.FUNCTIONS OF CONTROL PANEL ---------------------------------

2.HOW TO USE BUTTONS ----------------------------------------------

LAMINATING STEPS ------------------------------------------------------------ 11

METHOD FOR USING CUTTER -----------------------------------------------

1.CROSS CUTTER -----------------------------------------------------------

IMPORTANT SAFETY CONCERNS ---------------------------------------- 13

MAINTENANCE --------------------------------------------------------------------

IT'S NOT OUT OF ORDER ----------------------------------------------------

ASSEMBLY PARTS -------------------------------------------------------------

WARRANTY ----------------------------------------------------------------------- 15

TABLE OF CONTENTS

- 2 -

Thank you for purchasing a Royal Sovereign Roll Laminator. It has been designed and

manufactured to provide years of continuous service in the professional environment.

To insure high quality lamination, please read this instruction manual thoroughly. This

manual will provide you with complete operating and maintenance information.

The safet

recommendations outlined in this section are to be read, understood and

followed before operating machine.keep this information for future refrence. Failure to.

com

of the followin

safet

rocedures could result in serious

ersonal in

1. To prevent the possibility of electrical shock, do not immerse machine in water or

permit liquids to spill inside.

2. Do not allow articles of clothing (neckties, scarves, papers, etc.) near front or rear

machine openings as they could get caught by rollers and be pulled inside, causing

personal injury.

3. Do not insert sharp objects into front or rear machine openings.Do not place anything

in feed tray openings of machine other than appropriate laminating materials or pouches

4. Do not attempt to laminate items that exceed total recommended material thickness.

5. Do not operate machine for any other purposes than its intended use.

6. Do not operate machine if electrical plug or power cord is damaged.

7. Turn off the power when unattended or not in use. Unplug machine before moving it or

when it is not in use for an extended period of time.

8. This machine is intended for indoor use only.

9. Do not alter or extend electric plug. Plug is configured for appropriate electrical supply.

10. The socket-outlet shall be installed mear the equipment and shall be easily accessible.

SAFETY PRECAUTIONS

INSTRUCTION

- 3 -

RS Roll Laminator Line is advanced laminators with time transcendental desi

n, utilizin

the

latest in laminatin

technolo

It is desi

ned for

ou to set temperature and speed as necessar

. Also

ou can laminate

thin

at hi

h speed,re

ardless of thickness of material and t

pe of film.It is also desi

ned

for convenient use by anyone through the simple procedure of adjusting film tension in

accordance with the thickness of film and materials to be laminated.

—

Laminating Length Measurement

yes

Remote switch

9 step (digital)

DC Geared Motor

2 Roller

Laminating Paper Counting

Gross Weight

Dimension(W×D×H,mm）

Unit Weight

Gross Demension(W×D×H,mm）

1960×650×1210（77.2“×25.6”×47.4“）

230Kg(500ibs)

2100×875×1250（82.7“×34.1”×49.2“）

300Kg(660ibs)

Power auto-off

Foot switch yes

Stand-by mode

Mount Lamination

Reverse

yes(15mm)

yes

Hot Lamination

Photo Lamination yes

Transport Type

Cooling System

Speed Control

Driving Motor

Ready time(min) 10

Heating Method Warm Roller

Temp` Select

Temp`Control

9 step

digital

120V/60Hz

Power Consumption(Watts) 1700

Max. Laminating Width(mm) 1650(65") 1650(65")

Power Supply 120V/60Hz

Laminating Thickness(micron)

Laminating Speed(mm/min)

25,50,75,80,100,…

5000(16.4ft/min)

RSC-1650C

100

Description RSC-1650H

SPECIFICATIONS

CHARACTERISTIC

- 4 -

○

TAKE-UP BOBBIN

IDLE BAR

HOT ROLLER

TABLE-FRONT

UPPER ROLLER

○

TAKE-UP SWITCH

○

PART NAME

FRAME-GUIDE,PAPER

RSC-1650H RSC-1650H

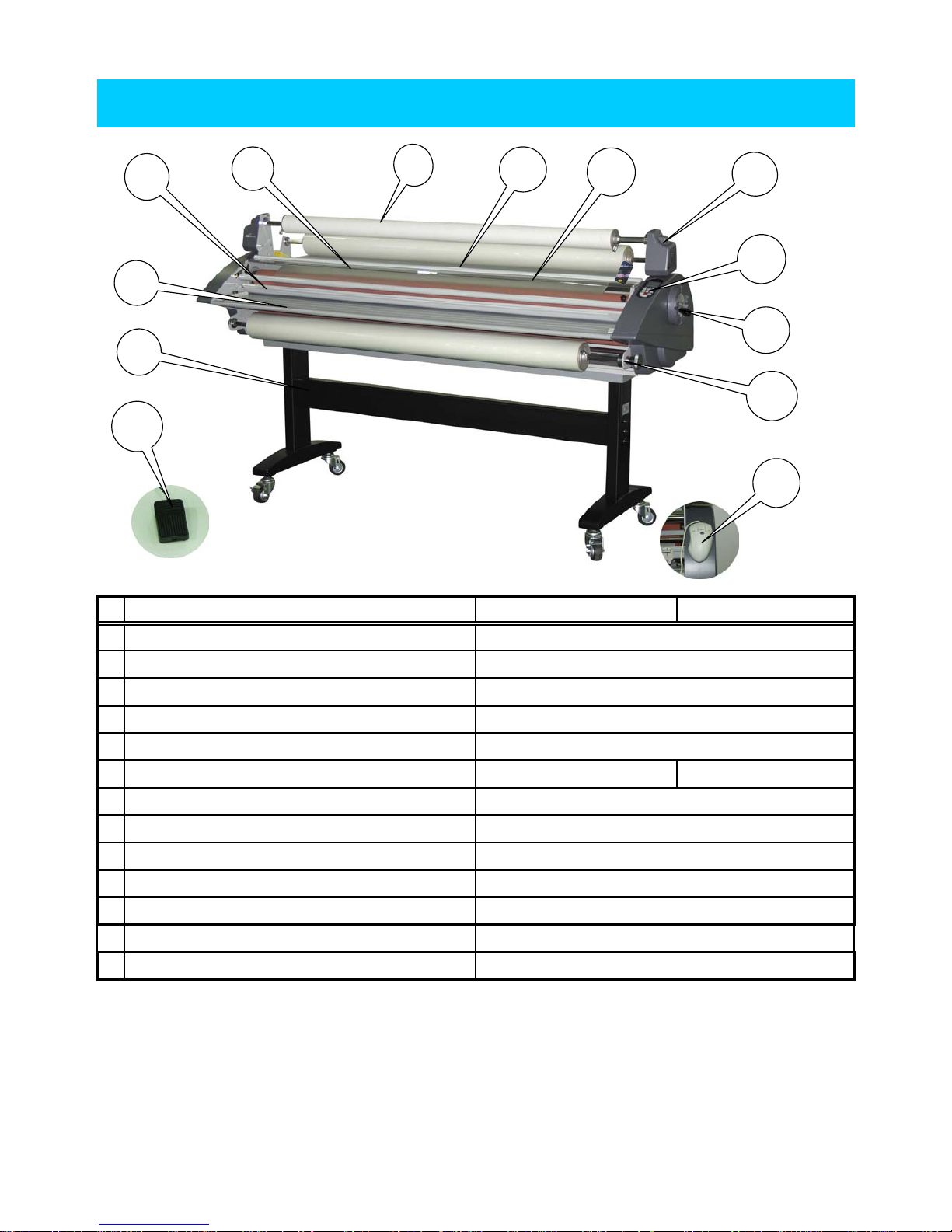

NAMES OF MAJOR PARTS OF MACHINE

CONTROL PANEL

○

FOOT SWITCH

○

ASS'Y-STAND

PRESSURE LEVER

TENSION CONTROL KNOB

SAFETY COVER

○

REMOCON SWITCH ○

○

11 32

- 5 -

1. Set the glossy side of upper/lower film to face the heat.

( Glossy side is PET film and matte side is thermal polymer laminating film.)

2. Like picture 1, insert core into the left side of upper/lower film shaft.

3. Like picture 2 and 3, insert core into the right side of upper/lower film.

4. Like picture 4 and 5, adhere core closely.

(Make the right/left direction of fixing screw consistent.)

5. Locate film in the middle, and then fasten core fixing screw.

SETTING UP FILM

주 름 방 지 부

열 판

주 름 방 지 부

열 판

표 시 창

버 튼 부

COLD FILM

PAPER BAC

- 6 -

1. Set up cold film below the upper bar of the machine.

(Set the same as methord of the HOT film for protect paper of lower part)

2. Set the pressure lever to the 15mm, open mode.

3. Insert a piece of wide cardboard (guiding paper/carrier) between the rollers.

4. Pull the film from the upper roller passing over the upper idle bar to the upper roller and put it

on the upper roller.

5. Put the paper back of the film to the bobbin at take-up bar to rewind the paper back.

6. Allow some of the film with melted resin to stick to the Guiding Paper.

7. Place the film from lower shaft beneath the film from the upper roller which is already meiting.

and unwind films of both rollers 30~40cm(1~1.3ft) for loosing the tension.

8. Set the pressure lever to the 1mm.

9. Set speed at 1 and press the RUN button. The films will be fed into the machine and will come

out from the rear site of machine.

10. Check the status of lamination and place the pressure lever at lamination mode.

HANGING FILM

TAKE UP DEVICE

PAPER BACK

COLD FILM

UPPER IDLE BAR

LOWER IDLE BAR

HOT ROLLER

PAPER BACK

- 7 -

1. For setting, pull the pressure lever out and turn the lever to following the indication

2. OPEN/15mm(Board) : For laminating 15mm thick board (RSC-1650H/1650C)

3. 10~13mm(Board) : For laminating 10~13mm thick board

4. 5~7mm(Board) : For laminating 5~7mm thick board

5. 1mm(Hard Board) : For laminating 1mm thick board

6. Laminating : For laminating 32~250micron thick film

CONTROL OF ROLLER PRESSURE

***Methods of controlling pressure of the roller**

- 8 -

We designed this machine standing by user’s convenience. You can manipulate speed and

temperature .

***Terms***

INSTRUCTIONS FOR CONTROL PANEL

6 1

- 9 -

1. FUNCTIONS OF CONTROL PANEL

RUN/STOP BUTTON : Run or stop the rollers

SPEED BUTTON : Increase or decrease speed

LED OF SPEED : Display or speed

LED OF TEMP. : Display temperature

TEMP.BUTTON : Increase or decrease temperature

REVERSE BUTTON : To make the rollers run backward

2.HOW TO USE BUTTONS

Push the button in order to run rollers and push

button to stop it.

SPEED BUTTON

Push the SPEED button to increase the speed,push the speed

button to decrease the speed.

TEMP. BUTTON

Push the TEMP. button to increase the temperature,push the

TEMP. button to decrease.

REVERSE BUTTON

Stay pressing REVERSE button to have . The roller run backward.

RUN / STOP BUTTON

RUN

REV

STOP

- 10 -
