54M Wireless AP Router RNX-G400
User Manual
54M Wireless AP Router RNX-G400 User Manual
2
Connecting the Broadband Router
Prior to connecting the hardware, make sure to power off your Ethernet device, Cable/ADSL modem and Broadband
Router. Then follow the steps below to connect the related devices.
zConnect your computer to the LAN port.
Attach one end of the Ethernet cable with RJ-45 connector to your hub, switch or a computer’s Ethernet port, and the
other end to one of the LAN ports of your Broadband Router.
zConnect then Cable/ADSL Modem to the WAN port.
Connect the Ethernet cable attaching to your Cable/ADSL modem to the WAN port of your Broadband Router.
zConnect the power adapter.
Connect the single DC output connector of the power adapter to the power jack on the side of the Broadband Router.
Then plug the Power Adapter into an AC outlet.
zPower on the following devices in this order:
Cable/ADSL modem, Router, and PCs
The figure below illustrates a connection example:
Figure 1-1
1PC Setup
You can manage the Broadband Router through the Web browser-based configuration utility. To configure the device via
Web browser, at least one properly configured computer must be connected to the device via Ethernet. The Broadband
Router is configured with the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0 and its DHCP server is
enabled by default. Before setting up the Router, make sure your PCs are configured to obtain an IP (or TCP/IP) address
automatically from the Router by the steps below.
54M Wireless AP Router RNX-G400 User Manual
3
1.1 Windows 2000
Please follow the steps below to setup your computer:
1. Go to Start ÆSettings ÆControl Panel
Figure 2-1
2. Double click the icon Network and Dial-up Connections
3. Highlight the icon Local Area Connection, right click your mouse, Click Properties
Figure 2-2
54M Wireless AP Router RNX-G400 User Manual
4
4. Highlight Internet Protocol (TCP/IP), then press Properties button
Figure 2-3
5. Choose Obtain an IP address automatically and Obtain DNS server address automatically, then press OK to
close the Internet Protocol (TCP/IP) Properties window
Figure 2-4
54M Wireless AP Router RNX-G400 User Manual
5
6. Press OK to close the Local Area Connection Properties window
Figure 2-5
1.2 Windows XP/2003
Please follow the steps below to setup your computer:
1. Go to Start ÆSettings ÆControl Panel
2. Click Network and Internet Connections
Figure 2-6
54M Wireless AP Router RNX-G400 User Manual
6
3. Click Network Connections
Figure 2-7
4. Highlight the icon Local Area Connection, right click your mouse, Click Properties
Figure 2-8
54M Wireless AP Router RNX-G400 User Manual
7
5. Highlight Internet Protocol (TCP/IP), then press Properties button
Figure 2-9
6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, then press OK to
close the Internet Protocol (TCP/IP) Properties window
Figure 2-10
54M Wireless AP Router RNX-G400 User Manual
8
7. Press OK to close the Local Area Connection Properties window
Figure 2-11
54M Wireless AP Router RNX-G400 User Manual
9
2Connection the Router
After configuring the TCP/IP protocol, use the ping command to verify if the computer can communicate with the Router.
To execute the ping command, open the DOS window and ping the IP address of the Broadband Router at the DOS
prompt : To execute ping command, open the DOS window by clicking on Start -> Run. In the Run window, type CMD. At
the DOS prompt, type the following command:
If the Command window returns something similar to the following:
Figure 3-1
Then the connection between the router and your computer has been successfully established.
If the computer fails to connect to the router, the Command window will return the following:
Figure 3-2
Verify your computer's network settings are correct and check the cable connection between the router and the
computer.
54M Wireless AP Router RNX-G400 User Manual
10
3Accessing the Web-Based Configuration Utility

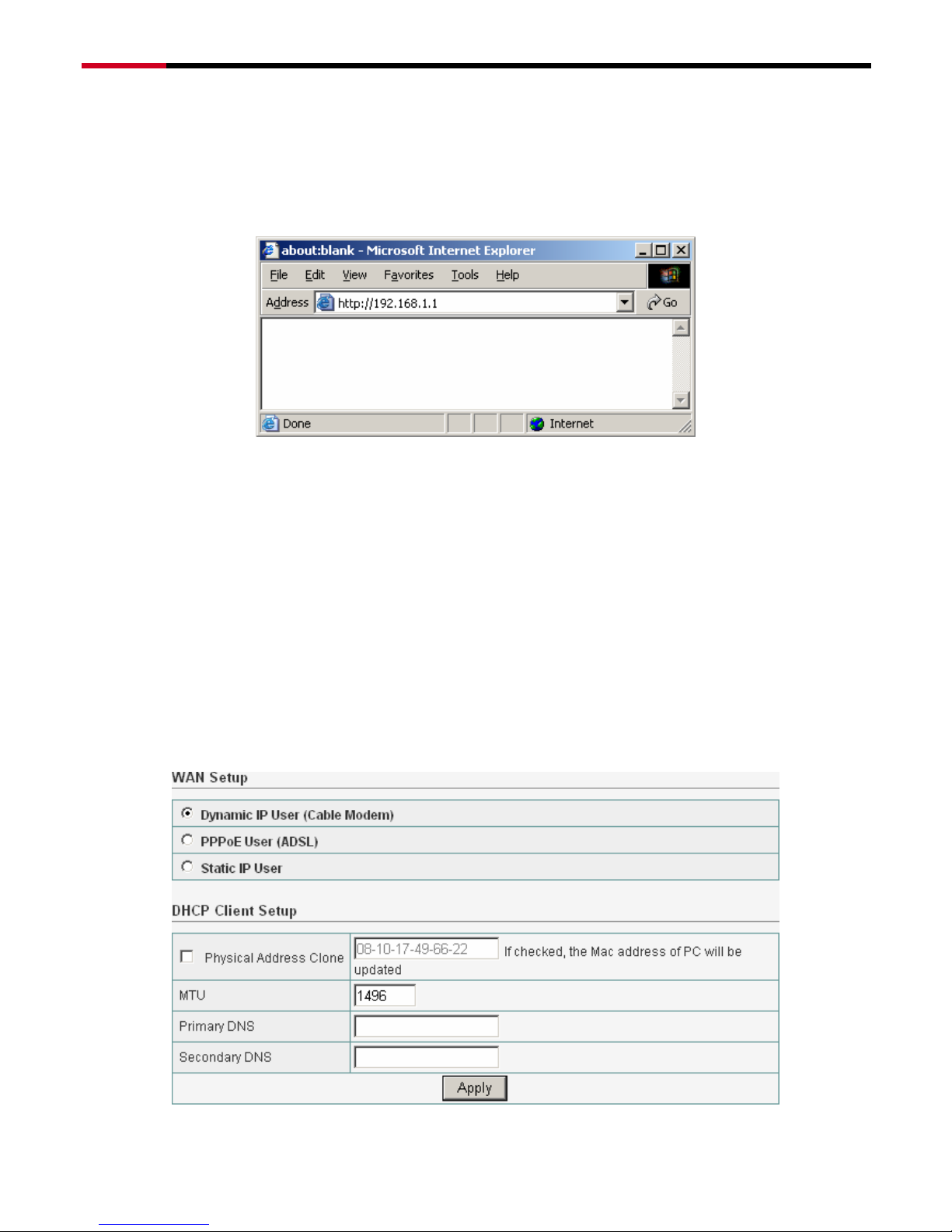

zLaunch the Web browser and type http://192.168.1.1 in the Address field and click Enter.
zAfter connected to the device, you will be prompted to enter the username and password. Type “guest” in the User
Name field, the default password is “guest”.
Figure 4-1
4Quick Configuration for the Router
After login, the Broadband Router’s web-based management is accessible.
zClick the WAN Setup page link to configure the WAN interface.
zSelect the Internet connection type
The WAN Setup page configures the Internet connection of the Broadband Router. Consult your ISP if you are unsure
about which Internet connection type to use. Select the correct protocol for your ISP from the table below. See the User
Manual for more information.
Dynamic IP Address
Figure 5-1
