Roper RT18HD Manual de usuario

NO-FROST REFRIGEW

A NoteToYou

PartsAndFeatures

Before Using Your

Refrigerator

Using Your

Refrigerator

Caring For Your

Refrigerator

Food Storage Guide 18

HYpu Need

tiF?zz: 20

Warranty 24

1~44ROPER

ChUU8Witil~Ol?SOf~.

TOR-FREEZERS

MODEL RT18HD

A Note To You

Thank you for buying a Roper@ appliance.

You purchased a quality, WorMclass home appliance. Years of engineering experience went

into its manufacturing. To ensure that you enjoy many years of trouble-free operation, we

developed this Use and Care Guide. It is full of valuable information on how to operate and

maintain your appliance properfy and safely. Please read it carefully. Also, please complete

and mail the Ownership Registration Card provided with your appliance. This will help us

notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

syr&ofs and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such This symbol will help you avoid actions

dangers as personal injury, bums, fire which could cause product damage

and electrical shock. (scratches, dents, etc.) and damage to

your personal property.

Our toll-free number, l-60044-ROPER (l-600447-6737),

is available 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “lf You Need Assistance Or Service” on page 20. If you need further help, feel free to call

us. When calling, you will need to know your appliance’s complete model number and serial

number. You can find this information on the model and serial number label (see diagram on

page 4). For your convenience, we have included a handy place below for you to record these

numbers, the purchase date from the sales slip and your dealer’s name and telephone

number. Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when

using your refrigerator, follow these basic precautions:

Read all instructions before using the eNever allow children to operate, play with,

refrigerator. or crawl inside the refrigerator.

*Child entrapment and suffocatbn are

Never clean refrigerator parts with

not prohlems of the past. Junked or flammable fluids. The fumes can create a

abandoned refrigerators are still danger- fire hazard or explosion.

ous ... even if they will Tust sit in the . FOR YOUR SAFETY

garage a few days.”

lf you are getting rid of your old refrig-

erator, do it safely. Please read the

enclosed safety bookiet from the Asso-

ciation of Horns Appliance Manufactur-

ers. Help prevent accidents.

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a fbor

that will hokf the weight and in an area

suitable for its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding. (Refer to the

Electrical Requirements and Grounding

Instructions Sheet.)

Do not bad the refrigerator with food

before It has time to get properly cob.

Use the refrigerator only for the uses

described in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by

anyone unable to operate it properly.

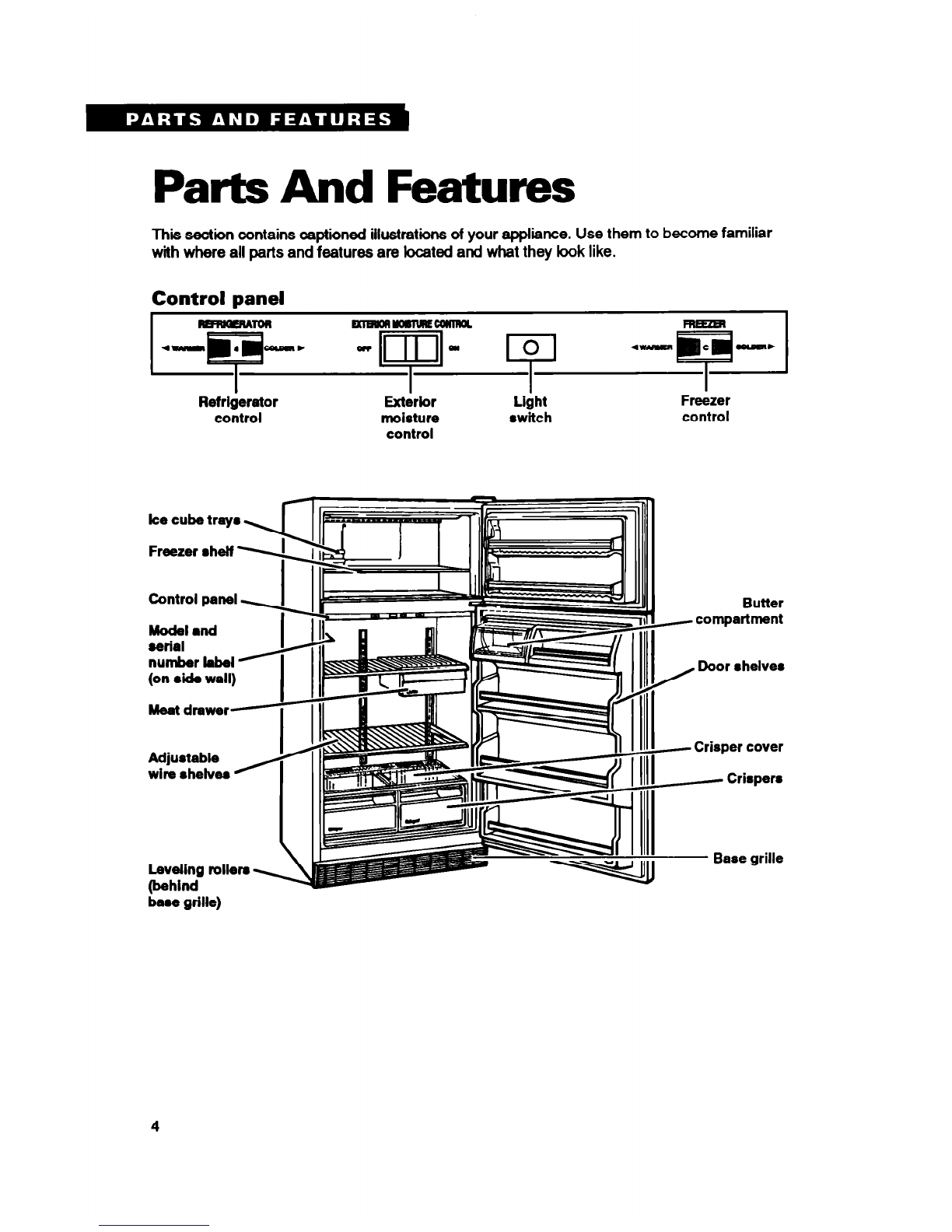

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are

located

and

what they took like.

Control panel

Rafrlgemtor

control Exterlor

moisture

control

Light Freezer

switch control

ke cube trays,

Freszer shetl \

Control panel -

Model and

serial

number label H

(on rids wall)

Meat drawer-

Adjustable ,

wire shelves

Leveling rollers

(behind

base grille)

Butter

-compartment

/ Door shelves

- Crisper cover

- Crisper0

Base grille

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning your refrigerator ................ .5 Installing it properly ........................... 5

Plugglng it in 5 Leveling it ............................................ 6

.......................................

It is important to prepare your refrigerator for use. This section tells you how to clean it,

conned it to a power source, install it and level it.

Cleaning your refrigerator

Removing packaging materials

NOTE: Do not remove any permanent

Remove tape and any inside labels (except instruction labels inside your refrigerator. Do

the model and serial number label) before not remove the Tech Sheet fastened under

using the refrigerator. the refrigerator at the front.

To remove any remaining glue:

Cleaning it before use

Rub briskly with your thumb to make a ball, After removing all Packaging materials,

then remove. clean your refrigerator before using it, if

OR necessary. See cleaning instructions on

Soak area with liquid handdiiwashing pages 14 and 15.

detergent before removing glue as de-

scribed above. Do not use sharp instru-

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc-

tions” on Page 3.

Plugging it in

Recommended Grounding Method

A115Volt,60Hz.,AConly15or20ampere

fused and properly grounded electrical

supply is required. lt is recommended that a

separate circuit serving only thii appliance

be Provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

3-prong grounding

type wall receptacle

grounding plug

Installing it properly

Allow I%inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the hinge side of the refrigerator is to he

against a wall, you might want to leave

extra space so the door can be opened

wider.

3. The refrigerator can be flush against the

hack wall.

4. If your refrigerator has an automatic be

maker, hook up the ice maker water

supply. (See Installation Instructbns.)

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 12.)

2. To raise front, turn screw clockwise.

3. To bwer front, turn screw countercbck-

Right to raise;

left to lower

screwdriver

Wise.

Check with level.

5. Replace base grille. (See page 12.)

Using Your Refrigerator

In This Section

Page

Setting the controls ............................

Changing the control settings ...........8

Adjusting the refrigerator shelves ....9

Removing the meat drawer

and cover .............................................9

Removing the crfspers and

crisper cover .....................................10

Removing the freezer shelf .................10

Using the ice cube trays ..................10

Page

Using the optional automatic

ke maker ..*...,.................................... 11

Changing the light bulbs .................12

Removing the base grille .................12

Reversing the door swing ................13

Understanding the sounds

you may hear ....................................13

Saving energy ............P......................13

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the

features in your refrigerator, and how to save energy.

Setting the controls

Temperature controls

ControIs for the refrigerator and freezer are

in the refrigerator. When you plug in the

refrigerator for the first time:

1. Set the Refrigerator Control to 4.

Refrigerator Control adjustments range

from 1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coktest) to D (warmest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. lf you need to

adjust these settings, see “Changing the

control settings” on page 8.

REFRIGERATOR

Exterior moisture control

The Exterior Moisture Control operates

electric heaters around the door openings.

These heaters help keep moisture from

forming on the outside of the refrigerator

cabinet.

Use the OFF setting when humidity is low.

Use the ON setting if moisture forms on

the outside of the refrigerator cabinet.

ExlmmY-coNlml

-m ON

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings

listed in the chart below as a guide. If you

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjust-

ments.

have questions, call our toll-free number,

1-800~ROPER .

Then adjust the Freezer Control if needed.

CONDiTiON:

Refrigerator

sectlon

too warm

Freezer

section

too warm

Refrigerator

section

too cold

ice not

made fast

enough

Roth

sections

too warm

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SElTiNGS:

Refrigerator 6

Freezer D

Refrigerator 4

Freezer A

Refrigerator 2

Freezer A

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 4

Freezer A

Refrigerator 6

Freezer C

Adjusting the refrigerator shelves

Adjust the shelves to match the way you use

your refrigerator.

To remove shelves:

1. Remove items from shetf.

2. Tilt shelf up at front.

Lii back of shelf.

4. Pull sheff straight out.

To replace shelves:

1. Guide the rear shelf hooks into the slots

in the sheff supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into

slots. Lower front of shelf to level position.

Removing the meat drawer and cover

The meat drawer and cover can be removed

for cleaning or moved to another shelf, if

desired. Remove the meat drawer first.

To remove the meat drawer:

1. Slide the drawer straight out to the stop.

2. Lii the front.

Slide drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Remove the meat drawer.

2. Till front of cover up.

3. Pull cover up and out.

To replace the cover:

1. Fit bottom notches of cover over rear and

center cross bars of sheff.

2. Lower cover into place.

3. Replace the meat drawer.

Lift the front,

then the back

stop, lift the front

and pull again.

Removing the crispers and crisper cover

To remove the crispers:

1. Slii the crisper straight out to the stop.

2. Lii the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Lii front of cover frame.

2. Pull cover frame up and out.

3. Remove metal cover support.

To replace the cover:

1. Replace metal cover support on wall

supports in front section of cabinet.

2. Fit hack comers of cover frame into notch

supports on walls of refrigerator, then

lower front onto metal cover support.

Removing the freezer shelf

To remove the shelf:

1. Lii front of shetf slightly.

2. Lii back of shelf off supports.

3. Replace in reverse order.

Using the ice cube trays

If you don’t use cubes, they may shrink. The

moving c&l air starts a slow evaporation.

The longer you store cubes, the smaller they

get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Tabla de contenidos

Otros manuales de Refrigerador de Roper

Roper

Roper RS22AW Manual de usuario

Roper

Roper Roper RT16DKXDN03 Manual de usuario

Roper

Roper RS22AQXMQ00 Manual de usuario

Roper

Roper Roper RT14BKXJW00 Manual de usuario

Roper

Roper RT18DK Manual de usuario

Roper

Roper RS25AFXRD01 Manual de usuario

Roper

Roper 1-34850/4390527 Manual de usuario

Roper

Roper RT25BK Manual de usuario

Roper

Roper RSZOCK Manual de usuario

Roper

Roper RT18DK Manual de usuario

Roper

Roper RT18VKXSQ Instrucciones de montaje

Roper

Roper TOP-MOUNT REFRIGERATOR Manual de usuario

Roper

Roper Roper RT20DKXDN00 Manual de usuario

Roper

Roper RT18AKXKQ08 Manual de usuario

Roper

Roper RT18BM Manual de usuario

Roper

Roper RT14DK Manual de usuario

Roper

Roper RT12VKXKQ02 Manual de usuario

Roper

Roper RT12FC Manual de usuario

Roper

Roper RS25AW Manual de usuario

Roper

Roper RT18BK Manual de usuario

Roper

Roper TOP-MOUNT REFRIGERATOR Manual de usuario

Roper

Roper RT18DKXFW01 Manual de usuario

Roper

Roper RT14EK Manual de usuario

Roper

Roper YRT18VKXJW00 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
