NO-FROST REFRIGERATOR-FREEZER

MODEL RS22AW

_--

A Note To You

Thank you for buying a Roper appliance.

You have purchased a quality, worM-c/ass home appliance. Years of engineering experience

have gone into its manufacturing. To ensure that you will enjoy many years of trouble-free

operation, we have developed this Use and Care Guide. lt is full of valuable information on

how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your appli-

ance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, bums, fire and

electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to your

personal property.

Our toll-free number, l-80044-ROPER (l-800447-6737),

is available 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see ‘If You Need Assistance Or Service” on page 22. If you need further help, feel free to call

us. When calling, you will need to know your appliance’s complete model number and serial

number. You can find this information on the model and serial number label (see diagram on

page 4). For your convenience, we have included a handy place below for you to record these

numbers, the purchase date from the sales slip and your dealer’s name and telephone

number. Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using

your refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

*Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely. Please read the

enclosed safety booklet from the Asso

ciation of Home Appliance Manufactur-

ers. Help prevent accidents.

Never allow children to operate, play with,

or crawl inside the refrigerator.

Never clean refrigerator parts with flam-

mable fluids. The fumes can create a fire

hazard or explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding. (Refer to the

Electriil Requirements and Grounding

Instructions Sheet.)

Do not load the refrigerator with food

before it has time to get properly cold.

Use the refrigerator only for the uses

described in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like.

-ql pane’

Llght

Meal drawer

air

control

irille)

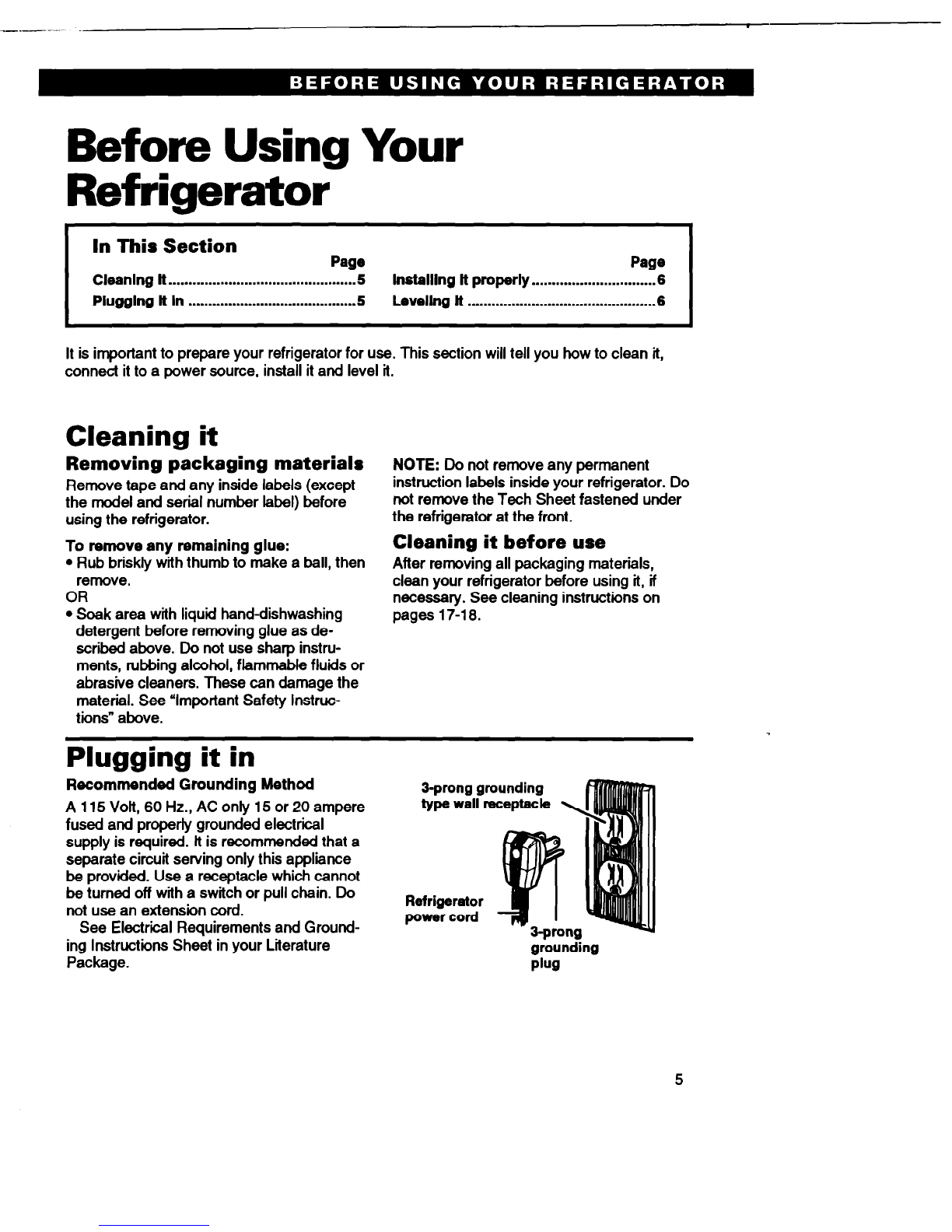

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning It ...............................................5 InstallIng It properly ...............................5

Plugglng lt In ..........................................5 Leveling It ...............................................6

It is important to prepare your refrigerator for use. This section will tell you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

NOTE: Do not remove any permanent

. ~. . . . . . . -

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand-dishwashing

detergent before removing glue as de-

scribed above. Do not use sharp instru-

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc-

tions” above.

instructron labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 17-l 6.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. lt is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

&prong grounding

type wall receptacle

Refrigerator

power cord

grounding

Plug

lnstalling it properly

Allow l/i inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

3. The refrigerator can be flush against the

wall.

IO (ID.

I I

InI

Leveling it

Your refrigerator has 2 front leveling

screws+ne on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 14.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

wise.

4. Check with level.

5. Replace base grille. (See page 14.)

FrontFront

rollerroller

AI Right to raise;

left to lower.

Use aUse a screw-screw-

._--_ _ - I

Using Your Refrigerator

In This Section

Paae

Setting the controls ............................. -7

Changlng the control settlngs ............. .6

Adlusting the refrlgerator shelves ....... .

Removing the crisper and crisper

COVW

....................................................... 9

Removlng the meat drawer

and cover ................................................ 9

AdlustIng the meat drawer

temperature ............................................ 9

Removlng the freezer shelves ........... .10

Removing the freezer bln ................... .10

Page

Uslng the automatic ke maker .........11

Removlng the ke maker

storage bln ..,...................................... 12

Uslng the cofd water and

ke dispensers ....................................13

Removing the base grille ..................14

Changlng the light bulbs ...................15

Understandlng the sounds you

may hear .............................................16

Savlng energy ....................................16

In order to obtain the best possible results from your refrigerator, it is important that you

operate it properly. This section will tell you how to do just that.

Setting the controls

Controls for the refrigerator and freezer are

in the refrigerator. When the refrigerator is

plugged in for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range

from 1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly

when milk or juice is as cold as you like and

when ice cream is firm. lf you need to adjust

these settings, see “Changing the control

settings” on page 8.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up

on the outside of your refrigerator cabinet. This

control does not have to be set or adjusted. 7

Changing the control settings

If you need to adjust temperatures in

Adjust the Refrigerator Control first.

refrigerator or freezer, use the settings listed

Wait at least 24 hours between adjustments.

in the chart below as a guide. If you have

questions, call us. (See page 23.)

Then adjust the Freezer Control if needed.

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

RECOMMENDED

CONTROL SElllNGS:

Refrigerator 4

Freezer A

Refrigerator 3

Freezer C

If Refrigerator

Section is

TOO COLD

Controls not set correctly Refrigerator 2

for your conditions Freezer 6

If ICE isn’t

MADE FAST

ENOUGH

If BOTH

SECTIONS

are TOO WARM

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold mom

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer 6

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way

you use your refrigerator. Glass shelves are

strong enough to hold bottles, milk and other

heavy food items.

To remove shelves:

Remove items from shelf.

2. Tilt shelf up at front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace shelves:

Guide the rear hooks into the slots in the

shelf supports.

2. Tilt up front of shelf until hooks drop into

slots.

3. Lower front of shelf to level position.

Glass shelves

are

heavy.

Handle them

with care.

Removing the crisper and crisper cover

To remove the crisper:

Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Tilt front of cover up.

Lift cover up at back.

3. Pull cover straight out.

To replace the cover:

Fit back of cover into notched supports on

walls of cabinet.

2. Lower front of cover into place.

Pull out to the

Removing the meat drawer and cover

To remove the meat drawer:

Slide the meat drawer out to the stop.

2. Lift the front.

Slide meat drawer out the rest of the way.

4. Replace in reverse order.

remove the cover:

Remove crisper, crisper cover and meat

drawer.

2. Tilt front of cover up, lift at back and pull

straight out.

3. Replace in reverse order.

Adjusting the meat drawer temperature

Cold air flows against the meat drawer

through an opening between the freezer and

the refrigerator. This helps keep the meat

drawer colder than the rest of the refrigera-

tor for better storage of meats.

Slide the control to let more or less cokf air

through.

Removing the freezer shelves

The freezer shelves can be removed for

easier cleaning.

To remove the shelves:

Lii right side of shelf off supports.

Slide shelf out of shelf support holes.

3. Replace in reverse order.

Removing the freezer bin

For proper air movement, keep the freezer

bin in place when the refrigerator is operat-

ing.

To remove the bin:

Slide bin out to the stop.

2. Lift bin at the front to clear the stop.

3. Slide bin out the rest of the way.

To replace the bin:

Place bin on the slides.

2. Make sure the stops clear the front of the

slides.

3. Slide bin in.

Tabla de contenidos

Otros manuales de Refrigerador de Roper

Roper

Roper RT16VK Manual de usuario

Roper

Roper RTIZDK Manual de usuario

Roper

Roper ROPER RT18DKXFN03 Manual de usuario

Roper

Roper 1-34850/4390527 Manual de usuario

Roper

Roper TOP-MOUNT REFRIGERATOR Manual de usuario

Roper

Roper Roper RT16DKXDN03 Manual de usuario

Roper

Roper RSZOCK Manual de usuario

Roper

Roper RT14BKXSQ Instrucciones de uso

Roper

Roper Roper RT14BKXJW00 Manual de usuario

Roper

Roper RT18AKXKQ08 Manual de usuario

Roper

Roper RT18DKXFW01 Manual de usuario

Roper

Roper RT14ZK Manual de usuario

Roper

Roper RS20AWXEW00 Manual de usuario

Roper

Roper Roper RT21LMXJW00 Manual de usuario

Roper

Roper RT18HD Manual de usuario

Roper

Roper RT18DK Manual de usuario

Roper

Roper RT14BKXSQ Instrucciones de montaje

Roper

Roper RT18BM Manual de usuario

Roper

Roper RT14EK Manual de usuario

Roper

Roper RT25BK Manual de usuario

Roper

Roper Roper RT14BKXFN02 Manual de usuario

Roper

Roper RS25AFXRD01 Manual de usuario

Roper

Roper Roper RT14BKXFN00 Manual de usuario

Roper

Roper TOP-MOUNT REFRIGERATOR Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
