User Manual

C1 Pos Scale

Contents

Introduction ...................................................................................................................2

1. Specification of Pos scale register ....................................................................... 3

2. Standard configuration of Pos scale register ..................................................... 4

3. Pos scale installation steps ................................................................................... 4

4. Overall Appearance ................................................................................................ 5

4.1 Front view ...................................................................................................... 5

4.2 Bottom interface view ...................................................................................5

5. Common easy-to -use operations ........................................................................ 6

5.1 Switch on and off .......................................................................................... 6

5.2 Weight display............................................................................................... 6

6. Troubleshooting of Pos scale register ................................................................. 7

6.1 Crash or fail to start ...................................................................................... 7

6.2 The display screen does not display or the display screen is blurred ..7

6.3 Unable to weigh properly .............................................................................7

7. Appendix Comparison Table of Gravitational Acceleration Corrected Value .8

Introduction

Thank you for choosing our Pos Scale. In order to operate Pos Scale correctly, User

manual is detailed in function and operation method of Pos Scale, which help user with

doubt quickly when come up against mechanical fault .

Rongta research, develop, produce and sale the Pos Scale independently, which is

high-performance Pos Scale.

Pos Scale is the best choice for user, power function and high durable, which make

Pos scale more popular in store ,fresh food supermarket ,farmers market and so on.

Note : this product information are subject to change without prior notice.

This information is for reference only. In addition to China's existing laws and regulations,

the company does not undertake any due to the direct or indirect losses caused by use of

this information.

The company reserves the final interpretation.

1. Specification of Pos scale register

The Weighing range and accuracy：

Max weight: 15kg Max weight: 30kg

Min weight: 40g Min weight: 100g

0kg to 6kg * 0.002kg (e=2g) 0kg to 15kg * 0.005kg (e=5g)

6kg to 15kg * 0.005kg (e= 5g) 15kg to 30kg * 0.01kg (e= 10g)

The accuracy grade:

Resolution

Input sensitivity:greater than or equal to50μV/D

zero-point adjustment range: ±60mV

temperature coefficient: ±0.0012%CTYP

[Zero] ±(0.2μV+0.0008% of Dead Load)/℃TYP

Nonlinearity: 0.01%F.S.

A/D resolution: Max 30000 resolution

Display resolution: 1/3000

A/D conversion rate: 10 times/second

Regular：

Power supply: DC12V 5A

Power consumption：12W

operating temperature: 0℃-40℃

Physical appearance：245mm*350mm*68mm

2. Standard configuration of Pos scale register

3. Pos scale installation steps

Take out the scale pan and install it according to the following instructions.

Align the fixing feet of the pan with the limit holes of the main body group

and put them into.

Scale pan

Quick installation guide

Main body

Power cable

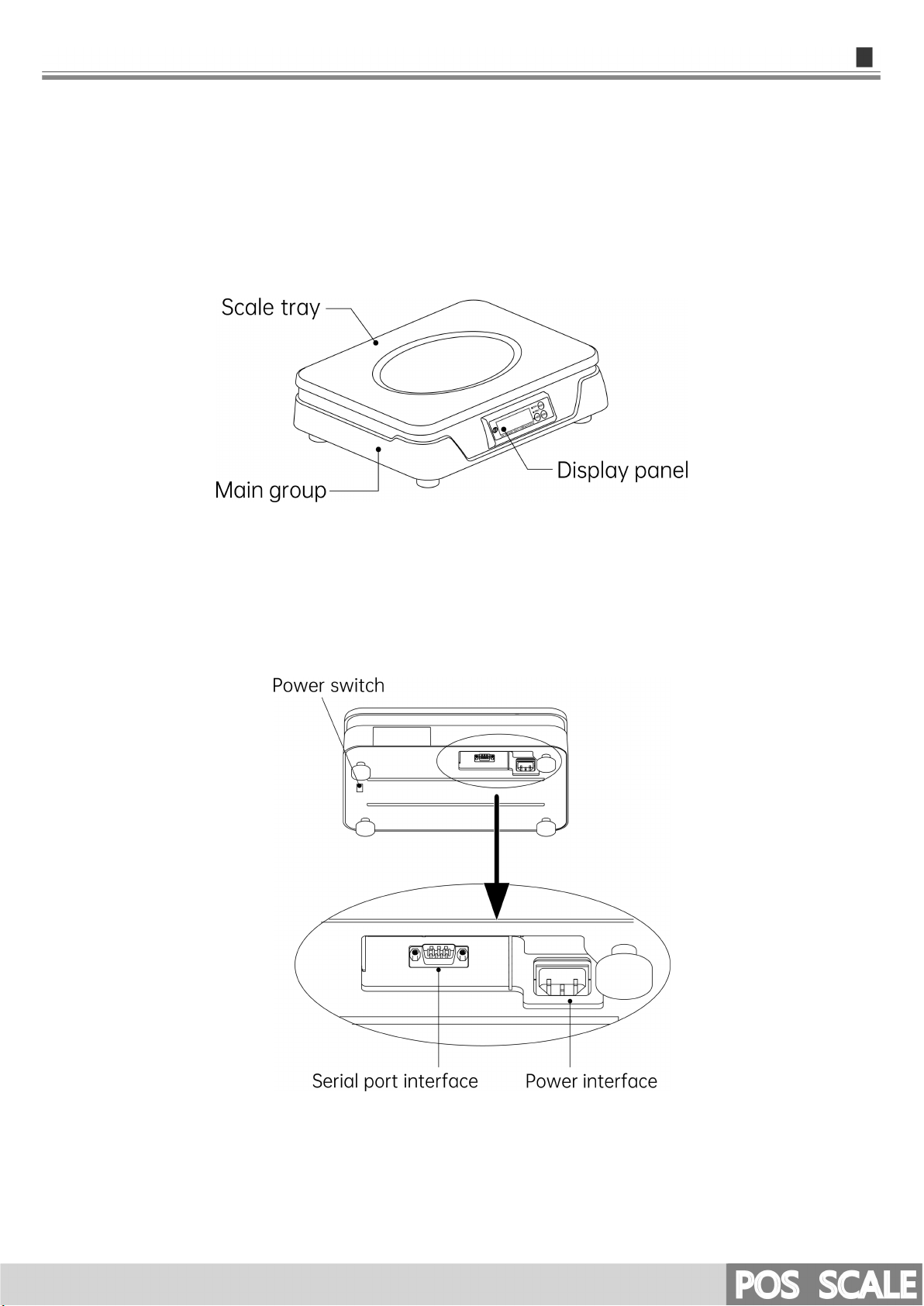

4. Overall Appearance

4.1 Front view

4.2 Bottom interface view

5. Common easy-to -use operations

5.1 Switch on and off

Hard disk switch：

After connecting power supply,long press the black POWER button on the

bottom of Pos Scale register for 2 seconds until the display is turned on. After

entering the normal operation screen, the program will automatically run and

perform self-test counting to verify whether the CRC is correct. If verification

fails, the scale cannot work normally.

Attention: Under self-test situation, please do not press any button

and make sure nothing is on the scale, otherwise it can’t

work normally Soft disk switch on/off：

Turn off: Short press the power switch at the bottom for 2 seconds.

5.2 Weight display

Key Description

Tare: This operation is only for products need to be packaged, such as eggs,

beans, etc.There are two methods which are suitable for package and goods

separated & package and goods non-separated.

Zero: Press the Zero key to zero the scale. (Note: more than 300g can not be

reset to zero)

Reset: Used to restart the weighing module.

6. Troubleshooting of Pos scale register

6.1 Crash or fail to start

Reasons：a. Power line and interface error;

b.Adapter error;

c. Main board error.

Solutions：a. Re-plug the power line;

b. After power on，if the adapter indicator is off，it means

the adapter is abnormal；

c.The board is abnormal.

6.2 The display screen does not display or the display screen

is blurred

Reasons：a. Poor contact of screen line connector;

b. The display screen is damaged, or the main board is damaged;

Solutions：a. Re-plug the screen line connector

b. If it still fails, it may be caused by screen damage or

main board damage

6.3 Unable to weigh properly

Reasons：The main board or AD board fails, sensor fails, or CRC check fails；

Solutions：Please contact with us, we will provide you new version AD

boardprogram or weighing software；

7. Appendix Comparison Table of Gravitational

Acceleration Corrected Value

COUNTRY

CITY

G(m/sec2)

COUNTRY

CITY

G(m/sec2)

Greece

Athens

9.800

Scotland

Glasgow

9.816

South

Cape town

9.796

Spain

Madrid

9.800

Netherland

Amsterdam

9.813

Singapore

9.781

Norway

Oslo

9.815

Argentina

Buenos Aires

9.797

New

Auckland,NZ

9.799

United

London,Greenw

9.812

New

Wellington,NZ

9.801

Australia

Melbourne

9.800

Taiwan

Taichung

9.789

Australia

Sydney

9.797

Taiwan

9.788

Italy

Milano

9.806

Taiwan

Taipei

9.790

Italy

Rome

9.803

Denmark

Copenhagen

9.815

India

Calcutta

9.788

Germany

Fankfurt

9.810

Japan

Tokyo

9.798

Mexico

Mexico City

9.779

Canada

Ottawa

9.806

U.S.A

Birmingham

9.813

Canada

Vancouver,BC

9.809

U.S.A

Chicago

9.803

Cuba

Havana

9.788

U.S.A

Los Angles

9.796

Kuwait

9.795

U.S.A

New York

9.802

Cyprus

Nicosia

9.797

U.S.A

San Francisco

9.800

Thailand

Bangkok

9.783

U.S.A

Washington,DC

9.784

Portugal

Lisbon

9.801

Belgium

Brussels

9.811

France

Paris

9.809

Brazil

Rio de Janeiro

9.786

Finland

Helsinki

9.819

Sweden

Stockholm

9.818

Philippines

Manila

9.784

Switzerlan

Zurich

9.807

COUNTRY

CITY

G(m/sec2)

COUNTRY

CITY

G(m/sec2)

Greece

Athens

9.800

Scotland

Glasgow

9.816

South

Africa

Cape town

9.796

Spain

Madrid

9.800

Netherland

Amsterdam

9.813

Singapore

9.781

Norway

Oslo

9.815

Argentina

Buenos Aires

9.797

New

Auckland,NZ

9.799

United

London,Greenw

9.812

New

Wellington,NZ

9.801

Australia

Melbourne

9.800

Taiwan

Taichung

9.789

Australia

Sydney

9.797

Taiwan

9.788

Italy

Milano

9.806

Taiwan

Taipei

9.790

Italy

Rome

9.803

Denmark

Copenhagen

9.815

India

Calcutta

9.788

Germany

Frankfurt

9.810

Japan

Tokyo

9.798

Mexico

Mexico City

9.779

Canada

Ottawa

9.806

U.S.A

Birmingham

9.813

Canada

Vancouver,BC

9.809

U.S.A

Chicago

9.803

Cuba

Havana

9.788

It should be handled by person in our company or dealers if want to adjust
