Rollplay W416AC-RC Instrucciones de montaje
®
Owner’s Manual and Assembly Instructions
Model #: W416AC-RC, W16AC-WRC, W416AC-BRC, W416AC-RRC
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
PORSCHE MACAN TURBO
WITH RADIO CONTROL
Introduction
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 7AH
6V 20W
3 and up
35 kg (77 lb)
112.5 x 62.0 x 56.5 cm ( 44.3 x 24.4 x 22.2 in)
4 km/h (2.5 mph)
8-12 Hours
1-2 Hours
DC 7.0V 0.7A
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle.
Please keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions. Have your
model number and serial number ready before calling. Please have proof
of purchase.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone:
Email: customerservice@rollplay.com
we will respond within 48 hours.
IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
BEFORE YOU RETURN YOUR
PRODUCT TO THE STORE,
CONTACT ROLLPLAY WITH
QUESTIONS
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
Email customerservice@rollplay.com or
call customer service 1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
4
Table of Contents
Safety......................................................... 5
Parts ......................................................... 7
Charging Instructions.............................. 8
Assemble the Front Wheels.................... 9
Assemble the Left Rear Wheel............... 10
Assemble the Right Rear Wheel............. 11
Attach the Seat ........................................ 12
Attach the Steering Wheel ...................... 13
Product Features ..................................... 15
Attach the Mirrors ................................... 14
Maintenance ............................................ 18
General Care ............................................ 19
Remote Operating Instructions ............. 16
Troubleshooting Guide............................ 20
FCC Information ...................................... 22
Service and Repairs ............................... 23
Warranty ................................................... 24
Product Registration ............................... 26
5Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time. Always replace the
whole set of batteries at one time, taking care not to mix old and new ones, or
batteries of different types.
Do not operate near ammable vapours (gasoline, paint thinner, acetone, etc.).
6
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead components.
DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

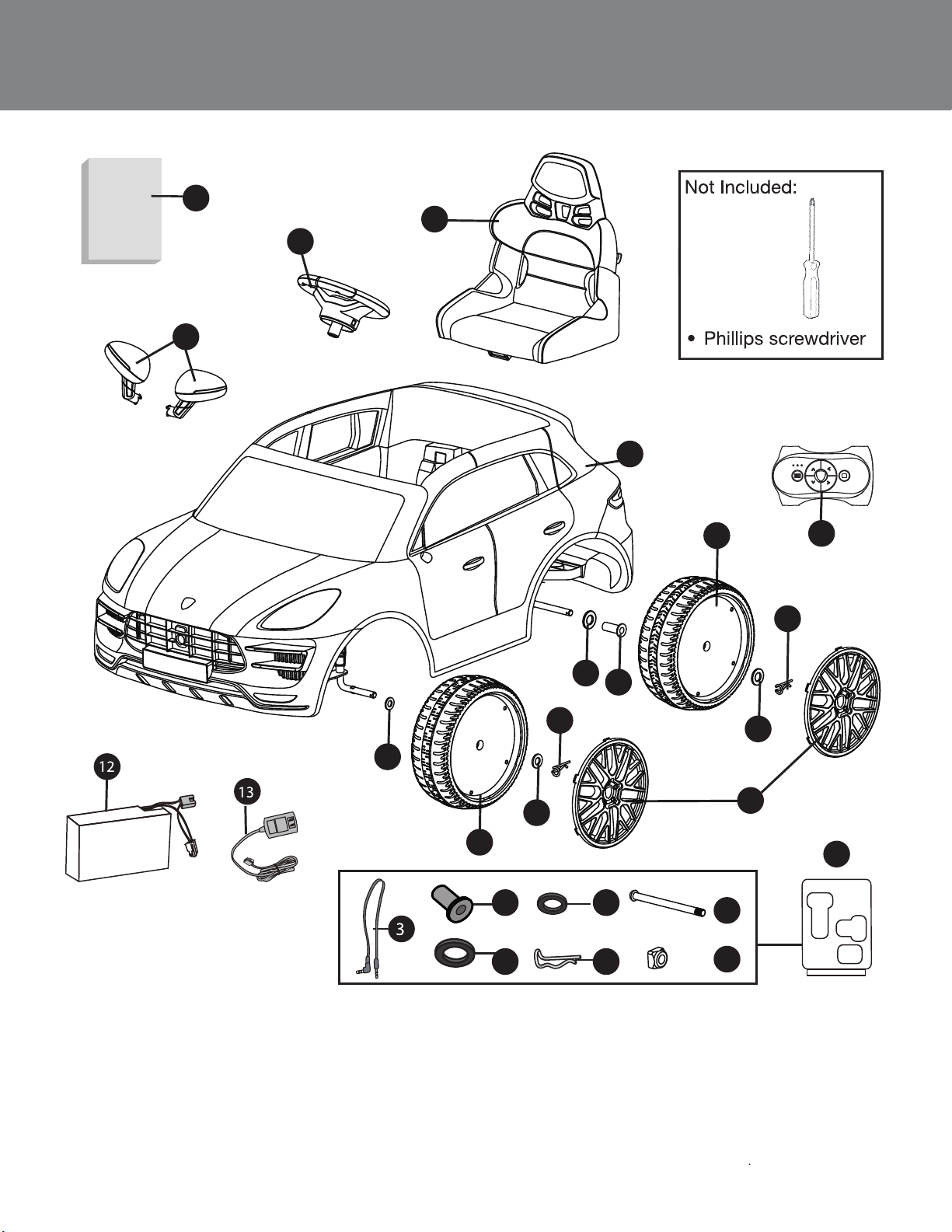

Parts
7
1. Steering wheel
2. Seat
3. MP3 cable
4. Car body
5. Rear wheels (x2)
6. Inner wheel spacer
7. Large washers (x4)
8. Small washers (x5)
9. Snap pins (x6)
10. Wheel covers (x4)
11. Front wheels (x2)
12. Battery
13. Charger
14. Manual
15. Steering wheel nut
16. Steering wheel screw
17. Mirrors (x2)
18. Blister pack
19. Remote Control
11
2
1
17
4
5
9
97
76
8
8
14
10
18
16
15
9
8
7
6
19
8
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

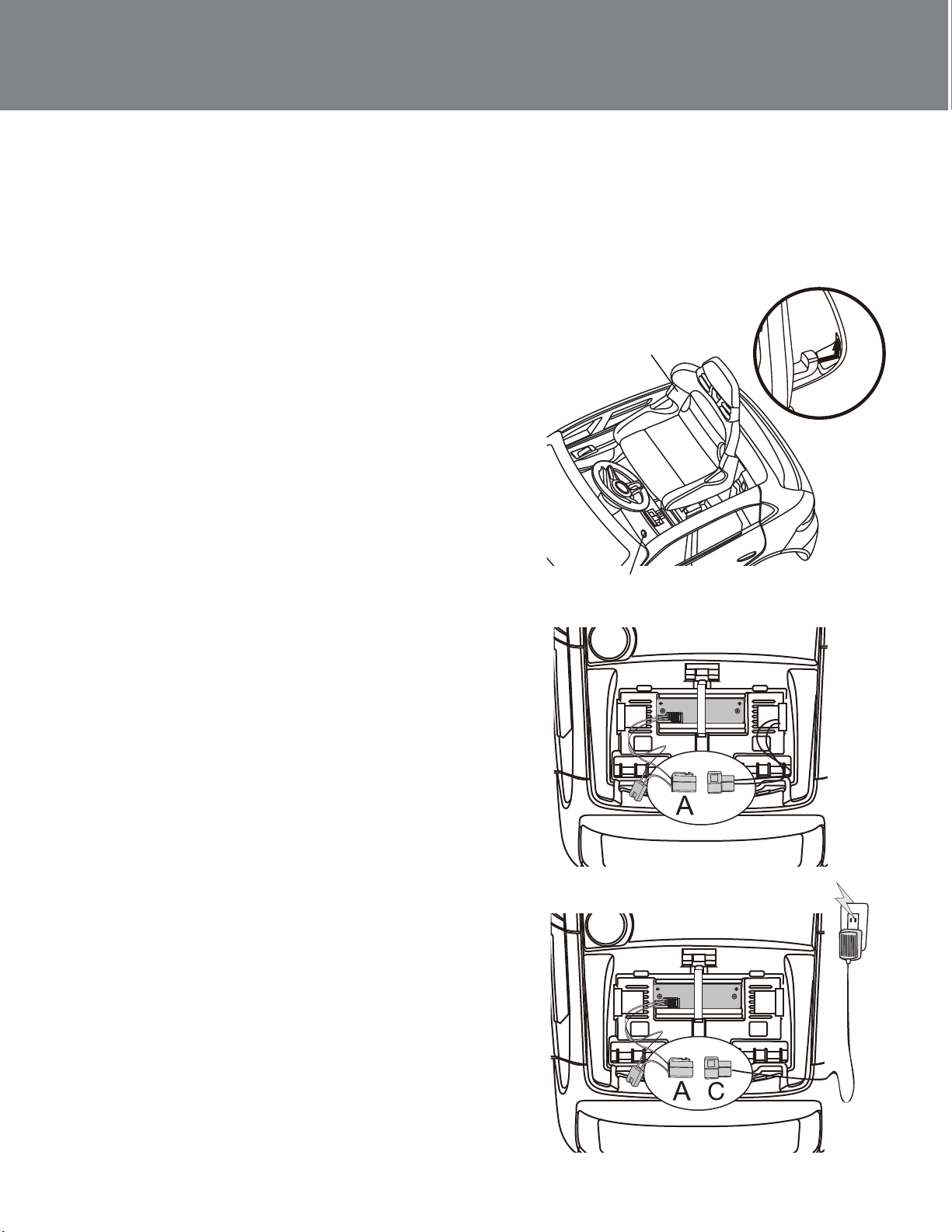

To Charge the Battery:
1. Ensure the car is stopped and the
power switch is turned off.
2. Press the seat unlock button on the
car body and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Plug-In the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector (A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging.
To remove the battery, unscrew the
black battery clamp, disconnect the
battery, and remove the battery.
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
Seat
B
Seat release button
9
Wheel cover

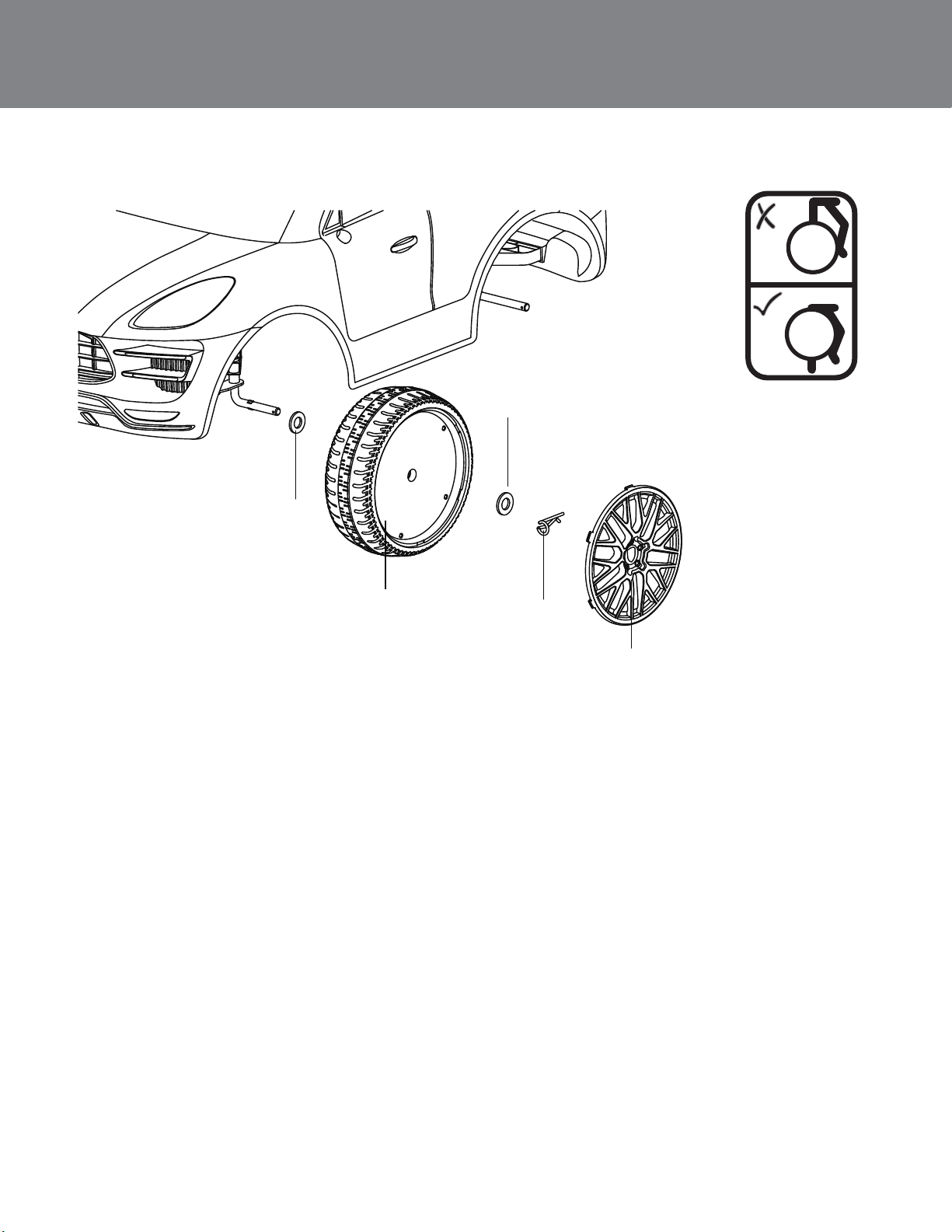

Assemble the Front Wheels
1. Slide the small washer onto the front axle.
2. Slide the front wheel onto the front axle.
3. Slide another small washer onto the front axle.
4. Insert the straight end of the snap pin through the hole at the end
of the axle to keep the wheel in place.
5. Finally snap the wheel cover on the wheel to complete the assembly.
6. Repeat steps 1-5 for the other front wheel.
Snap pinFront wheel
Small washer
Small washer
Correct Snap
Pin Installation
