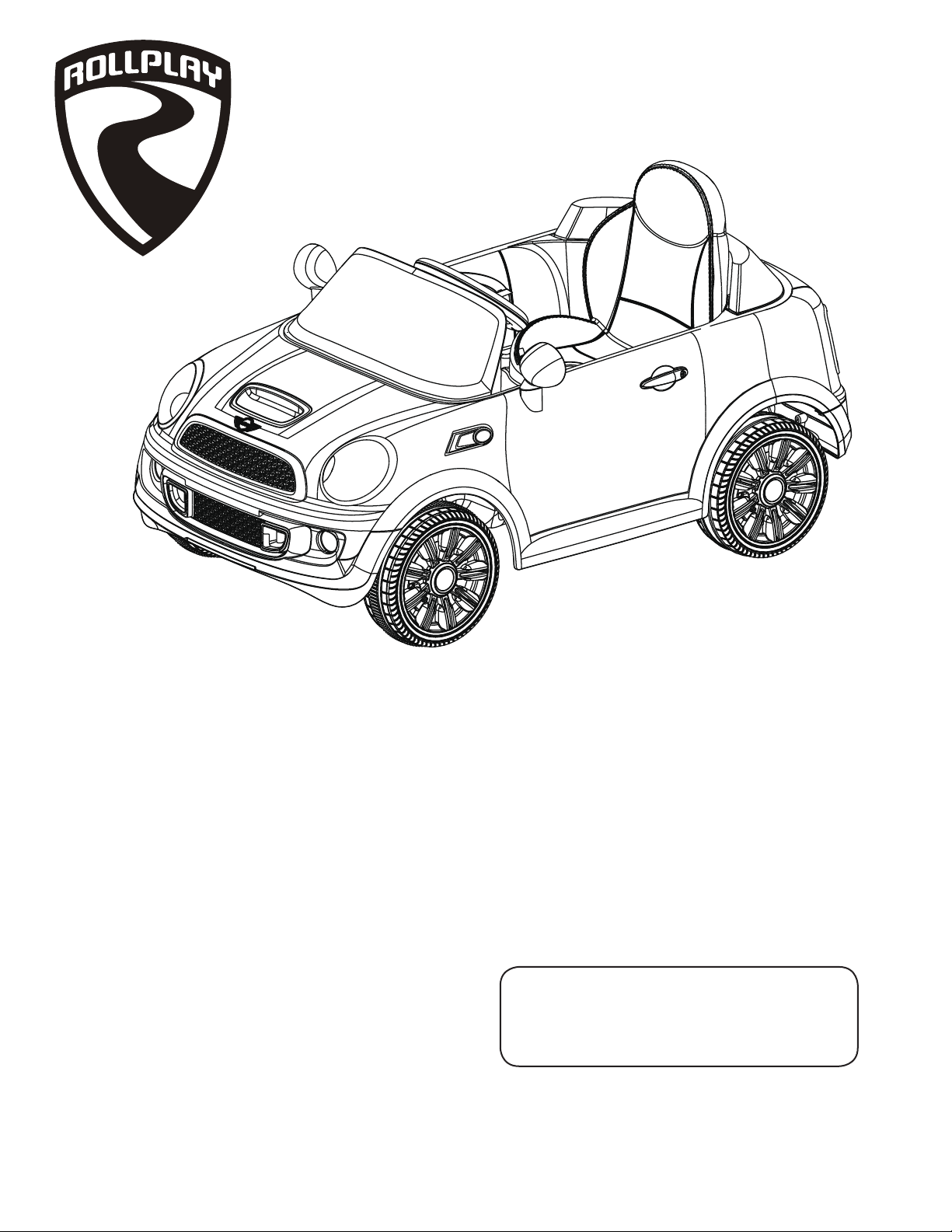

Rollplay Mini Cooper S Instrucciones de montaje

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understands the instructions.

Made in China.

Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and

replacement parts.

Owner’s Manual and Assembly Instructions

Model #: W456B

6V MINI COOPER S

IMPORTANT:

Save this manual with your sales receipt.

25701652 05/21

Introduction

Speciﬁcations:

BATTERY 6V 7AH

MOTOR 6V 15W

AGE 3 and Up

MAX WEIGHT 77 lbs. (35 kg)

PRODUCT SIZE 41.3 x 23.2 x 21.3 in. (105 x 59 x 54.2 cm)

SPEED Up to 4 km/h (2.5 mph)

RECHARGE TIME 8-12 Hours

TYPICAL RUN TIME 1-2 Hours

CHARGER OUTPUT DC 7.0V

Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys

it for miles to come. Please read this instruction guide carefully before

assembling and operating the vehicle.

Please keep your sales receipt and register your product at

www.rollplay.com.

Please contact Rollplay Customer Service with any questions. Have your

model number and serial number ready before calling. Please have proof

of purchase.

Phone:

Email: customerservice@rollplay.com

Hours: 8 AM - 5 PM EST, Monday - Friday

DO NOT RETURN YOUR PRODUCT TO THE STORE.

CONTACT ROLLPLAY WITH QUESTIONS.

IMPORTANT!

YOU MUST CHARGE THE BATTERY

FOR 24 HOURS (NO MORE THAN

30 HOURS) BEFORE FIRST USE!

Charge the battery after each use.

Charge the battery at least once a month, even if the vehicle is not in use.

E-mail Customer Service if you need assistance or replacement parts.

Please have your model number and serial number ready before calling.

Please provide proof of purchase. Keep your sales receipt and register your

product at www.rollplay.com, as we require proof of purchase.

[email protected]

Read this entire manual prior to

assembly to ensure safe operation

of the vehicle.

This page is intentionally left blank.

Table of Contents

Safety..........................................................6

Parts ..........................................................8

Charging Instructions ...............................9

Assemble the Front Wheels....................10

Assemble the Left Rear Wheel...............11

Assemble the Right Rear Wheel ............12

Attach the Steering Wheel......................13

Attach the Speedometer/Windshield .....14

Attach the Spoiler/Mirrors ......................15

Attach the Seat ........................................16

Battery Removal ......................................17

Operating Instructions............................18

Maintenance ............................................19

General Care ............................................20

Troubleshooting Guide............................21

FCC Information ......................................23

Customer Service ...............................24

Warranty ...................................................25

Notes ...................................................... 26

Product Registration ...............................27

6Safety

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines or serious

injury or death may occur.

ALWAYS use common sense and safe practices when using the vehicle. The user

must be at least 3 years old and weigh no more than 77 lb (35 kg).

This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material

and plastic bags before assembly.

Product Safety Commission (CPSC) Standard

Riders must always wear a ﬁtted helmet that complies with U.S. Consumer

16 CFR 1203.

Only sit on the seat in the vehicle.

Do not allow more than one rider.

Do not overload the vehicle. Do not remove the weight restriction decals.

Do not tow the vehicle with another vehicle or similar device.

Keep body parts, such as hands, legs and hair, and clothing away from moving

parts. Moving parts can cause serious injury.

ALWAYS wear shoes while using the vehicle.

NEVER operate near roadways or motor vehicles.

Do not operate near drop-offs, such as steps, steep inclines or hills. Operate on

relatively level ground.

Do not operate near water, swimming pools or other bodies of water.

Do not operate near loose dirt, mud, sand or ﬁne gravel.

Do not operate in dangerous weather conditions such as rain or snow.

Always use the vehicle in a safe, secure environment with adult supervision.

NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in

the vehicle. Direct adult supervision is REQUIRED.

RISK OF FIRE. Do not operate near ﬂammable vapors (gasoline, paint thinner,

acetone, etc.). Remove batteries if product is to be left unused for a long time.

Do not bypass. Replace only with supplied 6V battery, charger and circuitry.

Always replace the whole set of batteries at one time, taking care not to mix old

and new batteries, or batteries of different types.

•

Safety

(Continued)

WARNING: BATTERY SAFETY

• Battery posts, terminals and related accessories contain lead and lead components.

DO NOT open the battery.

PROPOSITION 65 WARNING: Battery posts, terminals and related accessories contain lead

and lead compounds, chemicals known to the State of California to cause cancer and

reproductive harm. Batteries also contain other chemicals known to the State of California

to cause cancer. WASH HANDS AFTER HANDLING.

• Contact exposure to battery leakage (lead acid) may cause serious injury.

Immediately contact your doctor if exposure occurs. If the chemical is on the skin,

ush immediately with cool water for 15 minutes. If the chemical is swallowed,

immediately give the person water or milk. Do not give water or milk if the person

is vomiting or has decreased alertness. Do not induce vomiting.

•

explosion. It could permanently damage the system. Keep the charger housing

closed to prevent exposed wiring, which may cause electric shock.

IMPORTANT:

charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION

REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety

issues.

• It is the responsibility of the adult to educate the child and to determine if the child

is capable of understanding the vehicle controls.

• An adult must ALWAYS directly supervise the use of this vehicle.

• NEVER leave a child unsupervised in the vehicle.

8Parts

• Phillips screwdriver

• 2 AA batteries

Not Included:

10 11 12 17

1. Manual

2. Battery

3. Steering Wheel

4. Seat

5. Rear Spoiler

6. Car Body

7. Front Wheel (2)

8. Rear Wheel (2)

9. Rims (4)

10. Small Washers (4+1)

11. Large Washers (4+1)

12. Snap Pins (4+2)

13. Speedometer

14. Mirrors (2)

15. Windshield

16. Charger

17. Nut

18. Steering Wheel Screw

19. Blister box

Charging Instructions

To Charge the Battery:

1. Ensure the car is stopped and the

power switch is turned off.

2. Unlock and remove the seat.

3. Unplug the red battery connector

(A) from the red engine connector

(B).

4. Connect the red battery connector

(A) to the red battery charger

connector (C) and plug the battery

charger (D) into a 120 V outlet.

To Reconnect the Battery:

1. Unplug the battery charger (D)

from the outlet.

2. Unplug the red battery connector

(A).

3. Reconnect the red battery

connector (A) to the red engine

connector (B).

4. Replace the seat and tighten lock.

Note: It is not necessary to remove

the battery for charging. However, if

the battery does not reach the outlet,

it can be removed for charging. For

Battery Removal instructions, see

Page 17.

Battery

A B

Seat

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

YOU MUST CHARGE THE BATTERY FOR 24

HOURS (NO MORE THAN 30 HOURS)

BEFORE THE FIRST USE!

Small washer

Front wheel

Snap pin

Small washer

Rim

Assemble the Front Wheels

1. Slide the large washer onto the front axle.

2. Slide the front wheel onto the front axle.

3. Slide the small washer onto the front axle.

attached.

5. Snap the rim onto the wheel to complete the assembly.

6. Repeat steps 1-5 for the remaining front wheel.
