Roland VersaCamm SP-300V Manual de usuario

Before installing, be sure to read this.

This document describes important matters related to installation

operations.When installing, be sure to read this document as well

as the Setup Guide.

The procedures for "Filling with Ink for the First Time" have changed.

Some of what is described in the Setup Guide has changed. The procedure for installing ink cartridges for the

first time after purchase has changed.

➢Use the contents of this document instead of the procedures described on pages 27 to 29 of the Setup

Guide.

➢Careful attention is required,because performing the procedure incorrectly may result in malfunction or

dot drop-out.

➢When filling with ink, use the included dummy cartridges.

Dummy cartridges are included.

Dummy cartridges have been added to the included items.

You use them when filling with ink.

These are also required when moving the machine to a dif-

ferent location, so store them safely, without discarding them.

Important Note When Moving the Machine

When moving the machine to a different location, ink-fill-

ing must be performed again. The dummy cartridges are

needed at this time. Store them safely, without discarding

them.The procedure for moving the machine is described

in the Setup Guide. Note, however, that the ink-filling per-

formed at such times must also be carried out as explained

in this document.

Dummy cartridges

Replace pages 27 through 29 of the Setup Guide with this page.

Switch on the power and make the initial settings.

➊

Close the front cover.

➋

Switch on the main power switch.

➌

Hold down and press the sub power switch.

➍

Use to select the language you want.

Press .

➎

Use to select the unit of measurement you

want (for length).

Press .

➏

Use to select the unit of measurement you

want (for temperature).

Press .

➐

Make sure the two voltage switches are set correctly.

Press .

LENGTH UNIT

mm mm

TEMP. UNIT

ºC ºC

CHECK HEATER

VOLTAGE SETTING

MENU LANGUAGE

ENGLISH

Clean the heads using the cleaning cartridges.

➊

➀Use to select the ink type.

➁Press to enable the selection.

➋

➀Make sure the drain bottle is installed.

➁Press .

➌

Insert cleaning cartridges into slots 1 and 2.

SELECT INK TYPE

E-SOL Max 4 COLOR

SET SOL CL-LIQUID

1 2

Flashing

INSTALL

DRAIN BOTTLE

Cleaning cartridge

Replace pages 27 through 29 of the Setup Guide with this page.

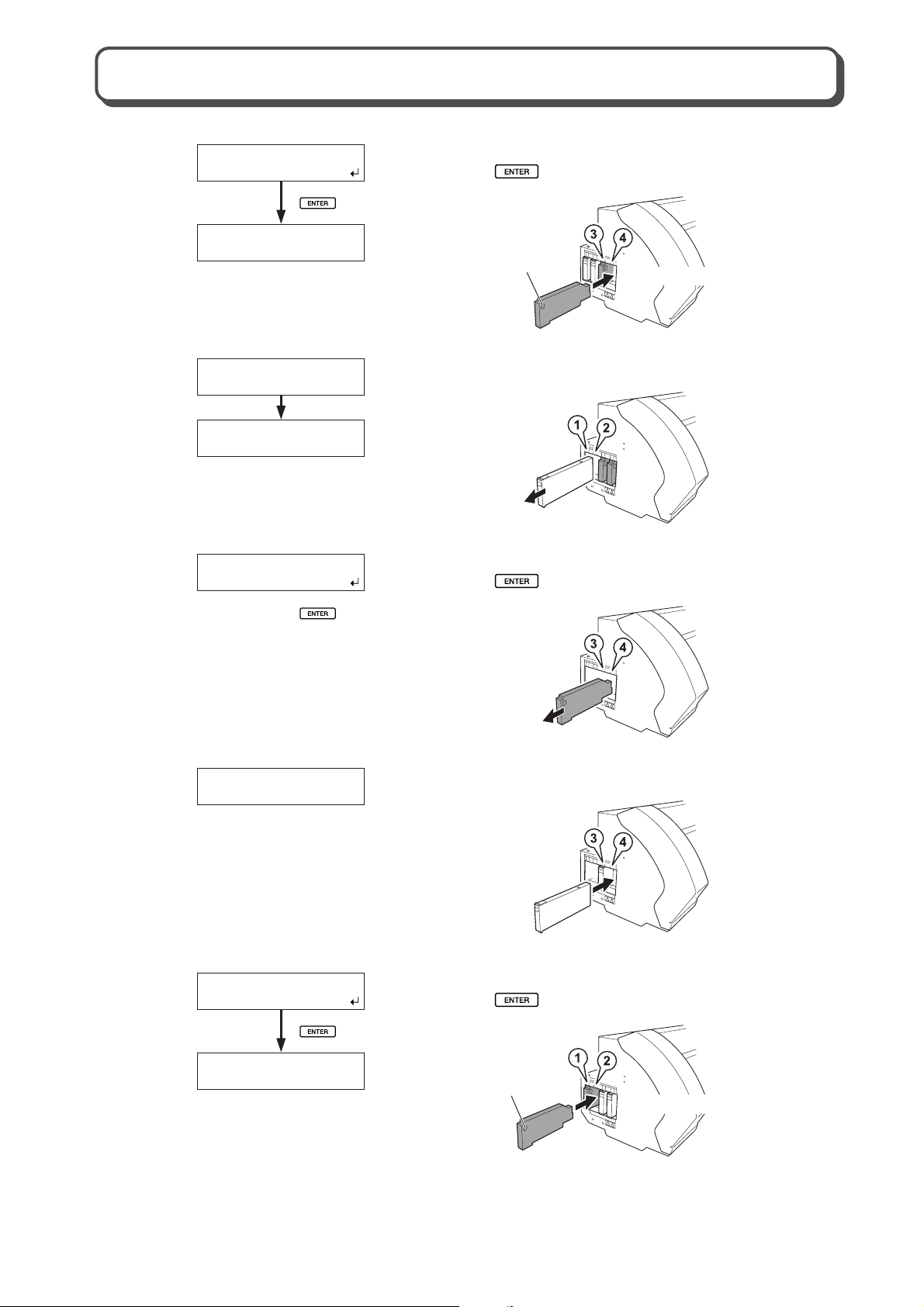

➍

➀Insert the dummy cartridges into slots 3 and 4.

➁Press .

➎

Pull out the cleaning cartridges from slots 1 and 2.

➏

➀Pull out the dummy cartridges from slots 3 and 4.

➁Press .

➐

Insert the cleaning cartridges into slots 3 and 4.

➑

➀Insert the dummy cartridges into slots 1 and 2.

➁Press .

FILLING INK...

SET DUMMY CRT.

SLOT: 3, 4

Dummy cartridge

Wait.

Orient with the

round hole facing up.

REMOVE SOL CL

1 2

Flashing

FILLING INK...

Wait.

REMOVE DUMMY CRT

SLOT: 3, 4

SET SOL CL-LIQUID

3 4

Flashing

Cleaning cartridge

Dummy cartridge

FILLING INK...

SET DUMMY CRT.

SLOT: 1, 2

Gently insert all the way.

Dummy cartridge

Orient with the

round hole facing up.

Gently insert all the way.

Wait.

Replace pages 27 through 29 of the Setup Guide with this page.

➒

Pull out the cleaning cartridges from slots 3 and 4.

➓

➀Pull out the dummy cartridges from slots 1 and 2.

➁Press .

Insert the ink cartridges for the respective colors.

➊

Before you insert the ink cartridge for each color, gently

shake the cartridge.

➋

Insert the ink cartridge for each color.

➌

When the screen in the figure appears, ink filling ends.

Insert into the slot of the matching color.

SET SOL CRT.

1 2 3 4

SETUP SHEET

Flashing

FILLING INK...

REMOVE DUMMY CRT

SLOT: 1, 2

SET SOL CRT.

1 2 3 4

Flashing

Wait.

REMOVE SOL CL

3 4

Flashing

FILLING INK...

Wait. Cleaning cartridge

Dummy cartridge

R2-061113
