Roland IU-1000F Manual de usuario
Special Color Ink Guide
(Administrator Mode Edition)
Thank you very much for purchasing this product.
• To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read
through this manual completely and store it in a safe location.
• Unauthorized copying or transferal, in whole or in part, of this manual is prohibited.
• The specications of this product and the contents of this operation manual are subject to change without notice.
• The operation manual and the product have been prepared and tested as much as possible. If you nd any
misprints or errors, please inform us.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur through
use of this product, regardless of any failure to perform on the part of this product.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur with
respect to any article made using this product.
This manual introduces how to add a new print mode and how to
perform spot color printing using that mode.
The steps introduced here use spot color inks such as gloss and
white ink to create the desired eect for the product.
Company names and product names are trademarks or registered trademarks of their respective holders.
Copyright © 2020 Roland DG Corporation
http://www.rolanddg.com/
Contents
Contents..............................................................................................................................................................................................3
Customizing Print Settings...........................................................................................................................................................4
Introduction......................................................................................................................................................................4
Printing with Transparent Media and Matte Finishing .......................................................................................................5
Using Emboss to Make Patterns and Characters Stand Out.......................................................................................... 10
Three-Layer Printing for Backlit Panels.................................................................................................................................. 14
1
2
Customizing Print Settings
Introduction
This manual introduces how to add a new print mode and how to perform spot color printing using that mode.
Adding a print mode is only possible in administrator mode. However, please note that adding print modes is not
covered by the warranty.
For information on how to log into administrator mode, refer to the IU-1000F Operating Instructions —
Administrator Mode Guide.
3
Printing with Transparent Media and Matte Finishing
[1]: Gloss printing (matte nish) on the pattern
[2]: Pattern printing
[3]: White printing for improved color development
[4]: Primer printing between the ink and the media to promote ink adhesion
Procedure
A Create the print data and save it as a rasterized le.
1 Create the print data using Adobe Illustrator or some other drawing software.
Make four layers, and stack them in the order shown above.
Congure the settings for each layer ([1] to [4]) as follows.
Layer name Swatch (*1) Overprint Fill (*2)
Layer [1] Gloss Spot2 On
Layer [2] CMYK No On
Layer [3] White Spot1 On
Layer [4] Primer Spot3 O
*1: Specify a swatch for each object within a layer.
*2: "Overprint Fill" in the "Attributes" window
Create three new swatches, and congure the settings as follows.
Swatch Name Color Type
Swatch 1 Spot1 Spot color
Swatch 2 Spot2 Spot color
Swatch 3 Spot3 Spot color
2 Use RIP software such as SAi FlexiPRINT to rasterize the print data.
3 Save the rasterized print data as a le.
Printing with Transparent Media and Matte Finishing
4
B Start Print Control and enter administrator mode.
C Open the le saved in A with Print Control, and double-click the added job.
The "Properties" window for the job appears.
D Click [Print Mode].
The "Print Edit mode" window appears.
E Create a new print mode.
1 Enter a new name in "Current Mode."
2 Click [New].
3 Click [Color Mode].
The "Color Mode Setting" window appears.
Printing with Transparent Media and Matte Finishing
5

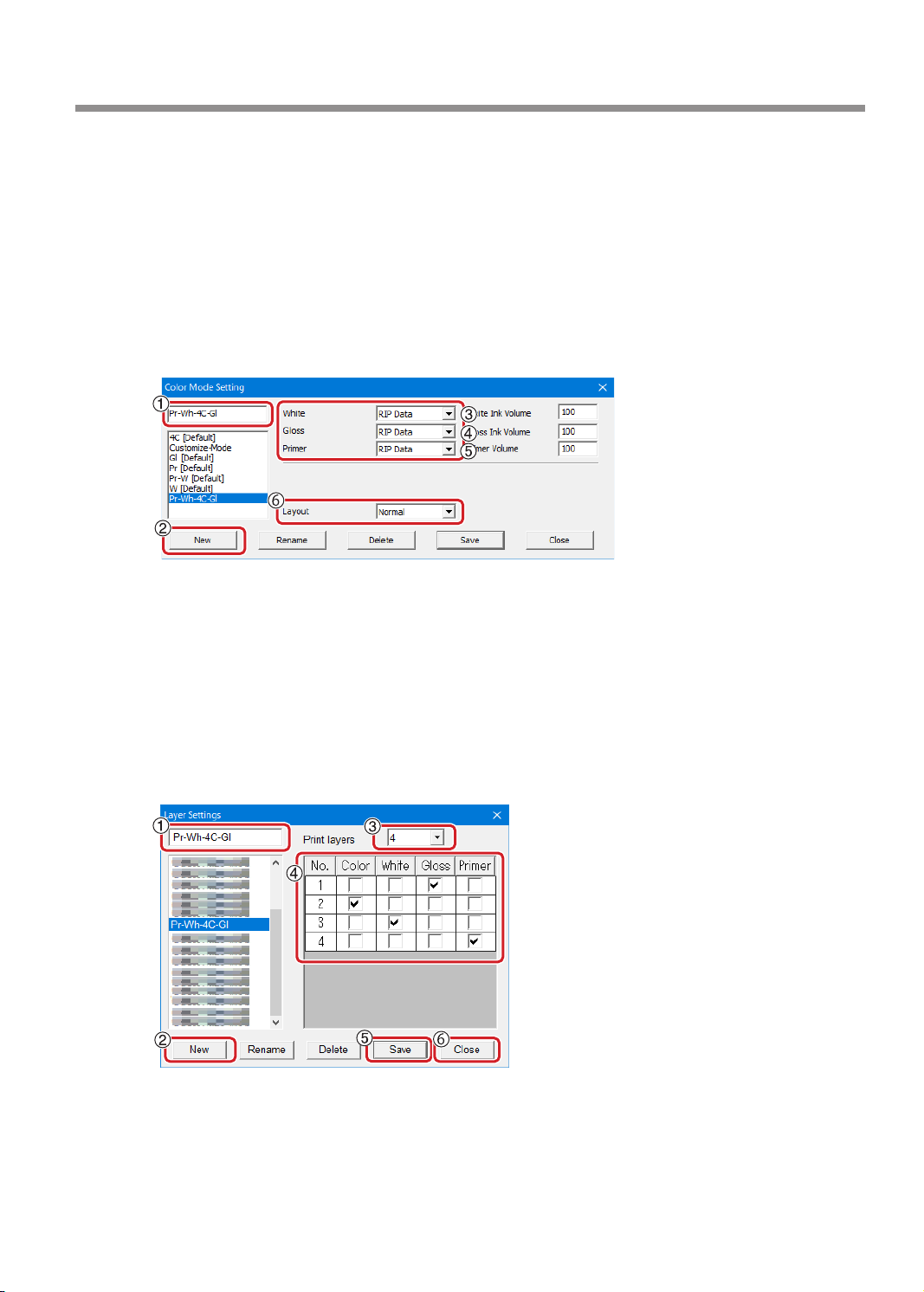

F Create a new color mode and congure the settings.
1 Enter a name for the new color mode.
2 Click [New].
3 Set "White" to "RIP Data."
4 Set "Gloss" to "RIP Data."
5 Set "Primer" to "RIP Data."
6 Select "More..." in "Layout."
The "Layer Settings" window appears.
G Congure and save the settings for the new layout.
1 Enter a name for the layout. (Example: Pr - Wh - 4C - Gl)
2 Click [New].
3 Set the number of layers to 4.
4 Congure the settings for each layer as shown in the gure.
5 Click [Save].
6 Click [Close].
The "Layer Settings" window closes, and the "Color Mode Setting" window appears.
Printing with Transparent Media and Matte Finishing
6
H Select the layout created in G.
1 Select the newly created layout in the "Layout" pulldown list.
2 Click [Save].
3 Click [Close].
The "Color Mode Setting" window closes, and the "Print Edit mode" window appears.
I Select the color mode created in F.
1 Select the newly created color mode in the "Color Mode Setting" pulldown list.
2 Click [Save].
3 Click [Close].
The "Print Edit mode" window closes, and the "Properties" window appears.
Printing with Transparent Media and Matte Finishing
7
J Select the print mode created in E and begin printing.
1 Select the newly created print mode in the "Print Mode" pulldown list.
2 Click [OK].
3 If the displayed media thickness is correct, click [Print].
4 If the maintenance station height is correct, click [Yes].
Printing starts.
8
Using Emboss to Make Patterns and Characters Stand Out
Using a gloss layer provides an uneven surface, creating an embossed product.
Because the gloss layer can result in a slightly yellowish color, the gloss layer should be placed under the pattern.
However, the color of the gloss can aect the color of the pattern, so a white layer must be printed between the
gloss and the pattern.
[1]: Pattern printing
[2]: White printing for improved color development
[3]: Gloss layering for creating unevenness
Procedure
A Create the print data and save it as a rasterized le.
1 Create the print data using Adobe Illustrator or some other drawing software.
Make three layers, and stack them in the order shown above.
Congure the settings for each layer ([1] to [3]) as follows.
Layer name Swatch (*1) Overprint Fill (*2)
Layer [1] CMYK No On
Layer [2] White Spot1 On
Layer [3] Gloss Spot2 O
*1: Specify a swatch for each object within a layer.
*2: "Overprint Fill" in the "Attributes" window
Create two new swatches, and congure the settings as follows.
Swatch Name Color Type
Swatch 1 Spot1 Spot color
Swatch 2 Spot2 Spot color
2 Use RIP software such as SAi FlexiPRINT to rasterize the print data.
3 Save the rasterized print data as a le.
