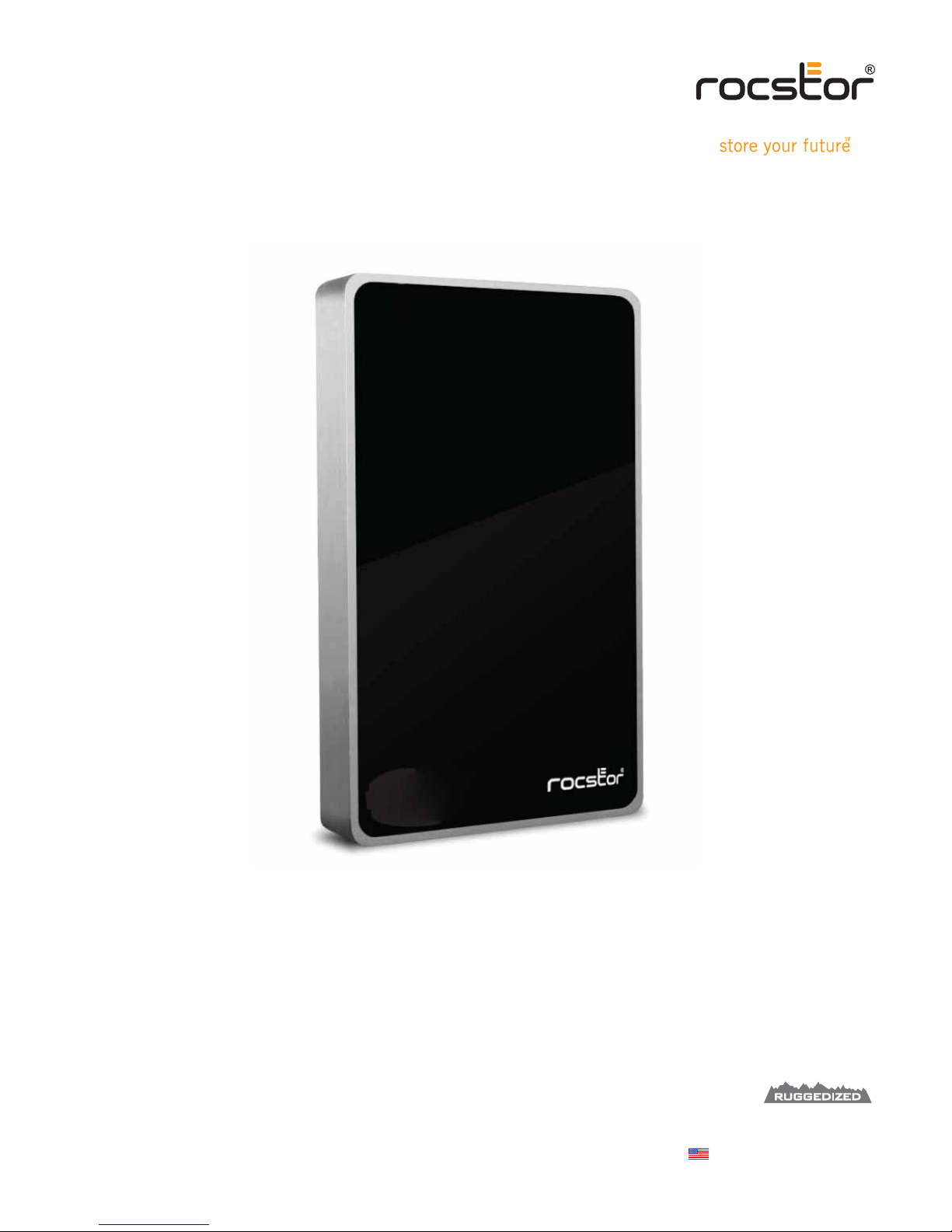

Rocstor LANCER LX Manual de usuario

Quick Installation Guide

LANCER LX

FireWire 800, USB 3.0

ROCSTOR |LANCER LX quick installation guide Page \ 2

Contents

System Requirements

Mac Users

Hardware:

• FireWire 800 (1394b) or

• FireWire 400 (1394a) or

• USB 3.0 or (2.0) port(s).

• PowerPC or Intel processor

• Mac OS 9, X, Leopard or Snow Leopard

Min. recommended memory: 512 MB RAM

PC Users

Hardware:

• FireWire 800 (1394b) or

• FireWire 400 (1394a) or

• USB 3.0 or (2.0) port(s).

• Microsoft Windows 2000, Me, XP, Vista, or Windows 7

Min. recommended memory: 512 MB RAM

*If you wish to utilize FireWire ports and your computer does not support such interfaces you may be required to purchase an interface as an optional device.

You may also utilize your Host (Computer) FireWire 400 port to connect to the FireWire 800 port on Rocport ID9 via an optional standard cable or a small adaptor.

Please note that transfer rate will be reduced to FireWire 400 speeds at about 400 Mbits/s.

Carrying Case Quick Installation

Guide

Quick Installation Guide

storeyour future

FireWire 800, USB 3.0

LANCER LX

Quick Installation Guide

LANCER LX USB Cable

FireWire 800

Cable

2. Using only one interface cable at a time, select the interface port you wish to use on your computer. When using FireWire, connect one

end of the FireWire cable to the appropriate FireWire port (FW800 or FW400) of your computer and then the other end to the FireWire port

in the Lancer LX. When using USB, connect the USB cable to the USB ports of your computer (or via Power Hub that is connected to your

computer) and then the other end to the USB port in the Lancer LX. Upon connection, a Blue light on the Lancer LX drive will turn ON

4. The Hard drive is preformatted for Plug-and-Play operation. After a few seconds a Rocstor HD icon will show on “My Computer” folder

under the Windows OS. Under the Mac OS, the Rocstor HD icon will appear on the “Desktop.”

5. Click (double click) on the Rocstor HD icon to access the drive.

* You may also refer to the Rocstor website to view or download a full version of the

Lancer LX

manual. www.ROCSTOR.com

Page \ 3

ROCSTOR |LANCER LX quick installation guide

Connecting the Drive

1. Turn ON your computer and wait until it fully boots up to load all programs.

2x FireWire

800

USB

3.0

FW800

FW 800

USB 3.0

(Daisy Chain Optional)

Page \ 4

ROCSTOR |LANCER LX quick installation guide

Capacity Disclaimer

Actual accessible hard drive capacity will indicate up to 10% lower than stated under different Operating Systems and formatting. Therefore, a 500GB capacity

drive may show up as a 450GB drive (approximately.)

Warranty Period

The Limited warranty period for Blazer hard drives is two years for parts and labor.

Technical Support / RMA

Tel: (888) 877-7716 (USA and Canada)

Tel: +1 (818) 449-2000 (Domestic and Internationals)

Fax: +1 (818) 884-8777

Hours: 9:00 am - 5:00 pm PST, Mon - Fri (excluding holidays)

Email: support@Rocstor.com

Trademarks Acknowledgements

"store your future", "secure your future" and “power your future” are the slogan marks of Rocstorage, Inc. Apple, the Apple logo, Mac, Power Macintosh,

FireWire, and Mac Pro, Leopard … are trademarks of Apple Computer, Inc. Microsoft, MS-DOS, Windows CE, Windows NT, Windows 98, Soft Windows, Vista

… are registered trademarks of Microsoft Corporation. All other names are trademarks of their respective companies in the United States and other countries.

Designed/assembled/integrated in the U.S.A.

using domestic and/or foreign components.

Enclosure (without hard drive) is made in China

Specifications, terms, warranties, descriptions, product and services herein are subject to change without notice.

Ver.0801K
