Rockymounts SwitchHitter Manual de usuario

A: Head Assembly

B: Wheel Tray

C: Metal Plate

D: End Cap w/ Lock Cable

E: 5mm Hex Wrench

F: 4mm Hex Wrench

G: Torx T30 Wrench

H: M6x22 Bolt

I: M6x8 Torx Bolt

J: 15x110mm Axle

K: 12x100mm Axle

L: 9mm Quick Release w/ Sleeve

M: Wheel Strap Assembly

N: Nylon Spacer

O: M6x18 Bolt

P: M6x10 Bolt

Q: Flat Washer

R: T-Slot Plate

S: Rear Bracket Assembly

D (1x)

A (1x) B (1x)

C (1x)

J (1x)

K (1x)

L (1x) M (1x)

E (1x)

F (1x)

G (1x) H (2x) I (1x)

N (1x)

O (2x)

P (1x) Q (3x)

R (3x) S (1x)

Slide metal plate into slot at bottom of wheel tray.

Align holes on head and wheel tray, install two M6x22

bolts through plate with 5mm hex wrench

Remove M6 bolt by holding nut in place with at

head screwdriver and loosening M6 bolt with 5mm

hex wrench

Position Rack

FIRST: Reattach strap around front crossbar, centering

head over crossbar. NEXT: Pivot rear bracket to align

with loosened bolt and tighten two M6 bolts on

bracket with 5mm hex wrench. Tighten M6 bolt on

head

Place head onto front crossbar. Slide rear plate above

rear crossbar. Rack must be positioned between

towers

Loosen M6 bolt on head with 5mm hex wrench.

Unhook strap. Loosen one M6 bolt on rear bracket

and pivot bracket away

Remove top cap from head by lifting up nger tab.

Slide rear plate into T-slot at end of wheel tray

Remove steel rod from strap. Use pliers to atten

loops on strap and pull out from bottom of head.

Remove two M6x55 bolts and spacers using 5mm hex

wrench. Remove rear bracket from assembly

Loosely install two #3 plates through two holes on

head using two M6x18 bolts with washers. Use M6x10

bolt with washer to install remaining plate onto rear

plate

Slide wheel strap assembly onto sides of tray with

buckle facing out. Press in end cap at end of tray, install

M6x8 bolt with Torx wrench. Feed cable into tray and

press lock housing in place. Install top cap to head

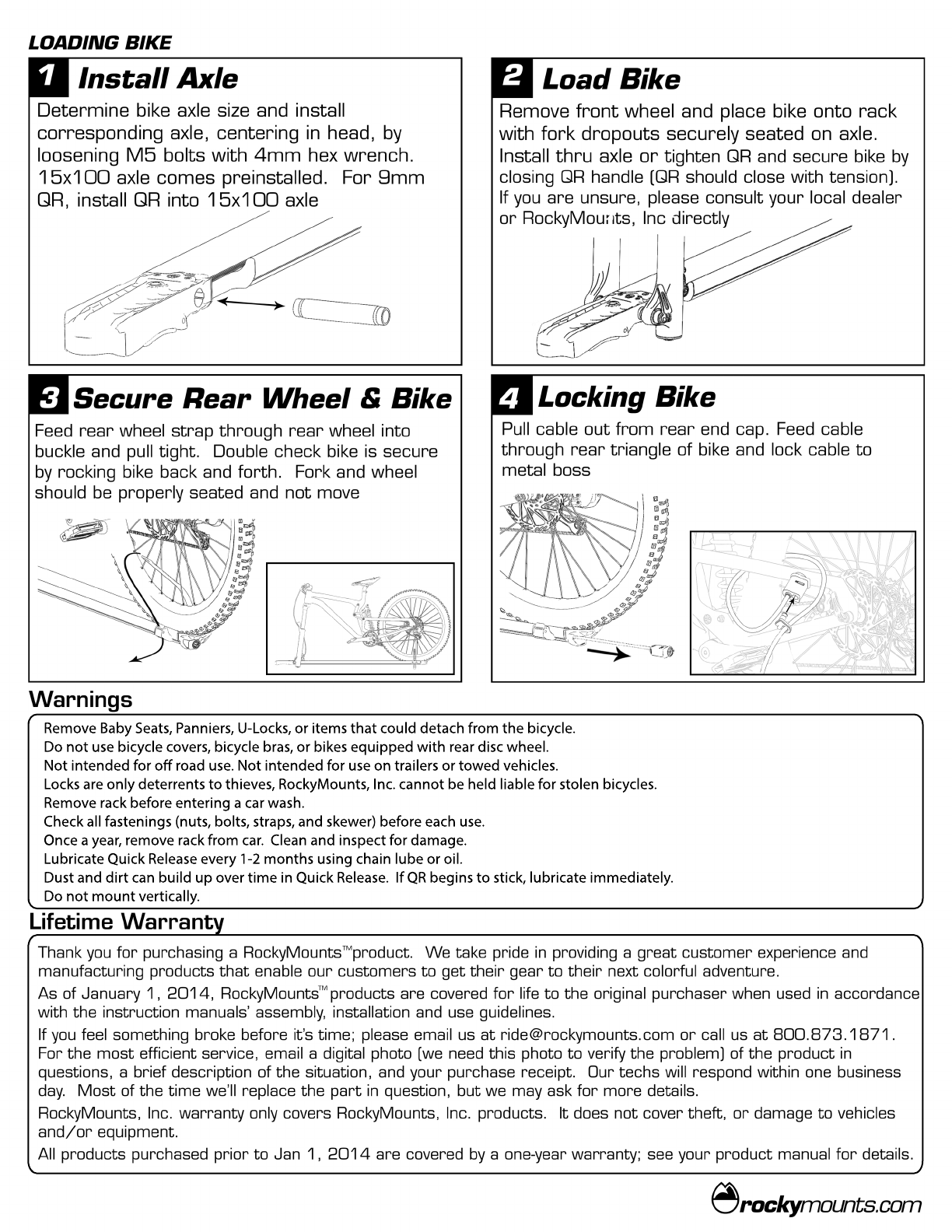

Remove Baby Seats, Panniers, U-Locks, or items that could detach from the bicycle.

Do not use bicycle covers, bicycle bras, or bikes equipped with rear disc wheel.

Not intended for oﬀ road use. Not intended for use on trailers or towed vehicles.

Locks are only deterrents to thieves, RockyMounts, Inc. cannot be held liable for stolen bicycles.

Remove rack before entering a car wash.

Check all fastenings (nuts, bolts, straps, and skewer) before each use.

OnOnce a year, remove rack from car. Clean and inspect for damage.

Lubricate Quick Release every 1-2 months using chain lube or oil.

Dust and dirt can build up over time in Quick Release. If QR begins to stick, lubricate immediately.

Do not mount vertically.
