Rocket Fish RF-BTAPDT Manual de usuario

Bluetooth 2.0 EDR Class II Wireless USB

Adapter

Adaptateur USB sans fil de classe II Bluetooth 2.0

EDR

Adaptador USB Inalámbrico de clase II con

tecnología Bluetooth 2.0 EDR

RF-BTAPDT User Guide Guide de l’utilisateur Guía del Usuario

RF-BTAPDT.fm Page 1 Tuesday, January 30, 2007 8:28 PM

Rocketfish RF-BTAPDT

Bluetooth® Wireless USB Adapter

Contents

Introduction .............................................................................................................. 2

Features....................................................................................................................... 2

Using the Bluetooth adapter............................................................................... 4

Troubleshooting ....................................................................................................12

Legal notices ...........................................................................................................14

Français ..................................................................... 16

Español...................................................................... 32

Introduction

Congratulations on your purchase of the RF-BTAPDT Bluetooth® adapter. This

Bluetooth adapter lets you connect any wireless Bluetooth device to any

computer that has an available USB port.

Features

•SupportsBluetoothdevices

• Bluetooth specification v1.2 and v2.0 compliant

• Compatible with the following profiles:

• Generic Access Profile (GAP)

• Generic Object Exchange Profile (GOEP)

• Serial Port Profile (SPP)

• File Transfer Profile (FTP)

RF-BTAPDT.fm Page 2 Tuesday, January 30, 2007 8:28 PM

3RF-BTAPDT

• Object Push Profile (OPP)

•Dial-upNetworkingProfile(DUN)

• Synchronization Profile (SYNC)

•FaxProfile(FAX)

• Personal Area Networking Profile (PAN)

• Human Interface Device Profile (HID)

• Headset/Audio Gateway Profile (HSP)

• Hardcopy Cable Replacement Profile (HCRP)

• Basic Imaging Profile (BIP)

• Basic Printing Profile (BPP)

• Generic Audio Video Distribution Profile (GAVDP)

• Advanced Audio Distribution Profile (A2DP)

•AudioVideoRemoteControlProfile(AVRCP)

Refer to the device’s user guide for additional instructions and security

codes.

Package contents

• Bluetooth® Wireless USB Adapter

• Installation CD

•UserGuide

System requirements

• Intel® Pentium® processor (or equivalent)

• One available USB port (USB 2.0 or 1.1)

•CDdrive

• Operating system: Microsoft® Windows® XP with Service Pack 1 or

higher, or Microsoft® Windows® 2000

RF-BTAPDT.fm Page 3 Tuesday, January 30, 2007 8:28 PM

Using the Bluetooth adapter

Installing the Bluetooth software

This procedure assumes you’re installing the software onto a Windows XP

computer.

To install the Bluetooth software:

1Plug the Bluetooth adapter into an available USB port on your

computer. If you forget to connect the adapter to your computer before

installing the software, a warning message will appear during the

software installation.

2Insert the provided installation CD into the CD drive on your computer.

The Bluetooth installation program runs automatically, and the

Welcome dialog box opens.

If the program doesn’t start automatically, open Windows Explorer and

run the file setup.exe on the installation CD.

3Click Next.

RF-BTAPDT.fm Page 4 Tuesday, January 30, 2007 8:28 PM

5RF-BTAPDT

4Read the agreement, click I accept the terms in the license agreement, then

click Next. A dialog box opens that shows you where the program will be

installed to.

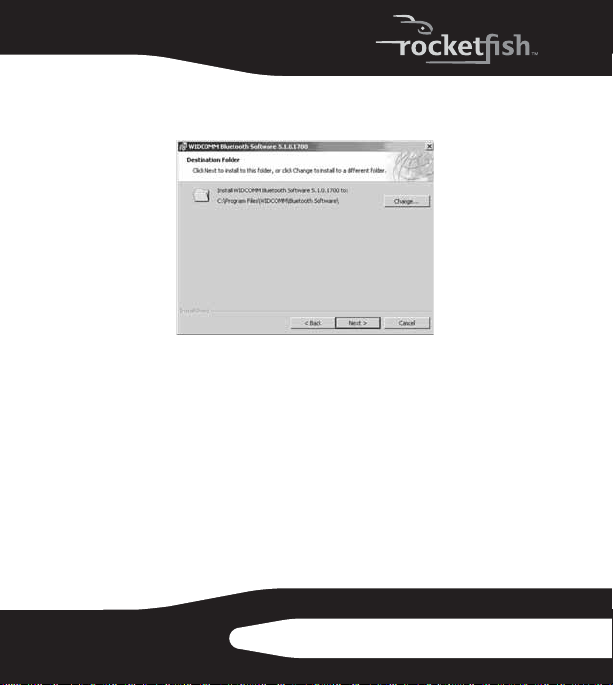

5To install the program to a different location, click Change, then type the

correct location.

6Click Next.

7Click Install. The program is installed.

RF-BTAPDT.fm Page 5 Tuesday, January 30, 2007 8:28 PM

8When the “Driver Signature Notice” message appears, click OK.

9If the “Bluetooth device not found” message appears, plug the

Bluetooth adapter into an available USB port, then click OK.

The Found New Hardware Wizard installs software for the USB Bluetooth

adapter. Installation may take several minutes.

RF-BTAPDT.fm Page 6 Tuesday, January 30, 2007 8:28 PM

7RF-BTAPDT

Setting up the Bluetooth software

To configure the Bluetooth software:

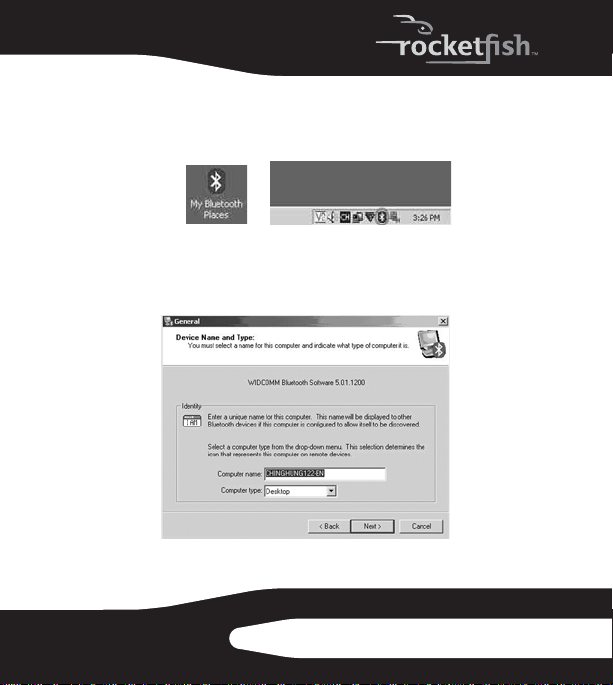

1Double-click My Bluetooth Places on the Windows desktop, or click the

Bluetooth icon in the system tray.

The Initial Bluetooth Configuration Wizard starts.

2Click Next.

3Enter a name, then and click either Laptop Computer or Desktop Computer

from the drop-down menu for this computer.

4Click Next, then click Next again.

RF-BTAPDT.fm Page 7 Tuesday, January 30, 2007 8:28 PM

5Click to select the services that this computer will offer to other

Bluetooth devices, then click Next.

6If you have another Bluetooth device, click Next. Otherwise, click Skip.

7When the configuration is done, click Finish.

8Insert the Bluetooth adapter into your computer, and wait for the

adapter’s LED to turn blue before connecting to any Bluetooth device.

Connecting to a Bluetooth mouse or keyboard

Before the Bluetoothmouse or keyboard pairing, make sure the following:

1Make sure that the Bluetooth software has been installed and

configured according to the instructions in this guide.

2Make sure that the batteries for the mouse or keyboard have been

correctly installed and are fully charged.

3Make sure that the USB Bluetooth adapter has been plugged into your

computer.

RF-BTAPDT.fm Page 8 Tuesday, January 30, 2007 8:28 PM

9RF-BTAPDT

4If you are connecting a mouse, turn on the mouse power. See the

mouse’s user guide for instructions.

5Press the Connect button on the mouse or keyboard, then press the

Bluetooth adapter’s Connect button until the adapter’s LED flashes blue

and the following screen appears.

The software starts the search.

Connect button

RF-BTAPDT.fm Page 9 Tuesday, January 30, 2007 8:28 PM

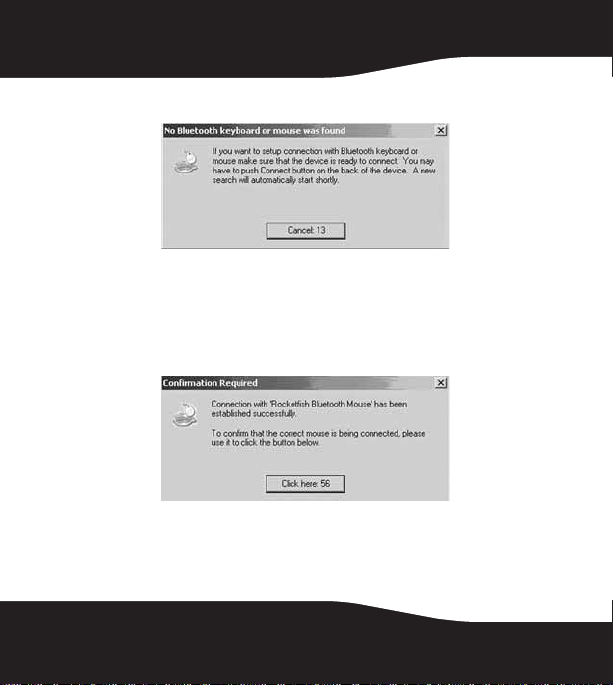

6If the following message appears, no Bluetooth mouse or keyboard was

found.

Make sure that you have pressed the Connect button on the device to

make it able to be seen by the computer. If you are trying to connect a

mouse, make sure it is turned on. The search starts again in a few

seconds.

7When a Bluetooth mouse is detected and the following confirmation

message appears, click to confirm that the mouse is connected.

RF-BTAPDT.fm Page 10 Tuesday, January 30, 2007 8:28 PM
