Robustel GoRugged R2000 Manual de usuario

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 1/16

Quick Guide

R2000--Industrial Cellular VPN Router

This document is written for the user which in order to let the

user more easily install the router and also know the way to

configure the router. This guide provides step-by-step instruction

on how to setup the connection between R2000 router and PC

and how to enter the router configuration mode.

Package Checklist

Before installing theR2000 router, verify that the package contains the following items:

Robustel R2000 Router

Terminal Block for Power

Document and Software CD

Optional Accessories

AC/DC Power Supply Adapter

Rubber SMA Antenna

35mm Din-Rail mounting kit or Wall mounting kit

Notify your sales representative if any of the above items is missing or damaged.

Preparation before testing

1xR2000 Router, 1xPC, 1xSIM card, 1xEhternet cable, 2xSMA antenna, 1xpower supplies with terminal block,

(1x35mm Din-Rail mounting kit or Wall mounting kit, 4xM3 screw, 2xM3 screw with point-end)

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 2/16

Environment Requirements

Power Input 9 to 26 VDC

Power Consumption: Idle: 100 mA @ 12 V, Data Link: 500 mA (peak) @ 12 V

Operating Temperature -40 to +85°C

Operating Humidity 5 to 95% RH

Chapter 1 Interface Introduction

1.1 Overview

As shown in the following figures, R2000 router has two Ethernet ports (2xLAN or 1xLAN+1xWAN) and two cellular

SIM card slots.

1.2 LED Indicators

Name

Color

Status

Function

RUN

Green

Blinking

Router is ready.

Router is starting.

Off

Router is power off.

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 3/16

1.3 Reset Button

1.4 Ethernet port

There are two Ethernet ports in R2000 router, ETH1 is the LAN interface and ETH0 can be the LAN or WAN

interface. Each Ethernet port has two LED indicators. The yellow one is Link indicator and the green one

doesn’t mean anything. There are three status of Link indicator. Please refer to the form below.

PPP

Green

Blinking

PPP Indicator: Null

PPP Indicator: PPP connection is up.

Off

PPP Indicator: PPP connection is down.

USR

Green

Blinking

SIM: using backup SIM card.

NET: register to a low level network.

Off after blinking

SIM: working fine.

NET: working fine.

Light up

OpenVPN: OpenVPN is connected.

IPSec: IPSec is connected.

GRE: GRE is connected.

Off after lighting up

OpenVPN: OpenVPN is disconnected.

IPSec: IPSec is disconnected.

GRE: GRE is disconnected.

Green

Signal level: 21-31 (Perfect signal level).

Yellow

Signal level: 11-20 (Average signal level).

Red

Signal level: 1-10 (Exceptional signal level).

When the network is disconnected, those three signal LEDs are designed as a binary combination code to

indicate a series of error report.

(Green Yellow Red) On: 1 Off: 0

001 AT command failed

010 no SIM card detected

011 it need to enter the PIN code

100 it need to enter the PUK code

101 registration failed

110 something wrong happened in the module

Function

Operation

Reboot

Push the button for 2~7 seconds under working status.

Restore to factory

default setting

Keep pushing the button once you power on the

router until all the LED light blink one by one

recurrently. It will cost several seconds to finish the

reset operation.

When all the LED light blinks hold on 2 seconds, it

means that the router loads default successfully.

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 4/16

Indicator

Status

Description

Link Indicator

Off

Connection is down.

Connection is up.

Blink

Data is being transmitted

Chapter 2 Hardware Installation

2.1 Install SIM Card

Remove slot cover

1. Make sure power supply is disconnected.

2. Use a screwdriver to unscrew the screw on the cover, and then remove the cover, you could find the SIM Card

slots.

Inserting SIM Card

3. Insert the SIM card, and you need press the card with your fingers until you hear “a cracking sound”. Then use a

screwdriver to screw the cover.

Removing SIM Card

4. Make sure router is power off.

5. Press the card until you hear “a cracking sound”, when the card will pop up to be pulled out.

Note:

1. Recommended torque for inserting is 0.5N.m and the maximum torque is 0.7N.m.

2. Please use the specific M2M SIM card when the device works in extreme temperature (temperature exceeding

0-40

℃

), because the long-time working of regular SIM card in harsh environment (temperature exceeding

0-40

℃

)may increase the possibility of SIM card failure.

3. Don’t forget screw the cover for again-theft.

4. Don’t touch the metal surface of the SIM card in case information in the card is lost or destroyed.

5. Don’t bend or scratch your SIM card. Keep the card away from electricity and magnetism.

6. Make sure router is power off before inserting or removing your SIM card.

2.2 Connect the External Antenna

Connect router with an external antenna connector. Make sure the antenna is within correct frequency range and is

screwed tightly. Recommended torque for mounting is 0.35N.m

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 5/16

2.3 Ground the Router

Grounding and wire router helps limit the effects of noise due to electromagnetic interference (EMI). Run the ground

connection from the ground by screwing to the grounding surface before connecting devices.

Note: This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel.

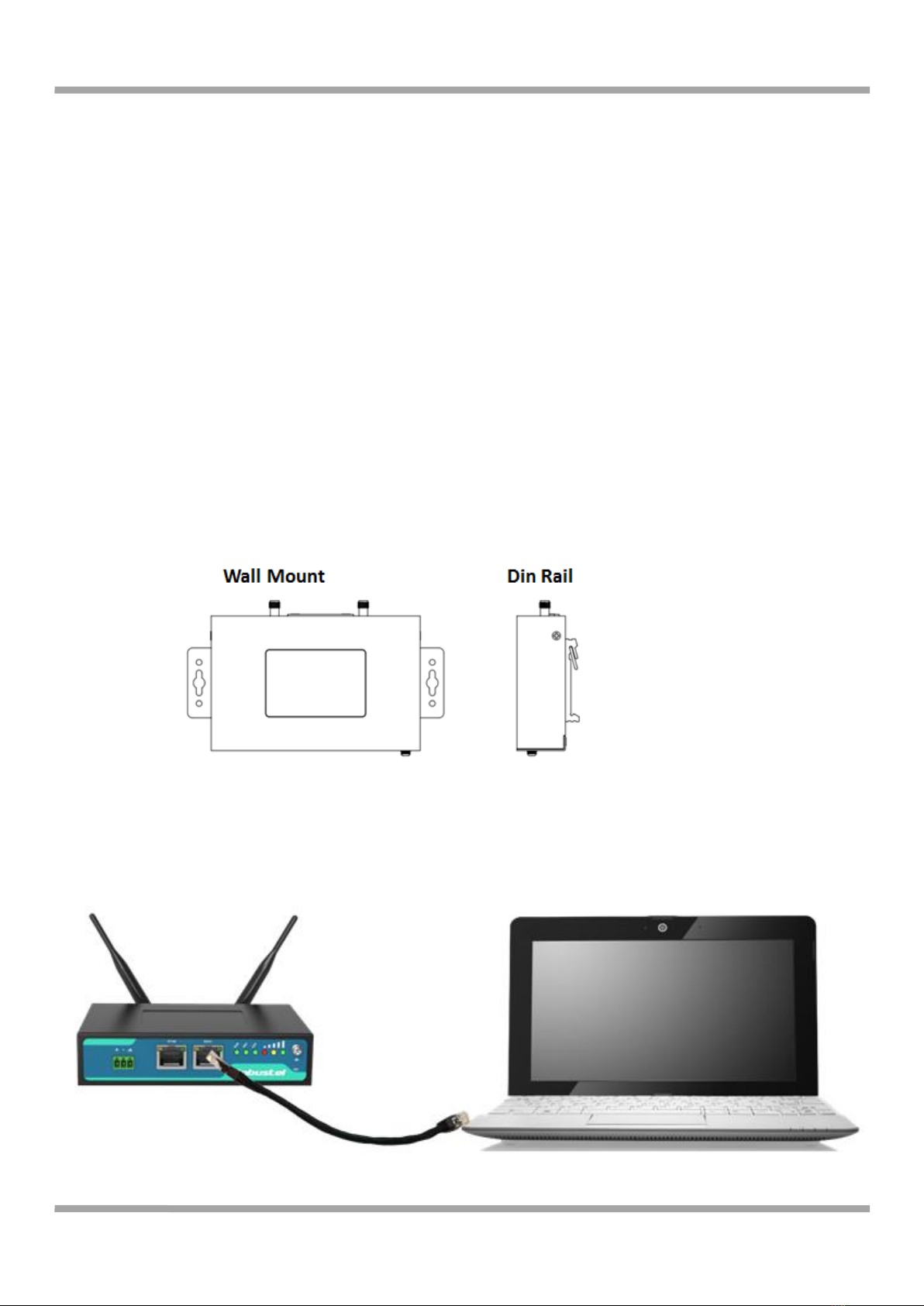

2.4 Mount the Router

The router may be placed on a horizontal surface such as a desktop, mounted on a DIN-rail, or mounted on the wall.

Two ways of mounting the router

1. Use 4 pcs of M2.5 screw to fix the router on the two metal plates.

And then use 2 pcs of M3 screw with point-end to mount the router with two metal plates on the wall.

Recommended torque for mounting is 0.5N.m and the maximum torque is 0.7N.m.

2. Mount the router on a DIN rail with 3 pcs of M3 screws, and then hang the DIN-Rail on the holder.

You need to choose a standard holder. Recommended torque for mounting is 1.0N.m and the maximum torque

is 1.2N.m.

Note: When mounting the unit on a DIN-rail, make sure that it is oriented with the metal springs on top.

2.5 Connect R2000 to PC with Ethernet cable

Use a standard cross-over Ethernet cable to connect R2000 to PC with Eth0 or Eth1 port.

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 6/16

2.6 Power Supply

The power supply range is 6 to 26 VDC.

Note: Please take care about the polarity, and do not make reverse connection. There are two lines connecting to the

power supply adapter, as it illustrates on the power supply adapter label, the line printed with letters needs to be

connected with the positive polarity, and the striped line needs to be connected with the negative polarity.

Chapter 3 Initial Configuration

The router can be configured through your web browser that include IE 8.0 or above, Chrome and Firefox. A web

browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows

98/NT/2000/XP/Me/Vista/7/8, etc. It provides an easy and user-friendly interface for configuration.

There are various ways to connect the router, either through an external repeater/hub or connect directly to your PC.

However, make sure that your PC has an Ethernet interface properly installed prior to connecting the router.

You must configure your PC to obtain an IP address through a DHCP server or a fixed IP address that must be in the

same subnet as the router. If you encounter any problems accessing the router web interface it is advisable to

uninstall your firewall program on your PC, as this tends to cause problems accessing the IP address of the router.

3.1 Configuring PC in Windows 7

There are two methods to obtain IP address for the PC, one is automatically obtain IP address from DHCP server, and

another is manually configured static IP address within the same subnet of R2000 router.

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 7/16

The configuration for windows system is similar.

1. Go to Start \Control Panel \Network and Internet\Network Connections. Double-click Local Area Connection.

2. In the Local Area Connection Status window, click Properties.

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 8/16

3. Select Internet Protocol (TCP/IP) and click Properties.

4. Configure the IP address of PC.

Automatically obtain IP address from DHCP server

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 9/16

Manually configured static IP address within the same subnet of R2000 router

5. Click OK to finish the configuration.

3.2 Login Router

Before configuring your router, you need to know the following default settings.

Item

default setting

Username

admin

Password

admin

LAN

192.168.0.1/255.255.255.0

DHCP Server

Enabled

1. On the PC, open a web browser such as Internet Explorer.

2. In the browser’s address bar, enter the IP address of the Router. The default IP address is 192.168.0.1, though

the actual address may vary.

Note: If you had inserted a public IP SIM card in R2000, you can enter the public IP of the SIM card which was

obtained from ISP in the browser’s address bar, so that you can wireless access R2000 thought this public IP.

Robustel GoRugged R2000 Quick Guide

RT_QG_R2000 _v.1.0.0 07.09.2015 10/16

3. Input the username and password and login the R2000.

4. After logging in the R2000, the home page of the R2000 router’s web interface is displayed, just like the

screenshot below.

This section allows users to save configuration, reboot router, logout.
